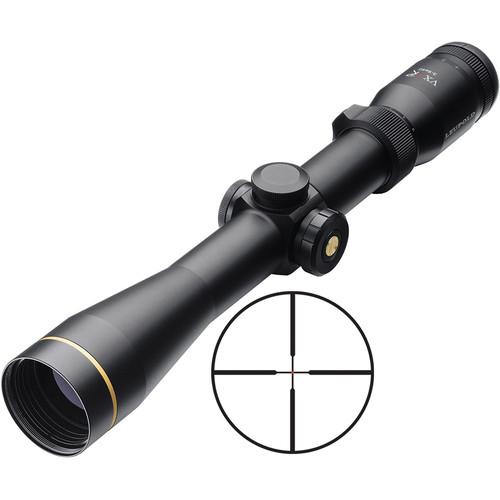

Product description Made in the USA and decorated with a 24kt gold-plated ring and a medallion, the matte black 3-9x50 VX-R Riflescope from Leupold features a wide 50mm objective lens so your scope will gather the maximum amount of light in low-light conditions like dusk or dawn. The optical system offers index-matched multiple anti-glare coatings that reduce reflections and maximize light transmission. In order to improve contrast and reduce stray light, the eco-friendly lead-free optical elements have their edges blackened. The DiamondCoat protective coatings on external elements protect lenses from scratches and further improve transmission. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 60 MOA windage and elevation adjustment range with a 1/4 MOA impact point correction.
The Illuminated FireDot Duplex Reticle is defined by heavy posts that are easily visible on any background or in twilight and a thin crosshair with a bright-red illuminated fine center dot.
The 6061-T6 aluminum housing is lightweight and durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force. To prevent internal condensation when you are moving through temperature gradients, the housing is filled with a proprietary mixture of krypton and argon gases. - FireDot Duplex Reticle
-
- 2nd focal plane
- Heavy posts are easily visible on any background or in twilight
- Illuminated fine center dot
- Thin crosshair
- MST-Motion Sensor Technology extends battery life:
- Deactivates illumination after 5 minutes of inactivity
- Re-activates illumination when you move your rifle
- Optical Performance
-
- Actual magnification: 3.3 - 8.5x
- 50mm Objective lens
- Index-Matched Lens System matches coatings-to-glass indices to reduce reflections, improve transmission, and to provide greater detail
- Blackened lens edges absorb stray light and improve contrast
- DiamondCoat coating defends against external damage and boosts light transmission
- Lead-free glass optics are environmentally friendly
- Eye relief: 4.2 - 3.6"
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
- One-turn fast-focus eyepiece with removable rubber eye guard
- Construction Details
-
- 30mm single-piece maintube
- 6061-T6 aluminum housing with matte black finish
- Low-profile zoom lever allows a fast one-finger operation
- Twin bias spring erector system provides more holding force to withstand recoil
- Fogproof & waterproof, filled with an argon-krypton mixture
UPC: 030317106881 In the Box Leupold 3-9x50 VX-R Riflescope (FireDot Duplex Illuminated Reticle, Matte Black) - CR-2032 Battery
- Bikini Lens Cover
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-9x50 VX-R Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 110688 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.6' @ 100 yd / 11.2 m @ 100 m
9x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Eye Relief | 3.6 to 4.2" / 91 to 107 mm | | | | Reticle Type | FireDot Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.3" / 312 mm | | Weight | 16.1 oz / 456.4 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 15.3 x 3.8 x 3.3" |
