User Manual for Leupold 4-12x40 VX-Freedom Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 4-12x40 VX-Freedom Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 4-12x40 VX-Freedom Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

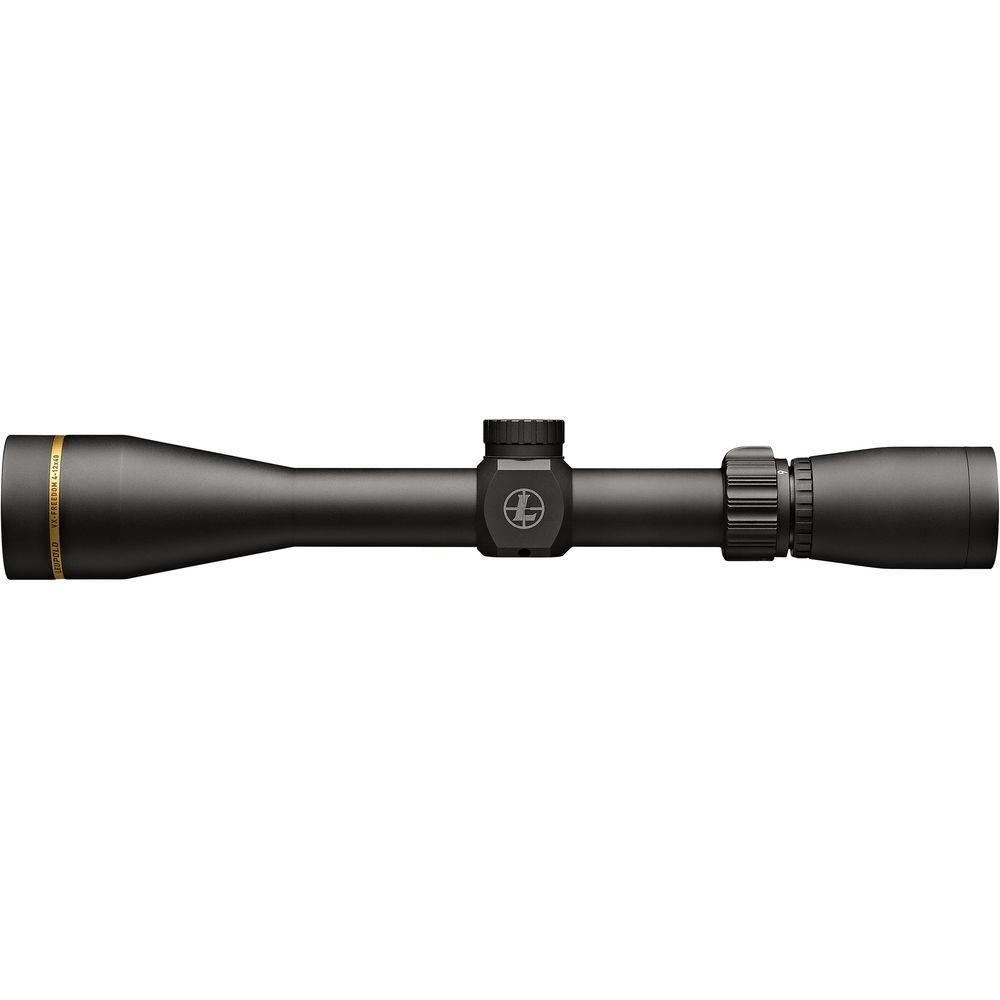

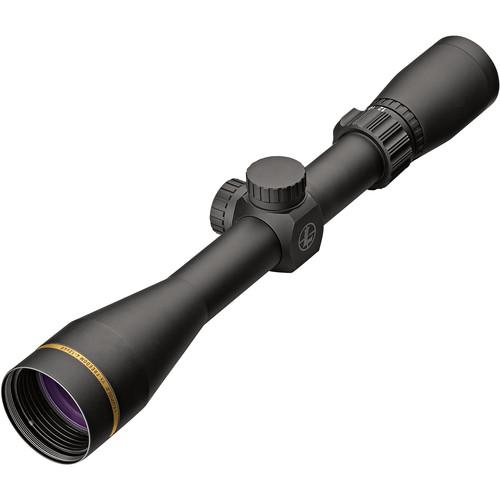

Product description Leupold designed the 4-12x40 VX-Freedom Riflescope to give hunters a new generation scope with clear and bright optics that is packaged into a compact, durable, waterproof, and fogproof body. The optical system is optimized to excel in low light using a wider-than-average 40mm objective and the proprietary Twilight Light Management System, which lets more usable light reach your eye and reduces glare. For comfortable aiming, the eyepiece offers a 4.9 - 3.7" eye relief, and for making trajectory adjustments, windage and elevation give you an 80 MOA range with 1/4 MOA clicks. Another central highlight of the optical system is the second focal plane Tri-MOA reticle, featuring four bold posts and a crosshair with horizontal and vertical stadia. The stadia give you 10 MOA of range in each direction, 1 MOA minor marks, and 5 MOA major marks. - Optical Performance
-
- 4-12x zoom magnification

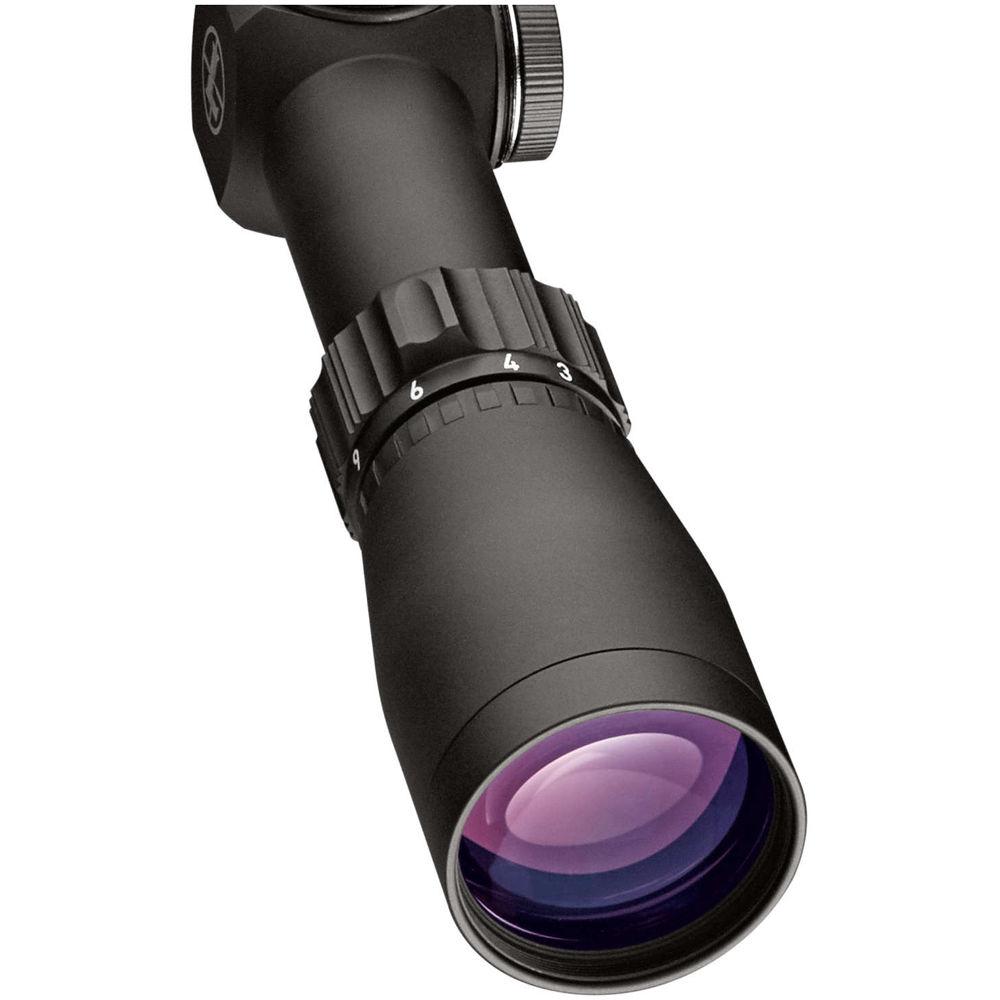

- 40mm objective delivers bright images in low light and allows you to hunt at dawn or dusk
- Twilight Light Management System increases amount of usable light and reduces glare
- Anti-reflection coated optics
- Scratch-resistant coating
- Use and Handling
-

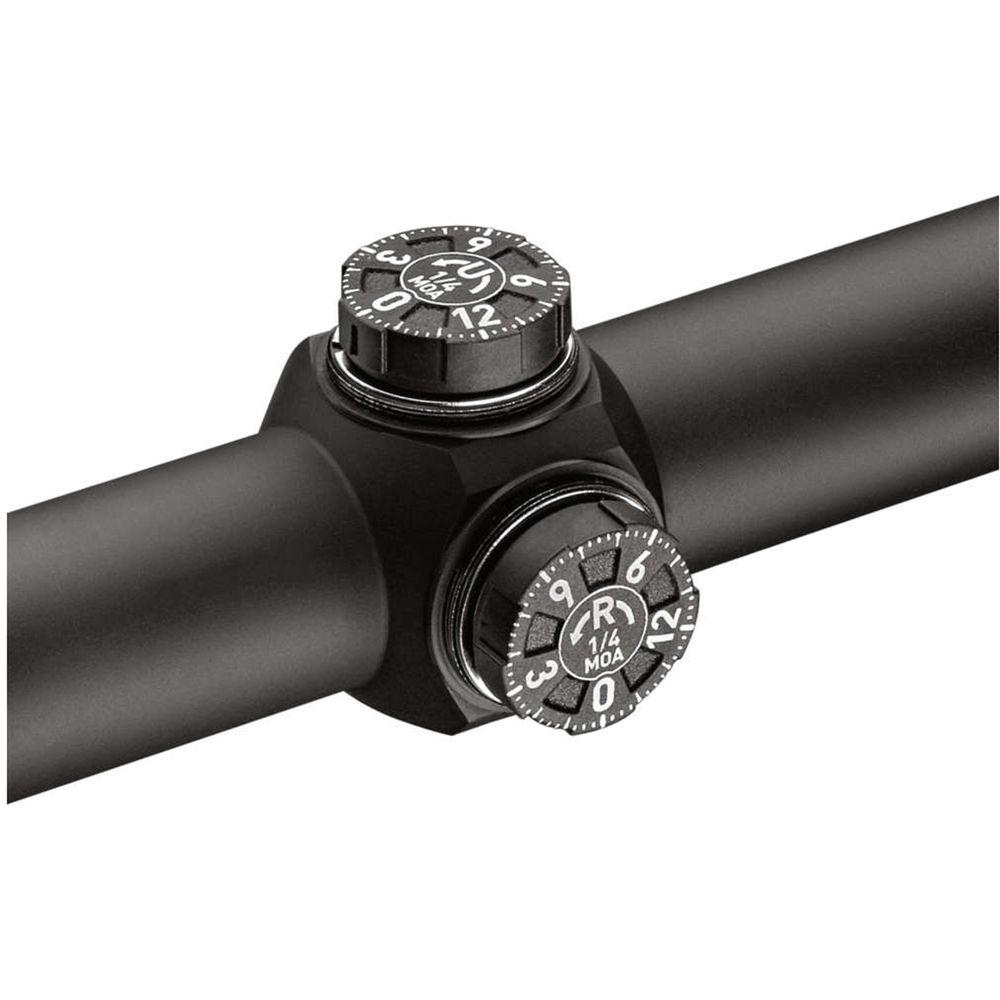

- 1/4 MOA impact point correction
- 80 MOA windage and elevation range
- Construction Details
-
- 6061-T6 aluminum alloy
- 1" diameter maintube

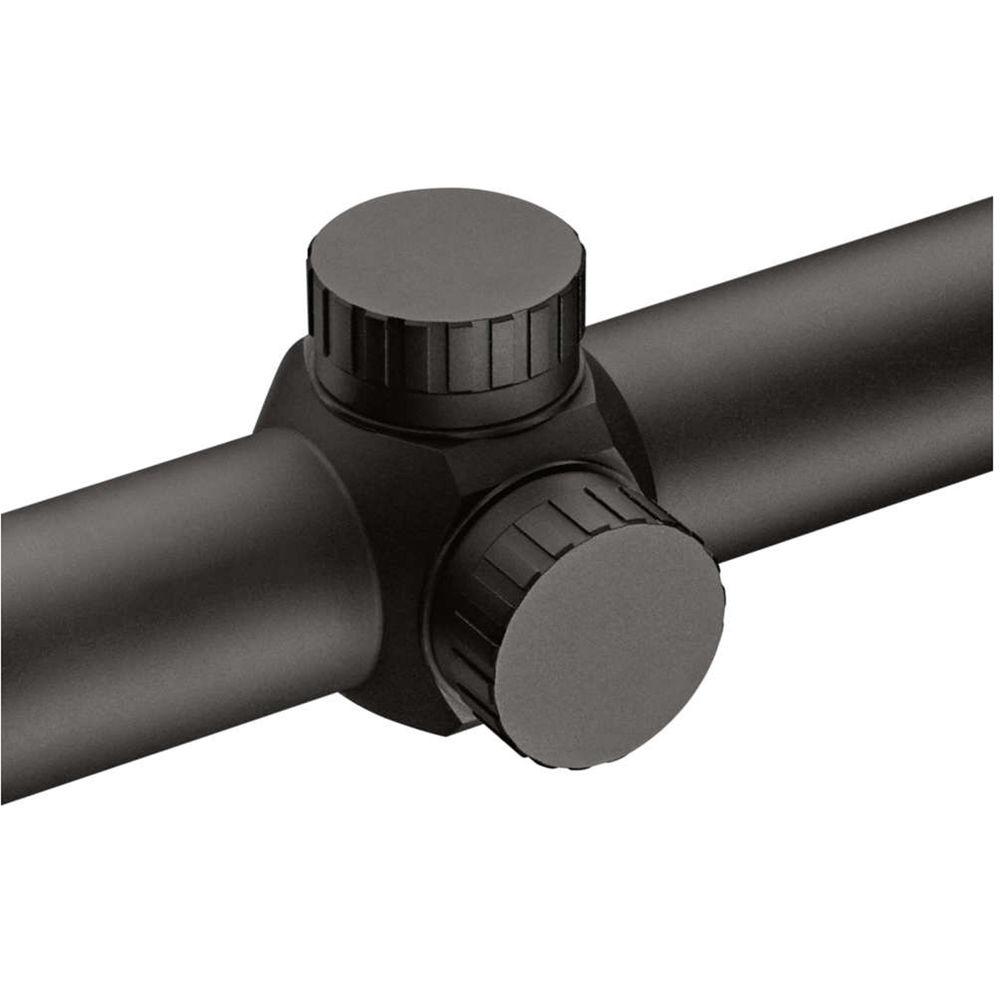

- Capped turrets
- Waterproof and fogproof
- Tri-MOA Reticle
-
- Second focal plane
- Four bold posts
- Crosshair has horizontal and vertical 1 MOA and 5 MOA marks
UPC: 030317018481 In the Box Leupold 4-12x40 VX-Freedom Riflescope (Tri-MOA Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4-12x40 VX-Freedom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Leupold 4-12x40 VX-Freedom Riflescope can be downloaded in PDF format at the link stated below.
Technical parametersLeupold 174665 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 21.5' @ 100 yd / 7.2 m @ 100 m
12x: 10' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.7 to 4.9" / 94 to 124.5 mm | | | | Reticle Type | MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 30.9 cm | | Weight | 13.1 oz / 371 g | | | | Package Weight | 1.26 lb | | Box Dimensions (LxWxH) | 14.2 x 3.6 x 2.95" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Leupold 4-12x40 VX-Freedom Riflescope
| Subject: 4x12 x50 VX freedom | | Date: 19.02.2022 21:00:49 | Name: Larry.kramer | | My scope horizontal adjustment down bottoms out and I'm still 15 high....its on a 308 Howa ...rings are leval how do I fix this? | | Post reply |
