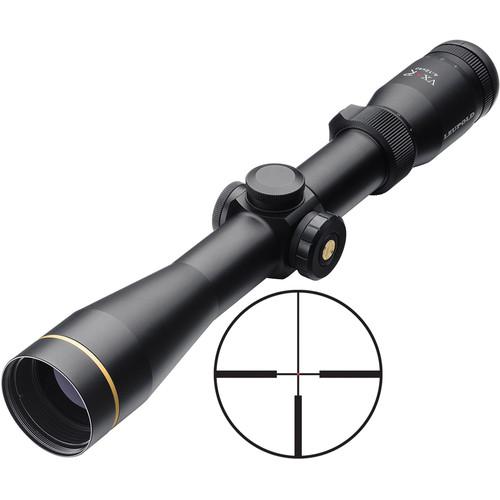

User Manual for Leupold 4-12x40 VX-R Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 4-12x40 VX-R Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 4-12x40 VX-R Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Decorated with a 24kt gold-plated ring and a medallion, the matte black 4-12x40 VX-R Riflescope from Leupold is designed for medium-range shooting and features an illuminated Ballistic FireDot Reticle. The optical system offers index-matched multiple anti-glare coatings that reduce reflections and maximize light transmission. In order to improve contrast and reduce stray light, the eco-friendly, lead-free optical elements have their edges blackened. The objective lens surface is also protected from scratches with the DiamondCoat coating. To help you compensate for wind drift and ballistic bullet drop, the scope offers 80 MOA windage and elevation adjustment range with a 1/4 MOA impact point correction.
The Illuminated Ballistic FireDot Reticle features a bright fine center dot that is ideal for fast target acquisition at extended ranges.
The 6061-T6 aluminum housing is lightweight and durable, waterproof, and features a 3x twin bias spring erector system that increases holding force. To make sure that your optics don't accumulate condensation when you are moving through temperature gradients, the housing is filled with a proprietary mixture of krypton and argon. - Optical Performance
-
- Actual magnification: 4.4-11.7x
- Objective lens diameter: 40mm
- Index-matched lens system: reduces reflections, improves transmission, and provides greater image detail
- Blackened lens edges absorb stray light and improve contrast
- DiamondCoat is an extra layer of coating that defends against external damage and adds to image quality
- Lead-free glass optics are environmentally friendly
- Ballistic FireDot Illuminated Reticle
-
- 2nd focal plane
- Illuminated bright fine center dot
- For fast target acquisition at extended ranges
- MST: Motion Sensor Technology extends battery life:
- Deactivates illumination after 5 minutes of inactivity
- Re-activates illumination when you move your rifle
- Use and Handling
-
- 1/4 MOA impact point correction
- 80 MOA windage and elevation adjustment range
- Construction Details
-
- 30mm single-piece maintube
- 6061-T6 aluminum housing
- Low-profile tactile zoom lever allows a fast one-finger operation
- 3x twin bias spring erector system
- Waterproof & Fogproof: Filled with an argon-krypton mixture
-
In the Box Leupold 4-12x40 VX-R Riflescope (Ballistic FireDot Illuminated Reticle, Matte Black) - Bikini Style Lens Cover
- CR-2032 Battery
- Limited 2-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4-12x40 VX-R Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 111240 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 21.5' @ 100 yd / 7.2 m @ 100 m
12x: 10' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 4x: 9.1 mm
12x: 3.4 mm | | Eye Relief | 3.7 to 4.9" / 94 to 124.5 mm | | | | Reticle Type | Ballistic FireDot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.4" / 315 mm | | Weight | 14.6 oz / 413.9 g |
