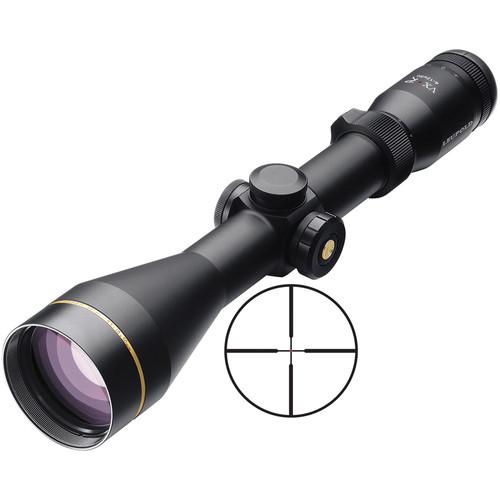

User Manual for Leupold 4-12x50 VX-R Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 4-12x50 VX-R Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 4-12x50 VX-R Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Made in the USA and decorated with a 24k gold-plated ring and a medallion, the matte black 4-12x50 VX-R Riflescope from Leupold is designed for distance shooting and features an illuminated FireDot Duplex reticle. With a wide 50mm objective lens, your riflescope will enable you to obtain improved visibility and image brightness in low light situations and get the most out of dusk and dawn missions. The optical system offers index-matched multiple anti-glare coatings that reduce reflections and maximize light transmission. In order to improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened. The DiamondCoat protective coatings on external elements protect lenses from scratches and further improve transmission to 94%. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 75 MOA windage and elevation adjustment range with a 1/4 MOA impact point correction. Located in the second focal plane, the Duplex reticle is defined by heavy posts that are visible well on any background or in twilight and a thin crosshair. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor. The 6061-T6 aluminum housing is lightweight and durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of argon and krypton gases. Also included with the riflescope are a CR2032 battery and an Allen wrench. Optical Performance -
- Actual magnification: 4.5-11.6x
- 50mm objective lens helps gather maximum light and improves visibility in low light situations
- Main tube diameter: 30 mm
- Linear field of view: 22 - 10.4' @ 100 yd
- Eye relief: 4.1-3.7"
- Index-Matched Lens System matches coatings-to-glass indices to reduce reflections and improve transmission and provides greater image detail
- Blackened lens edges absorb stray light and improve contrast
- Lead-free glass optics are environmentally friendly
- DiamondCoat is an extra layer of coating that defends against external damage and boosts light transmission to 94%
FireDot Duplex -
- Second focal plane location allows keeping the reticle size constant
- Heavy posts are visible well on any background or in twilight
- Thin crosshair
Use and Handling -
- 1/4 MOA impact point correction
- 75 MOA windage and elevation adjustment range
- Tactile power indicator allows range estimation
- Externally threaded fast-focus eyepiece provides a quick and easy reticle focus
Construction Details -
- 24k gold-plated ring and medallion
- 6061-T6 aluminum housing with matte black finish
- 1.18" single-piece main tube
- Low profile zoom lever allows a fast one-finger operation
- Twin bias spring erector system provides 30% more holding force to withstand recoil
- Fogproof, filled with an argon-krypton mixture
- Waterproof
UPC: 030317112417 In the Box Leupold 4-12x50 VX-R Riflescope (Illuminated FireDot Duplex) - CR2032 Battery
- Allen Wrench
- Limited 2-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4-12x50 VX-R Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 111241 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 22' @ 100 yd / 7.3 m @ 100 m
12x: 10.4' @ 100 yd / 3.5 m @ 100 m | | Eye Relief | 3.7 to 4.1" / 94 to 104 mm | | | | Reticle Type | FireDot Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.2" / 310 mm | | Weight | 16.5 oz / 468 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 14.016 x 3.465 x 2.992" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
