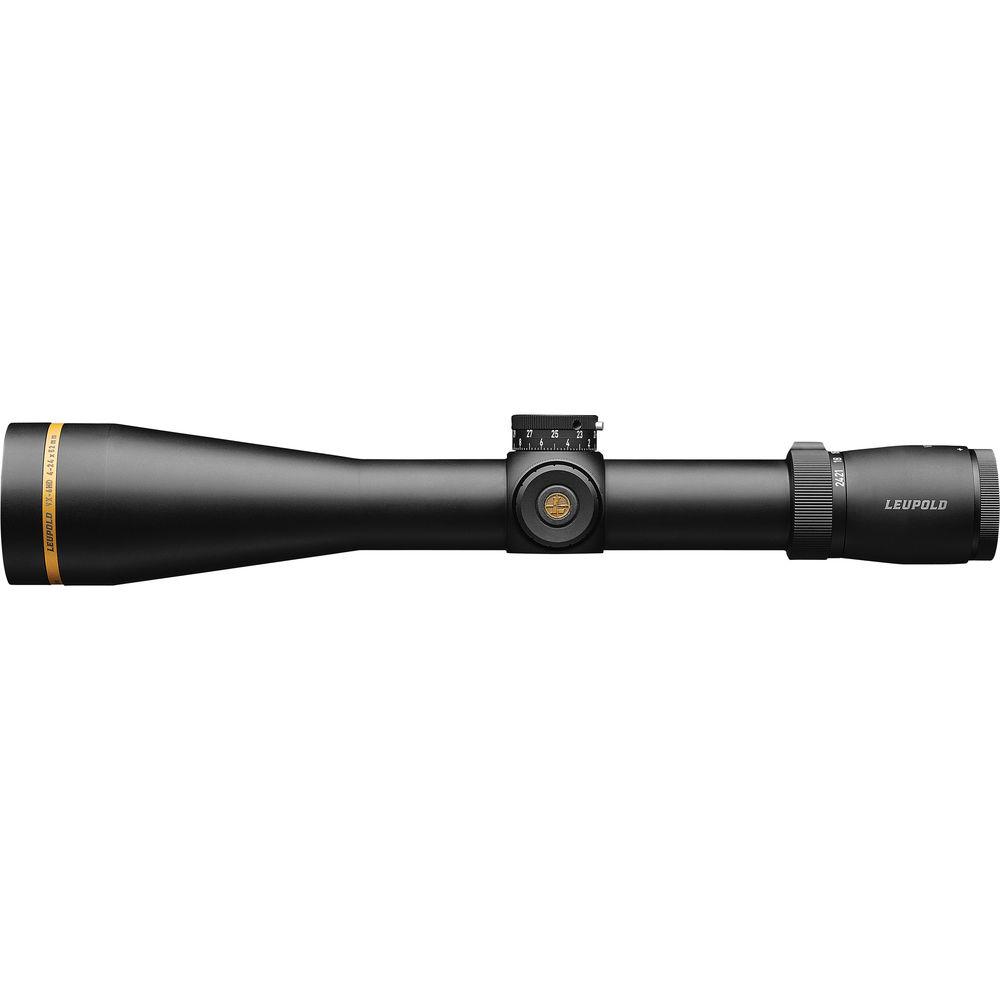

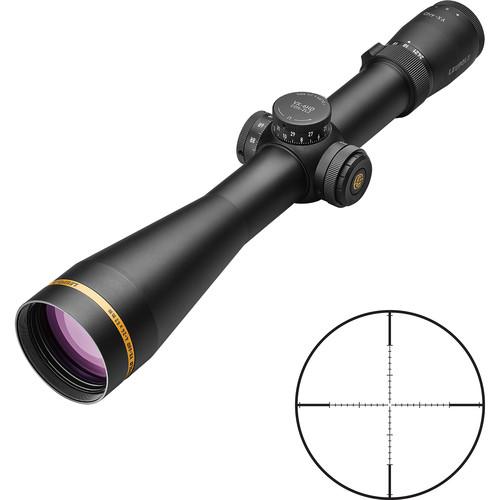

Product description Leopold's 4-24x52 VX-6HD CDS-ZL2 Side Focus Riflescope is a new iteration that carries over old reliability and performance but features upgrades like: High-Definition (HD) optics, their Twilight Max Light Management System, and fast CDS-ZL2(CDS ZeroLock 2) windage and elevation dials. While the High-Definition (HD) optics ensure high-contrast and true color images, their proprietary Twilight Max Light Management System features improved transmission throughout the entire visible spectrum — emphasizing reds and blues at the spectral edges, and providing shooters with deep views into the shadows of twilight. With the wide 52mm lens this riflescope delivers improved visibility in challenging lighting conditions. Another major improvement is the Guard-Ion hydrophobic optical coating that prevents finger stains and repels water droplets, dust, and dirt from optical surfaces. To improve contrast even further, and to reduce stray light, the eco-friendly lead-free optical elements have their edges blackened. DiamondCoat 2 protective coatings on all external surfaces protect the optics from scratches.

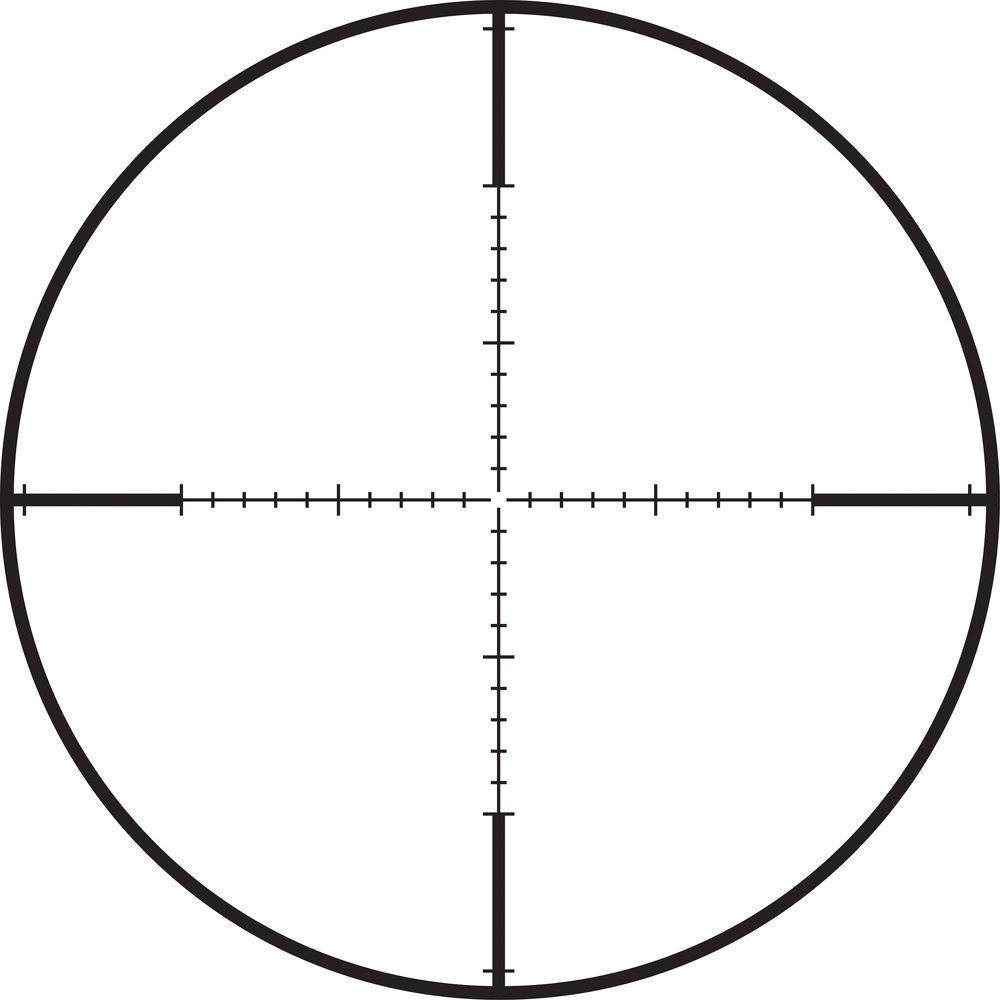

Another highlight of this optic is its 2nd focal plane T-MOA illuminated reticle. The reticle features ultra-fine features and a brilliant red crosshair with MOA-based compensation dots on the crosshair. This reticle also offers a canting indicator that flashes when your firearm is misaligned. To help you compensate for wind drift and ballistic bullet drop, the scope has 75 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction.
The match the impeccable quality of the optics, the housing is crafted from an ultra-durable and lightweight 6061-T6 aluminum alloy and features a 34mm maintube. It is filled with an argon-krypton gas mixture to ensure a waterproof and fogproof performance. The lockable eyepiece offers specially featured CDS-ZL2(ZeroLock 2) capped finger-operated dials that are engineered to provide twice the travel, fast adjustments, and accurate returns to zero. - Optical Performance
-
- 4 - 24x magnification
- 28 - 5' at 100 yards linear FOV
- 52mm wide objective delivers brighter images in low light
- High-Definition (HD) lenses offer higher contrast, clarity, and true color
- Twilight Max Light Management System improves transmission of blues and reds at the edges of the visible spectrum to enhance visibility in twilight
- Guard-Ion hydrophobic lens coating repels water and dirt and prevents fingerprints stains
- Blackened Lens Edges: Reduce unwanted glare and diffusion through the lens edges to provide better resolution and contrast
- DiamondCoat 2 is an extra layer of coating that defends against external damage and adds to image quality
- Eye Relief: 3.7"
- Exit Pupil: 13.0 - 2.2mm
- T-MOA Illuminated Reticle
-
- 2nd focal plane
- Built-in flashing canting indicator
- Modified Mil Dot style
- Ultra-fine features
- MOA-based compensation dots on the crosshair separated by 1 MOA
- MST: Motion Sensor Technology deactivates and resumes reticle illumination based upon motion
- Push button brightness control with 8 settings
- Parallax correction form 50 yards to infinity
- Use and Handling
-
- 1/4 MOA impact point correction
- 75 MOA windage and elevation adjustment range
- Construction Details
-
- 24kt gold ring and medallion
- 6061-T6 aluminum housing
- 34mm single-piece maintube
- CDS-ZL2(ZeroLock 2): capped finger-operated dials provide extended travel, fast adjustments, and accurate returns to zero
- Twin bias spring erector system provides 30% more holding force to withstand recoil
- Custom Dial System (CDS) allows you to change the elevation quickly to different sight-in ranges
- Side focus parallax corrector
- Fogproof, filled with an argon-krypton mixture
- Throw lever and threaded plug included
- Alumina flip-back lens covers included
- Waterproof
UPC: 030317012502 In the Box Leupold 4-24x52 VX-6HD SF CDS-ZL2 Riflescope (T-MOA Illuminated Reticle, Matte Black) - CR-2032 Battery
- 2 x Alumina Flip-Back Lens Covers
- 2 x CDS Dials
- Throw Lever
- Threaded Plug
- Neoprene Scope Cover
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4-24x52 VX-6HD SF CDS-ZL2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 171579 Specs | | | Magnification | 4 to 24x | | Objective Lens Diameter | 52 mm | | Field of View | 4x: 28' @ 100 yd / 9.3 m @ 100 m
24x: 5' @ 100 yd / 1.7 m @ 100 m | | Eye Relief | 3.7" / 94 mm | | | | Reticle Type | T MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 23.7 oz / 671.9 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 17.1 x 4.3 x 3.9" |
