User Manual for Leupold 4.5-14x50 VX-3i LRP SF Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 4.5-14x50 VX-3i LRP SF Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 4.5-14x50 VX-3i LRP SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

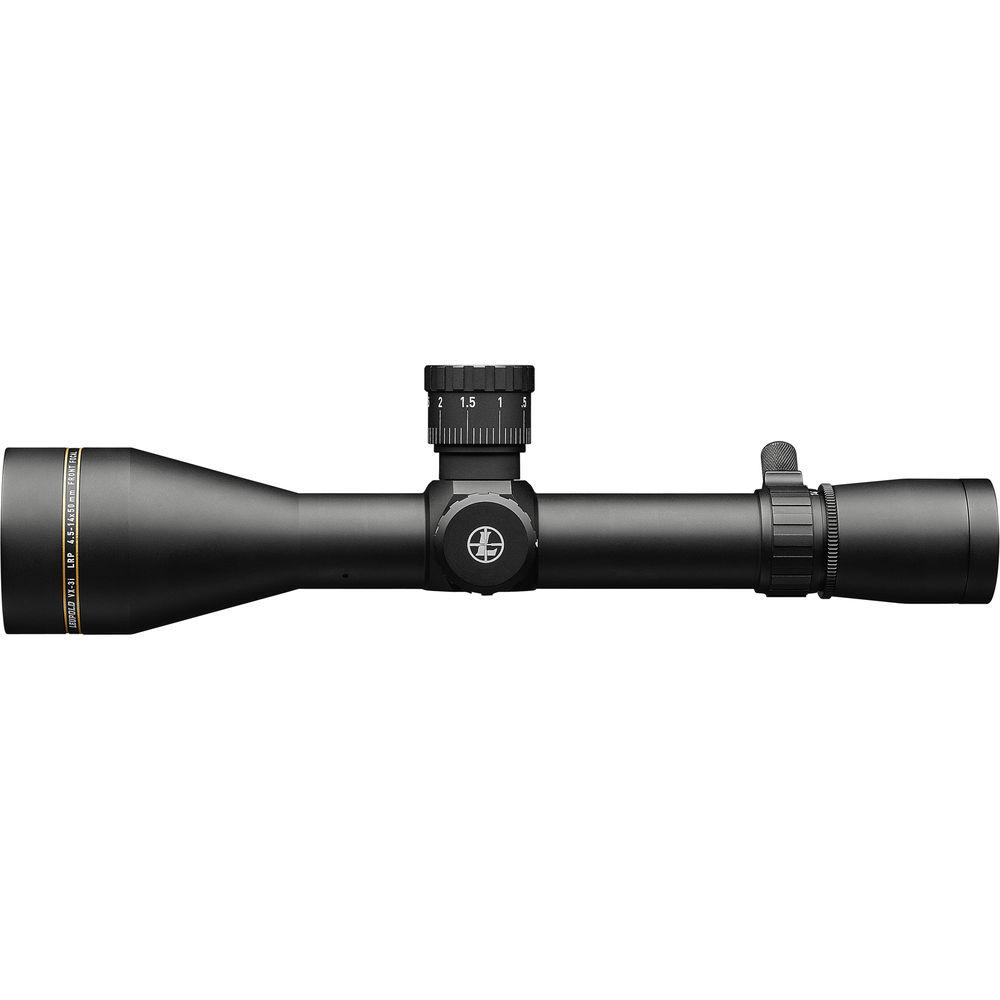

Product description Leupold's 4.5-14x50 VX-3i LRP SF Riflescope is designed for long-range precision (LRP) competitions or hunting. It carries over reliable performance of previous versions but features upgrades like the new elevation dial with a travel indicator and a non-illuminated TMR Reticle. The optical system is enhanced with the proprietary Twilight Max Light Management System, which improves transmission of the entire visible spectrum, resulting in bright and high-contrast images even in low light. Its wide 50mm objective lens further improves visibility in challenging lighting conditions. To protect the optics from scratches and abrasions, the exterior lenses are also treated with DiamondCoat 2 protective coatings for increased resistance to scratches and abrasions. At the core of this riflescope is the 1st focal plane Tactical Milling Reticle (TMR). It features four medium posts and a fine milling crosshair.
For durability and strength, the housing is crafted from an ultra-durable and lightweight 6061-T6 aluminum alloy and features a strong 30mm maintube. It is filled with an argon-krypton gas mixture to ensure a water and fogproof performance and offers a tall graduated, finger-operated elevation turret and a side focus parallax dial. - Optical Performance
-
- 50mm objective diameter
- 4.5-14x magnification
- Twilight Max Lens System coatings improve image brightness in low light
- DiamondCoat 2: scratch- and abrasions-resistant coating, which also increases light transmission
- Use and Handling
-
- 0.1 MIL impact point correction
- 23.3 MIL windage and elevation ranges
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm maintube diameter
- Side focus parallax corrector
- Tall elevation turret has travel indicator with 15 MOA/5 MIL marks
- Water and fogproof with an argon/krypton gas fill
- Throw lever included
- Impact resistant

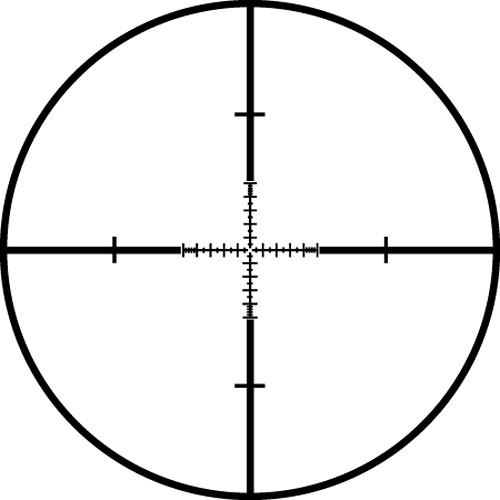

- TMR Reticle
-
- 1st focal plane
- Four medium posts
- Fine MRAD milling crosshair
- Parallax correction from 75 yd to infinity
UPC: 030317013790 In the Box Leupold 4.5-14x50 VX-3i LRP SF Riflescope (TMR, Matte Black) Scope Cover Throw Lever Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4.5-14x50 VX-3i LRP SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172338 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 50 mm | | Field of View | 4.5x: 20.5' @ 100 yd / 6.8 m @ 100 m
14x: 7.6' @ 100 yd / 2.5 m @ 100 m | | Eye Relief | 3.6 to 4.4" / 91 to 112 mm | | | | Reticle Type | TMR Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 23.3 MIL | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 12.3" / 31.2 cm | | Weight | 20.3 oz / 575.5 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 17.2 x 4.3 x 3.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
