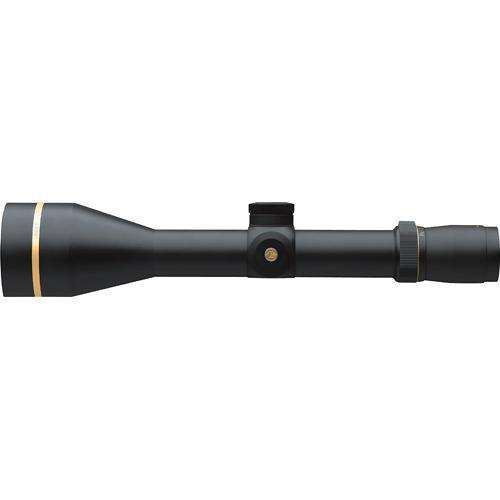

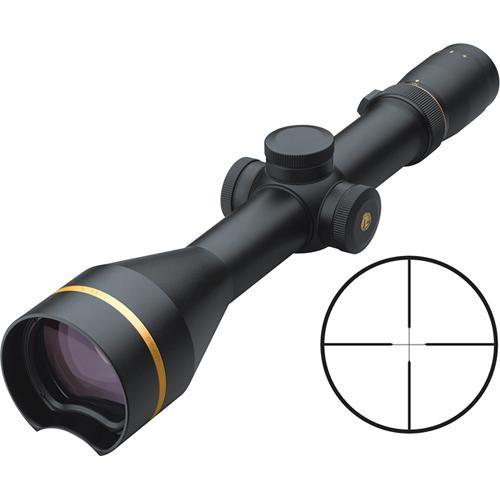

Product description Leupold keeps their successful tradition of delivering state-of-the-art sport optics alive with their persistent attention to detail, precision and quality. This American optics company, located in Portland, Oregon, pioneered the process of nitrogen purging to waterproof riflescopes in 1947. Since then and to this day, Leupold continues to develop new technologies, and use advanced materials to push the envelope to produce some of the world's finest sport optics.Merging the finest qualities of the venerable VX-L riflescopes with the latest innovations of their VX-7 series of scopes, Leupold offers the 4.5-18x56 Long Range VX-7L Riflescope. This scope sports the statuesque and efficient VX-L style objective that's designed for optimum light transmission with a low-profile mount. The main-tube is a stout 34mm for enhanced durability and maximum precision adjustment capability. Whether you're putting the crosshairs on a tiny critter across the wide-open plain, or stalking a trophy bull elk through a tangled mess of dead fall and thick timber, this scope delivers all the flexibility and functionality you could hope for and then some. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 34mm Main Tube
- 34mm Main-tube crafted from 6061-T6 aluminum provides increased body strength while allowing for 90 MOA of W&E adjustment
- Generous Eyebox
- VX-7/L riflescopes have an eyebox that is extremely forgiving; it greatly enhances your ability to quickly register a full & clear sight picture. Minimizing the incidence of scope shadow and blackout gets you on target fast when the situation is less than perfect.
- Light Optimization Profile
- 56mm VX-7L objective mounts as low as a standard 40mm objective & transmits 96% more light - maximum light with a minimum of height
- DiamondCoat 2 Technology
- Proprietary coatings on exterior lens surfaces increases abrasion resistance & light transmission - greater brightness, clarity, & contrast
- Dual Spring Erector System
- Dual springs exert 30% more force upon the erector assembly, which virtually eliminates backlash/stress on the internal mechanics. This enhances tracking, repeatability, longevity.

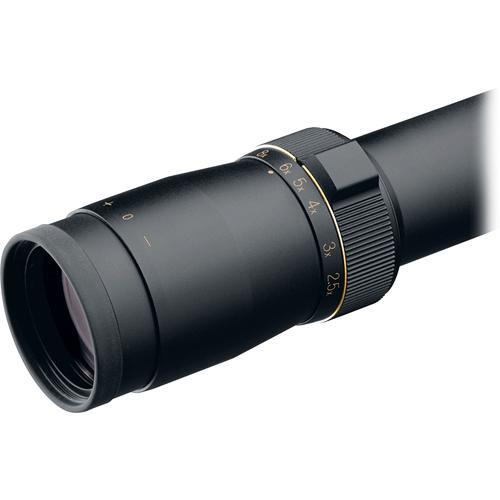

- Extreme Fast Focus Eyepiece
- European style eyepiece rotates 1.5 revolutions lock-to-lock; quick focus adjustments ensure rapid target acquisition. The rubber Alumina eye guard offers protection for your forehead and the ocular.

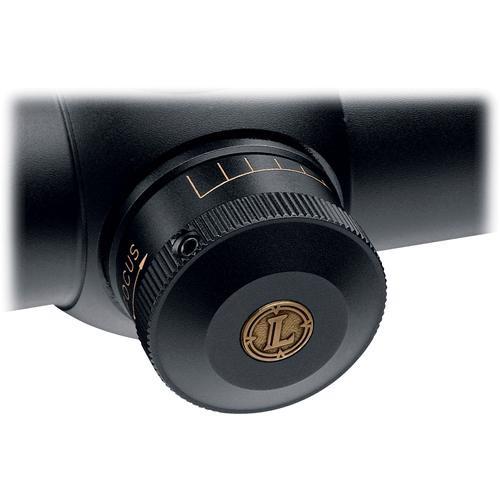

- Side Focus Parallax Adjustment
- Conveniently placed on the saddle, the parallax adjustment knob enables stealthy parallax correction from 65 yd to infinity
- Second Generation Waterproofing
- Argon & krypton gasses enhance thermal shock resistance - provides longer-term water and fog proofing than nitrogen purging
- Xtended Twilight (XT) Lens System
- Index matched lenses with wavelength specific multicoatings optimize low-light wavelength transmission for superior twilight performance

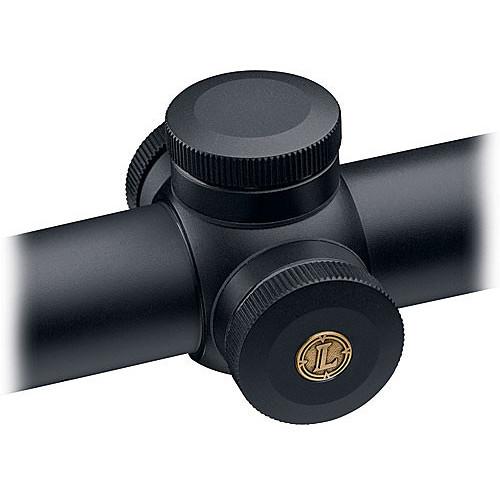

- Low Profile SpeeDial Precision Adjustments
- A few twists of the cap and the knob pops up for 1/4 MOA adjustments. Push the knob back down and twist to lock it back into place. Last minute windage, elevation, or parallax adjustments can be done quickly & silently without losing your turret-caps.

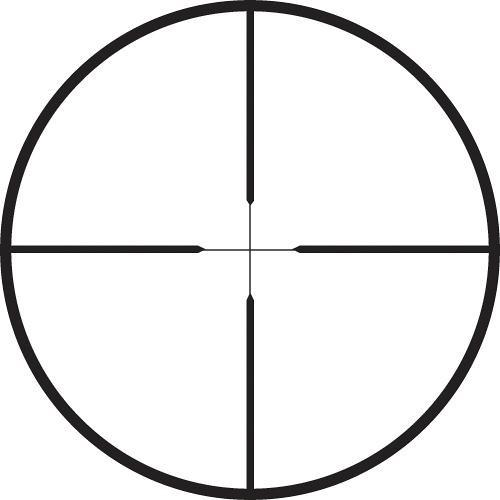

- Fine Duplex Reticle in the Second Focal Plane
- The Fine Duplex reticle simplifies precision shots on smaller targets. The thinner tapered posts obscure less of your line of sight which can be advantageous to the varminter or target shooter
In the Box Leupold 4.5-18x56 Long Range VX-7L Riflescope Set of PRW Mounting Rings Alumina Flip-Back Lens Covers VX-7 Custom Care Package Leupold Full Lifetime Guarantee (Transferrable) Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 4.5-18x56 Long Range VX-7L Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 63185 Specs | | | Magnification | 4.5 to 18x | | Objective Lens Diameter | 56 mm | | Field of View | 4.5x: 20.8' @ 100 yd / 6.9 m @ 100 m
18x: 5.5' @ 100 yd / 1.8 m @ 100 m | | Exit Pupil Diameter | 4.5x: 11.9 mm
18x: 3.1 mm | | Eye Relief | 3.5 to 4.8" / 89 to 122 mm | | Diopter Correction | -2.0 to +1.0 | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | None | | Dimensions | Length: 15" / 36.1 cm | | Weight | 30 oz / 850 g |
