Leupold 6.5-20x40 VX-3i AO Riflescope

Search your instruction manual in PDF to download

User Manual for Leupold 6.5-20x40 VX-3i AO Riflescope

Click to enlarge the picture
Leupold 6.5-20x40 VX-3i AO Riflescope Contents of the user manual for the Leupold 6.5-20x40 VX-3i AO Riflescope
  • Product category: Riflescopes Leupold
  • Brand: Leupold
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Leupold Riflescopes

Leupold 6.5-20x40 VX-3i AO Riflescope Leupold 6.5-20x40 VX-3i AO Riflescope
User manual for the Leupold 6.5-20x40 VX-3i AO Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Leupold product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!



Product description

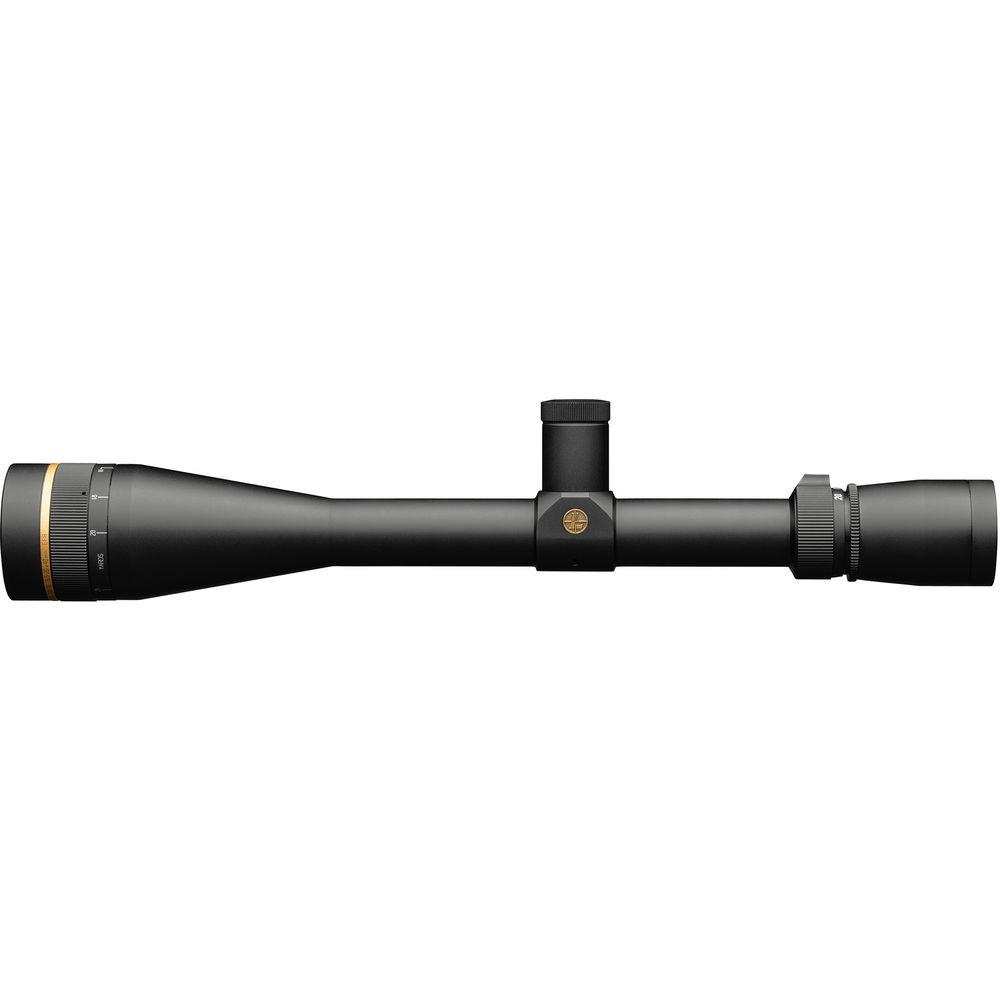

Leupold designed the matte black 6.5-20x40 VX-3i AO Riflescope for twilight hunting and outfitted it to withstand the toughest of conditions and to carry out the most demanding tasks. The optical system was engineered to provide superior performance and features Leupold's proprietary Twilight Max Management System of coatings for improved image brightness, contrast, and true color in challenging light conditions such as dusk or dawn, making target recognition easier on dark, shadowy backgrounds. The external lens surfaces were treated with the ion-assisted DiamondCoat process that increases hardness and durability for protection against debris and abrasion. With all lens edges blackened, the optics will stop stray light to reduce glare and to improve image detail and contrast.

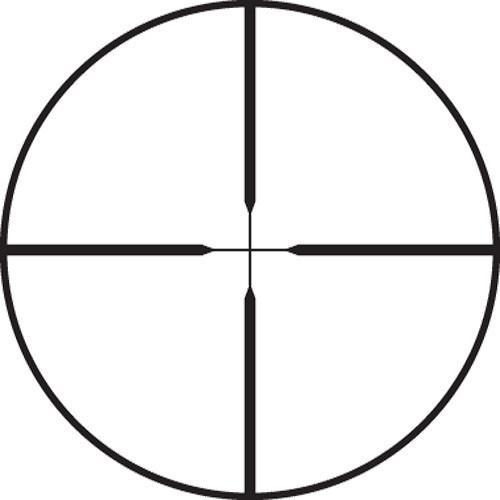

At the core of this riflescope is the second plane Fine Duplex Reticle. It features four fine tapered posts and a fine crosshair. The reticle provides clean and unobtrusive views of your targets, and offers parallax-free aiming from 50 yards to infinity.

Complementing the advanced optical system, this riflescope also features a solid and precise opto-mechanical construction. The housing is made from 6061-T6 aluminum and features a 1" single-piece maintube, a proprietary gas filling for a waterproof and fogproof performance, an easy-to-turn lockable eyepiece, and Custom Dial System (CDS) target turrets and other adjustment rings. Also noteworthy is the twin bias spring erector system that provides more holding force to withstand recoil. To protect the optics during transport, this optic includes a neoprene scope cover.
    Wind-Plex Reticle
    • 2nd focal plane
    • Four medium tapered posts
    • Thin crosshair
    • Parallax-free aiming from 50 yards to infinity
      Optical Performance
      • Fully multi-coated optics
      • 40mm objective lens diameter
      • 6.5-19.2x actual magnification
      • Twilight Max Light Management System:
        • Enhances image brightness and contrast
        • Improves target recognition
      • DiamondCoat lens protection:
        • Ion-assisted coating enhances surface hardness and durability
        • Protects from scratching and abrasions
      • Blackened lens edges:
        • Reduce glare from stray light
        • Improve clarity and contrast
      • Eye relief: 5-3.7"
        Use and Handling
        • 49 MOA windage and elevation ranges
        • 1/4 MOA impact point correction
          Construction Details
          • 1" single-piece maintube
          • 6061-T6 aluminum alloy housing
          • Fast focus locking eyepiece
          • Capped, finger-operated turrets
          • CDS--Custom Dial System target turrets
          • Adjustable objective parallax corrector
          • Twin Bias Spring, 3x erector system
          • Fogproof with proprietary gas mix
          • Neoprene scope cover included
          • Waterproof
          UPC: 030317011086 In the Box Leupold 6.5-20x40 VX-3i AO Riflescope (Fine Duplex, CDS, Matte Black)
        • Neoprene Scope Cover
        • Limited 2-Year Warranty
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Leupold 6.5-20x40 VX-3i AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Leupold 170885 Specs

Magnification Actual magnification: 6.5-19.2x
Objective Lens Diameter 40mm
Maintube Diameter 1"
Reticle Fine Duplex Reticle
2nd focal plane
Parallax-Free 50 yd (45.7 m) to infinity
Field of View 14.3-5.6' @ 100 yd / 4.8-1.9 m @ 100 m
Eye Relief 5-3.7" / 127-94 mm
Exit Pupil Diameter 6.1-2.1 mm
Impact Point Correction 1/4 MOA
Windage/Elevation Adjustment 49 MOA
Weatherproofing Waterproof and fogproof
Length 14.5" / 368.3 mm
Weight 17.8 oz / 505 g
Package Weight 1.85 lb
Box Dimensions (LxWxH) 17.0 x 4.4 x 3.4"
