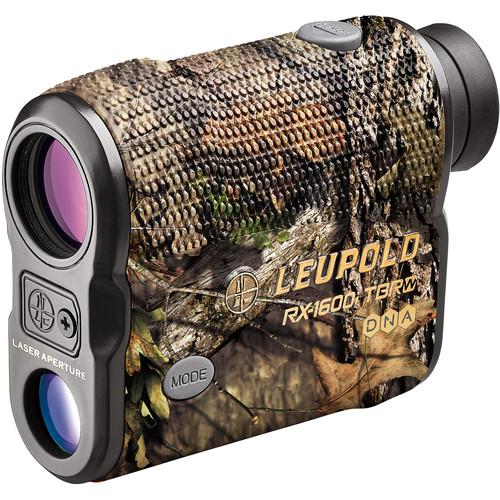

User Manual for Leupold 6x22 RX 1600i TBR W Compact Digital Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Leupold 6x22 RX 1600i TBR W
- Product category: Laser Rangefinders Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Laser Rangefinders
|
User manual for the Leupold 6x22 RX 1600i TBR W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description For shooters and hunters, knowing the distance to a target is not enough – so the 6x22 RX 1600i TBR/W Compact Digital Laser Rangefinder from Leupold supplies crucial ballistic information that accounts for bullet drop, wind, inclines, and declines. Offered here in Mossy Oak Break-Up Country, the rangefinder's True Ballistic Range/Wind functionality is a marriage of laser ranging, an inclinometer, and an advanced computerized ballistics program, indexed to 25 of the most popular ballistic groups. The correct holdover is displayed in inches/centimeters, MRAD, or MOA, and there's a special mode just for bow hunters. Users who prefer to make their own calculations can always use the RX 1600i in Line of Sight mode. The rangefinder's Class 1 eye-safe laser will range to reflective targets up to 1600 yards away, and deer up to 900 yards. Distances are displayed in increments as small as 0.1 yards/meters on a bright OLED display. The Scan mode will take measurements while panning or when tracking a moving target, and Last Target shows the distance to the farthest of multiple targets, instead of an average of the nearest and farthest. You can choose from Plus Point, Duplex with Plus Point, and Duplex without Plus Point reticles. A battery power status indicator prevents unpleasant surprises in the field. The RX 1600i can also be used as a high-performance 6x22 monocular. Its lenses are fully multi-coated to cut reflective glare and maximize light transmission for a bright, sharp image. A fold-down rubber eyecup accommodates eyeglasses. The unit is waterproof, and is easily portable at just 3.8 x 2.9 x 1.3" and 7.8 ounces. - Optical Performance
-
- 6x Magnification
- 22mm objective lens
- Anti-reflection fully multi-coated optics
- 315' field of view at 1000 yards
- 6° angular field of view
- 3.6mm exit pupil
- 17mm eye relief
- True Ballistic Range/Wind
-
- Accounts for distance, wind, inline or decline
- Provides holdover and windage information in inches/centimeters, MRAD or MOA
- Indexed to 25 popular ballistic groups
- Bow mode
- Optional Line of Sight mode
- Use and Handling
-
- Clicking collar
- Minimum range: 6 yd
- Max range:
- 1600 yd to reflective target
- 1200 yd to tree
- 900 yd to a deer
- Measurements in yards or meters
- Spot and continuous-scan modes
- Runs on one included CR2 battery
- In-view power status indicator
- Construction Details
-
- Composite plastic body
- Matte black textured slip-resistant rubber armor on top grip
- Fold-down eyecups
- Waterproof
- LCD display
- Reticles
-
- Plus Point for varmints and other small targets
- Duplex with Plus Point and Duplex without Plus Point for more precise ranging
UPC: 030317017552 In the Box Leupold 6x22 RX 1600i TBR/W Compact Digital Laser Rangefinder (Mossy Oak Break-Up Country) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 6x22 RX 1600i TBR W Compact Digital Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold RX 1600i TBR/W Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens Diameter | 20mm | | Angle of View | 6° | | Field of View | 315' @ 1000 yd / 105 m @ 1000 m | | Laser Type | Class 1 eye-safe IR | | Metering Range | Minimum:
6 yd / 5.5 mMaximum:
Reflective Target: 1600 yd / 1463 m
Tree: 1200 yd / 1097 m
Deer: 900 yd / 823 m | | Accuracy | ±0.5 yd / 0.5 m out to 100 yd / 91 m | | Exit Pupil Diameter | 3.6 mm | | Eye Relief | 17 mm | | Weatherproofing | Waterproof | | Power Source | 1 x CR2 Battery, 3V | | Dimensions | 3.8 x 2.9 x 1.3" / 9.6 x 7.4 x 3.3 cm | | Weight | 7.8 oz / 221 g | | | | Package Weight | 0.825 lb | | Box Dimensions (LxWxH) | 5.65 x 4.75 x 3.15" |
