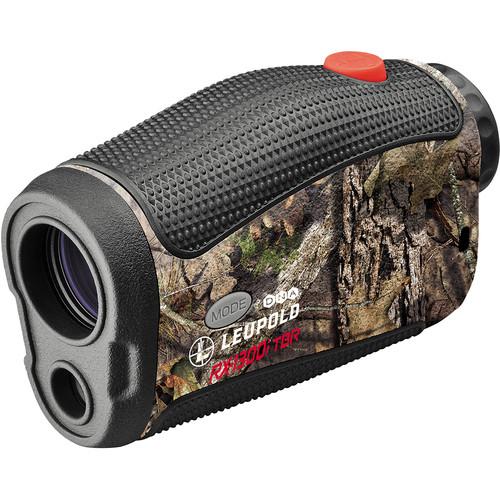

User Manual for Leupold 6x23 RX-1300i TBR Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Leupold 6x23 RX-1300i TBR Laser Rangefinder
- Product category: Laser Rangefinders Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Laser Rangefinders
|
User manual for the Leupold 6x23 RX-1300i TBR Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Designed to give bow and rifle hunters an edge in the wild, Leupold's Mossy Oak Break-Up Country camouflage pattern 6x23 RX-1300i TBR with DNA Laser Rangefinder integrates a monocular, laser rangefinder, and proprietary technology to create a valuable hunting accessory. Leupold's True Ballistic Range (TBR) and Digitally eNhanced Accuracy (DNA) systems provide precise ranges and shot-correction recommendations. The TBR system combines the rangefinder and built-in inclinometer information to calculate the range and relative angle to the target and recommends shot corrections based on the unique ballistic properties of the ammo being used. The corrections can be set to be displayed in MOA, MRAD, inches/millimeters, or the equivalent horizontal distance to the target, and there's a special mode just for bow hunters. Users who prefer to make their own calculations can always use the RX 1300i in Line of Sight mode.
The rangefinder's Class 1 eye-safe laser will range to reflective targets up to 1300 yards away and deer up to 900 yards. Assess the size of your target with the Trophy Scale feature, which displays the target's width and height. The Scan mode will take measurements while panning or when tracking a moving target, and Last Target shows the distance to the farthest of multiple targets, instead of an average of the nearest and farthest. You can choose from Plus Point, Duplex with Plus Point, and Duplex without Plus Point reticles. A battery power status indicator prevents unpleasant surprises in the field.The RX 1300i can also be used as a high-performance 6x23 monocular. Its lenses are fully multi-coated to cut reflective glare and maximize light transmission for a bright, sharp image. It is easily portable at just 4.0 x 2.5 x 1.5" and 7 ounces. - Optical Performance
-
- 6x Magnification
- 23mm objective lens
- Anti-reflection fully multi-coated optics
- 315' field of view at 1000 yards
- 6° angle of view
- 3.9mm exit pupil
- 14mm eye relief
- True Ballistic Range
-
- Accounts for distance and incline or decline
- Provides holdover information in inches/centimeters, MRAD or MOA
- Indexed to 7 popular ballistic groups
- Bow mode
- Optional Line of Sight mode
- Use and Handling
-
- Minimum range: 6 yd
- Max range:
- 1300 yd to reflective target
- 1000 yd to tree
- 900 yd to a deer
- Trophy Scale displays height & width of target
- Quick-Set one-handed operation menu
- Measurements in yards or meters
- Spot and continuous-scan modes
- Runs on one CR2 battery
- In-view power status indicator
- Construction Details
-
- Rubber-coated aluminum housing
- Waterproof and fogproof
- Reticles
-
- Plus Point for varmints and other small targets
- Duplex with Plus Point and Duplex without Plus Point for more precise ranging
UPC: 030317018474 In the Box Leupold 6x23 RX-1300i TBR Laser Rangefinder (Mossy Oak Camo) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 6x23 RX-1300i TBR Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold RX-1300i TBR Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens Diameter | 23mm | | Angle of View | 6° | | Field of View | 315' @ 1000 yd / 105 m @ 1000 m | | Laser Type | Class 1 eye-safe IR | | Metering Range | Minimum:
6 yd / 5.5 mMaximum:
Reflective Target: 1300 yd / 1189 m
Tree: 1000 yd / 914 m
Deer: 900 yd / 823 m | | Accuracy | ±0.5 yd / 0.5 m out to 125 yd / 114 m
±2 yd / 2 m beyond 125 / 114 m | | Exit Pupil Diameter | 3.9 mm | | Eye Relief | 14 mm | | Power Source | 1 x CR2 Battery, 3V | | Dimensions | 4.0 x 2.5 x 1.5" / 10.2 x 6.4 x 3.8 cm | | Weight | 7 oz / 198 g | | | | Package Weight | 0.69 lb | | Box Dimensions (LxWxH) | 5.9 x 4.8 x 3.2" |
