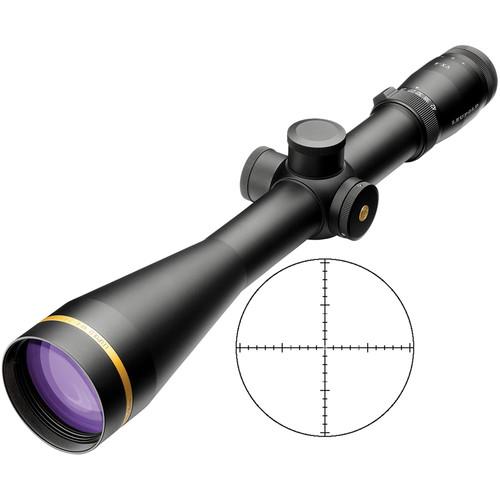

User Manual for Leupold 7-42x56 VX-6 Riflescope TMOA Plus Reticle} w Custom Dial System Click to enlarge the picture
Contents of the user manual for the Leupold 7-42x56 VX-6 Riflescope TMOA Plus
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 7-42x56 VX-6 Riflescope TMOA Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The matte black 7-42x56 VX-6 Side Focus Riflescope w/Custom Dial System from Leupold is designed for medium to extreme long-range targeting and features a side focus parallax adjustment turret. The optics feature the Leupold Xtended Twilight Lens System index-matched multicoating to maximize light transmission, especially in low-light situations. The large 56 objective lens also adds to the low-light performance of this scope with its light-gathering capabilities. The rugged design is bolstered by the use of DiamondCoat 2 protective lens coatings and water and fogproof performance is ensured by the use of an argon/krypton gas mixture.This VX-6 scope features a a TMOA Plus reticle with hashmarks lining both horizontal and vertical crosshairs. It comes with a special, customizable BDC elevation dial; just send your information Leupold and you'll receive a dial that's custom-tailored to your individual loads. Custom Dial System (CDS) - Allows the buyer to contact Leupold and receive one custom BDC (bullet drop compensating) dial free of charge. Leupold will build a custom turret dial based on the ballistic information of the cartridge that the buyer intends to use with their firearm. The scope ships with completely functional stock turrets. The custom turret may be added later, if desired
Optical Performance -
- Magnification: 7-42x
- Objective lens: 56 mm diameter
- Main tube diameter: 34 mm
- Eye relief: 4.2-3.9"
- Xtended Twilight Lens System: specific coatings to maximize the transmission of low-light wavelengths
- Blackened Lens Edges: reduce unwanted glare and diffusion through the lens edges to provide better resolution, improved contrast
- BAS (Ballistic Aiming System): takes into account the variables crucial to accurate, long-range shooting; a special ballistics indicator ring allows users to customize their power settings for their cartridge’s ballistics, then saves that setting
TMOA Plus Reticle -
- TMOA Plus reticle: hashmarks lining both horizontal and vertical crosshairs.
Use and Handling -
- 1/4 MOA/click impact point correction: finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of use
- 45/55 MOA windage/elevation adjustment range
- Side focus parallax adjustment turret
Construction Details -
- One-piece housing made of 6061-T6 aluminum
- 2nd Generation Argon/Krypton Waterproofing: special Argon/Krypton gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
- Twin-Bias spring erector system resists recoil to maintain zero
- Lead Free: eco-friendly lead-free glass lenses avoid damaging by-products common to standard glass production
- DiamondCoat 2: protective lens coating for higher light transmission and abrasion resistance
- Weight: 26.3 oz
UPC: 030317004101 In the Box Leupold 7-42x56 VX-6 Riflescope (TMOA Plus Reticle} w/Custom Dial System Protective Neoprene Scope Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 7-42x56 VX-6 Riflescope TMOA Plus Reticle} w Custom Dial System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 118504 Specs | | | Magnification | 7 to 42x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 16.3' @ 100 yd / 5.4 m @ 100 m
30x: 2.7' @ 100 yd / 0.9 m @ 100 m | | Exit Pupil Diameter | 7x: 8 mm
42x: 1.3 mm | | Eye Relief | 3.9 to 4.2" / 99.1 to 106.7 mm | | | | Reticle Type | TMOA Plus Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 55 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.5" / 39.4 cm | | Weight | 26.3 oz / 745.6 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 17.0 x 4.1 x 3.4" |
