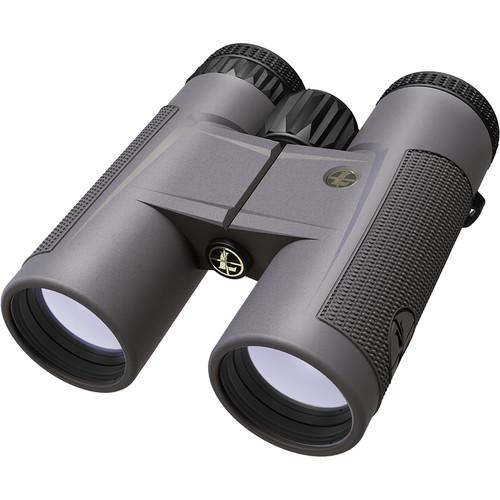

User Manual for Leupold 8x42 BX-2 Tioga HD Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 8x42 BX-2 Tioga HD Binocular
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 8x42 BX-2 Tioga HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More uytacqvdzrtefzfaxued The Leupold 8x42 BX-2 Tioga HD Binocular, in gray, features multiple technologies that work seamlessly to boost performance - especially in low-light conditions. Most notably is the proprietary Xtended Twilight Lens System which employs index-matched lens coatings that are specifically engineered for the calcium-fluoride lens glass to raise the already high transmittance across the entire visible spectrum — with special emphasis on the blue and violet wavelengths that are most prevalent in low-light, such as at dawn and dusk and under heavily-canopied forests. Complementing the Xtended Twilight Lens System are phase-corrected BAK4 roof prisms and respectably-sized 42mm objectives which translate to high-contrast views that are bright and crisp in most lighting conditions. The lower 8x magnification, wide angle of view, comfortable eye relief, and wide exit pupil produce a panoramic and immersive visual experience. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- Phase-corrected prisms reduce internal light loss
- Lead-free broad-band high-transmittance calcium-fluoride glass lens elements produce bright and clear images with accurate color rendition and improved contrast
- Fully multi-coated optics further improve light transmission, image brightness, color, clarity, and contrast
- Xtended Twilight Lens System employs index-matched multi-coatings that complement the optical glass to ensure maximum light transmission across the entire visual spectrum - especially the upper blue/violet range to enhance low-light vision
- Wide 60° apparent angle of view
- 394' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large-ridged center focus wheel is easy to manipulate in cold or wet conditions, or while wearing gloves
- 58-76mm interpupillary distance adjustment range
- Right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Long 15.5mm eye relief
- Wide 5.25mm exit pupil
- Construction Details
-
- Protective rubberized armoring with textured palm pads provides a slip-resistant grip
- Nitrogen-filled for water and fogproof performance
- Textured eyecup collars make it easy to use even when wearing gloves
- Ergonomic chassis design makes the binocular comfortable to hold
- Lead-free glass helps reduce weight while remaining eco-friendly
- Weight: 23.1 ounces
UPC: 030317015251 In the Box Leupold 8x42 BX-2 Tioga HD Binocular (Shadow Gray) Padded Carrying Case Padded Shoulder Strap 2 x Objective Lens Covers One-Piece Ocular Rainguard Golden Ring Full Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 uytacqvdzrtefzfaxued A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 8x42 BX-2 Tioga HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172692 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 7.5' / 2.3 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 15.5 mm | | Interpupillary Adjustment | 58 to 76 mm / 2.3 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.0" / 15.2 cm | | Weight | 23.1 oz / 655.0 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.5 x 5.7 x 3.0" |
