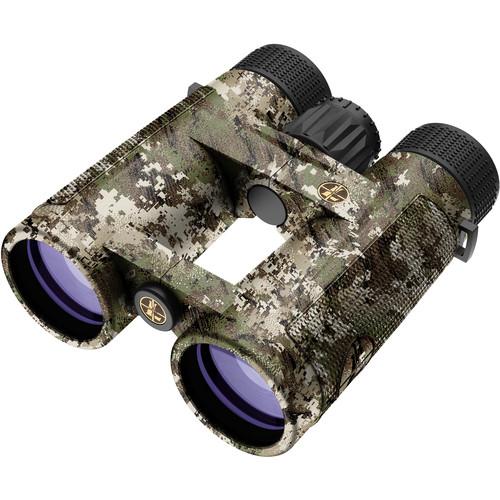

User Manual for Leupold 8x42 BX-4 Pro Guide HD Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 8x42 BX-4 Pro Guide HD
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 8x42 BX-4 Pro Guide HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Configured with a magnification and objective combination that is a favorite of outdoor enthusiasts, birders, hunters, and sightseers, Leupold's Sitka Gear Sub-Alpine camouflage patterned 8x42 BX-4 Pro Guide HD Binocular is an ideal addition to any kit. The Pro Guide are engineered with lead-free high-transmittance calcium-fluoride glass elements, phase-corrected BAK-4 roof prisms, and the proprietary Twilight Max HD lens coating system to deliver crisp and clear high-contrast images with accurate color rendition and virtually zero distortion across its wide field of view. The Twilight Max system ensures maximum light transmission across the entire visual spectrum, especially in the upper blue/violet wavelength range to enhance low-light vision. Its relatively low 8x magnification helps to minimize the appearance of visible hand-shake that is common with high-power optics such as this, while providing a wide exit pupil to make viewing in challenging light conditions easier and more comfortable.Its open-bridge/dual-hinge design helps to reduce weight while providing more surface area for your hands to grip the optical tubes — improving grip security and stability. To withstand the rigors of the outdoors, the chassis is made of a lightweight and durable aluminum alloy wrapped in a protective Sitka Gear Sub-Alpine camouflage patterned rubberized armor. Textured palm-pads improve grip security for sure-handling even in cold and wet weather, and a large textured focus wheel ensures precision adjustments even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact roof prism optical path
- BAK-4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Phase-correcting prism coatings reduce internal light diffraction to help improve contrast and overall image sharpness
- Lead-free broad-band high-transmittance calcium-fluoride glass lens elements produce bright and clear images with accurate color rendition and improved contrast
- Twilight Max HD lens coating system employs index-matched multi-coatings that complement the optical glass to ensure maximum light transmission across the entire visual spectrum - especially the upper blue/violet range to enhance low-light vision
- 368' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/Dual-hinge configuration
- Large, tactile focus dial is easy to find and use, even while wearing gloves
- 58-74mm interpupillary adjustment range
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Long 19mm eye relief
- Wide 5.25mm exit pupil
- Construction Details
-
- Open-bridge/dual-hinge design reduces weight without sacrificing strength and provides more gripping surface area
- Lightweight and durable aluminum chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging
- Slip-resistant Sitka Gear Sub-Alpine camouflage patterned rubberized armoring protects against light impacts and bumps
- Raised pebbled-textured palm-pads improves grip security
- Slim and lightweight ergonomic design provides a comfortable feel in the hand
- Weight: 23 ounces
UPC: 030317015213 In the Box Leupold 8x42 BX-4 Pro Guide HD Binocular (Sub-Alpine Camo) Carrying Case Shoulder Strap 2 x Objective Lens Caps Golden Ring Full Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 bweyztqb A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 bweyztqb A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 8x42 BX-4 Pro Guide HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172665 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.5' @ 1000 yd / 122.5 m @ 1000 m | | Minimum Focus Distance | 8' / 2.4 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 58 to 74 mm / 2.3 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.6" / 14.2 cm | | Weight | 23.4 oz / 663 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 7.8 x 6.4 x 3.3" |
