User Manual for Leupold GR 12-40x60 HD Spotting Scope with Impact Reticle Click to enlarge the picture
Contents of the user manual for the Leupold GR 12-40x60 HD Spotting Scope
- Product category: Spotting Scopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Spotting Scopes
 |
User manual for the Leupold GR 12-40x60 HD Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

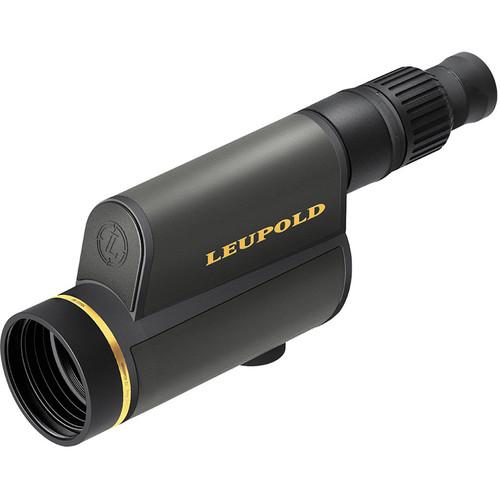

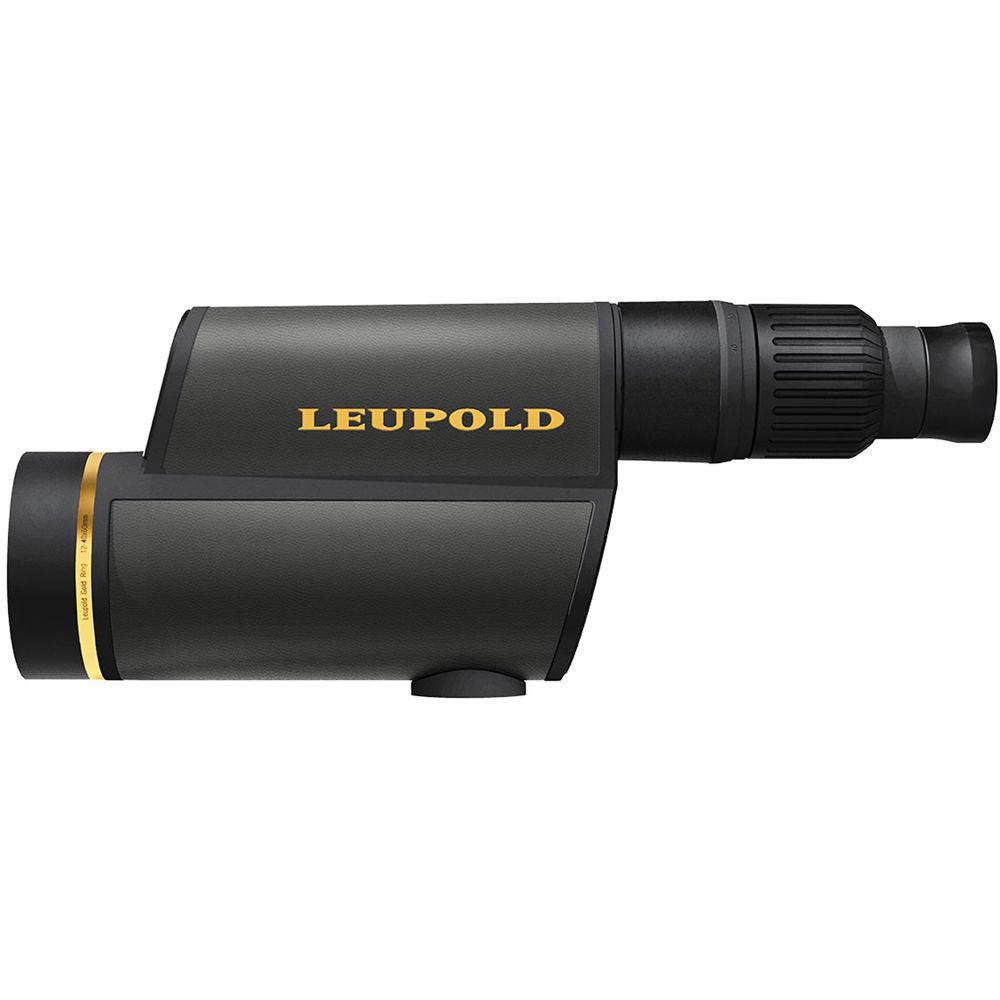

Product description A Guide to Birding with Spotting Scopes Read More This shadow gray, straight-viewing Leupold GR 12-40x60 HD Spotting Scope with Impact Reticle is intended to enhance accuracy while using a riflescope. In combination with a separate rangefinding device that determines distance, the impact location of a shot can be precisely determined. This information can then be quickly used to make helpful adjustments to one's riflescope.

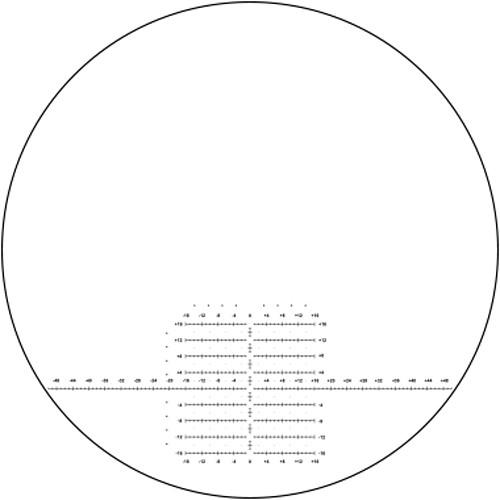

The Impact Reticle's Minute-of-Angle (MOA) main grid is located in the front focal plane for accuracy at all magnifications. Along the top and left side of the main grid are circles spaced at 1 milliradian for mil ranging support. To provide the option of a clear view, the Impact Reticle pattern is placed below the center of the field of view, but can be fully seen by reducing the spotting scope's magnification.
Calcium fluoride HD optics designed for enhanced light transmission and low refraction are included, resulting in more vivid colors and clarity than would otherwise be possible with this scope. Measuring 12.4" long and constructed from magnesium alloy, this durable scope incorporates a wide zoom range within a relatively compact body that can be mounted to a tripod with its 1/4"-20 threading.
The size of this GR 12-40x60 HD Spotting Scope is made possible due to its prismless Folded Light Path System. This system utilizes mirrors to create a Z-shaped path within the scope's housing, which significantly compresses the space needed to obtain magnification. To further increase light transmission, clarity, contrast, and abrasion resistance, this GR 12-40x60 HD Spotting Scope's exterior lens surfaces feature DiamondCoat 2 coating. Additionally, coatings designed to optimize the transmission of blue and violet wavelengths that become predominant under low light are provided. These coatings help comprise Leupold's Xtended Twilight Lens System and further enhance this GR 12-40x60 HD Spotting Scope's ability to render details at dawn or dusk.
A nitrogen fill prevents fog accumulation and an O-ring-sealed waterproof construction further adds to the reliability of the GR 12-40x60 HD Spotting Scope with Impact Reticle. - Optical Performance
-
- 12-40x zoom eyepiece
- 60mm objective lens
- Impact Reticle with Minute-of-Angle (MOA) main grid and circles spaced at 1 milliradian for mil ranging support
- Calcium fluoride HD optics designed for enhanced light transmission and low refraction provide more vivid colors and clarity
- DiamondCoat 2 lens coating for enhanced light transmission and abrasion resistance
- Xtended Twilight Lens System lens coatings maximize visibility under low light
- Prismless Folded Light Path System for compact form factor
- Use and Handling
-
- Smooth-focus ring
- Collapsible rubber eyecup
- 1/4"-20 threading for tripods
- Construction Details
-
- Magnesium-alloy body
- Nitrogen filled to be fogproof
- O-ring sealed to be waterproof
UPC: 030317006730 In the Box Leupold GR 12-40x60 HD Spotting Scope with Impact Reticle (Straight Viewing, Shadow Gray) Soft Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold GR 12-40x60 HD Spotting Scope with Impact Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 120373 Specs | | | Magnification | 12 to 40x | | Objective Lens Diameter | 60 mm | | Angle of View | 12x: 3.2° (Actual)
40x: 1.0° (Actual) | | Field of View | 12x: 168.0' @ 1000 yd / 56.0 m @ 1000 m
40x: 52.0' @ 1000 yd / 18.0 m @ 1000 m | | Minimum Focus Distance | 36.0' / 10.9 m | | Exit Pupil Diameter | 12x: 4.8 mm
40x: 1.5 mm | | Eye Relief | 30.0 mm | | | | Water Resistance | Waterproof | | | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 12.4" / L: 31.5 cm | | Weight | 37.0 oz / 1.1 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.8 x 5.9 x 3.9" |
