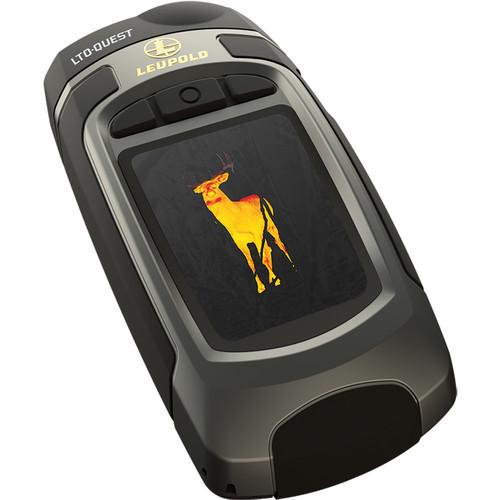

User Manual for Leupold LTO-Quest HD Thermal Viewer Click to enlarge the picture
Contents of the user manual for the Leupold LTO-Quest HD Thermal Viewer
- Product category: Thermal Imagers Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Thermal Imagers
 |
User manual for the Leupold LTO-Quest HD Thermal Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

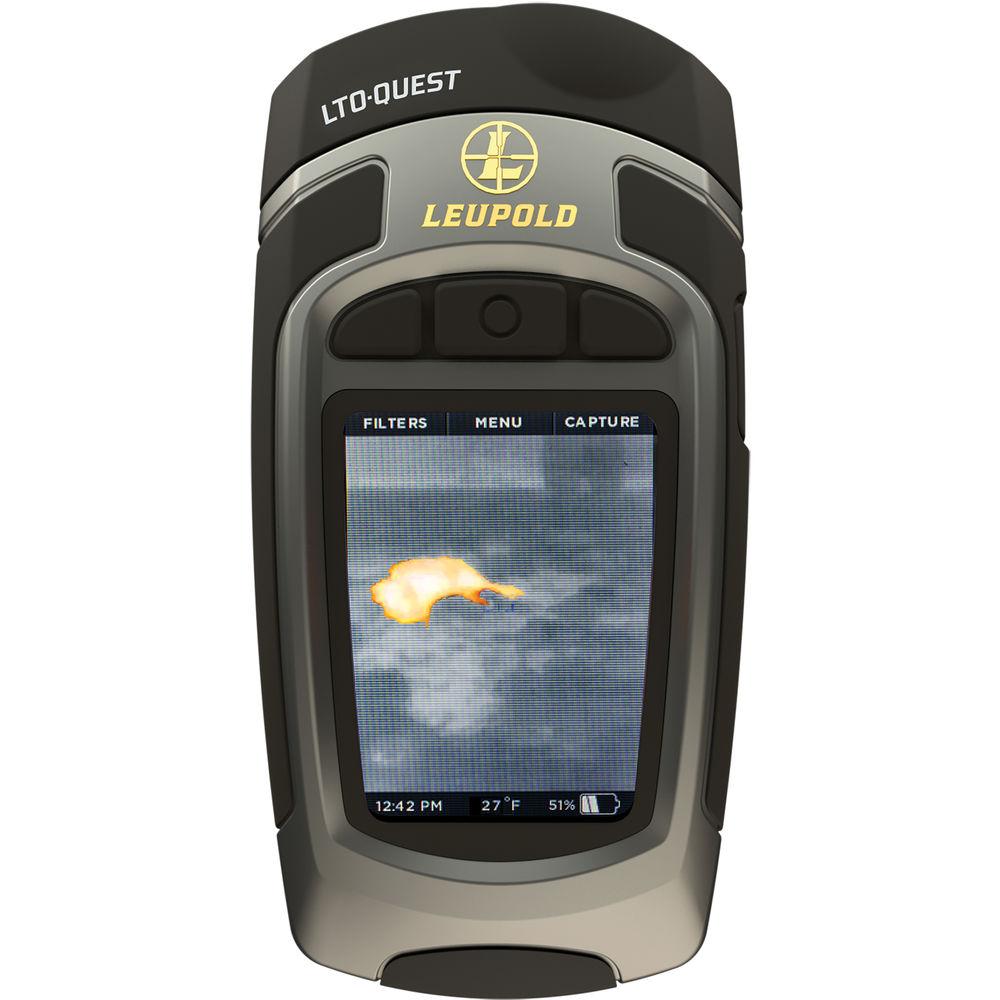

Product description Use the Leupold LTO-Quest HD Thermal Viewer for your outdoor adventures or other activities that require you to see thermal emissions. This compact and lightweight (less than 7 oz) handheld device will not take much space in you pack and will easily fit on the palm of your hand or in your pocket. Its 320x240 thermal camera operates at room temperature without cooling and will allow you to see wildlife, game, and people in complete darkness from as close as 6" to hundreds of feet away. It also features a digital zoom of 1-4x and a 32° field of view. Due to the nature of thermal emissions, the device will also allow you to see through fog, smoke, and foliage, which is otherwise opaque to the naked eye or night vision devices. The ergonomic rubberized body is comfortable to hold and operate, thanks to a centralized control pad on the top. The 2.4" TFT LCD display will allow you to view color representations of thermal imagery with 206x156 QVGA quality with a 15Hz frame rate and an unlimited eye relief. Also at your disposal are a digital reticle and eight color palettes. The device will start up time in less than 3 seconds and provide you with up to four hours of continuous operation on the internal rechargeable battery. To add versatility to the device, Leupold also built in an LED flashlight for illuminating your path. The flashlight offers two modes: High (300 lumens) and Low (120 lumens). You also can save the infrared images to an external microSD memory card for viewing later or for transferring to your personal computer via a built-in micro-USB port. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the US Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), 15 C.F.R. Chapter VII. - HD Thermal Imager & LCD Display
-
- 320x240 Uncooled VOx micro-bolometer
- 15 Hz refresh rate
- 7.5 - 14
|
Upload User Manual
Have you got an user manual for the Leupold LTO-Quest HD Thermal Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold LTO-Quest HD Specs | Array Configuration | 320x240 Uncooled VOx micro-bolometer | | Frame Rate | 15 Hz | | Sensitivity | <0.1˚C / <0.18˚F @ F/1 | | Temperature Range | Detection Range: -40 to 330˚C / -40 to 626˚F
Accuracy @ 25˚C: Greater of 5˚C or 5% / 9˚F or 5% | | Spectral Response | 7.5 - 14 µm | | Display | 2.4" TFT Color LCD | | Display Resolution | 206x156 QVGA | | Display Angle | >70 ° | | Contrast Ratio | 500:1 | | Magnification | 1-4x digital zoom | | Lens System | 4mm, f/1.2, AR-coated chalcogenide glass | | Field of View | 32° | | Eye Relief | Unlimited | | Minimum Focus Distance | 6" / 150 mm | | Video Output | No | | External Memory | microSD slot: up to 32GB | | Image Format | Image Format: PNG | | File System | File System: FAT32 | | Date/Time Stamp | Yes | | Reticle | Digital reticle | | Ports | Micro-USB port | | PC Compatibility | Windows, MAC OS 9 & X, Linux | | Language Support | English, Spanish, French, German | | Built-in Light | Type: LED

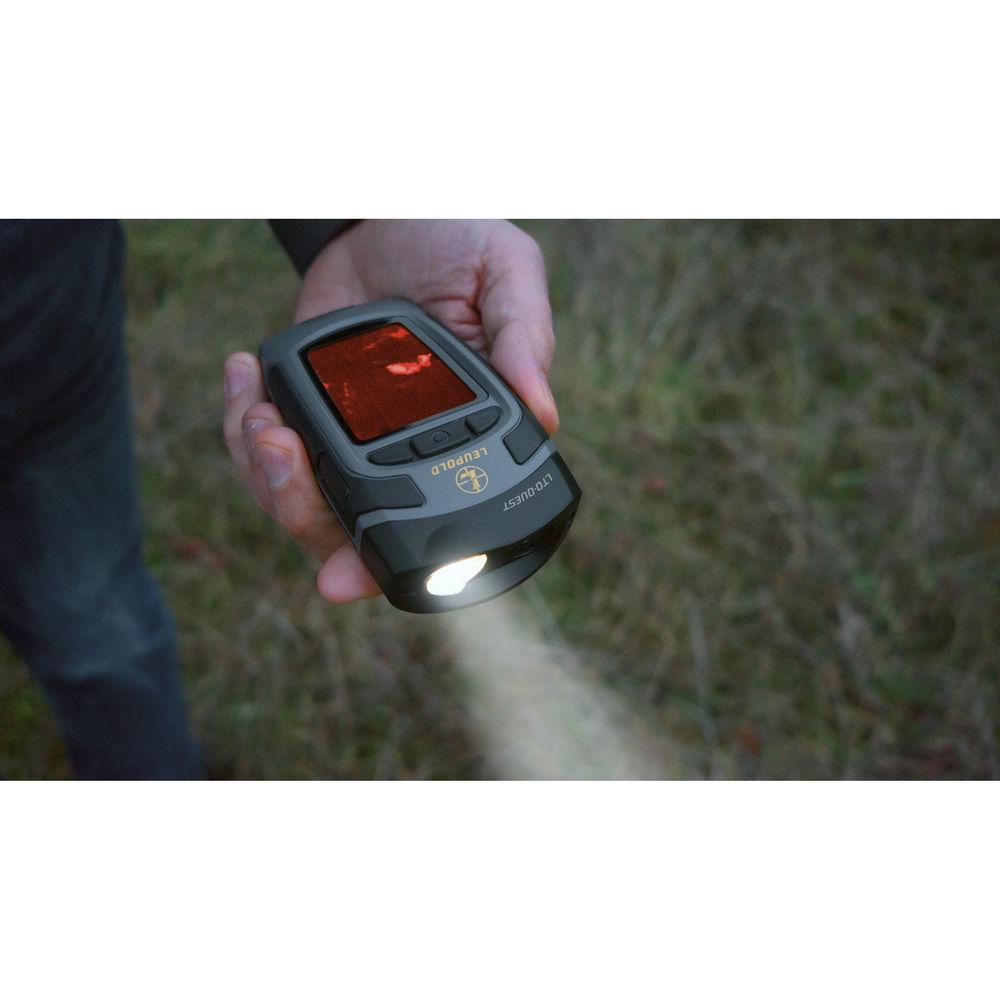

Hi Mode: 300 lumens
Low Mode: 120 lumens | | Battery / Runtime | 1 x 1900 mAh polymer lithium-ion battery / Camera Only: 10 hours, Camera & Flashlight: 2 hours, In Storage (off): 60 days | | Weatherproofing | Water- and dust-resistant | | Humidity | 10 - 95%, non-condensing | | Temperature Tolerance | Operating Temperature: 14 to 149˚F / -10 to 65˚ C
Storage Temperature: -40 to 131˚F / -40 to 55˚C
Battery Charge Temperature: 32 to 113˚F / 0 to 45˚C | | Shock | 3.3' / 1 m drop | | Dimensions | 5.0 x 2.4 x 1.2" / 12.7 x 6.1 x 3.0 cm | | Weight | 6.25 oz / 177.2 g | | | | Package Weight | 1.065 lb | | Box Dimensions (LxWxH) | 7.9 x 4.35 x 2.65" |
