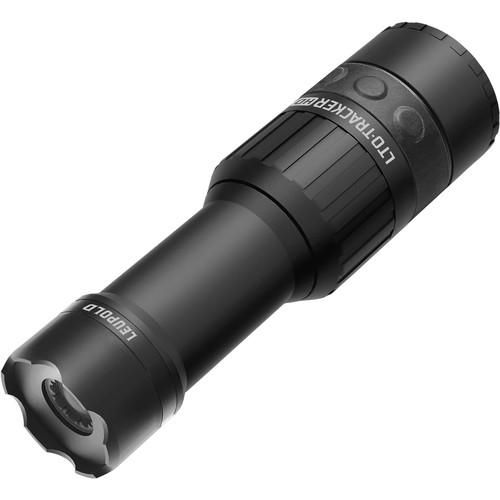

User Manual for Leupold LTO Tracker HD Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Leupold LTO Tracker HD Thermal Monocular
- Product category: Thermal Imagers Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Thermal Imagers
|
User manual for the Leupold LTO Tracker HD Thermal Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Enhanced with a higher resolution thermal sensor and an AMOLED display with Gorilla Glass, Leupold's LTO Tracker HD Thermal Monocular allows hunters and outdoors enthusiasts to understand their surroundings better, detect wildlife, or recover game. Whether day or night, it detects people and animals through smoke, fog, and dust. Built around its 320 x 240 uncooled thermal sensor, the monocular's sensitivity operates in the long-wave infrared spectrum (from 5.1 to 12.4µm), allowing it to differentiate between temperatures from -40 to 572°F. With its 1.2" round 390 x 390-pixel color AMOLED display (protected with Gorilla Glass) and digital reticle, it delivers images in eight different color palettes at a refresh rate of greater than 25 Hz. For ease of use and versatility in the field, the device offers a simple three-button menu that gives you a full range of options, zooming, and the digital reticle. To simplify things, the optics are focused at infinity and will deliver a horizontal field of view of 24°. To provide you with the freedom to take it anywhere and anytime, the monocular measures 5.6" in length and can easily fit into your pocket. The waterproof housing is made of lightweight and durable aluminum alloy, and has a rubberized covering for a non-slip grip. The front end also has a crenelated bezel to protect the objective from damage. - Thermal Sensor/Display/Optical Performance
-
- 2nd-generation uncooled thermal sensor
- 320 x 240 resolution
- 25 Hz refresh rate
- Spectral response: 5.1 - 12.4µm
- Detects temperature from -40 to 572°F
- 1.2'-diameter AMOLED color display with Gorilla glass offers 390 x 390 resolution
- Continuous 6x digital zoom
- Focus fixed at infinity
- 24° horizontal angle of view
- Unlimited eye relief
- Use and Handling
-
- Digital reticle
- 8 color palettes: copper, range, red, green, black hot, white hot, black highlight, and white highlight
- Easy-to-use three-button control pad
- Less than 4-second startup
- Construction Details
-
- Aluminum housing
- Rubberized eyepiece ring
- Crenelated protective bezel on the objective
- Not for mounting on firearms
- Operating temperature range: -4 to 140°F
- Waterproof
UPC: 030317018924 In the Box Leupold LTO Tracker HD Thermal Monocular (25 Hz, Matte Black) - Limited Lifetime Warranty
- Limited 5-Year Warranty on Electronics
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold LTO Tracker HD Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold LTO Tracker HD Specs Array Configuration | 320 x 240 uncooled thermal sensor | Spectral Response | 5.1 - 12.4 µm | Display | 390 x 390 color AMOLED display | Refresh Rate | >25 Hz | Magnification | Digital Zoom: 6x | Field of View | Horizontal: 24° | Eye Relief | Unlimited | Battery / Runtime | 1 x CR123 battery / 10 hours | Detection Range | -40 to 572°F / -40 to 300°C | Operating Temperature | -4 to 140°F / -20 to 60°C | Weatherproofing | Waterproof | Maximum Recoil | Not recoil-resistant | Dimensions | Length: 5.6" / 14.2 cm Display Diameter: 1.2" / 30.0 mm | Weight | 7.0 oz / 198.5 g | | Package Weight | 1.07 lb | Box Dimensions (LxWxH) | 7.85 x 4.3 x 2.7" |
