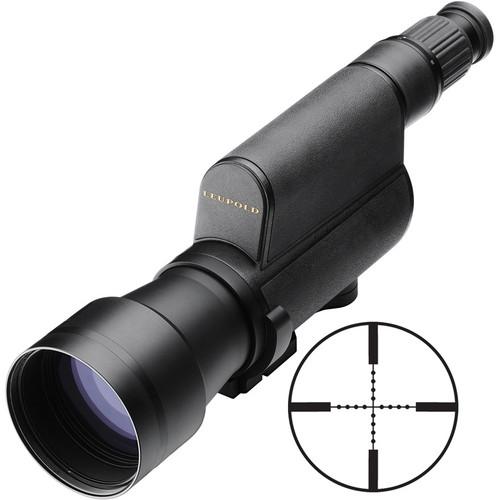

User Manual for Leupold Mark 4 20-60x80 Tactical Spotting Scope Click to enlarge the picture
Contents of the user manual for the Leupold Mark 4 20-60x80 Tactical Spotting
- Product category: Spotting Scopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Spotting Scopes
|
User manual for the Leupold Mark 4 20-60x80 Tactical Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The Mark 4 20-60x80 Tactical Spotting Scope from Leupold embodies the full range of Leupold's advanced optical technologies and packs them into an armored magnesium-alloy body that is both lightweight and easy to handle. Leupold outfitted this Mark 4 series scope with their Xtended Twilight Lens System, which combines High-Definition (HD) glass and several specially engineered optical coatings to improve twilight performance. This model also has a Mil-Dot reticle that can help the spotter calculate their target range or size at any of the scope's magnification settings.Leupold's HD lenses are made of high-transmission, calcium-fluoride glass elements that produce saturated colors and clarity that is superior to that of standard optical glass. Additionally, HD elements are lead-free, and they weigh less than comparably-sized standard glass elements. The Mark 4 optical path is enhanced by phase-corrected BAK4 prism glass and index-matched lens coatings. Each lens surface is multi-coated with an index-matched coating that is optimized to suit the refractive index, function, and placement of the lens. Leupold also employs their Multicoat 4 anti-reflective lens coating to maximize the light-gathering ability of the lenses. The resulting images are detail-rich, with luminous and color faithful views.Complementing its high-definition optical system, the Mark 4 Tactical scope has handling features that deliver a user-friendly glassing experience. Rubberized ridges on the zoom wheel and a textured focus dial provide tactile feedback that is especially useful when making field-of-view adjustments in wet conditions or while wearing gloves. The scope's eyepiece has a fold-up/down rubber eyecup and 30mm eye relief that provides a comfortable viewing distance even for eyeglass wearers. This Mark 4 scope is compatible with an optional digiscoping adapter that allows the viewer to capture the transmitted image using their digital camera.The Mark 4 Tactical also comes with a ballistic nylon protective case designed to stay on the scope yet permit fast access to the scope's eyepiece, zoom, and focus controls. This stay-on case includes a shoulder strap, and the case features zippered access with quick-access panels that fold out to provide unobstructed access to the eyepiece.In addition to being lightweight and easy to handle, its nitrogen-filled housing makes the Mark 4 ready to endure heavy rain and extreme humidity. A folded light path gives this scope a remarkably compact footprint—especially for a large-objective optic. This combination of functionality, build quality, and image quality make the Mark 4 Tactical lineup ready for almost any long-range targeting and viewing task. - Optical Performance
-
- 80mm objective lens
- 20-60x zoom eyepiece
- BAK4 prism glass with phase correction
- Xtended Twilight Lens System enhances twilight viewing
- HD objective lens: lead-free, calcium-fluoride elements
- Index-matched lens coatings optimize light transmission
- Multicoat 4 anti-reflective lens coating
- 46-48° apparent viewing angle
- 30mm eye relief
- Mil-Dot Reticle
-
- First focal plane position
- Enables target range / size estimation
- Use and Handling
-
- Straight view eyepiece is in-line with scope's objective
- Integrated 1/4"-20 tripod mounting socket
- Textured focus dial, zoom ring with rubberized ridges
- Digiscoping compatible
- Fold-down rubber eyecup
- Stay-on protective case with zippered access
- Construction Details
-
- Nitrogen filled for fog and waterproof performance
- DiamondCoat 2 scratch-resistant coating on exposed lenses
- Rubber-coated housing
- 15.5" length, 61.8 oz weight
UPC: 030317108250 In the Box Leupold Mark 4 20-60x80 Tactical Spotting Scope (Mil-Dot Reticle) Stay-On Protective Case Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold Mark 4 20-60x80 Tactical Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold Mark 4 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Angle of View | 20x: 2.3° (Actual)
60x: 0.8° (Actual) | | Field of View | 20x: 121.0' @ 1000 yd / 36.8 m @ 1000 m
60x: 42.0' @ 1000 yd / 12.8 m @ 1000 m | | Minimum Focus Distance | 75.0' / 22.7 m | | Exit Pupil Diameter | 20x: 4.1 mm
60x: 1.3 mm | | Eye Relief | 30.0 mm | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.5" / L: 39.0 cm | | Weight | 61.8 oz / 1.8 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 18.6 x 8.2 x 3.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
