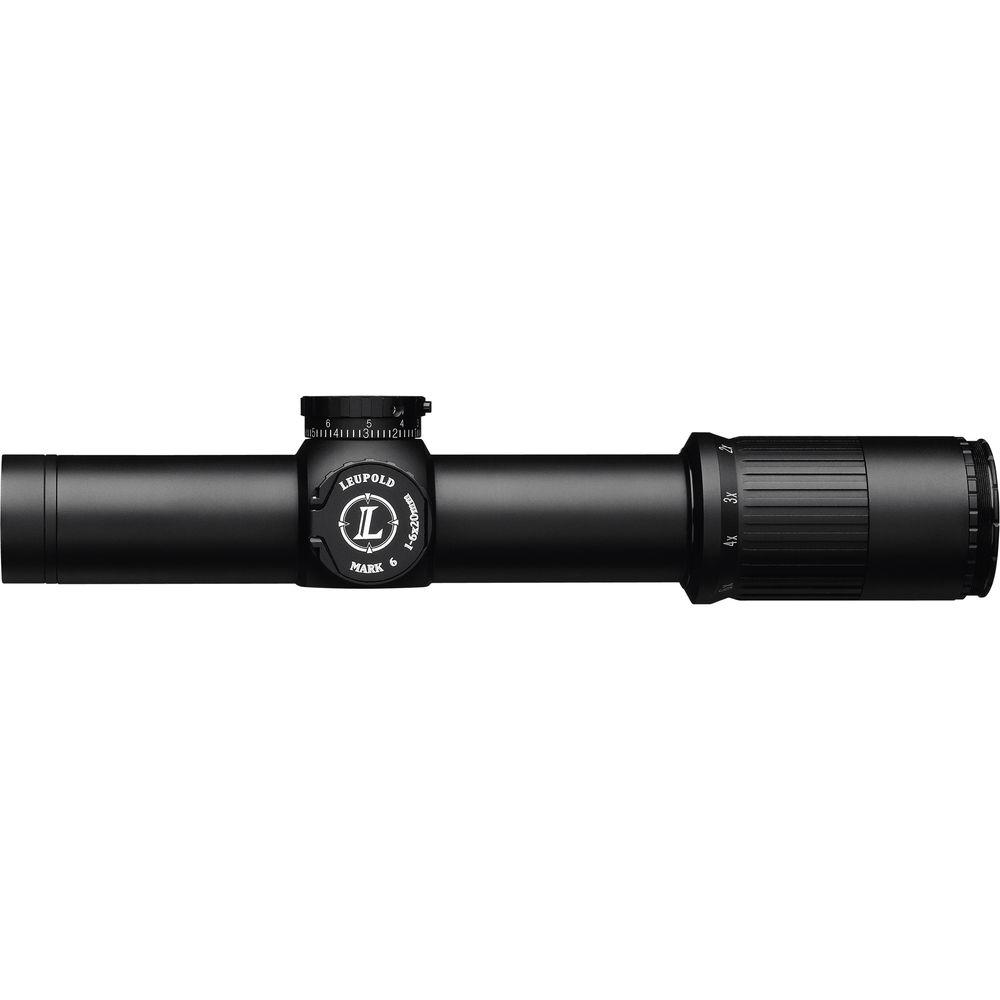

User Manual for Leupold Mark 6 1-6x20 M6C1 Side Focus Parallax Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold Mark 6 1-6x20 M6C1 Side
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold Mark 6 1-6x20 M6C1 Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

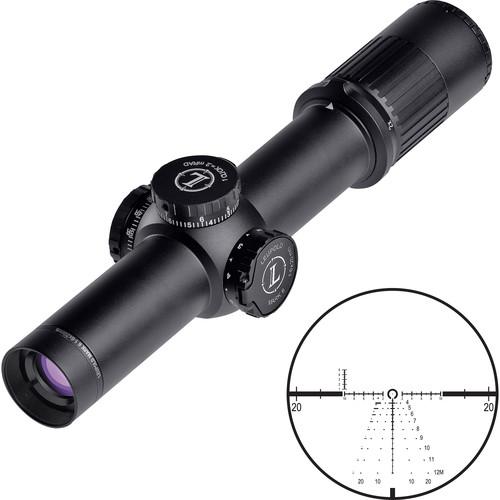

Product description Gain tactical advantage in competitions, mid-range operations, and close quarter combat scenarios with the matte black Mark 6 1-6x20 M6C1 Side Focus Parallax Riflescope from Leupold. This riflescope is engineered to over-perform with its superior optics as well as rugged construction. Its Xtended Twilight Lens System features optimized glass and anti-reflection coatings that minimize reflections and maximize transmission for wavelengths of light prevalent at twilight. Exterior lens surfaces are also coated with DiamondCoat 2 to deliver greater level of scratch- and abrasion resistance. This proprietary ion-assisted treatment brings an additional advantage of increasing transmission of light and improving clarity and contrast. In order to reduce stray light and improve image sharpness, the environmentally friendly lead-free optical elements have their edges blackened. To help you compensate for wind drift and ballistic bullet drop, the scope offers a generous 130 MOA windage and elevation adjustment range with 1/4 MOA impact point correction and side focus parallax adjustment.

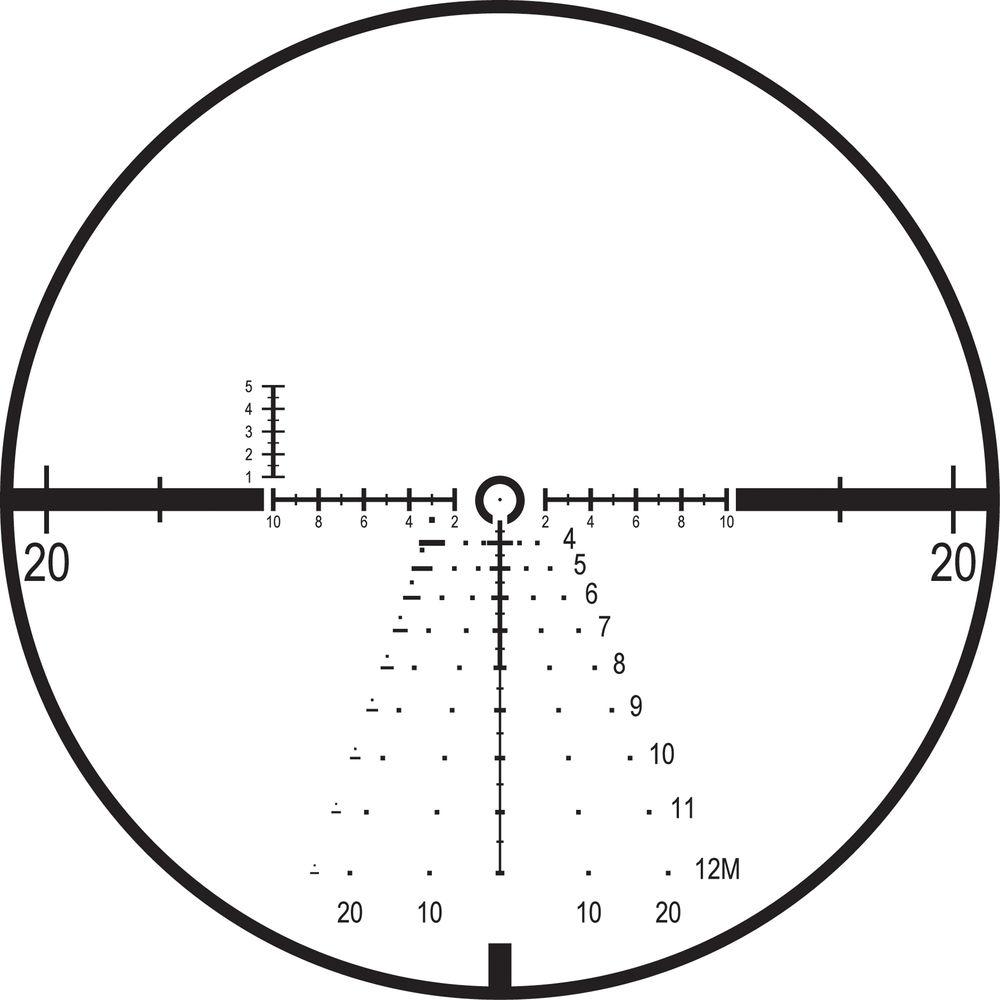

Designed for 5.56 calibers, the Illuminated CMR-W 5.56 Reticle is located in the 1st focal plane and features Ballistic Aiming System, the BAS. It provides a series of aiming points for improved accuracy at longer ranges and keeps your range estimation and holdover values consistent at any power. The reticle also features a 0.5-MOA dot surrounded by a 5-MOA circle, mil-based hash marks on horizontal stadia, ranging features, and windage points.
The 6061-T6 aluminum housing is lightweight and extremely durable, shock-resistant, waterproof, and fogproof. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing features a proprietary fogproof design. It also features a lockable fast-focus eyepiece and a low-profile tactile zoom lever for one-finger quick zooming. Also included with the riflescope are one CR-2032 battery and flip-back lens covers. Optical Performance -
- Magnification: 1-6x
- Objective diameter: 20mm
- Eye relief: 3.7"
- Xtended Twilight Lens System maximizes transmission of low-light conditions
- DiamondCoat 2 protects the objective lens from scratches and abrasives
- Blackened Lens Edges: absorb stray light and improve contrast improved accuracy at longer ranges
Illuminated CMR-W 5.56 Reticle -
- Illuminated
- Close Mid-Range Reticle with Wind Holds - CMR-W
- Located in 1st focal plane
- BAS-Ballistic Aiming System provides a series of aiming points for improved accuracy at longer ranges
- Designed for 5.56 calibers
- 0.5-MOA center dot surrounded by a 5-MOA circle
- Mil-based hash marks on the horizontal stadia
- Ranging features
- Windage hold points
Use and Handling -
- 2/10 mil per click impact point correction
- 130 MOA windage and elevation adjustment range
- Parallax-free 50 yd to infinity
- Side focus parallax
- Battery compartment is located inside one of dials knobs and can be changed without tools
Construction Details -
- 34mm single-piece main tube
- Lockable fast focus eyepiece
- Flip-back lens covers
- 6061-T6 aluminum housing is extremely durable and shock-resistant
- Low profile tactile zoom lever allows a fast one-finger operation
- Proprietary fogproof design
- Waterproof
UPC: 030317150440 In the Box Leupold Mark 6 1-6x20 M6C1 Side Focus Parallax Riflescope (Illuminated CMR-W 5.56 Reticle) - CR-2032 Battery
- 2 x Flip-Back Covers
- Limited 2-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold Mark 6 1-6x20 M6C1 Side Focus Parallax Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 115044 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 20 mm | | Field of View | 1x: 105.8' @ 100 yd / 35.2 m @ 100 m
6x: 19.3' @ 100 yd / 6.4 m @ 100 m | | Eye Relief | 3.7" / 94 mm | | | | Reticle Type | CMR-W 5.56 Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 2/10 MIL per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.3" / 260 mm | | Weight | 17 oz / 482 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 13.8 x 5.9 x 3.8" |
