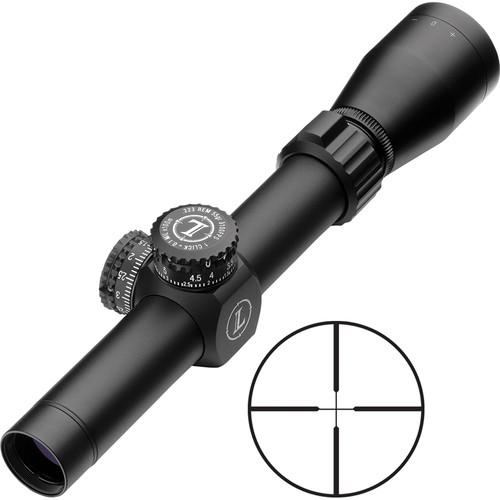

User Manual for Leupold Mark AR MOD 1 1.5-4x20 Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold Mark AR MOD 1 1.5-4x20
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold Mark AR MOD 1 1.5-4x20 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description With exposed tactical P5 elevation turrets that are optimized for .223 Remington, the matte black Mark AR MOD 1 1.5-4x20 Riflescope from Leupold is designed for short-to-medium-range shooting and features a Duplex Reticle. The optical system offers 1.5-3.9x actual magnification, Mulitcoat 4 anti-glare coatings that reduce glare and enhance transmission, and a linear field of view range of 73-29.3' at 100 yd. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 125 MOA windage and elevation adjustment range with a 1/10 mil impact point correction.
The Duplex Reticle is defined by heavy posts and a thin crosshair that are visible well on any background or in twilight. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.
The aluminum housing is lightweight and durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and has a lockable fast focus eyepiece with a low profile tactile zoom lever that helps you with an instant one-finger zoom adjustment. Optical Performance -
- Actual magnification: 1.5-3.9x
- Objective lens diameter: 20mm
- Main tube diameter: 1"
- Linear field of view range of 73-29.3" at 100 yd
- Eye relief: 4.1-3.7"
- Index matched lead-free elements designed to maximize light transmission
- Proprietary Multicoat 4 anti-glare coatings minimize reflections of the sky and maximize transmission
Duplex Reticle -
- Second focal plane location allows keeping the reticle size constant
- Heavy posts and a thin crosshair
- Visible on any background or in twilight
Use and Handling -
- 1/10 mil impact point correction
- 125 MOA windage and elevation adjustment range
- Exposed, tactical P5 elevation adjustment turret for .223
Construction Details -
- 1" single-piece main tube
- Aluminum housing with matte black finish
- Oversized knurled dial knobs for non-slip tuning
- Low profile tactile zoom lever allows a fast one-finger operation
- Fogproof: filled with argon and krypton
- Waterproof
UPC: 030317153885 In the Box Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 115388 Specs | | | Magnification | 1.5 to 3.9x | | Objective Lens Diameter | 20 mm | | Field of View | 1.5x: 73' @ 100 yd / 24.3 m @ 100 m
4x: 29.3' @ 100 yd / 9.8 m @ 100 m | | Exit Pupil Diameter | 1.5x: 13.3 mm
4x: 5.1 mm | | Eye Relief | 3.7 to 4.1" / 9.5 to 10.2 cm | | | | Reticle Type | Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 125 MOA | | Elevation Adjustment | 125 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 9.5" / 24.1 cm | | Weight | 9.6 oz / 272 g | | | | Package Weight | 1.085 lb | | Box Dimensions (LxWxH) | 14.2 x 3.55 x 2.9" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
