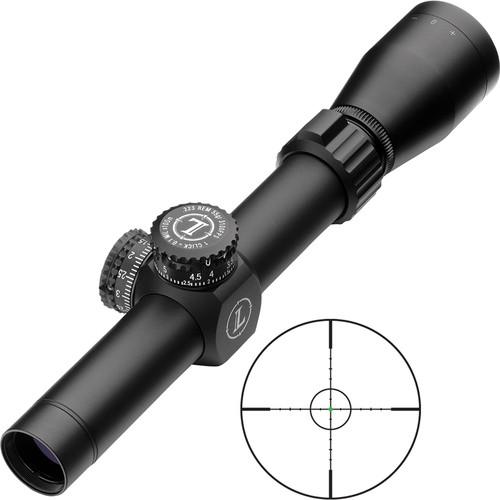

Product description With exposed tactical P5 elevation turrets that are optimized for .223 Remington, the matte black Mark AR MOD 1 1.5-4x20 Riflescope from Leupold is designed for short-to-medium-range shooting and features a Illuminated FireDot-G SP Reticle. The optical system offers 1.5-3.9x actual magnification, Mulitcoat 4 anti-glare coatings that reduce glare and enhance transmission, and a linear field of view range of 73-29.3' at 100 yd. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 125 MOA windage and elevation adjustment range with a 1/10 mil impact point correction.
The Illuminated FireDot-G Special Purpose Reticle features a green center dot. The reticle provides greater precision at longer ranges than generally possible with other reticle styles, but also can be used for instinctive and close‑range engagements. Its green center dot is visible well during day or night.
The aluminum housing is lightweight and durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and has a lockable fast focus eyepiece with a low profile tactile zoom lever that helps you with an instant one-finger zoom adjustment. Optical Performance -
- Actual magnification: 1.5-3.9x
- Objective lens diameter: 20mm
- Main tube diameter: 1"
- Linear field of view range of 73-29.3" at 100 yd
- Eye relief: 4.1-3.7"
- Index matched lead-free elements designed to maximize light transmission
- Proprietary Multicoat 4 anti-glare coatings minimize reflections of the sky and maximize transmission
Illuminated FireDot-G SP Reticle -
- Green center dot is visible well during day or night
- Provides greater precision at longer ranges
- Can be used for instinctive and close‑range engagements
Use and Handling -
- 1/10 mil impact point correction
- 125 MOA windage and elevation adjustment range
- Exposed, tactical P5 elevation adjustment turret for .223
Construction Details -
- 1" single-piece main tube
- Aluminum housing with matte black finish
- Oversized knurled dial knobs for non-slip tuning
- Low profile tactile zoom lever allows a fast one-finger operation
- Fogproof: filled with argon and krypton
- Waterproof
UPC: 030317153878 In the Box Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Illuminated FireDot-G SP Reticle) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 115387 Specs | | | Magnification | 1.5 to 3.9x | | Objective Lens Diameter | 20 mm | | Field of View | 1.5x: 73' @ 100 yd / 24.3 m @ 100 m
4x: 29.3' @ 100 yd / 9.8 m @ 100 m | | Exit Pupil Diameter | 1.5x: 13.3 mm
4x: 5.1 mm | | Eye Relief | 3.7 to 4.1" / 9.5 to 10.2 cm | | | | Reticle Type | FireDot-G SP Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 125 MOA | | Elevation Adjustment | 125 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 9.5" / 24.1 cm | | Weight | 9.6 oz / 272 g | | | | Package Weight | 1.165 lb | | Box Dimensions (LxWxH) | 14.1 x 3.55 x 2.95" |
