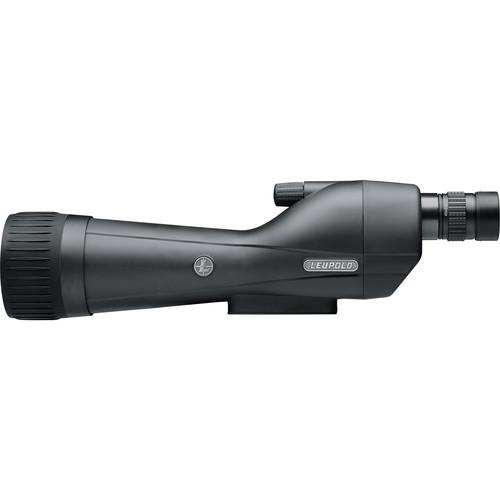

User Manual for Leupold SX-1 Ventana 2 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Leupold SX-1 Ventana 2 20-60x80 Spotting
- Product category: Spotting Scopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Spotting Scopes
|
User manual for the Leupold SX-1 Ventana 2 20-60x80 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The straight-viewing SX-1 Ventana 2 20-60x80 Spotting Scope from Leupold features high-quality glass with specialized optical coatings to provide clear and bright images. The lens elements are multi-coated to prevent internal ghosting and reflections. These coatings are highly reflective and minimize the loss of light while further boosting contrast and color fidelity.
This spotting scope's durable body is nitrogen filled and is both water and fogproof. The included 20-60x eyepiece provides a linear field of view of 89.0-47.0' at 1,000 yards, while a tripod mounting shoe accepts a 1/4"-20 mounting bolt, and a retractable lens shade keeps the Sun or rain off the objective lens. - Optical Performance
-
- 20-60x zoom eyepiece
- 80mm objective lens
- Multi-coated optics to prevent internal ghosting and reflections
- Use and Handling
-
- Smooth-focusing, straight-view eyepiece is in-line with scope's objective
- Twist-up eyecup for use with or without eyewear
- 1/4"-20 tripod mount
- Construction Details
-
- Durable, rugged construction
- Nitrogen filled for water and fogproof performance
- Built-in retractable sunshield
- Includes soft case
UPC: 030317010508 In the Box Leupold SX-1 Ventana 2 20-60x80 Spotting Scope (Straight Viewing) 20-60x Eyepiece Soft Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold SX-1 Ventana 2 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold SX-1 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Field of View | 20x: 89.0' @ 1000 yd / 27.0 m @ 1000 m
60x: 47.0' @ 1000 yd / 14.0 m @ 1000 m | | Minimum Focus Distance | 24.9' / 7.5 m | | Exit Pupil Diameter | 20x: 4 mm
60x: 1.3 mm | | Eye Relief | 26.4 to 24.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 17.0" / L: 43.2 cm | | Weight | 37.0 oz / 1049.0 g | | | | Package Weight | 4.28 lb | | Box Dimensions (LxWxH) | 19.05 x 6.2 x 5.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
