Leupold VX-3i 1.5-5x20mm Riflescope Leupold VX-3i 1.5-5x20mm Riflescope
User manual for the Leupold VX-3i 1.5-5x20mm Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Leupold product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!



Product description

Equip your handgun, shotgun, or rifle with the matte black Leupold VX-3i 1.5-5x20mm Riflescope with duplex reticle for serious short to medium range performance. The Twilight Max Light Management System balances light wavelengths to give you the best possible sight picture even in the low-light conditions of dawn and dusk. To further improve contrast and reduce stray light, the environmentally friendly, lead-free optical elements have their edges blackened. To help compensate for wind drift and ballistic bullet drop, the scope offers a 110 MOA windage and elevation adjustment range with a 1/4 MOA per click impact point correction. The duplex reticle features thick outer posts and a fine center crosshair located on the second focal plane.

The Easy Turn Power Selector makes changing magnification simple, even with gloves on. The 6061-T6 aluminum housing is lightweight, durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. The rugged design is bolstered by the use of DiamondCoat protective lens coatings.
    Optical Performance
    • Magnification: 1.6-4.5x, actual
    • Objective lens: 20mm diameter
    • Main tube diameter: 1"
    • Eye relief: 4.4 - 3.7"
    • Twilight Max Light Management system balances light wavelengths to optimize sight picture in low-light conditions
    • Blackened lens edges reduce unwanted glare and diffusion through the lens edges to provide better resolution & improved contrast
    • BAS (Ballistic Aiming System) offers unique reticles to help estimate range and improve accuracy

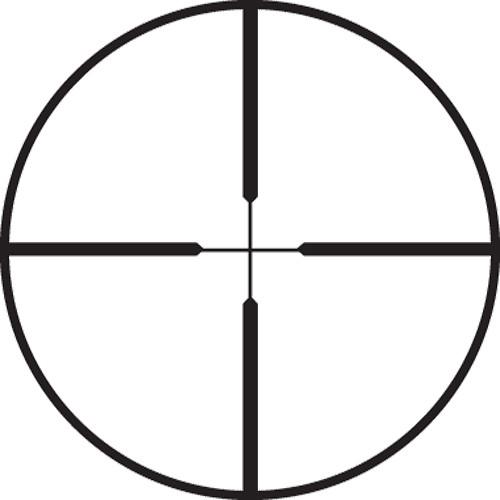

    Duplex Retical
  • Thick outer posts and a thin center crosshair
  • Positioned on the second (rear) focal plane
    Use and Handling
  • 1/4 MOA per click impact point correction: finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of use
  • Easy turn power selector with larger and brighter numbering
  • 110 MOA windage/elevation adjustment range
  • Twist focus parallax adjustment
    Construction Details
  • One-piece housing made of 6061-T6 aluminum
  • Argon/Krypton waterproofing uses a special Argon/Krypton gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
  • Twin-Bias spring erector system resists recoil to maintain zero
  • Eco-friendly lead-free glass lenses avoid damaging by-products common to standard glass production
  • DiamondCoat protective lens coating for higher light transmission and abrasion resistance
  • Weight: 9.3 oz
In the Box Leupold VX-3i 1.5-5x20mm Riflescope (Duplex Reticle)
  • Protective Neoprene Scope Cover
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Leupold VX-3i 1.5-5x20mm Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Leupold 170675 Specs

    Magnification 1.5 to 5x
    Objective Lens Diameter 20 mm
    Field of View 1.5x: 68' @ 100 yd / 22.7 m @ 100 m
    5x: 23.8' @ 100 yd / 7.9 m @ 100 m
    Eye Relief 3.7 to 4.4" / 94 to 112 mm
    Reticle Type Duplex Reticle
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 110 MOA
    Elevation Adjustment 110 MOA
    Water Resistance Waterproof
    Fogproof Yes
    Maintube Diameter 1"
    Battery None
    Dimensions Length: 9.5" / 24.1 cm
    Weight 9.3 oz / 263.7 g
