User Manual for Leupold VX-3i 2.5-8x36mm Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold VX-3i 2.5-8x36mm Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold VX-3i 2.5-8x36mm Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

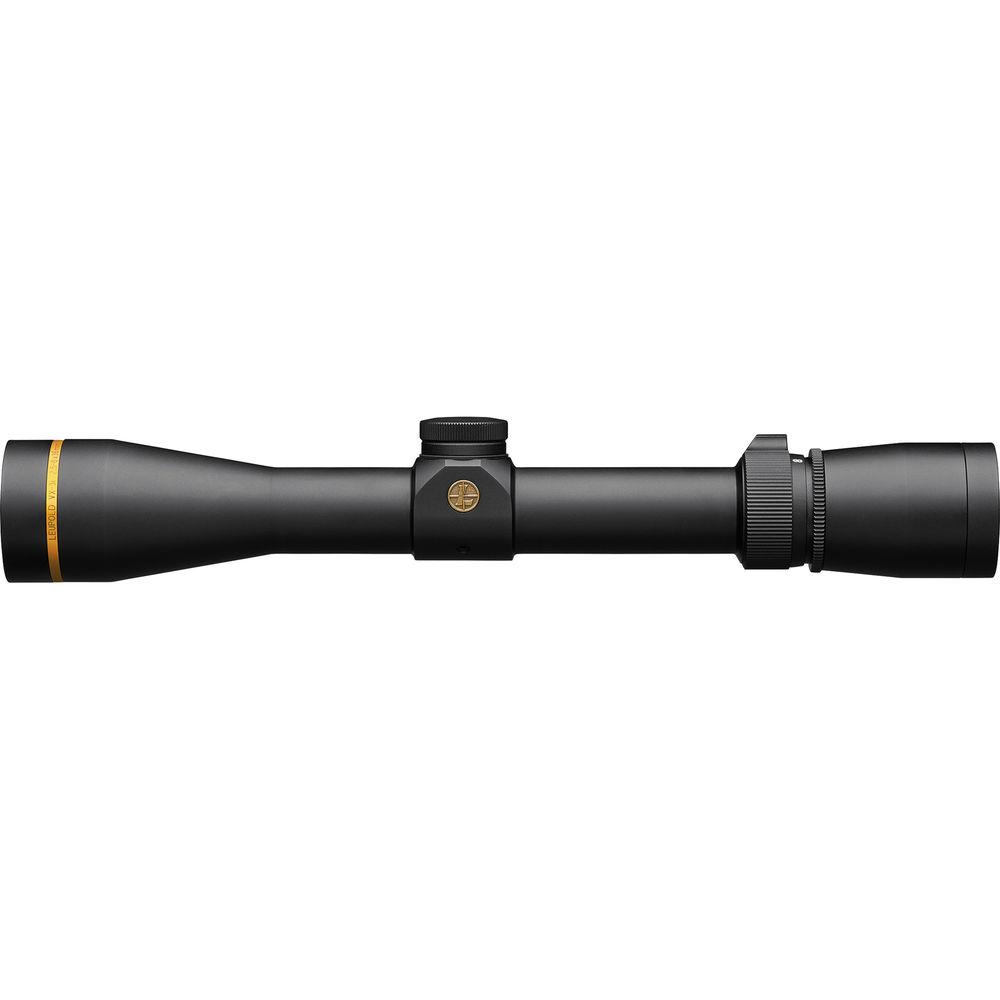

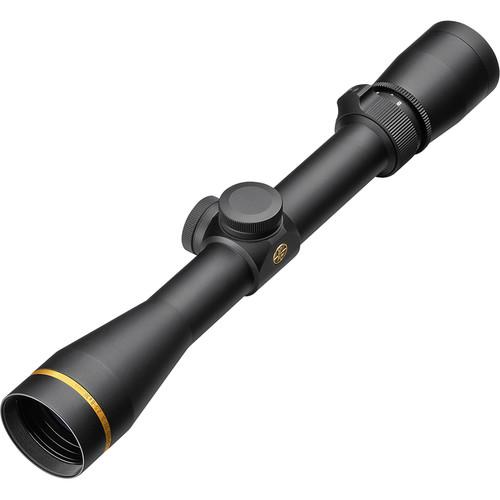

Product description Top your ranch rifle, slug gun, or muzzleloader with the Leupold VX-3i 2.5-8x36mm Riflescope, with duplex reticle, and be prepared for most situations out in the field. The Twilight Max Light Management System balances light wavelengths to give you the best possible sight picture even in the low-light conditions of dawn and dusk. To further improve contrast and reduce stray light, the environmentally friendly, lead-free optical elements have their edges blackened.
This scope offers 67 MOA of windage and elevation adjustment with a 1/4 MOA per click impact point correction to help compensate for wind drift and ballistic bullet drop. The duplex reticle features thick posts with a thin cross hair so it won't obscure small targets at long range. It is located on the second focal plane, so it is unaffected by magnification.
The Easy turn power selector makes changing magnification simple, even with gloves on. The 6061-T6 aluminum housing is lightweight and durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. The rugged design is bolstered by the use of DiamondCoat protective lens coatings. - Optical Performance
-
- Magnification: 2.6-7.8x
- Objective lens: 36 mm diameter
- Maintube diameter: 1"
- Eye relief: 4.5 - 3.6"
- Twilight Max Light Management system balances light wavelengths to optimize sight picture in low-light conditions
- Blackened lens edges reduce unwanted glare and diffusion through the lens edges to provide better resolution, improved contrast
- BAS (Ballistic Aiming System) offers unique reticles to help estimate range and improve accuracy

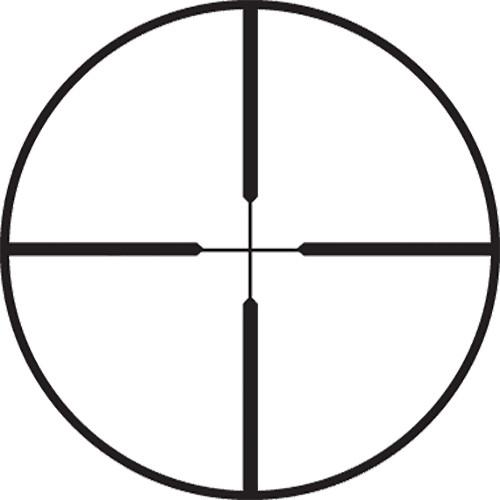

- Duplex Reticle
-
- Thick posts with a thin crosshair
- Positioned on the second (rear) focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction offers repeatability and dependability over a lifetime of use
- Easy turn power selector with larger and brighter numbering
- 67 MOA windage/elevation adjustment range
- Twist parallax adjustment
- Construction Details
-
- One-piece housing made of 6061-T6 aluminum
- Argon/Krypton waterproofing uses a special gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
- Twin-Bias spring erector system resists recoil to maintain zero
- Eco-friendly lead-free glass lenses avoid damaging by-products common to standard glass production
- DiamondCoat protective lens coating for higher light transmission and abrasion resistance
- Weight: 11.4 oz
UPC: 030317010072 In the Box Leupold VX-3i 2.5-8x36mm Riflescope (Duplex Reticle) Protective Neoprene Scope Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold VX-3i 2.5-8x36mm Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 170678 Specs | | | Magnification | 2.5 to 8x | | Objective Lens Diameter | 36 mm | | Field of View | 2.5x: 37.5' @ 100 yd / 11.4 m @ 100 m
8x: 13.7' @ 100 yd / 4.2 m @ 100 m | | Eye Relief | 3.3 to 4.5" / 91 to 114 mm | | | | Reticle Type | Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 67 MOA | | Elevation Adjustment | 67 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.4" / 28.9 cm | | Weight | 11.4 oz / 323.2 g | | | | Package Weight | 1.205 lb | | Box Dimensions (LxWxH) | 14.35 x 3.65 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
