User Manual for Leupold VX-3i 4.5-14x40mm Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold VX-3i 4.5-14x40mm Side Focus Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold VX-3i 4.5-14x40mm Side Focus Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

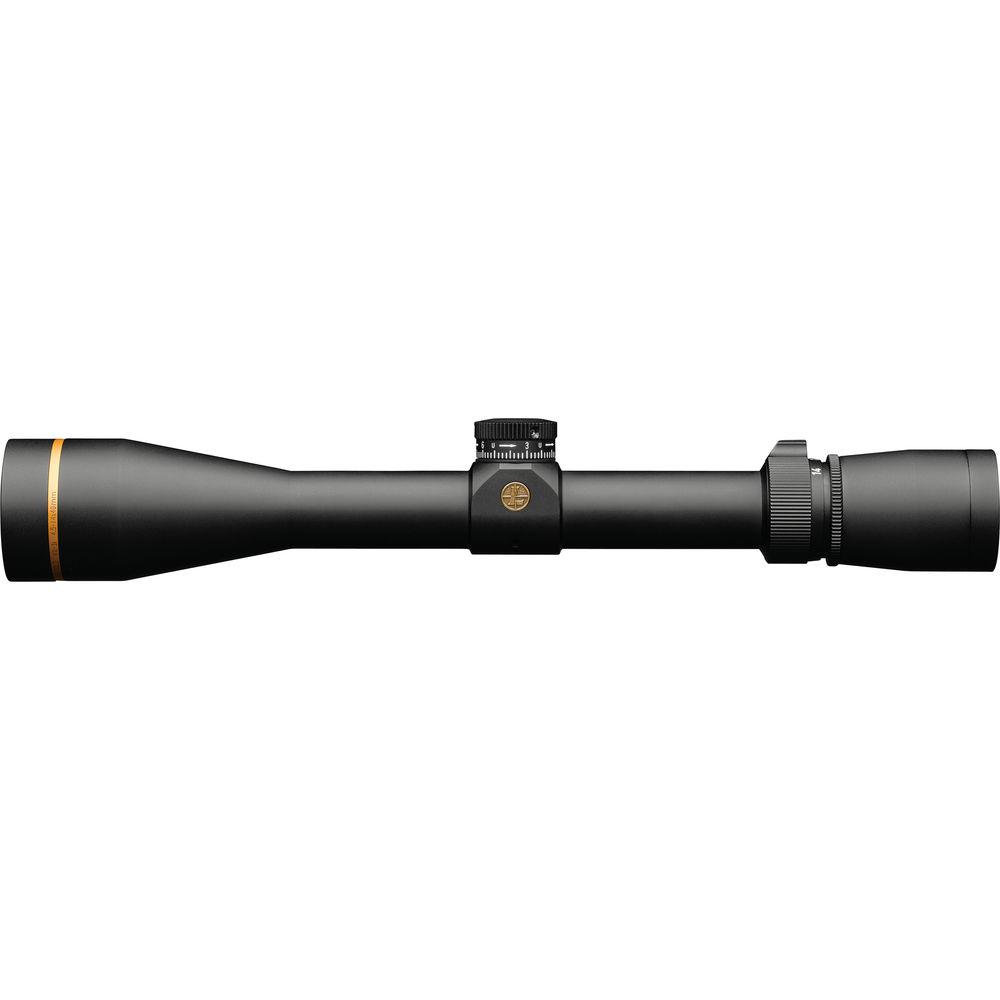

Product description Outfit your rifle or slug gun with the Leupold VX-3i 4.5-14x40mm Side Focus Riflescope with duplex reticle for serious short to long range performance. Combined with the 30mm maintube, the Twilight Max Light Management System balances light wavelengths to give you the best possible sight picture even in the low-light conditions of dawn and dusk. To further improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened.
To help compensate for wind drift and ballistic bullet drop, the scope offers a 113 MOA windage and elevation adjustment range with a 1/4 MOA per click impact point correction. The duplex reticle features thick posts with a thin crosshair that won't obscure the target. It is located on the second focal plane, so it is unaffected by magnification.
The easy turn power selector makes changing magnification simple, even with gloves on. The 6061-T6 aluminum housing is lightweight, durable, waterproof, fogproof, and features a twin bias spring erector system that helps increase holding force. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. The rugged design is bolstered by the use of DiamondCoat 2 protective lens coatings. - Optical Performance
-
- Magnification: 4.9-14.7x
- Objective lens: 40mm diameter
- Main tube diameter: 30mm
- Eye relief: 4.4 - 3.7"
- Twilight Max Light Management system balances light wavelengths to optimize sight picture in low-light conditions
- Blackened lens edges reduce unwanted glare and diffusion through the lens edges to provide better resolution and improved contrast
- BAS (Ballistic Aiming System) offers unique reticles to help estimate range and improve accuracy

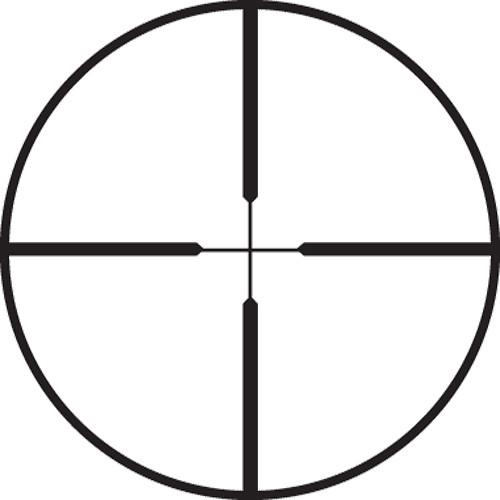

- Duplex Reticle
-
- Thick posts with a thin crosshair that won't obscure the target
- Positioned on the second (rear) focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction offers repeatability and dependability over a lifetime of use
- Easy turn power selector with larger and brighter numbering
- 113 MOA windage/elevation adjustment range
- Side focus parallax adjustment
- Construction Details
-
- One-piece housing made of 6061-T6 aluminum
- Argon/Krypton waterproofing uses a special gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
- Twin-Bias spring erector system resists recoil to maintain zero
- Eco-friendly, lead-free glass lenses avoid damaging by-products common to standard glass production
- DiamondCoat 2 protective lens coating for higher light transmission and abrasion resistance
- Weight: 15.1 oz
UPC: 030317009953 In the Box Leupold VX-3i 4.5-14x40mm Side Focus Riflescope (30mm Maintube, Duplex Reticle) Protective Neoprene Scope Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold VX-3i 4.5-14x40mm Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 170699 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 40 mm | | Field of View | 4.5x: 18.7' @ 100 yd / 6.2 m @ 100 m
14x: 7.3' @ 100 yd / 2.4 m @ 100 m | | Eye Relief | 3.7 to 4.4" / 94 to 112 mm | | | | Reticle Type | Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 113 MOA | | Elevation Adjustment | 113 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 12.6" / 32 cm | | Weight | 15.1 oz / 428 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 14.0 x 3.4 x 3.0" |
