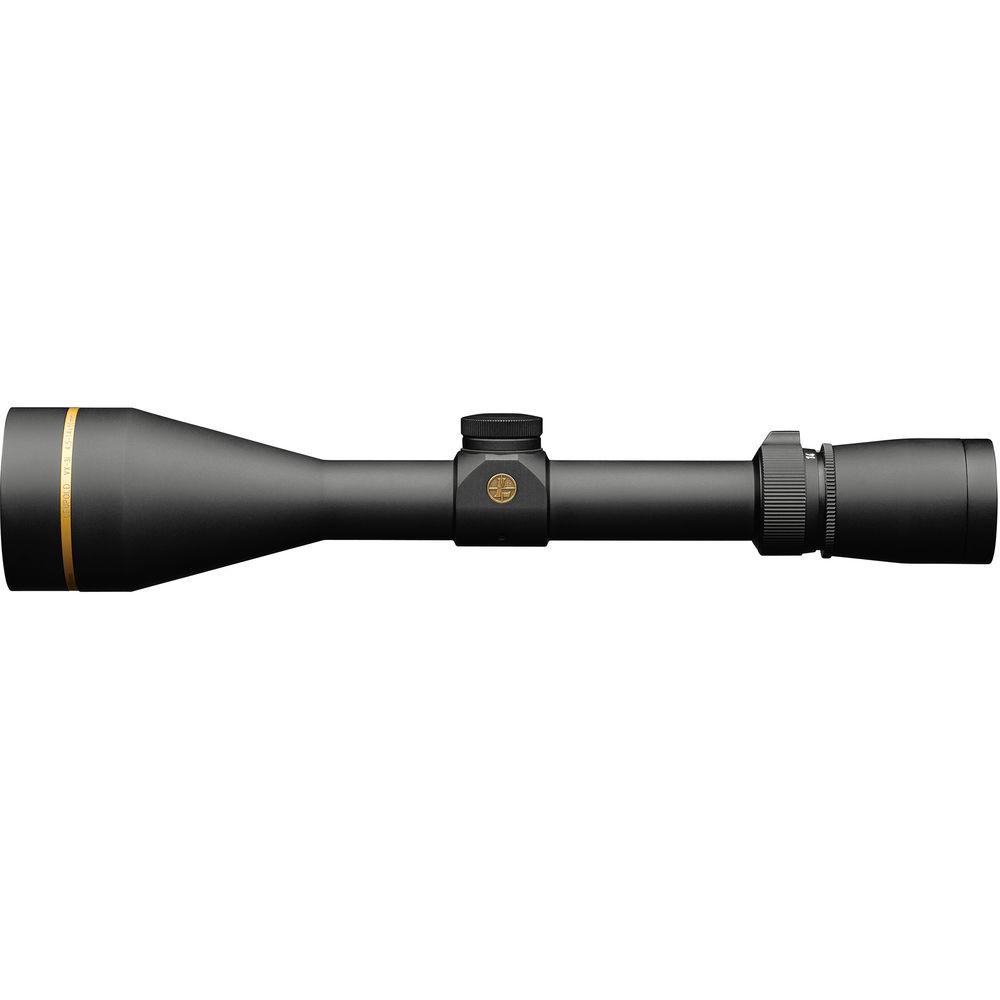

Product description Handle your long distance shooting optic needs with the matte black Leupold VX-3i 4.5-14x50mm Riflescope, featuring a 30mm maintube with duplex reticle. The 30mm maintube increases windage and elevation travel while the side focus adjustment makes fine-tuning parallax simple. The Twilight Max Light Management System balances light wavelengths to give you the best possible sight picture, even in the low-light conditions of dawn and dusk. To further improve contrast and reduce stray light, the eco-friendly, lead-free optical elements have their edges blackened.
This scope offers 110 MOA of windage and elevation adjustment with a 1/4 MOA per click impact point correction to help compensate for wind drift and ballistic bullet drop. The duplex reticle features thick posts with a thin crosshair for easy target acquisition. It is located on the second focal plane, so it is unaffected by magnification.
The easy turn power selector makes changing magnification simple, even with gloves on. The 6061-T6 aluminum housing is lightweight, durable, waterproof, fogproof, and features a twin bias spring erector system that helps increase holding force. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. The rugged design is bolstered by the use of DiamondCoat 2 protective lens coatings. - Optical Performance
-
- Actual magnification: 4.9-14.4x
- Objective lens: 50mm diameter
- Main tube diameter: 30mm
- Eye relief: 4.4 - 3.6"
- Twilight Max Light Management system balances light wavelengths to optimize sight picture in low-light conditions
- Blackened lens edges reduce unwanted glare and diffusion through the lens edges to provide better resolution and improved contrast
- BAS (Ballistic Aiming System) offers unique reticles to help estimate range and improve accuracy
- Duplex Reticle
-
- Thick posts with a thin crosshair that won't obscure the target
- Positioned on the second (rear) focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction offers repeatability and dependability over a lifetime of use
- Easy turn power selector with larger and brighter numbering
- 110 MOA windage/elevation adjustment range
- Side parallax adjustment
- Construction Details
-
- One-piece housing made of 6061-T6 aluminum
- Argon/Krypton waterproofing uses a special gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
- Twin-Bias spring erector system resists recoil to maintain zero
- Eco-friendly, lead-free glass lenses avoid damaging by-products common to standard glass production
- DiamondCoat 2 protective lens coating for higher light transmission and abrasion resistance
- Weight: 16.5 oz
In the Box Leupold VX-3i 4.5-14x50mm Side Focus Riflescope (30mm Maintube, Duplex Reticle) Protective Neoprene Scope Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold VX-3i 4.5-14x50mm Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 170709 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 50 mm | | Field of View | 4.5x: 19.1' @ 100 yd / 6.4 m @ 100 m
14x: 7.4' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 10.2 mm
14x: 3.6 mm | | Eye Relief | 3.6 to 4.4" / 91 to 112 mm | | | | Reticle Type | Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 12.2" / 30.9 cm | | Weight | 16.5 oz / 468 g |
