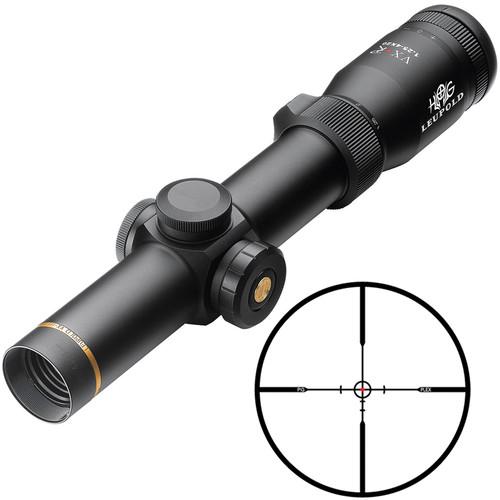

User Manual for Leupold VX-R Hog 1.25-4x20 Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold VX-R Hog 1.25-4x20 Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold VX-R Hog 1.25-4x20 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Decorated with a 24k gold-plated ring and a medallion, the matte black VX-R Hog 1.25-4x20 Riflescope from Leupold is designed for short-to-medium range shooting and features an Illuminated FireDot Pig Plex reticle. The optical system offers index-matched multiple anti-glare coatings that reduce reflections and maximize light transmission. In order to improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 90 MOA windage and elevation adjustment range with a 1/4 MOA impact point correction.
Ideal for thick and forested areas where wild boars run, the exclusive Illuminated Pig Plex reticle features medium short posts, a thin crosshair, and an encircled illuminated red dot. It is sighted at 50 yards and offers holdovers at 300, 400, and 500 yards.
The 6061-T6 aluminum housing is lightweight and durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. Also included with the riflescope are one CR-2032 battery and a neoprene soft cover. Optical Performance -
- Actual magnification: 1.5-4x
- Objective lens: 20mm diameter
- Main tube diameter: 30mm
- Eye relief: 4.1-3.7"
- Index-matched lens system: reduces reflections, improves transmission, and provides greater image detail
- Blackened lens edges absorb stray light and improve contrast
- Lead-free glass optics are environmentally friendly
Illuminated FireDot Pig Plex Reticle -
- Located in the 2nd focal plane
- Encircled illuminated center red dot
- Medium short posts
- Thin crosshair
- Holdovers at 300, 400, and 500 yd
- Ideal for thick and forested areas
- Intended for wild boar
- MST-Motion Sensor Technology extends battery life:
Deactivates reticle illumination when rifle is still for 5 minutes
Re-activates illumination when rifle motion is resumed Use and Handling -
- 1/4 MOA per click impact point correction
- 90 MOA windage and elevation adjustment range
- One-turn extended range of focus accommodates a wider range of visual acuity
- Pushbutton illumination
Construction Details -
- 24k gold-plated ring and medallion
- 6061-T6 aluminum housing with matte black finish
- 30mm single-piece main tube
- Low profile zoom lever allows a fast one-finger operation
- Twin bias spring erector system provides 30% more holding force to withstand recoil
- Fogproof: filled with a argon-krypton mixture
- Waterproof
UPC: 030317131654 In the Box Leupold VX-R Hog 1.25-4x20 Riflescope (Illuminated FireDot Pig Plex Reticle) - CR-2032 Battery
- Neoprene Soft Cover
- Limited 2-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold VX-R Hog 1.25-4x20 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 113165 Specs | | | Magnification | 1.5 to 4x | | Objective Lens Diameter | 20 mm | | Field of View | 1.2x: 75' @ 100 yd / 25 m @ 100 m
4x: 29' @ 100 yd / 9.7 m @ 100 m | | Exit Pupil Diameter | 1.25x: 13.3 mm
4x: 5 mm | | Eye Relief | 3.7 to 4.1" / 94 to 104.1 mm | | | | Reticle Type | FireDot Pig Plex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 9.5" / 24.1 cm | | Weight | 11.5 oz / 326 g | | | | Package Weight | 1.335 lb | | Box Dimensions (LxWxH) | 14.05 x 3.85 x 2.95" |
