User Manual for Levenhuk 0.3MP M35 BASE Microscope Digital Camera Click to enlarge the picture
Contents of the user manual for the Levenhuk 0.3MP M35 BASE Microscope Digital
- Product category: Microscope Accessories Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscope Accessories
 |
User manual for the Levenhuk 0.3MP M35 BASE Microscope Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

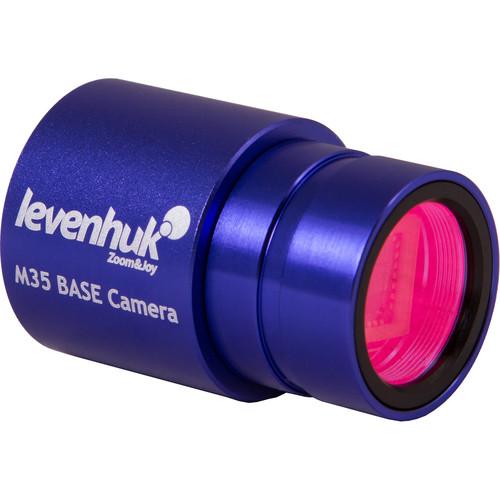

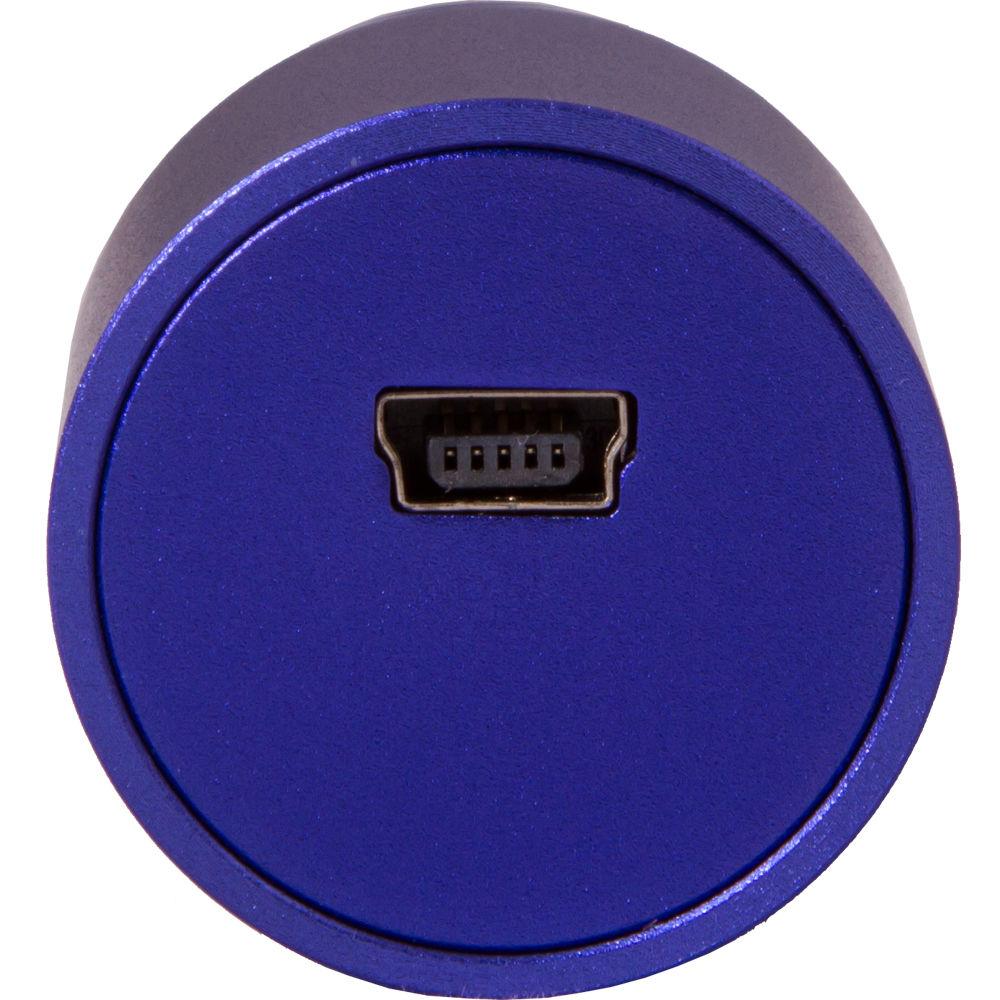

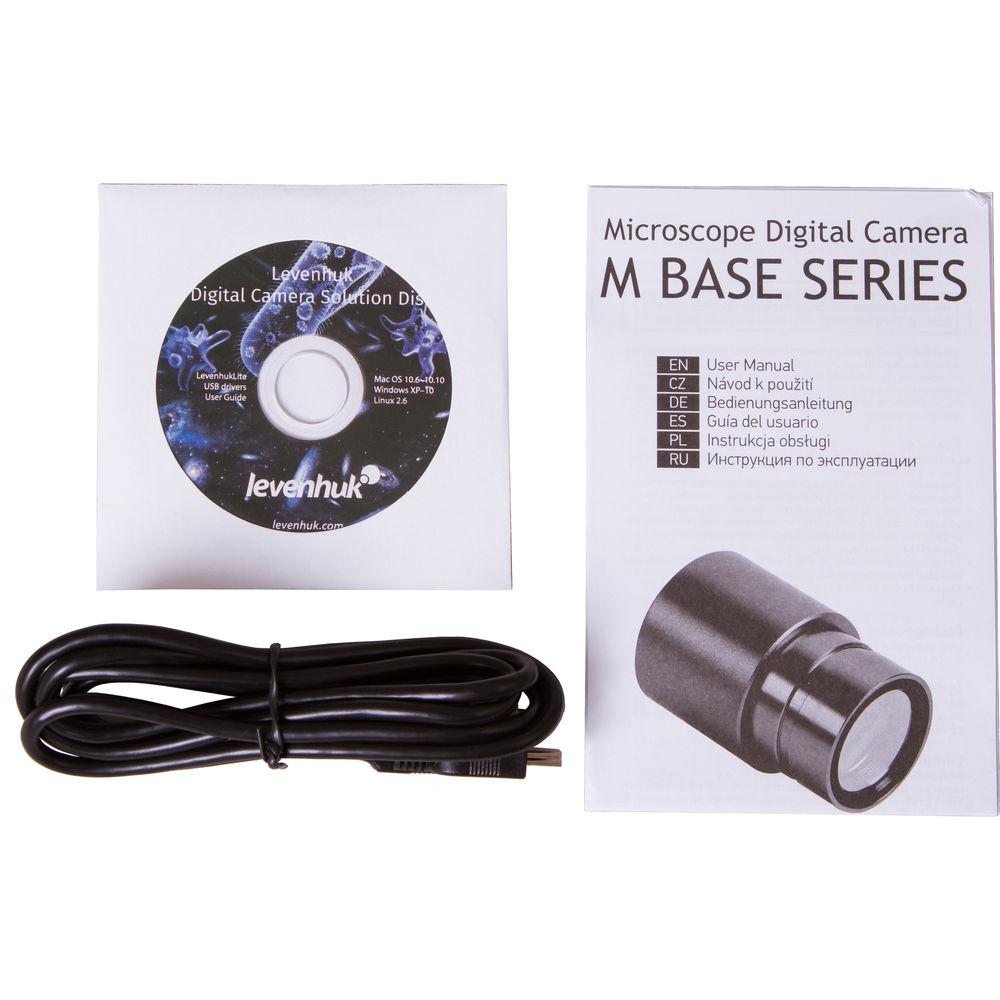

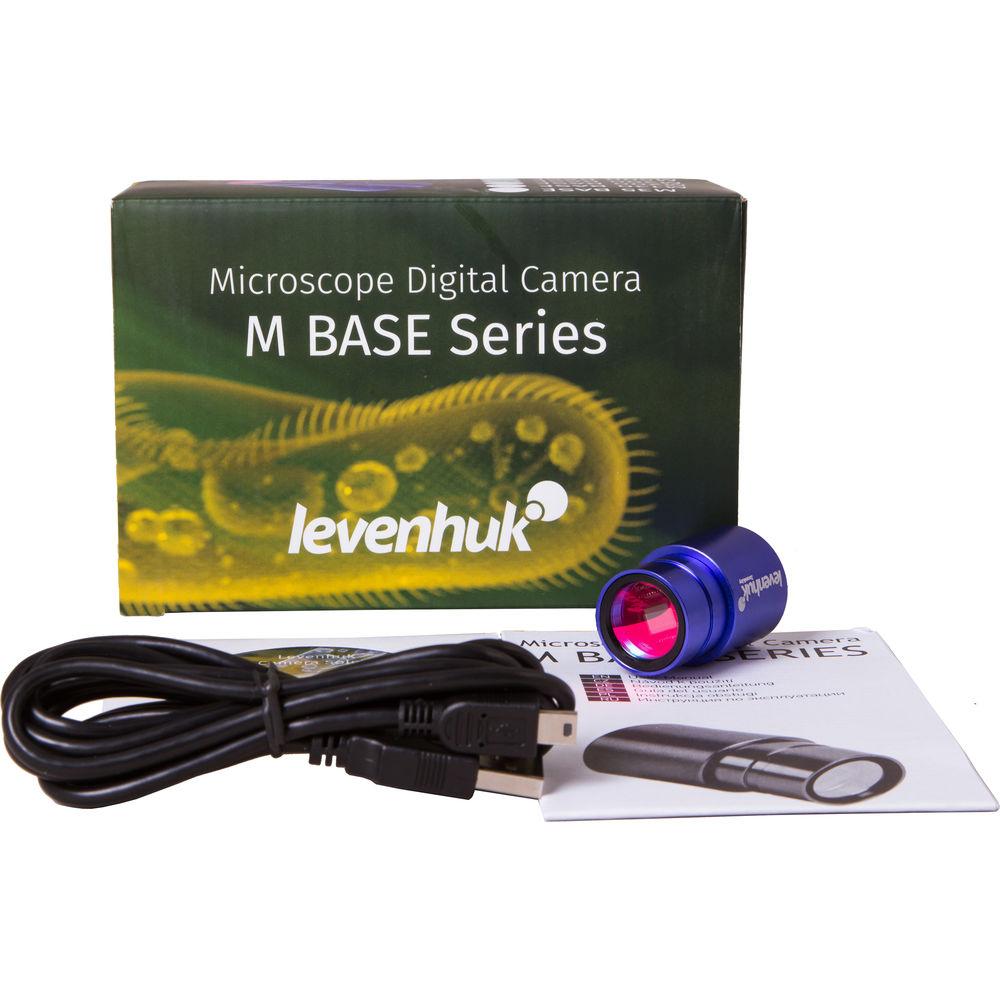

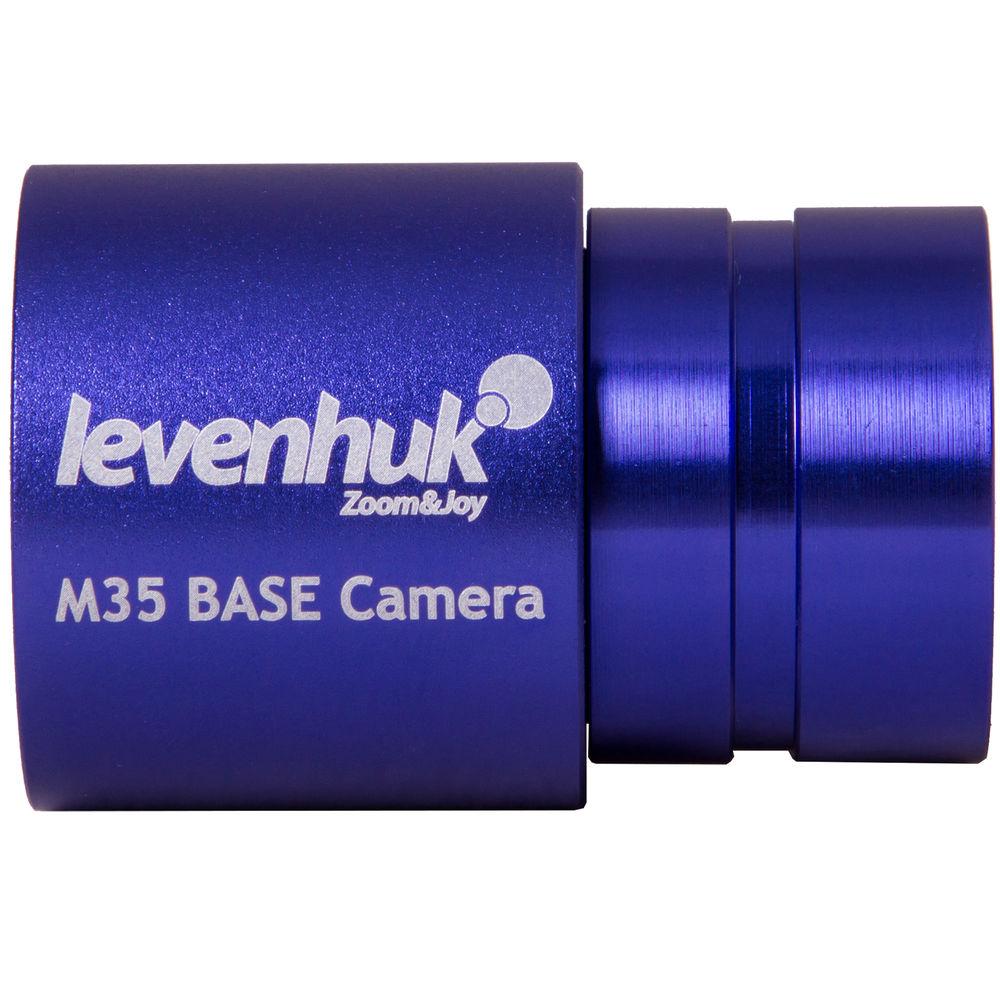

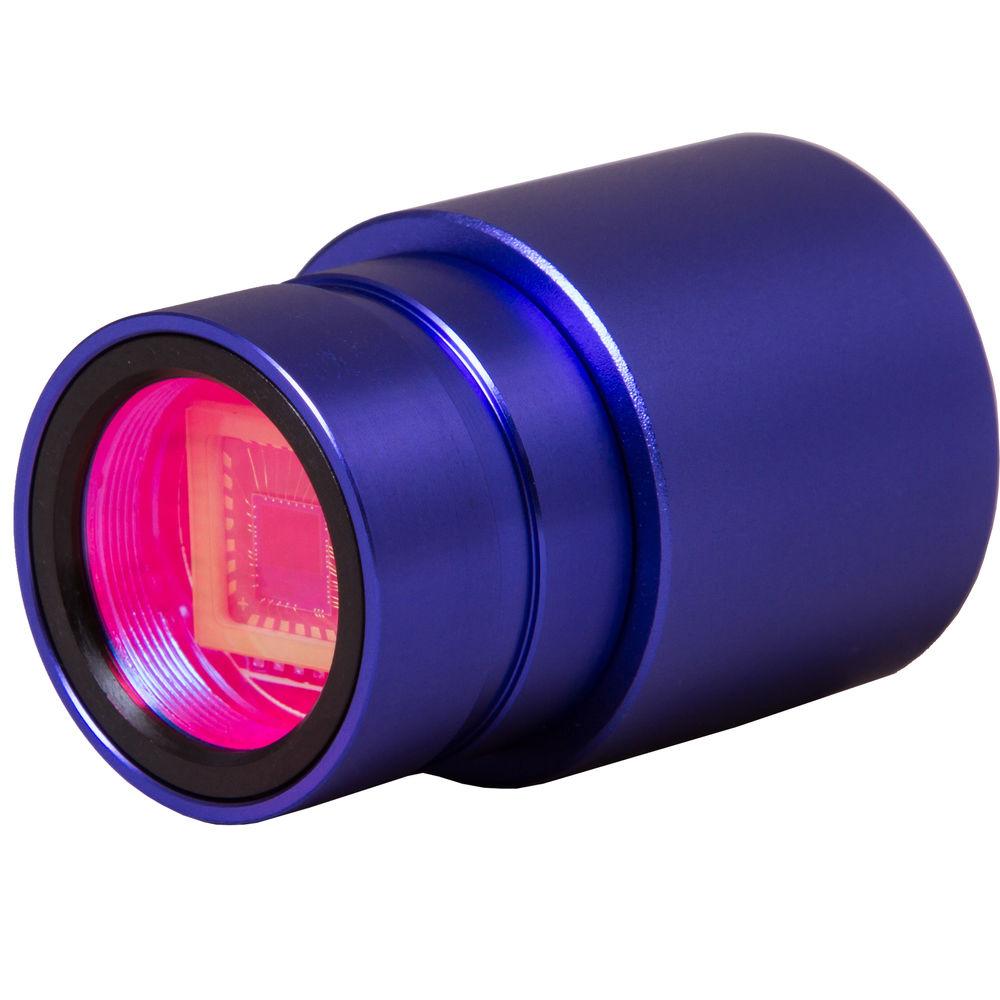

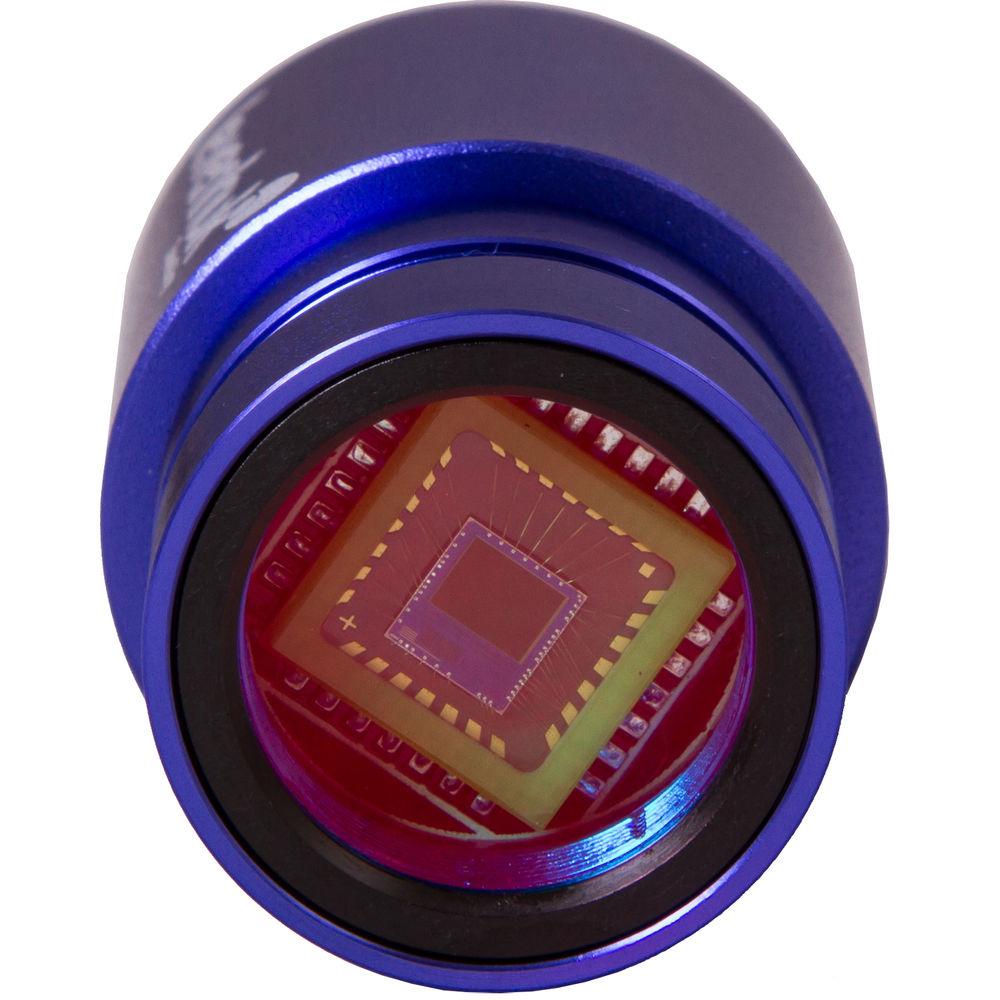

Product description Enhance your microscopy using the Levenhuk 0.3MP M35 BASE Microscope Digital Camera. This handy accessory fits microscope eyepieces with 23.2mm tubes and allows you to capture still images and videos of your experiments and observations. It features a 0.3MP 1/4'' CMOS sensor and has an easy-to-use mini-USB port for connectivity to your computer. Using the included Levenhuk software (compatible with select versions of Windows, Mac OS, and Linux), you can view and capture color images and videos in a variety of formats. The included software also allows you control settings such as white balance, exposure, brightness, and image size to achieve results that fit your needs. In the Box Levenhuk 0.3MP M35 BASE Microscope Digital Camera (Blue) Levenhuk Software CD Mini-USB Power/Data Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 0.3MP M35 BASE Microscope Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 70352 Specs | Compatibility | 23.2 mm microscope eyepieces | | Sensor | 0.3 MP, 1/4'' CMOS sensor | | Pixel Size | 5.6 x 5.6 µm | | Exposure | Auto | | Video Recording | Yes | | Image Formats | JPG, BMP, PNG, and TIF | | Video Formats | WMV, AVI, H.264, and H.265 | | Filter | Transmission Bandwidth: 380 - 650 nm | | Shutter | Electronic Rolling Shutter (ERS) | | White Balance | Auto, manual | | Exposure Control | Auto, manual | | Software | Levenhuk software | | Language Support | English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, and Turkish | | Software Control | Image size, brightness, and exposure time | | Ports | Power/Data mini-USB: 480 Mb/s | | System Compatibility | Operating System: Windows (32/64-bit) XP, Vista, 7, 8, and 10; Mac OS 10.12; Linux Ubuntu 14.04
CPU: IntelCore 2 or above
RAM: 2 GB
Ports: USB 2.0
CD-ROM | | Construction | Housing: Metal | | Operating temperature | 14 to 122°F / -10 to 50°C | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
