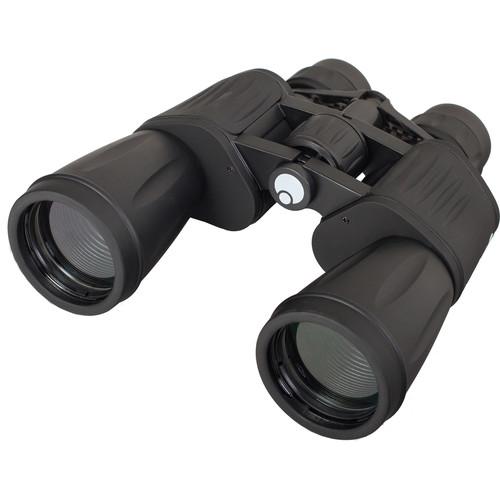

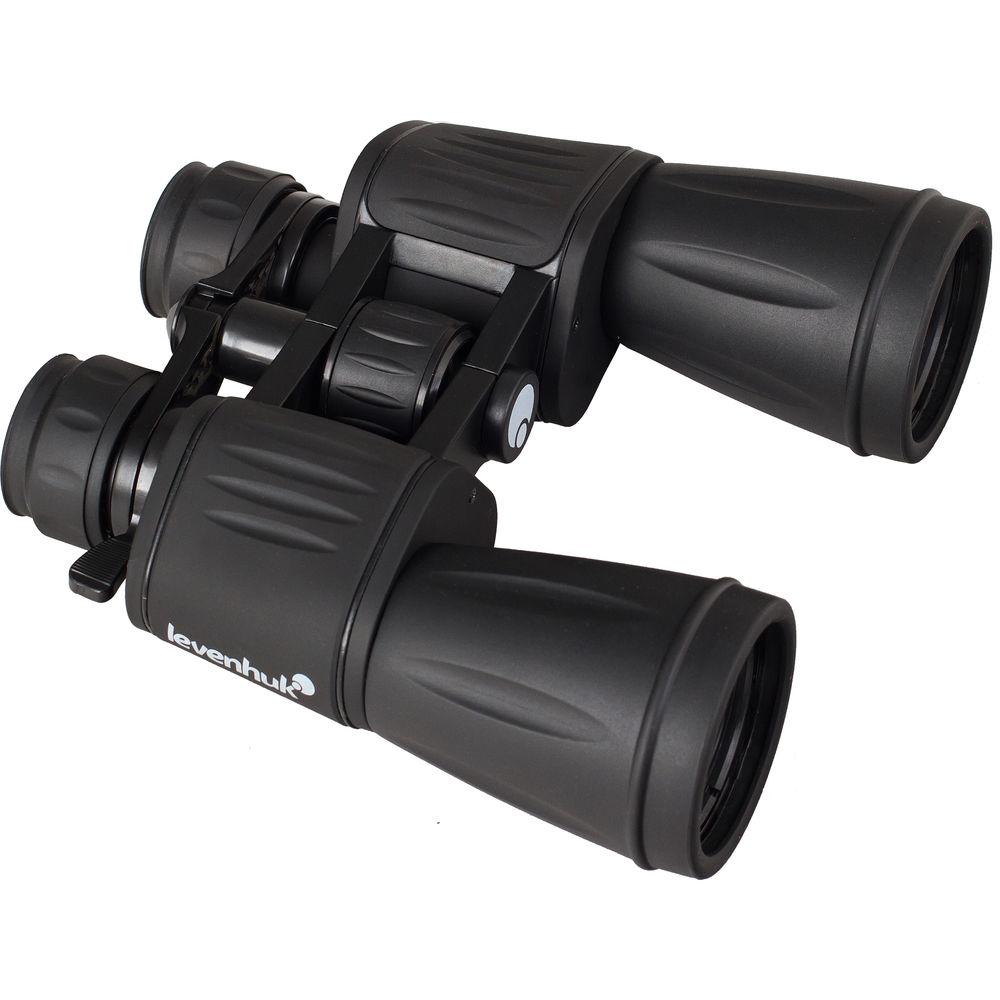

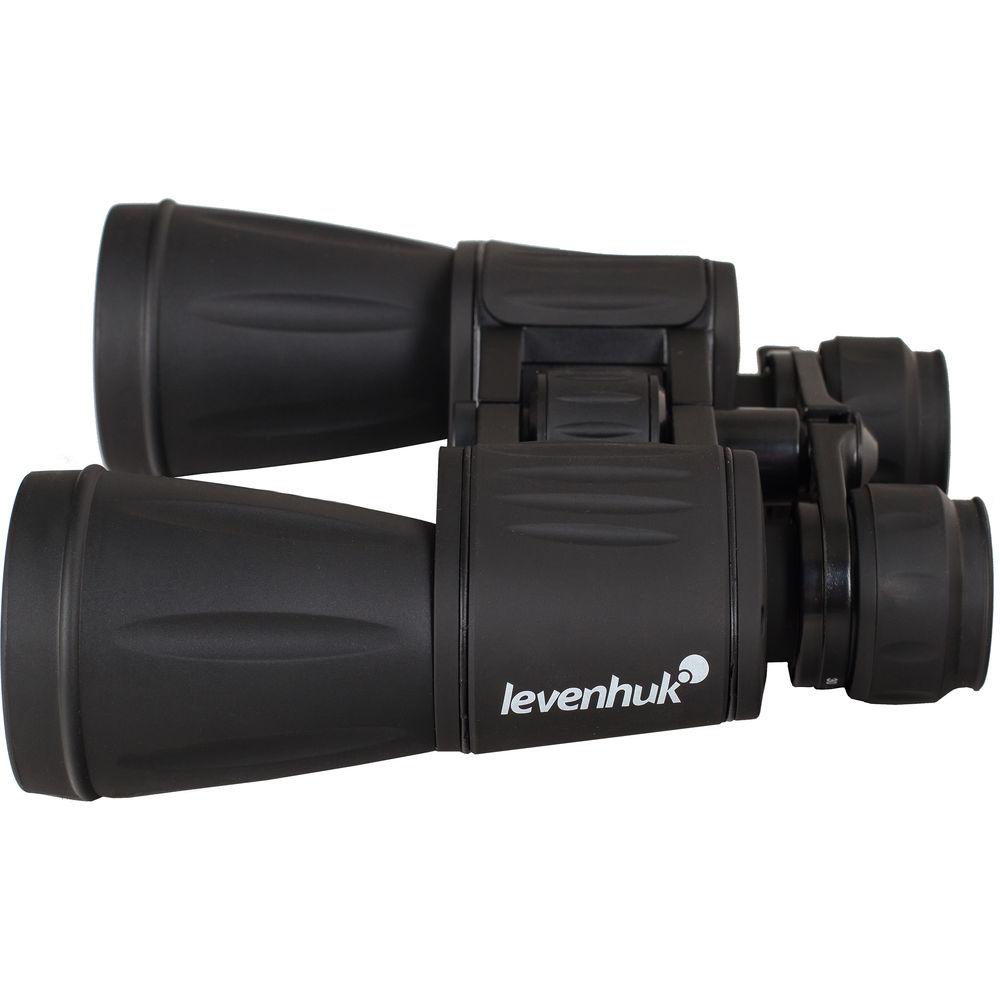

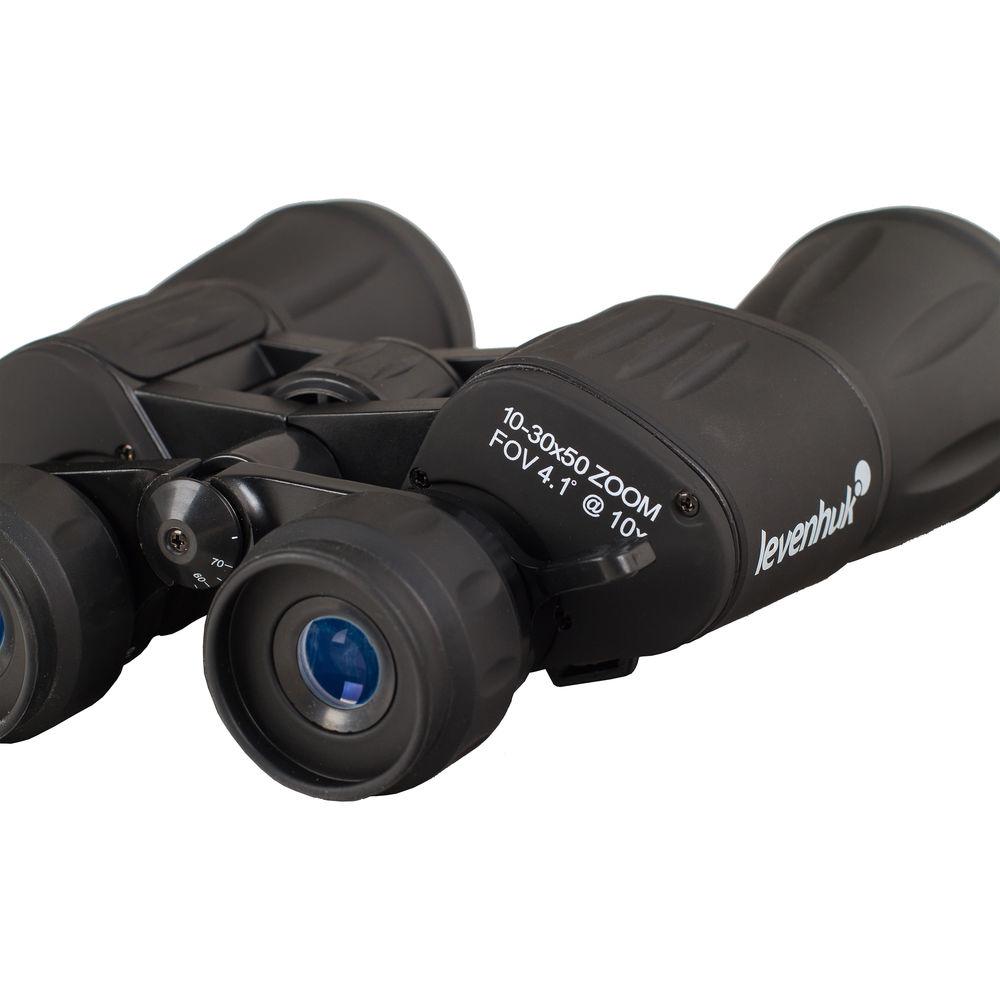

User Manual for Levenhuk 10-30x50 Atom Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 10-30x50 Atom Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 10-30x50 Atom Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More awdawwazzvvdywxyxvytcqfeaqtsbf From the city, to the country, to the backwoods, the Levenhuk 10-30x50 Atom Binocular is an ideal companion for all your glassing needs. The powerful magnification range allows the viewer to scan a large field of view and then zoom in on the selected object to make detailed observations. An ergonomically-placed zoom lever allows users to make fast magnification changes while viewing through the eyepieces with a simple movement of their right index or middle finger. The large objectives and optical surface multi-coatings draw in copious amounts of light to push the low-light capabilities of the optic, while a large exit pupil at low magnification ensures complete coverage of the user's pupil when it fully dilated as light fades. The optical tubes are O-ring sealed to make them waterproof, and protective rubber armoring provide a slip-resistant grip. For long duration glassing sessions, or to keep the binocular steady at high magnifications, it can be tripod mounted using an optional adapter. - Optical Performance
-
- Powerful 10-30x zoom magnification range
- Large 50mm objective lenses
- Traditional BK7 Porro prism design
- Anti-reflection multi-coated optics limit light loss and enhance contrast and color rendition
- 225-foot field of view at 1000 yd on 10x power
- Locate a subject more easily on low-power, then zoom in for a close-up view
- 14mm eye relief
- Large 5mm exit pupil, at 10x, helps to avoid vignetting in low-light when pupils become fully dilated
- Use and Handling
-

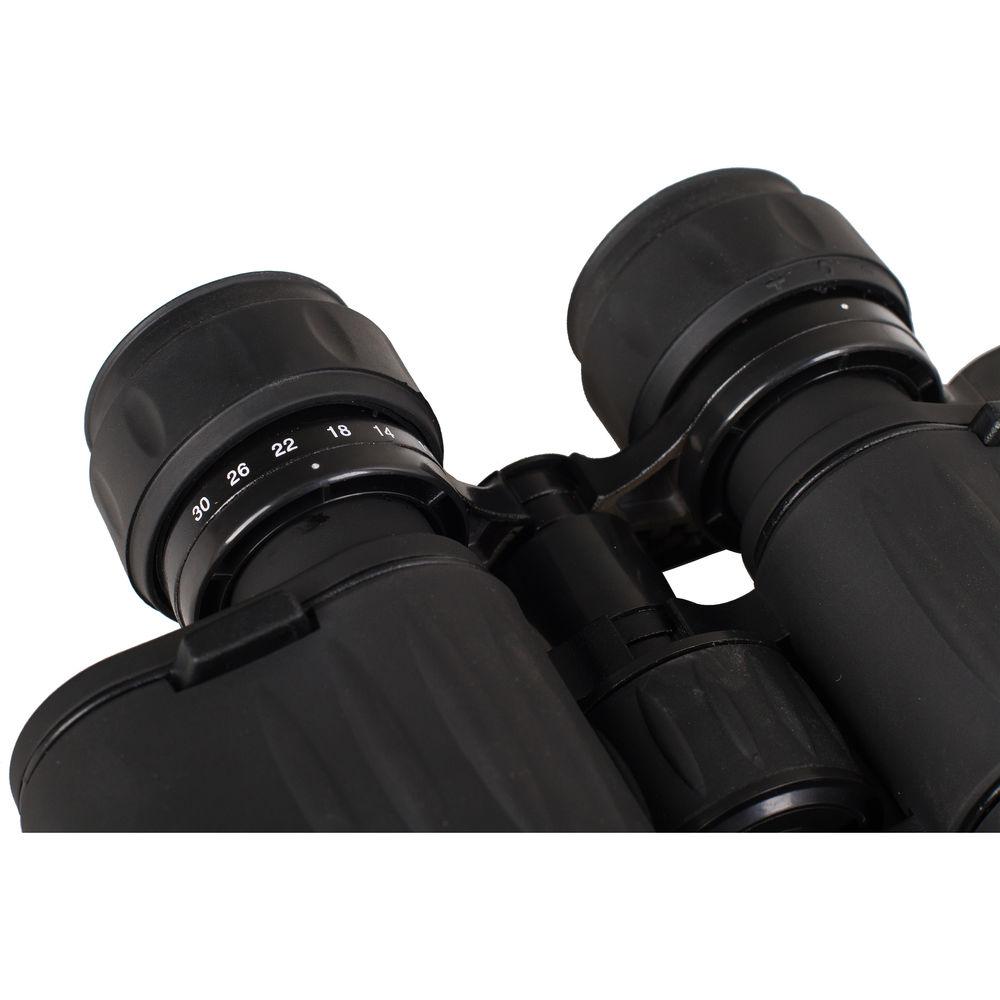

- Convenient, ergonomically-placed zoom lever is easy to manipulate with right hand while looking through binocular
- Large center focusing wheel
- 56-72mm interpupillary adjustment range
- ±3 right-eye dioptric correction
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Construction Details
-
- O-ring sealed to be waterproof
- Non-reflective matte-black finish
- Protective rubber armoring provides a slip-resistant grip
- Tripod mountable with optional adapter
- Weight: 42 oz

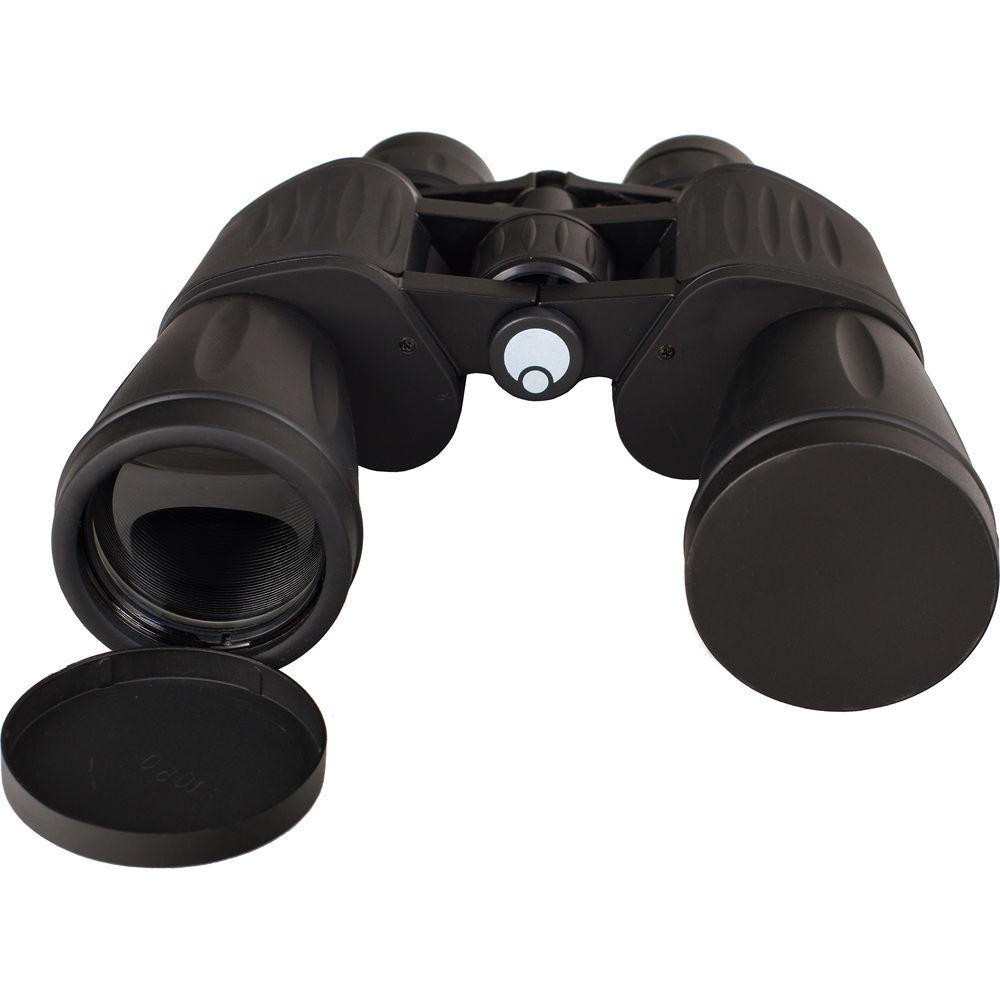

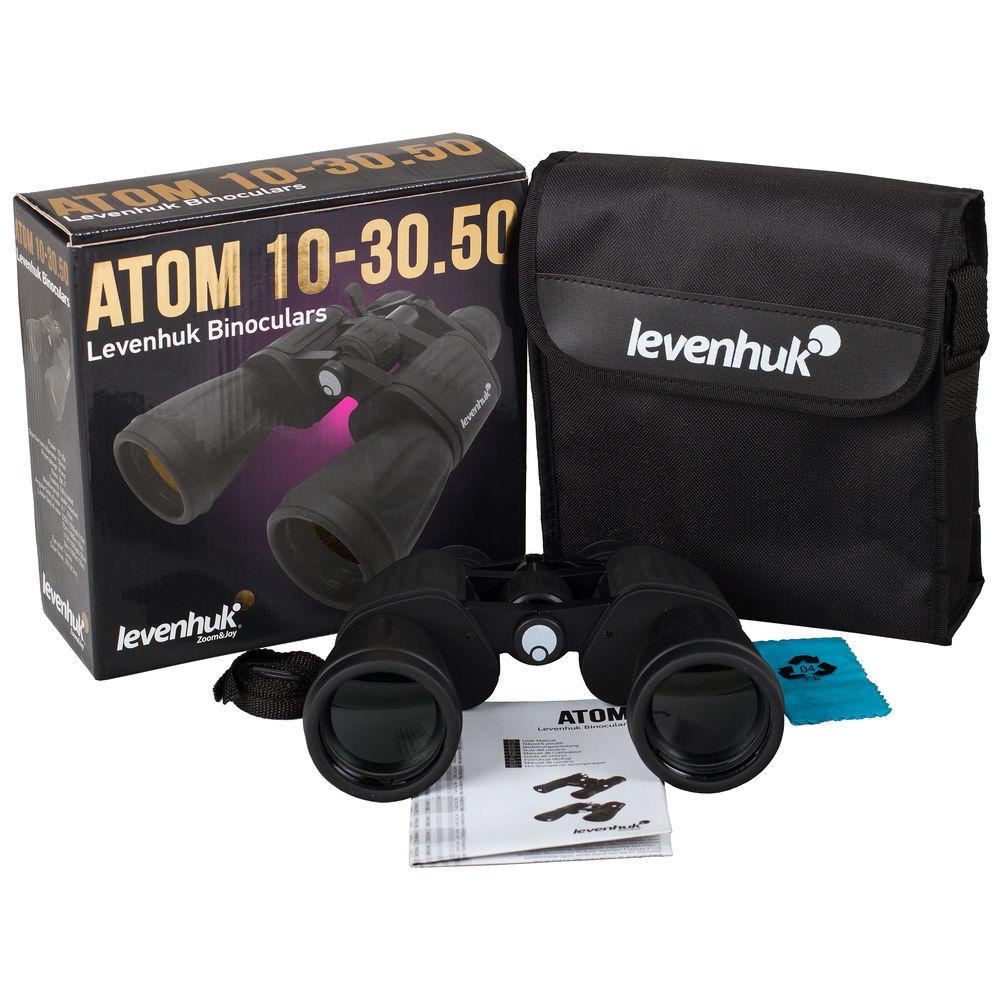

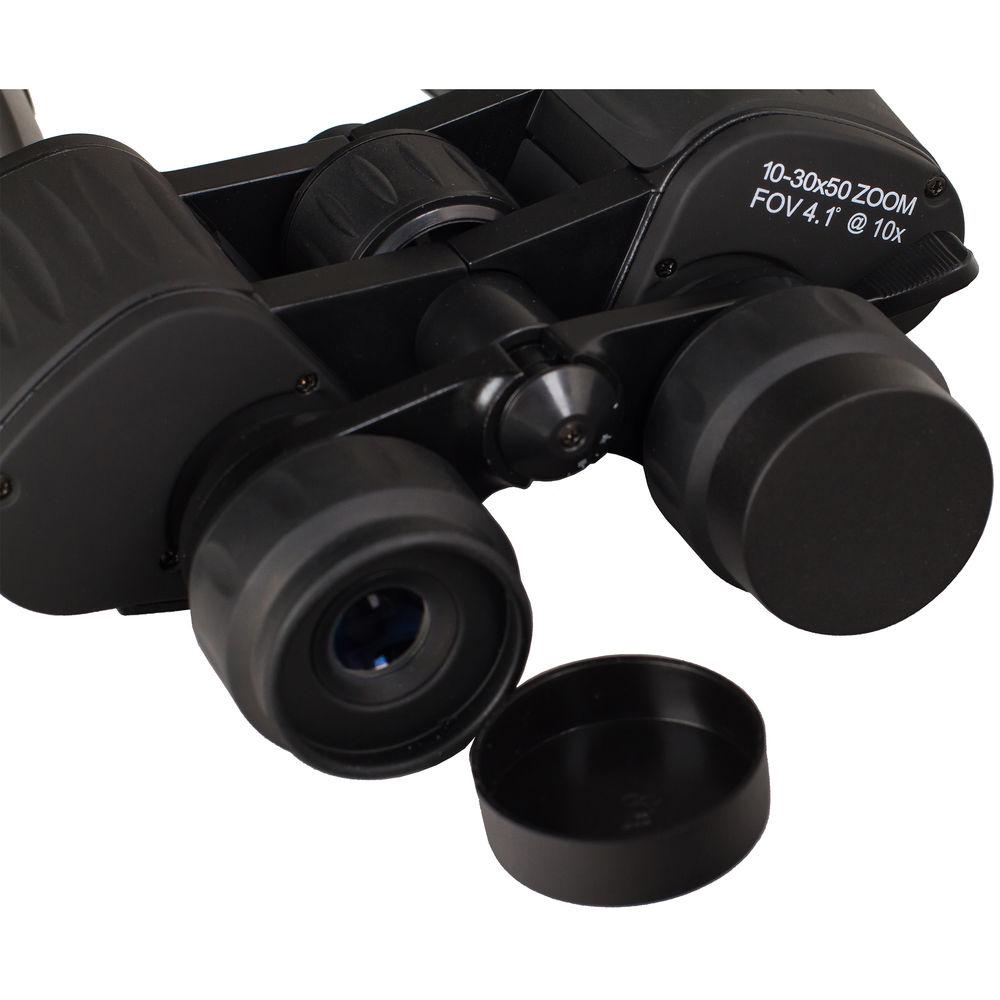

In the Box Levenhuk 10-30x50 Atom Binocular Lens Cloth Carrying Pouch Neck Strap 2 x Ocular Lens Caps 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 awdawwazzvvdywxyxvytcqfeaqtsbf A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10-30x50 Atom Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67684 Specs | Prism Type | Porro | | Magnification | 10 to 30x | | Objective Lens Diameter | 50 mm | | Angle of View | 10x: 4.1° (actual) | | Field of View | 10x: 215.2' @ 1000 yd / 71.7 m @ 1000 m | | Minimum Focus Distance | 26.9' / 8.2 m | | Exit Pupil Diameter | 10x: 5 mm
30x: 1.7 mm | | Eye Relief | 10x: 14.0 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.8 x 7.8 x 2.6" / 19.8 x 19.8 x 6.5 cm | | Weight | 2.6 lb / 1.18 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.6 x 8.3 x 3.2" |
