User Manual for Levenhuk 102mm f 13 Skyline PRO 105 Equatorial Maksutov-Cassegrain Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk 102mm f 13 Skyline PRO
- Product category: Catadioptrics (Cassegrains) Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Catadioptrics (Cassegrains)
 |
User manual for the Levenhuk 102mm f 13 Skyline PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

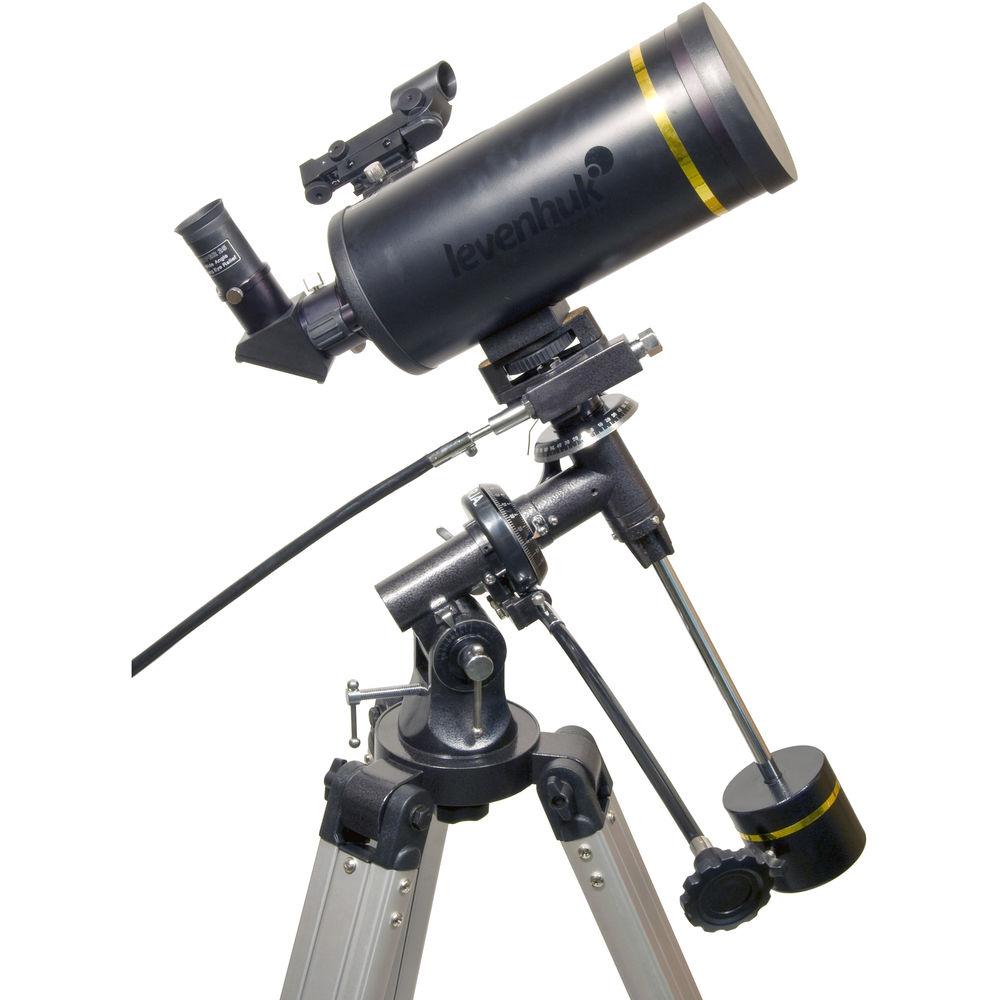

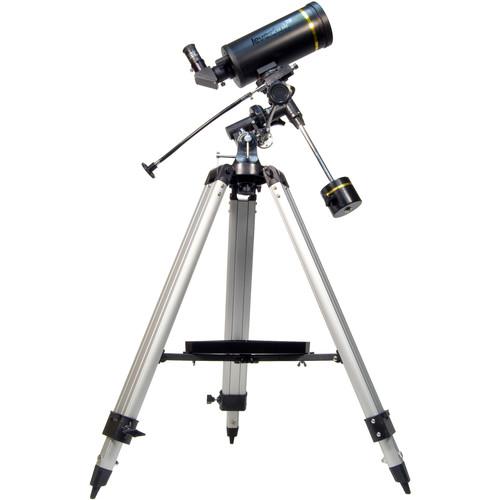

Product description Whether you use it to examine the lunar landscape or distant stars, the 102mm f/13 Skyline PRO 105 Equatorial Maksutov-Cassegrain Telescope from Levenhuk is a powerful, versatile, and user-friendly optic for the night sky. It features an equatorial mount that helps you track objects moving across the sky. Its catadioptric design is compact and highly portable, yet this telescope boasts a 1300mm focal length and a generous 102mm (4") aperture. This combination of magnification and light gathering makes the telescope suitable for detailed examination of the Moon and planets, while also affording beautiful views of deep-space objects such as galaxies, nebulae, and star clusters.The Maksutov-Cassegrain optical path design avoids chromatic and spherical aberration, and fully multi-coated optics assure optimal light transmission for a sharp, bright image. The manual EQ2 mount features setting circles to locate objects using celestial coordinates and slow-motion controls that compensate for the rotation of the Earth and allow precise tracking of your subject. The telescope and mount sit atop an aluminum tripod with a height range of 28-49" and a handy tray for holding eyepieces, filters, a flashlight, and other accessories. - Performance
-
- 102mm aperture
- f/13 focal ratio
- 1300mm focal length
- Maksutov-Cassegrain optical system
- Fully multi-coated optics

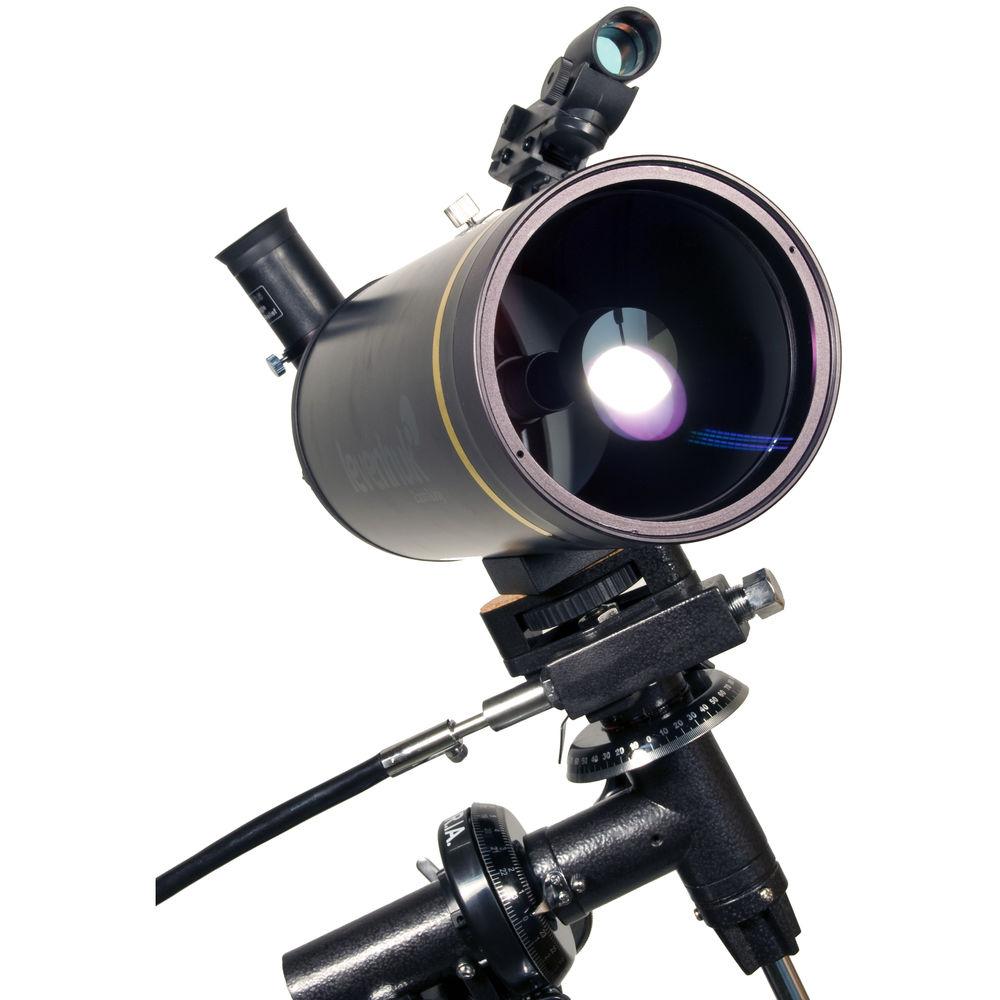

- Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror reduces obstructions and increases contrast versus Schmidt-Cassegrain models
- Mount & Tripod
-

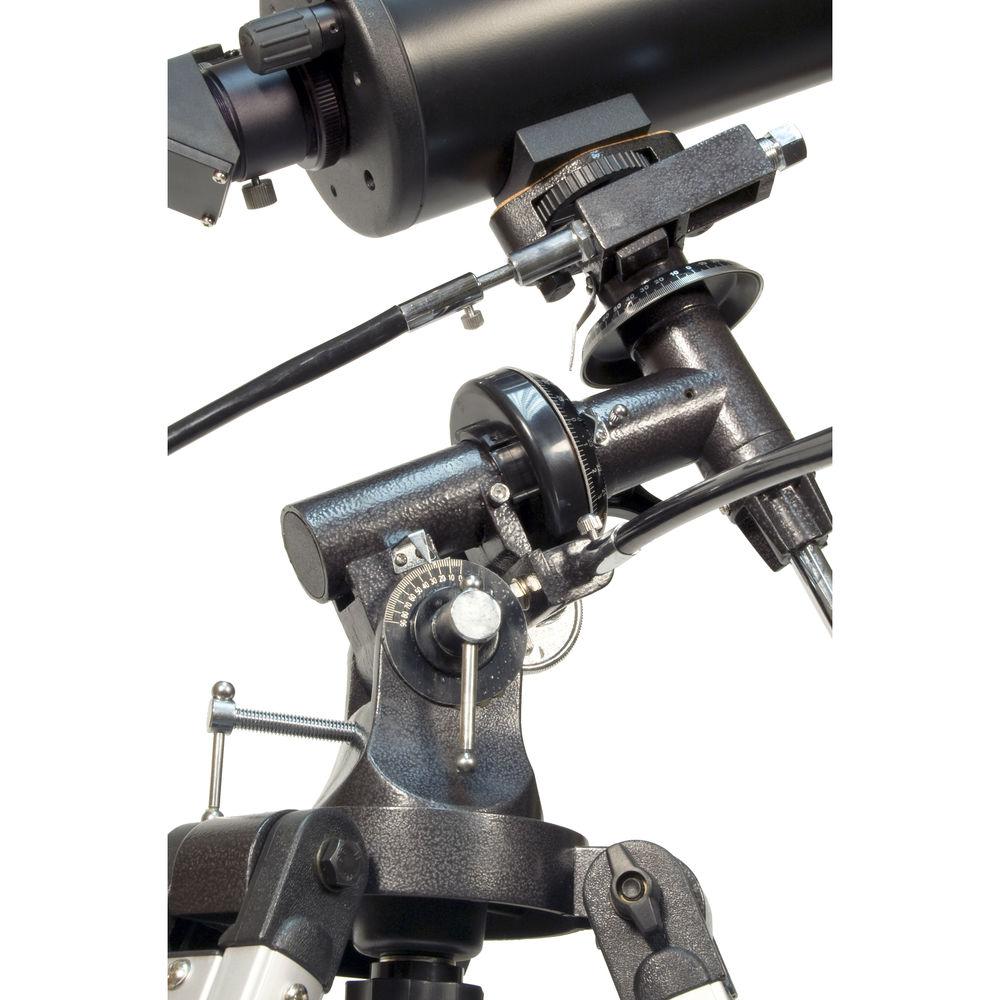

- EQ2 manual German equatorial mount
- Altitude and azimuth adjustments
- Dual-axis slow-motion controls
- Aluminum tripod
- Height adjustable 28-49"

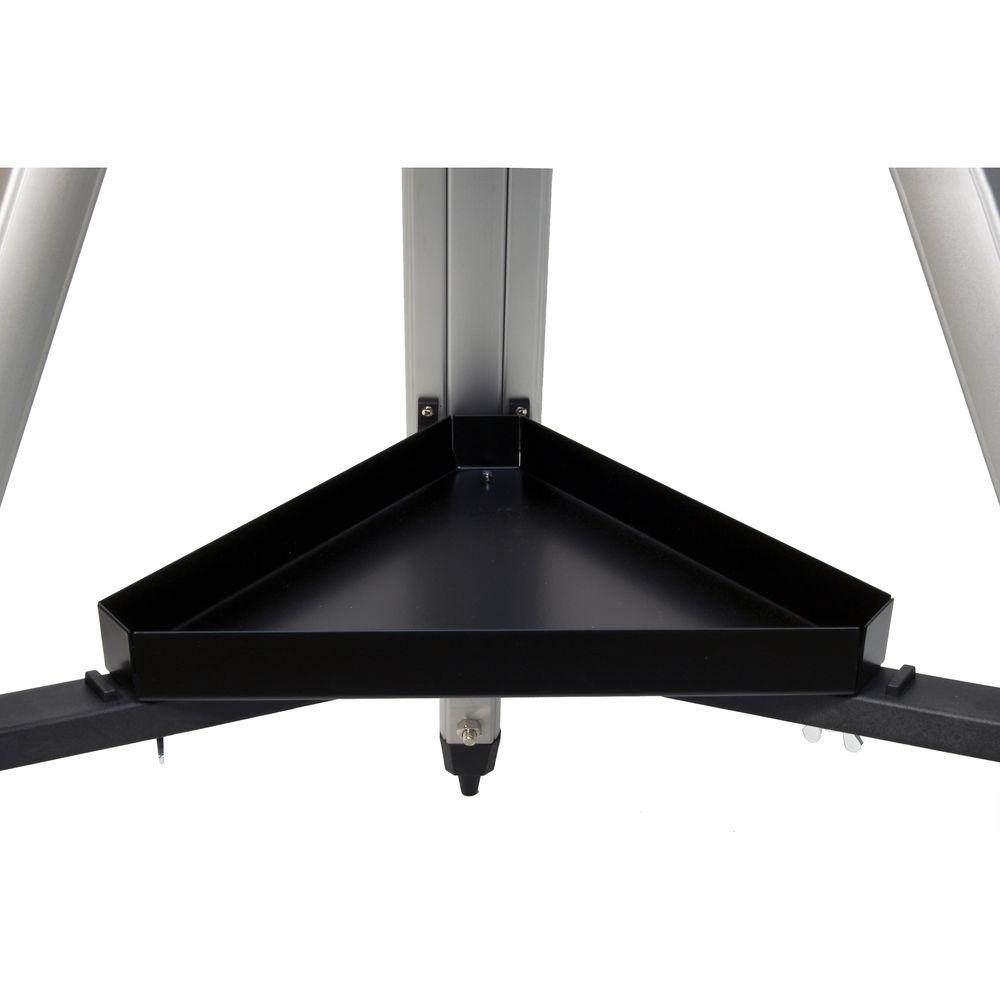

- Tray holds accessories such as eyepieces and filters and adds stability and vibration reduction
- Included Accessories
-
- 1.25" eyepiece barrel diameter

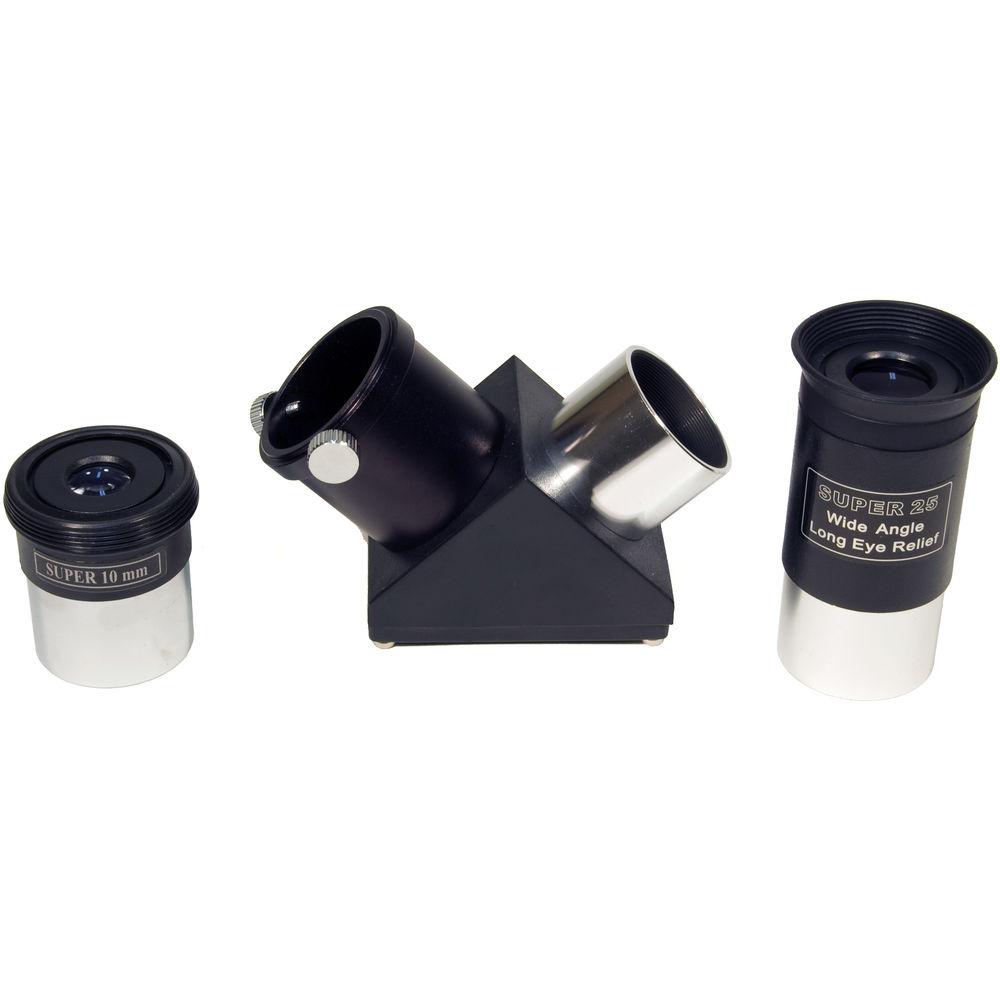

- 10mm eyepiece produces 130x magnification
- 25mm eyepiece produces 52x magnification

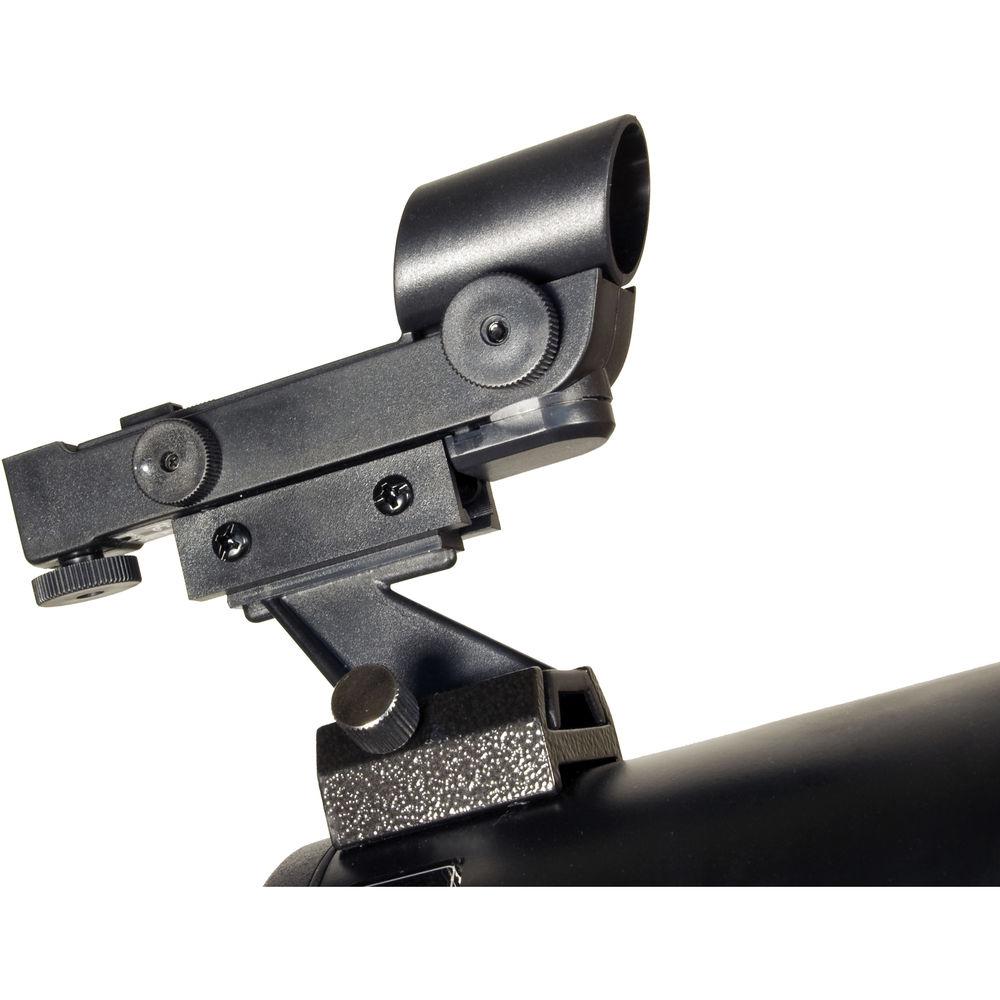

- Red dot finderscope

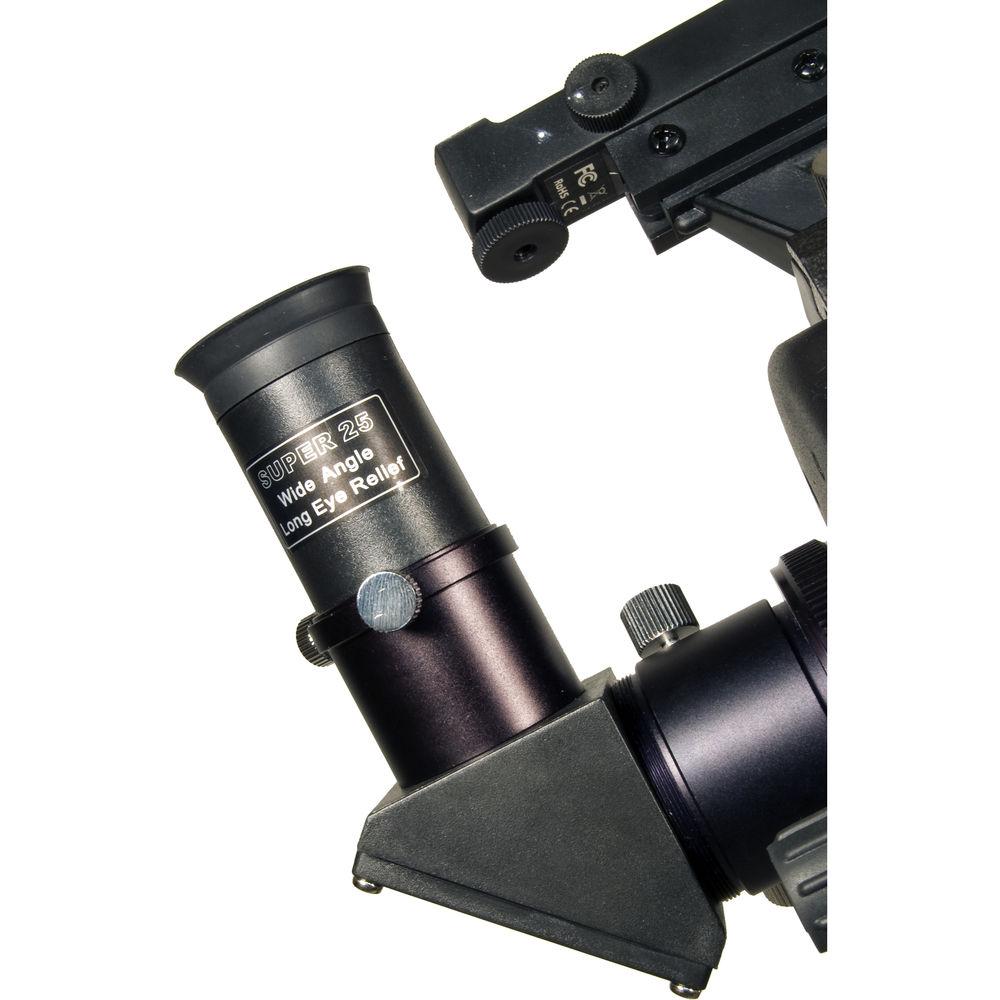

- Diagonal mirror
- Focuser is threaded for user-supplied astrophotography adapter
In the Box Levenhuk 102mm f/13 Skyline PRO 105 Equatorial Maksutov-Cassegrain Telescope 25mm & 10mm Eyepieces Red Dot Finderscope Diagonal Mirror Manual Equatorial Mount Aluminum Tripod and Accessory Tray Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 102mm f 13 Skyline PRO 105 Equatorial Maksutov-Cassegrain Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Skyline PRO Specs | Optical Design | Maksutov-Cassegrain catadioptric | | Aperture | 102mm | | Focal Length | 1300mm | | Focal Ratio | f/12.8 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | Integrated 90° flip
1.25" eyepiece holders | | Finderscope | Red dot | | Tripod | Aluminum
Height: 27.6-49.2" (70.0-125.0 cm) | | Mount Type | Manual German equatorial | | Optical Tube Dimensions | 12.6 x 4.8" (12.1 x 32.0 cm) | | Weight | OTA: 4.3 lb (1.9 kg) |
