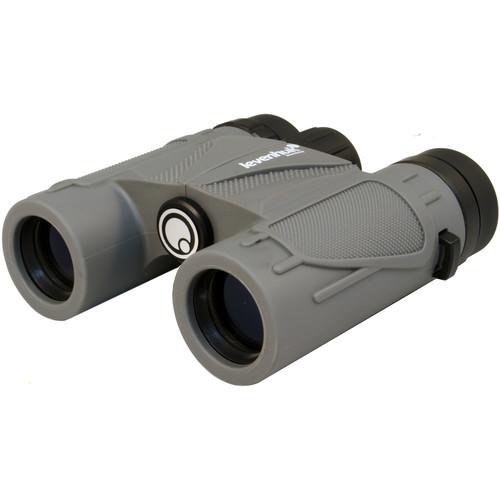

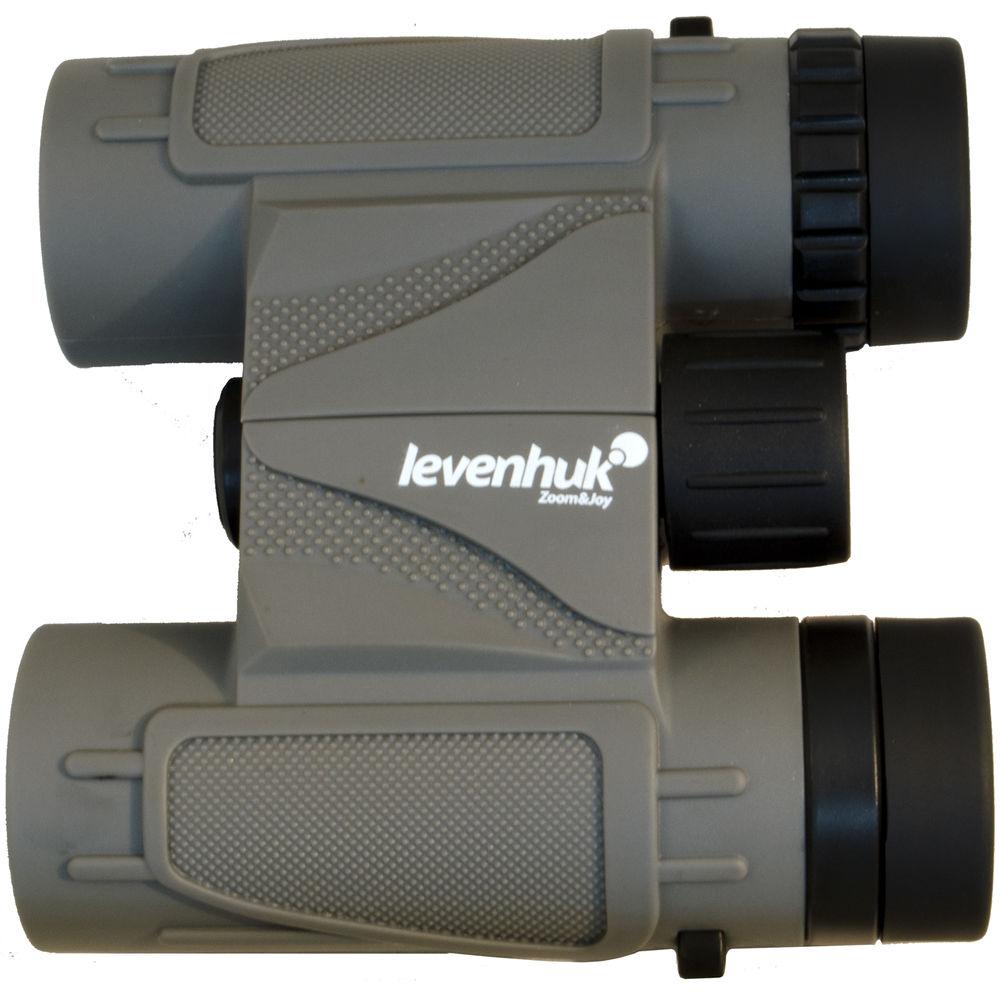

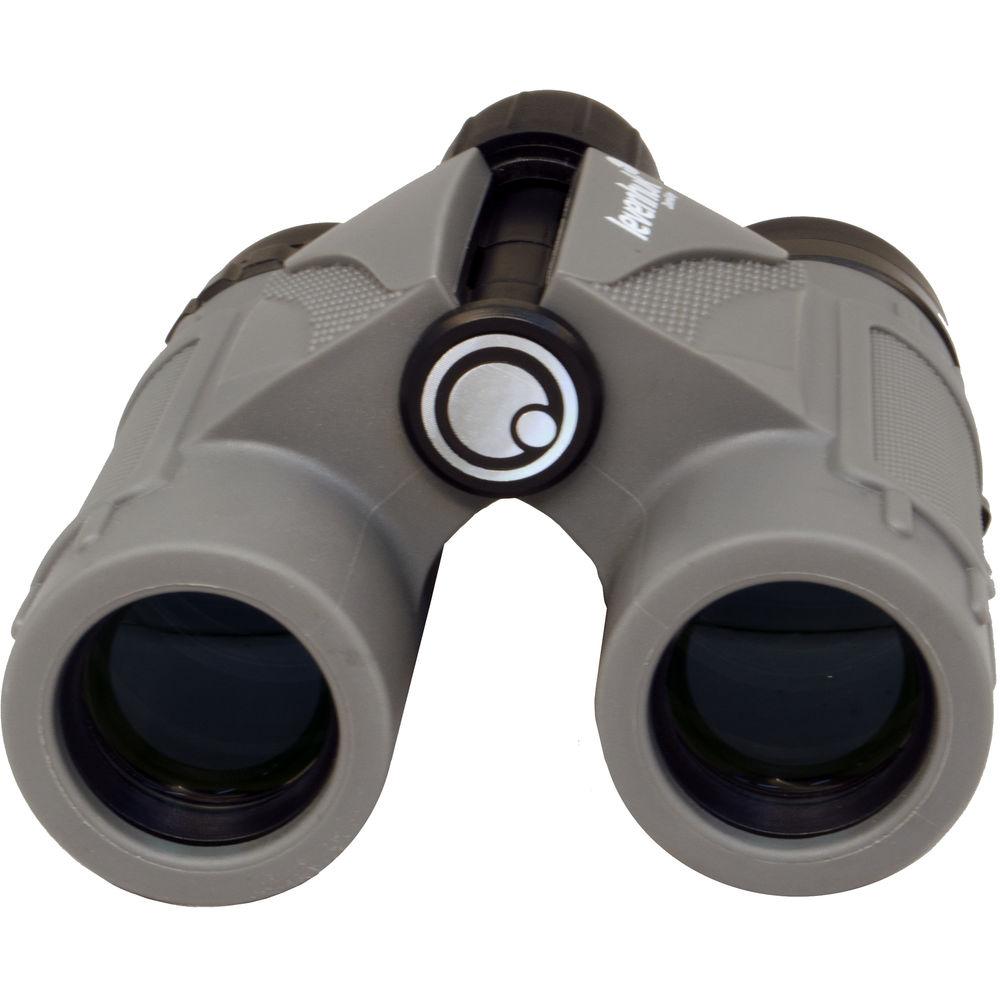

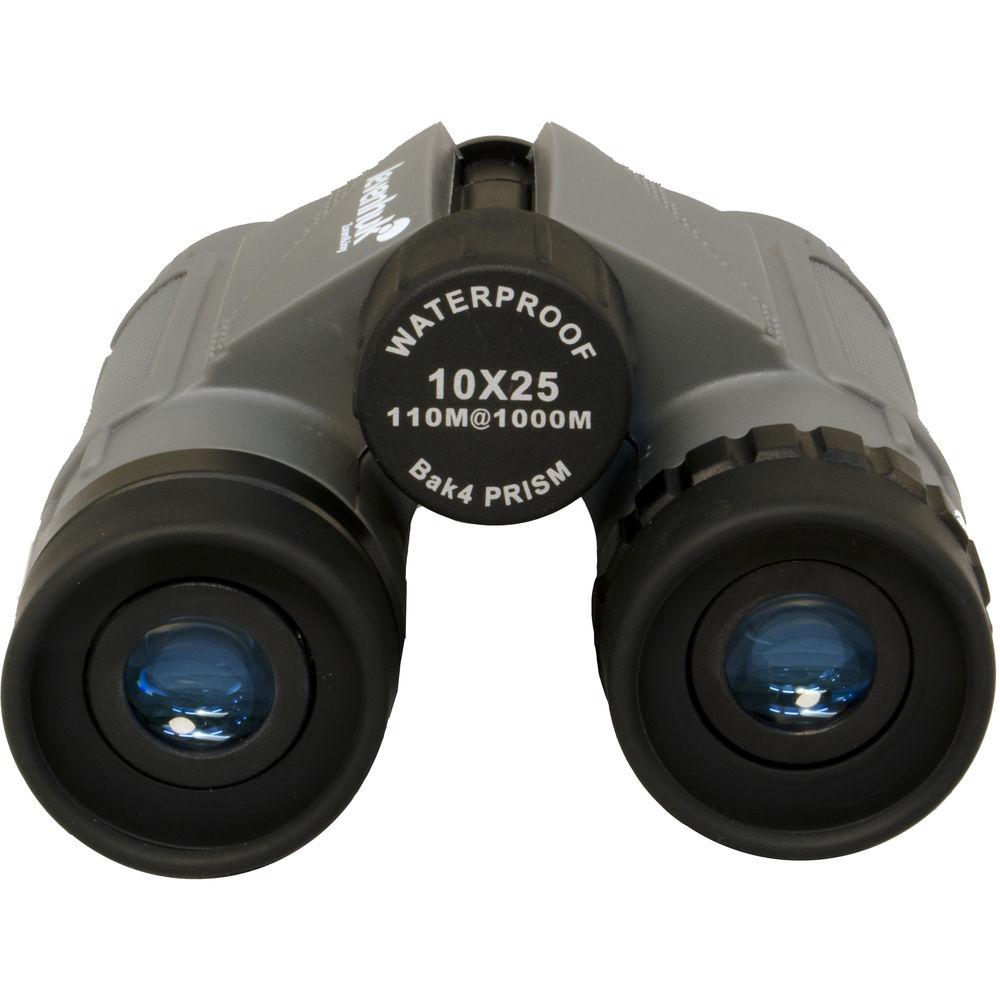

Product description The B&H Binocular Buying Guide Read More Designed for power, performance, and portability, the Levenhuk 10x25 Karma PLUS Binocular is engineered with BAK4 roof prisms, a 3-element/3-group eyepiece lens configuration, and anti-reflection multi-coated optics, which work together to help offset the high magnification and relatively small objectives — which can dim views. These design features present an immersive observation experience by producing bright and clear high-contrast images with accurate color fidelity and limited distortion across its entire wide field of view; and the ability to pick out distinct details at long-range.Complementing the optical performance is a chassis that is wrapped in a slip-resistant rubber armor with raised textured palm-pads to add grip security and stability in cold or wet weather - even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to fogging when moving through extreme temperature changes. Finally, its large center focusing wheel, ±4 dioptric correction, and twist-up eyecups enable precise focusing and eye relief for just about any user. - Optical Performance
-
- 10x magnification
- 25mm objective lenses
- BAK4 roof prisms
- Anti-reflection multi-coated optics produce neutral and accurate color fidelity across the entire visible spectrum, and improves contrast and image brightness
- Highly-reflective silver prism coatings reduce internal light diffraction to maintain image brightness and improve contrast
- 3-element/3-group eyepiece lens configuration improves image quality by reducing lens-edge distortion
- Wide 63° apparent angle of view
- 330-foot field of view at 1000-yards
- Use and Handling
-
- Closed-bridge configuration
- Large textured center focusing wheel is easy to manipulate even when wearing gloves
- 56-72mm interpupillary distance adjustment range
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- 10mm eye relief
- 2.5mm exit pupil
- Optical Performance
-
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Slip-resistant rubber armoring provides a slip-resistant grip
- Raised textured palm-pads improve grip security
- Broad 5 to 140°F (-15 to 60°C) operating temperature range
- Lightweight: 19.2 ounces

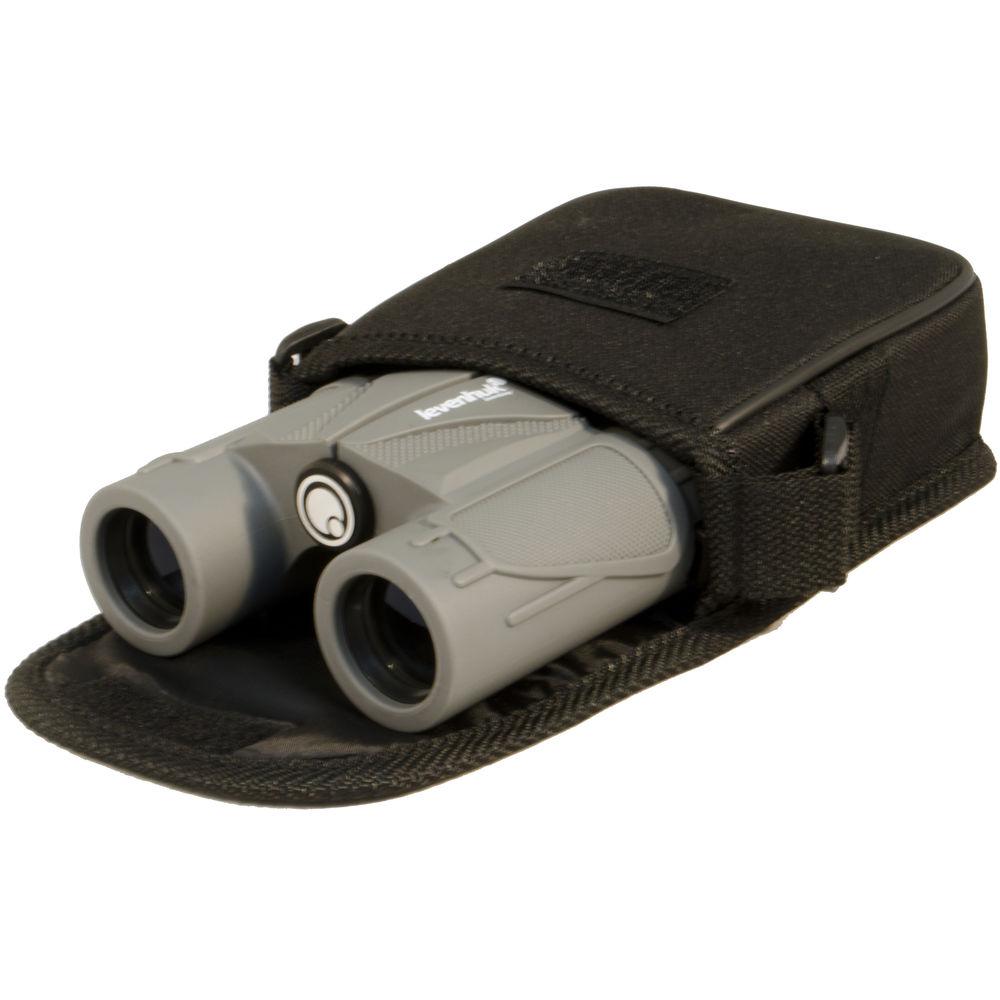

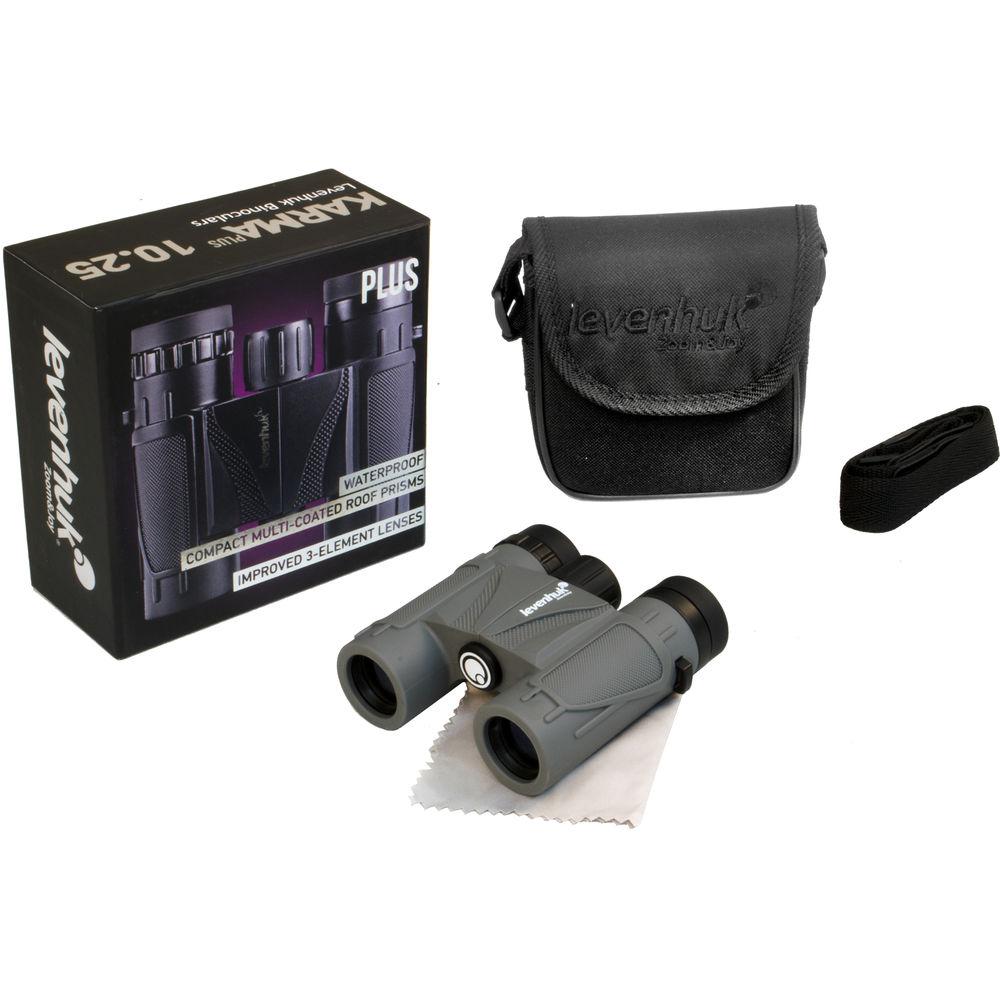

In the Box Levenhuk 10x25 Karma PLUS Binocular Lens Cloth Neck Strap Carrying Pouch Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10x25 Karma PLUS Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67706 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 6.3° (actual) | | Field of View | 330.7' @ 1000 yd / 110.2 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 10.0 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.6 x 4.3 x 1.7" / 11.6 x 11.0 x 4.3 cm | | Weight | 19.2 oz / 544 g |
