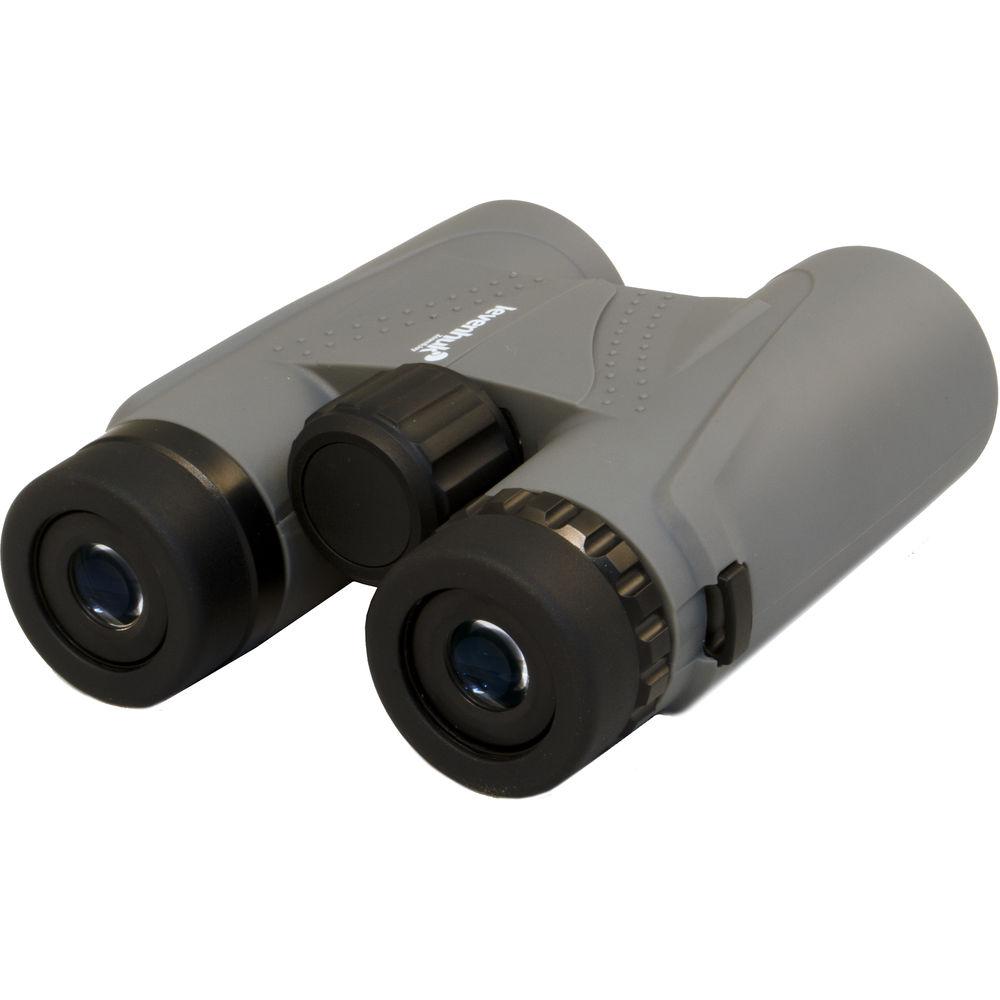

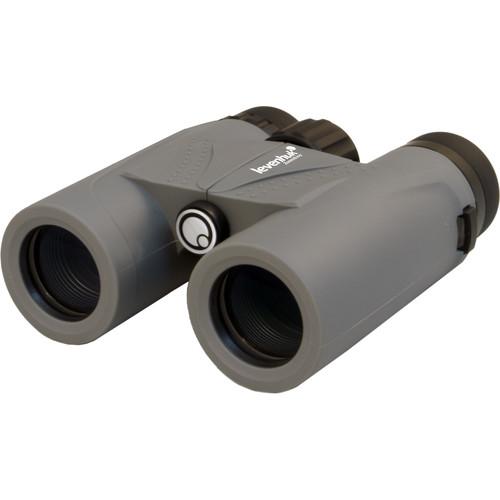

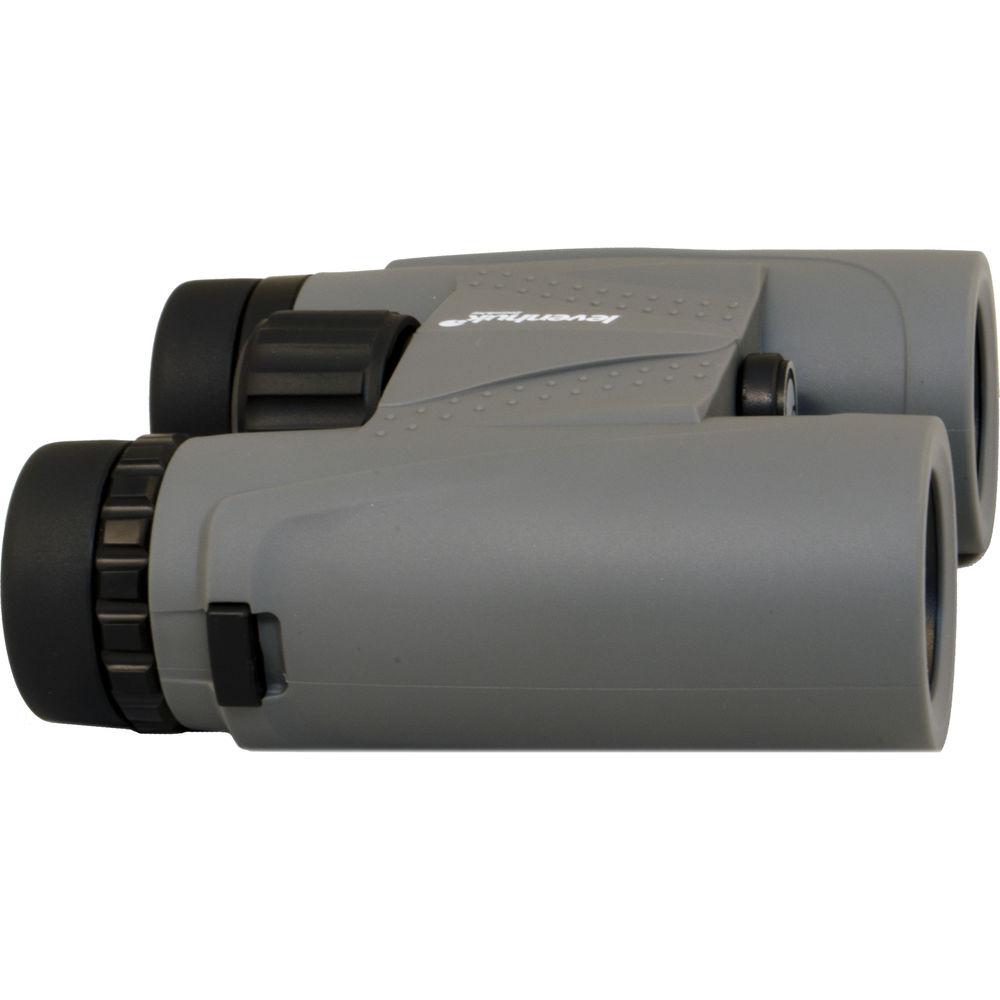

Product description The B&H Binocular Buying Guide Read More Designed for power, performance, and portability; and representing the mid-range power in the 32mm series, the Levenhuk 10x32 Karma PLUS Binocular is engineered with BAK4 roof prisms, a 3-element/3-group eyepiece lens configuration, and anti-reflection multi-coated optics, which work together to help boost its light-gathering abilities and push the limits of its use as the light fades. These design features, when combined with a field of view that approaches wide angle, present an immersive observation experience by producing bright and clear high-contrast images with accurate color fidelity and limited distortion; and the ability to pick out distinct details at long ranges.Complementing the optical performance is a chassis that is wrapped in a slip-resistant rubber armor with raised textured palm-pads to add grip security and stability in cold or wet weather - even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to fogging when moving through extreme temperature changes. Finally, its large center focusing wheel, ±4 dioptric correction, and twist-up eyecups enable precise focusing and eye relief for just about any user. - Optical Performance
-
- High 10x magnification allows for detailed observation of distant subjects
- 32mm objective lenses boost light-gathering ability versus compact models
- Compact roof prism light path keeps the optical tubes thin for easier handling and packing
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection multi-coated optics produce neutral and accurate color fidelity across the entire visible spectrum, and improve contrast and image brightness
- Highly-reflective silver prism coatings reduce internal light loss to help maintain image brightness and improve contrast
- 3-element/3-group eyepiece lens configuration improves image quality by reducing lens-edge distortion
- 56° apparent angle of view approaches wide angle for easier viewing and reduced appearance of distracting hand-shake common when holding high-power optics
- 293-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large textured center focusing wheel is easy to manipulate even when wearing gloves
- 56-74mm interpupillary distance adjustment range
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- 14mm eye relief makes long-duration glassing sessions comfortable
- 3.2mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Rubber armoring provides a slip-resistant grip
- Textured palm-pads and finger-rests improve grip security
- Tripod-mountable with optional adapter to reduce arm fatigue or reduce vibrations

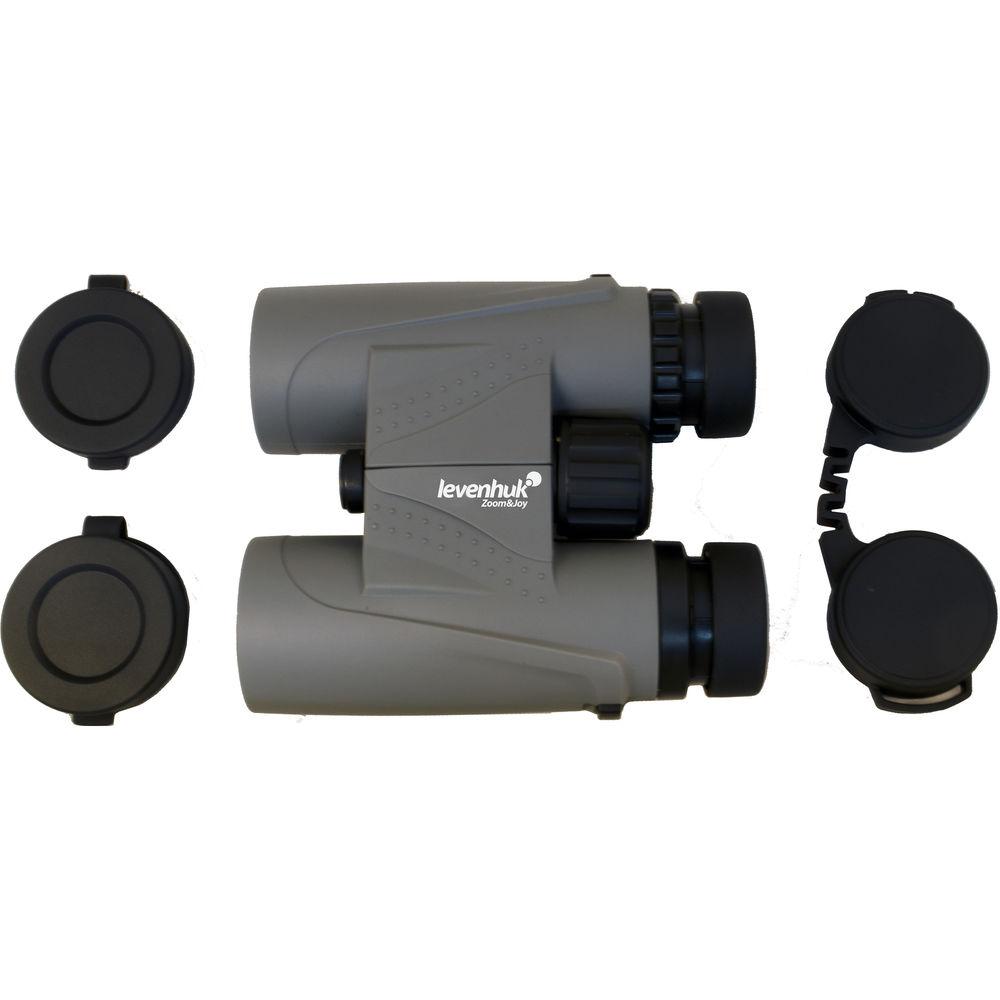

- Tethered stay-on/flip-down objective lens caps are easy to put on and take off without the risk of losing them
- Broad 5 to 140°F (-15 to 60°C) operating temperature range

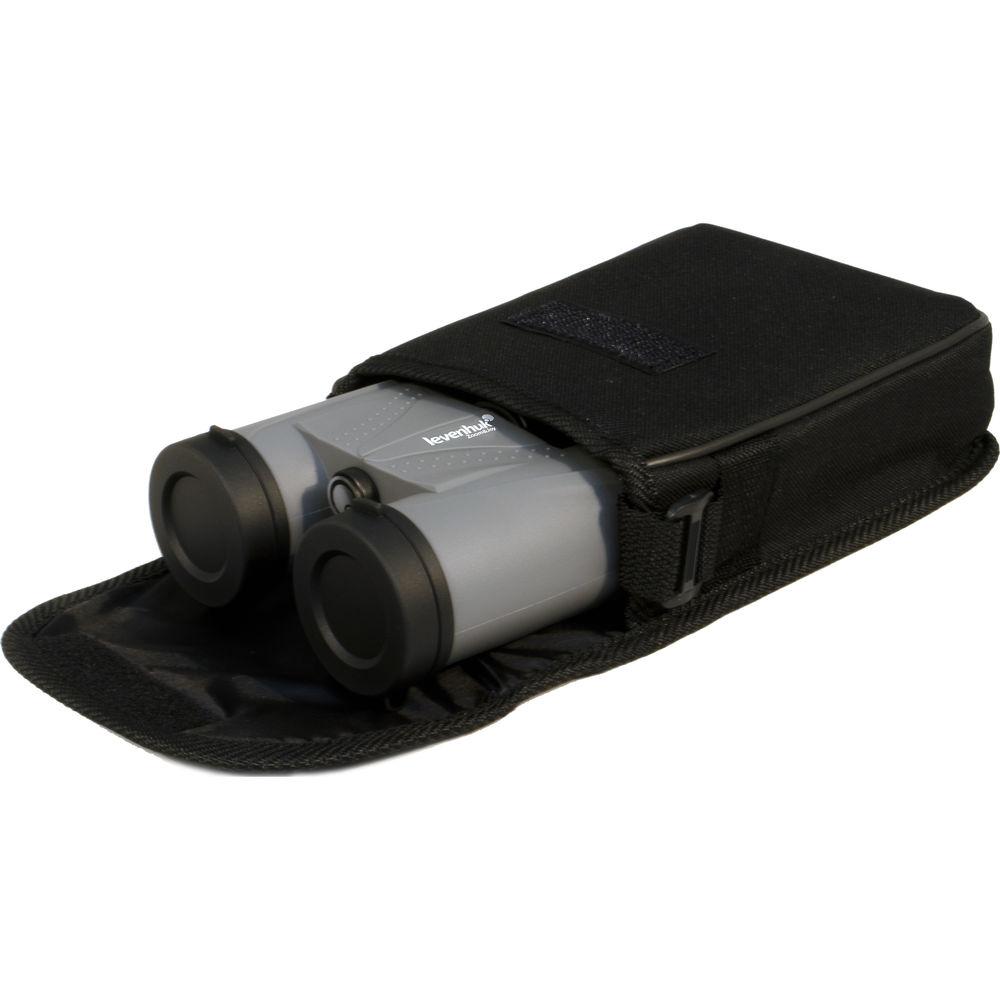

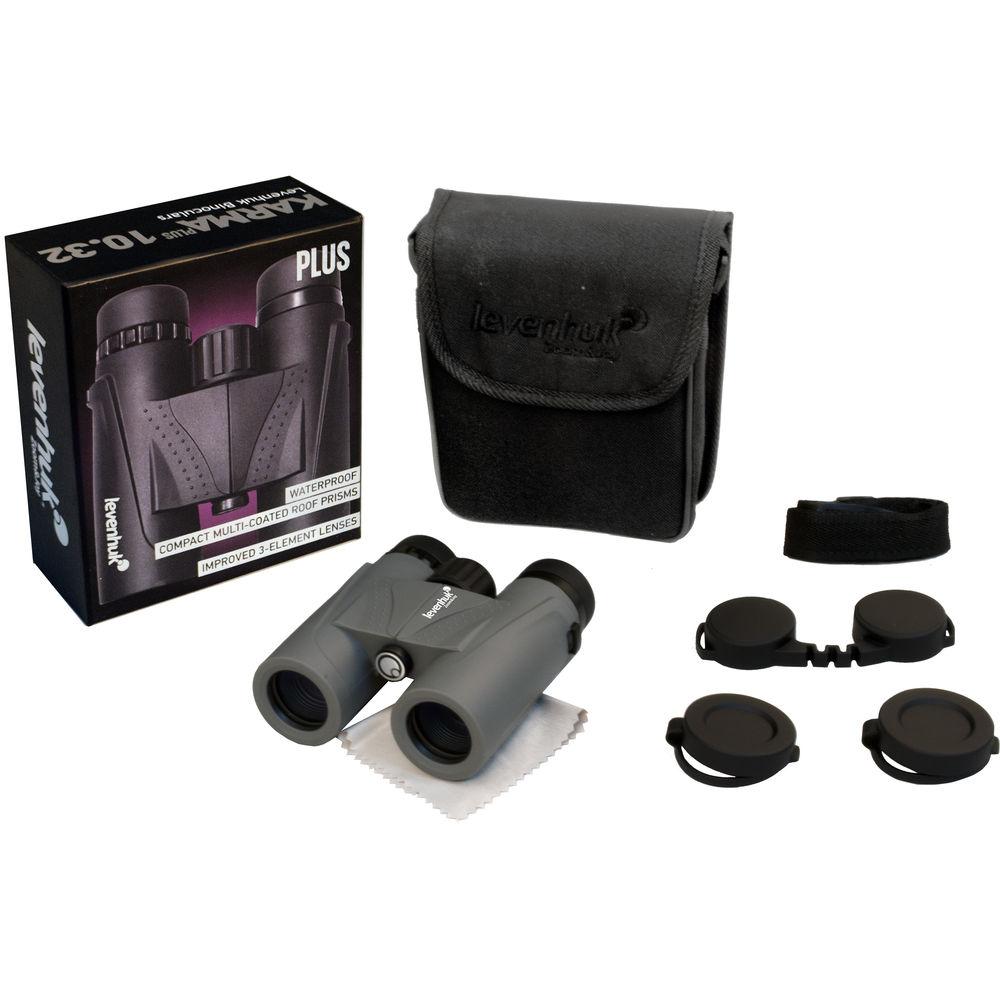

In the Box Levenhuk 10x32 Karma PLUS Binocular Lens Cloth Neck Strap Soft Carrying Case 1-Piece Ocular Rainguard 2 x Tethered Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10x32 Karma PLUS Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67709 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 5.6° (Actual) | | Field of View | 293.0' @ 1000 yd / 97.3 m @ 1000 m | | Minimum Focus Distance | 13' / 4 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 14.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.3 x 5.0 x 1.9" / 13.5 x 12.7 x 4.8 cm |
