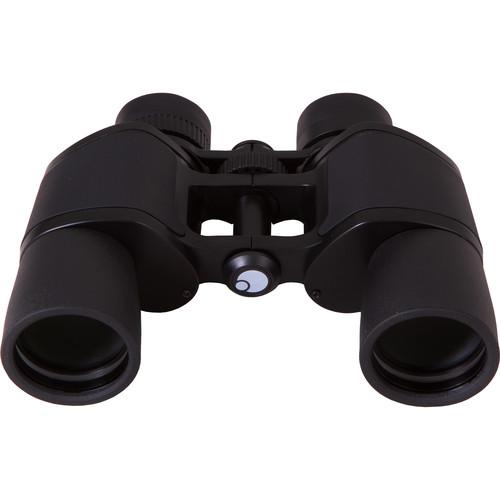

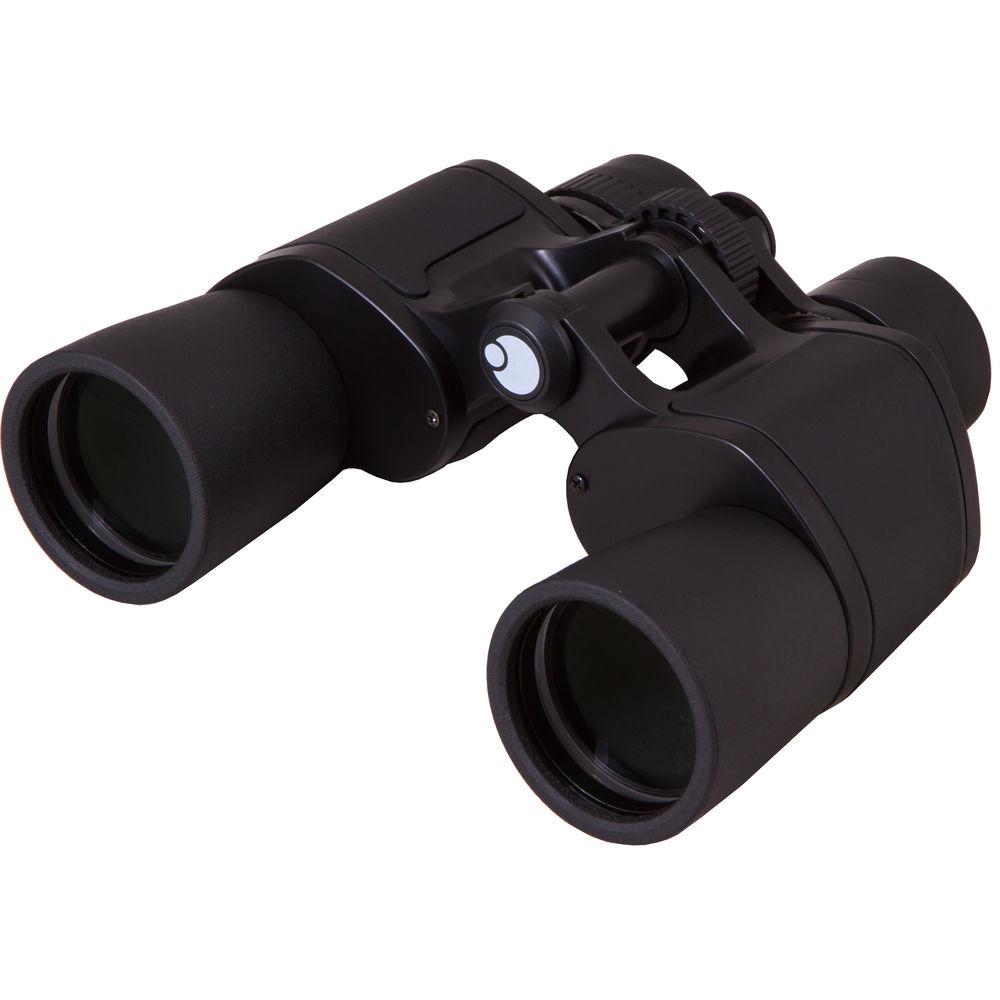

User Manual for Levenhuk 10x42 Sherman BASE Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 10x42 Sherman BASE Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 10x42 Sherman BASE Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining a high magnification and large objectives, Levenhuk's 10x42 Sherman BASE Binocular is an ideal optic for making detailed observations of distant subjects, even in challenging lighting conditions.The large lenses draw in a generous amount of light and, combined with the 10x power, translate to a comfortable exit pupil that will completely cover most pupils in low-light conditions such as at dawn or dusk and when peering into heavy brush or canopies. Complementing these performance features are anti-reflection fully coated optics, a wide field of view, and a traditional Porro prism optical path that all work together to produce an immersive and comfortable observational experience that is defined by bright and clear high-contrast views with accurate color rendition and a rich depth of field. The wide field of view also helps to mitigate the appearance of visible hand shake that is common with higher power optics, for clearer views.For long-duration glassing sessions, to reduce arm fatigue, or to eliminate vibrations, the Sherman BASE can be tripod mounted using an optional adapter. Its optical tubes are nitrogen filled and O-ring sealed to a waterproof IPX6 rating and resistant to internal fogging. The chassis is made of a lightweight and durable aluminum alloy and wrapped in a protective slip-resistant rubber armor. Fold-down rubber eyecups mold themselves to the user's eye sockets to block stray peripheral light for brighter views without intrusive side glare, and the binocular's center-focusing wheel is also slip resistant to make precision focusing fast and easy.From the backyard to the backcountry to the stadium, the Levenhuk 10x42 Sherman BASE binocular gives you the ability to see wide areas in all light conditions and weather. - Optical Performance
-
- Powerful 10x magnification enables detailed observations of distant subjects
- 42mm objective lens diameter provides competent low-light performance without adding excessive bulk and weight for easier handling
- Traditional Porro prism optical path presents a rich depth of field to produce lifelike views
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Anti-reflection fully coated optics improve light transmission, color rendition, clarity, and contrast
- 2-element/1-group eyepiece lens design, 4-element/4-group objective design
- Wide 65° apparent angle of view
- 343-foot field of view at 1000 yards
- Use and Handling
-

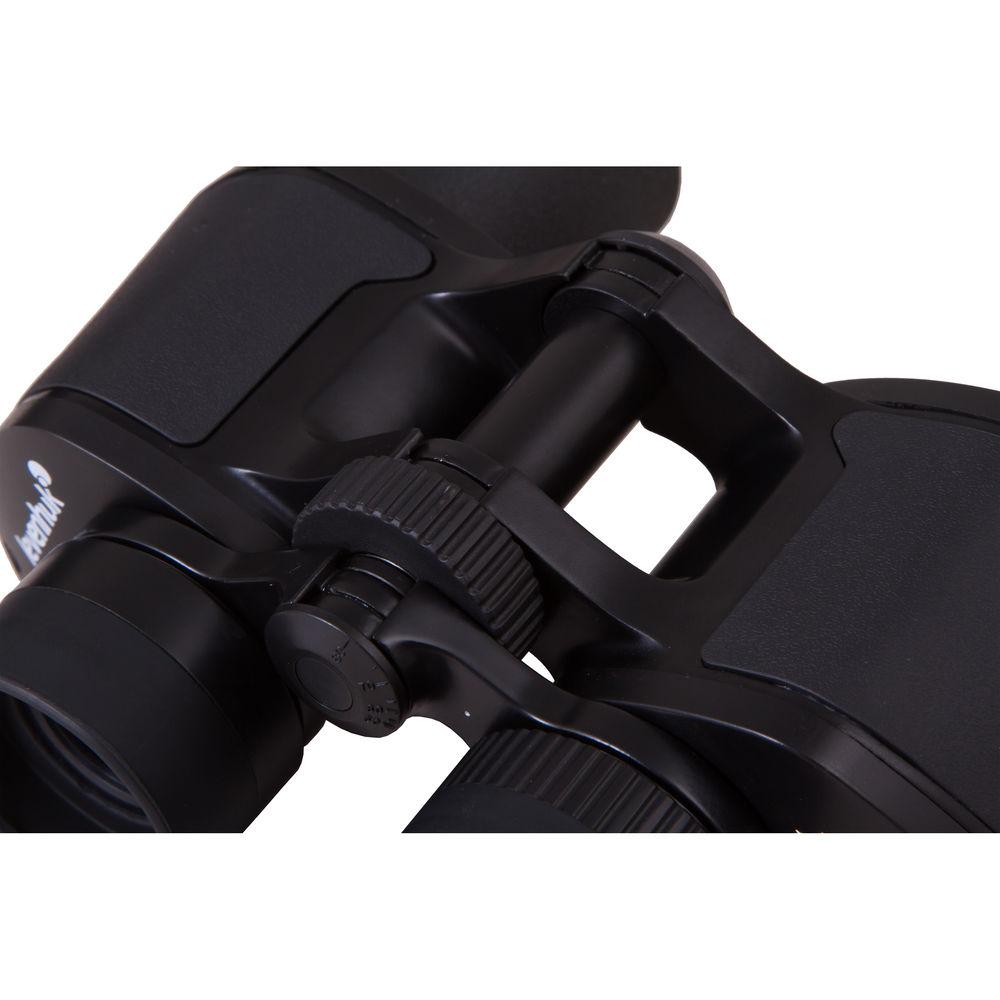

- Slip-resistant center-focusing wheel is easy to manipulate, even when wearing gloves

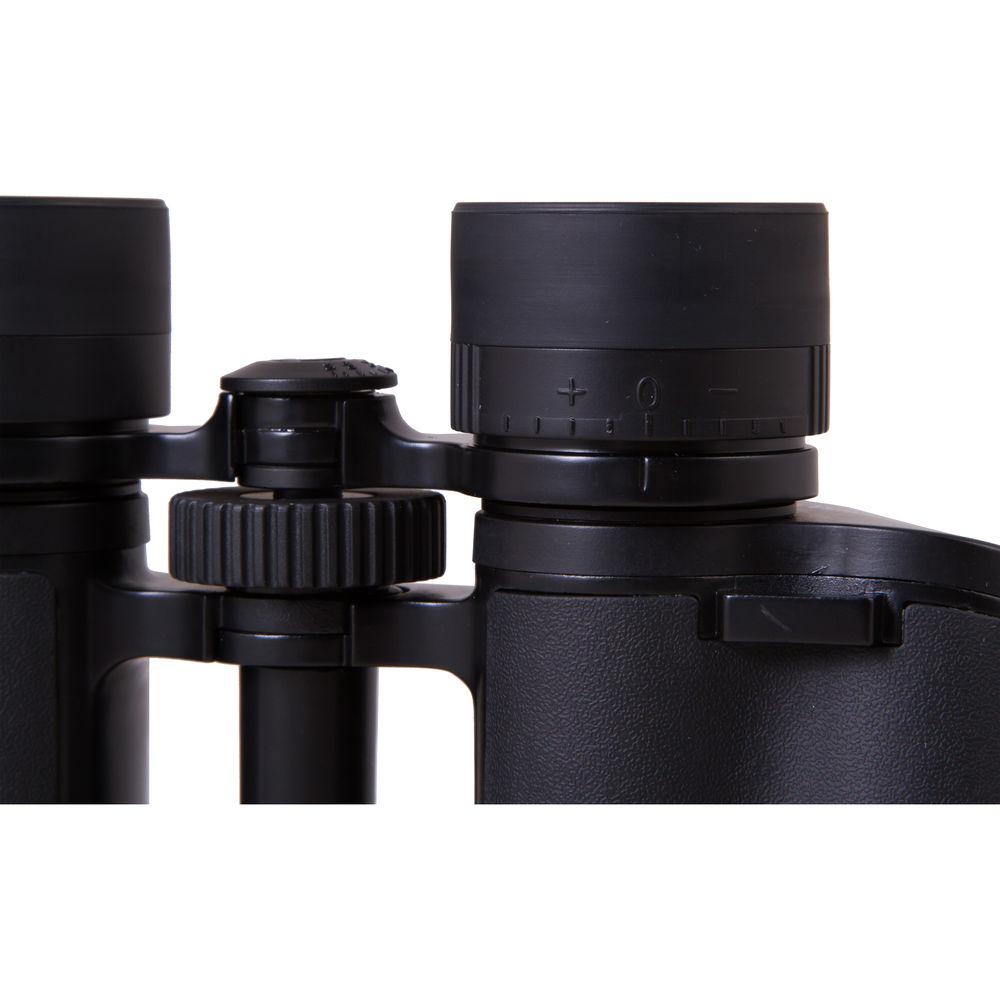

- Wide ±6 right-eye dioptric correction range enables precise focusing even for those who normally require corrective eyewear
- Wide 50-80mm interpupillary distance adjustment range enables easy use by a wide variety of people
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter to limit arm fatigue and vibrations
- 15mm eye relief increases viewing comfort and reduces eyestrain, especially during long glassing sessions
- Comfortable 4.2mm exit pupil will cover most pupils as they open and dilate in low light and ensures the entire scene remains in view without vignetting
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen filled and O-ring sealed to be waterproof to an IPX6 rating and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Protective armor with textured palm pads provides a slip-resistant grip
- Tethered objective lens caps offer additional lens protection without the risk of losing them during use
- Broad 14 to 122°F (-10 to 50°C) operating temperature range

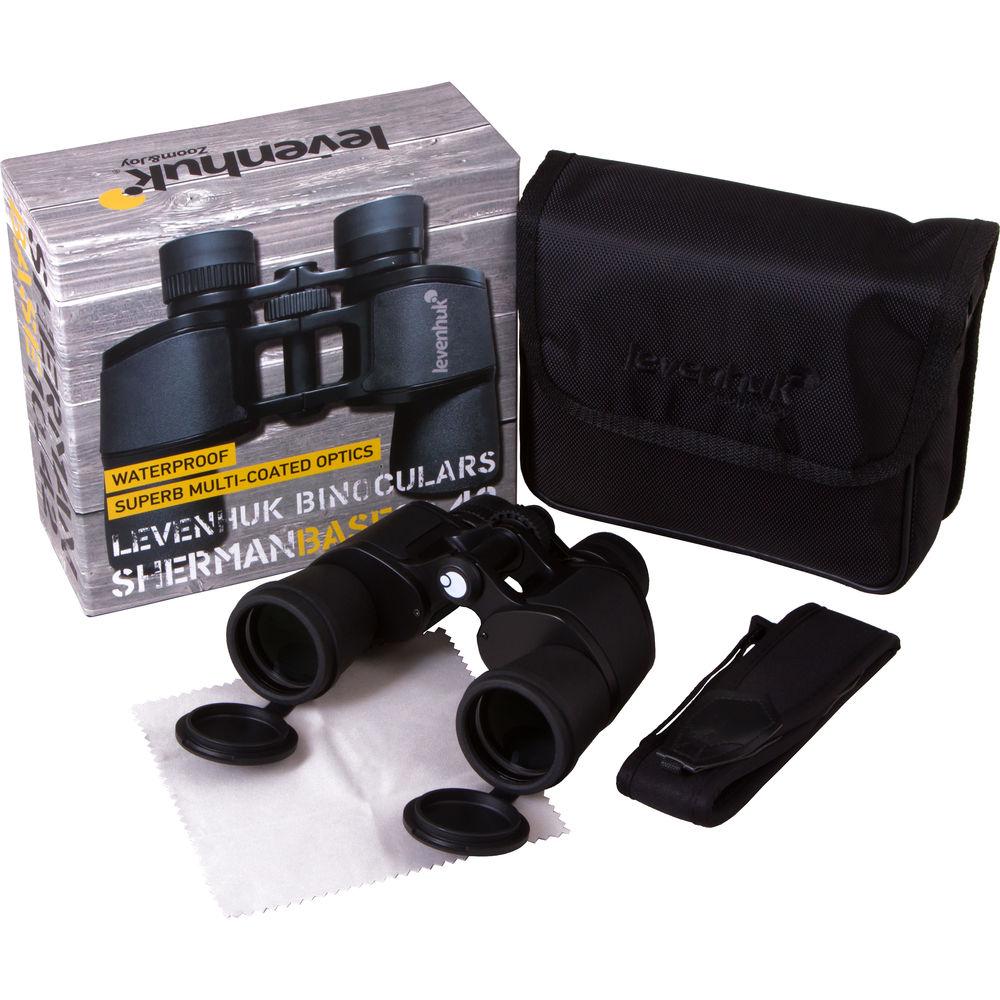

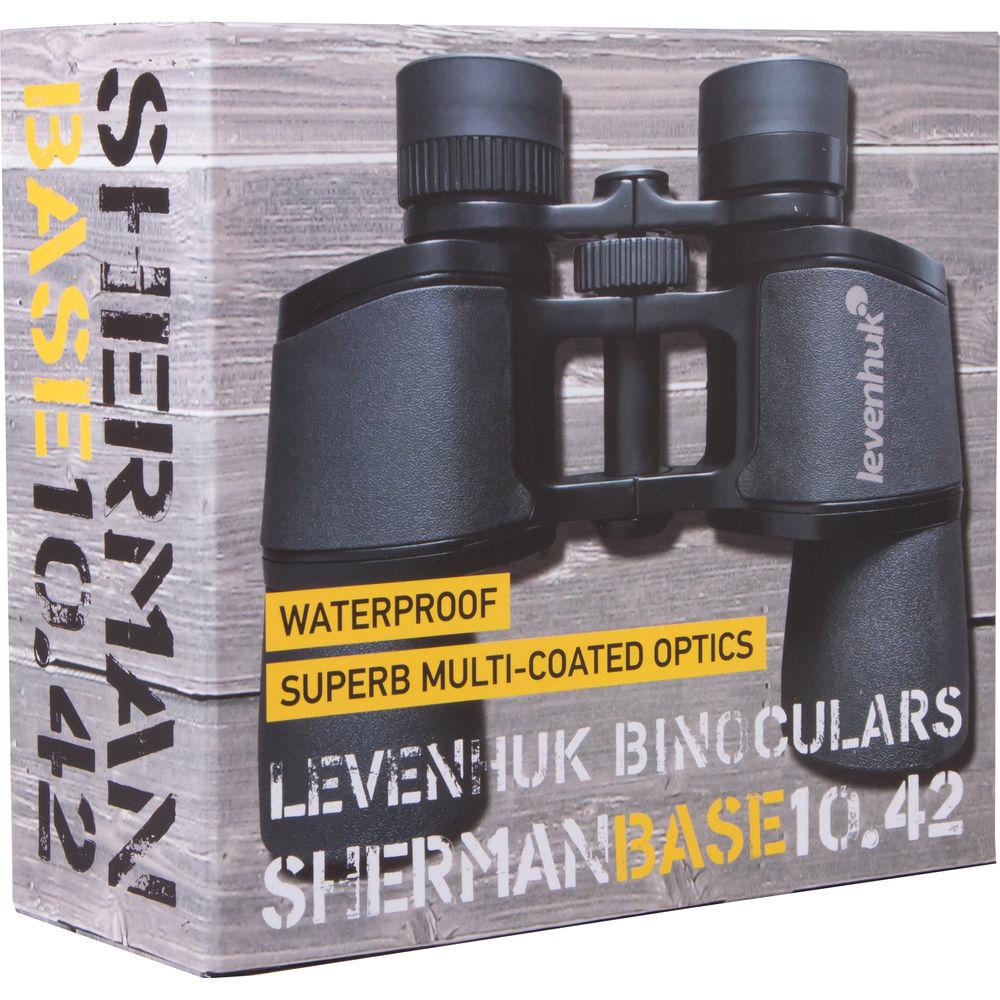

In the Box Levenhuk 10x42 Sherman BASE Binocular Lens Cloth Carrying Pouch Neck Strap 2 x Eyepiece Caps 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 ztfeswxfvq Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 ztfeswxfvq Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10x42 Sherman BASE Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 71143 Specs | Prism Type | Porro | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (Actual) | | Field of View | 343.37' @ 1000 yd / 114.0 m @ 1000 m | | Minimum Focus Distance | 13.1' / 4 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15.0 mm | | Interpupillary Adjustment | 50 to 80 mm / 2 to 3.1" | | Dioptric Correction | ±6 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.9 x 5.3 x 2.0" / 17.5 x 13.5 x 5.2 cm | | Weight | 21.87 oz / 620.0 g |
