User Manual for Levenhuk 10x42 Wise Monocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 10x42 Wise Monocular
- Product category: Monoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Monoculars
 |
User manual for the Levenhuk 10x42 Wise Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

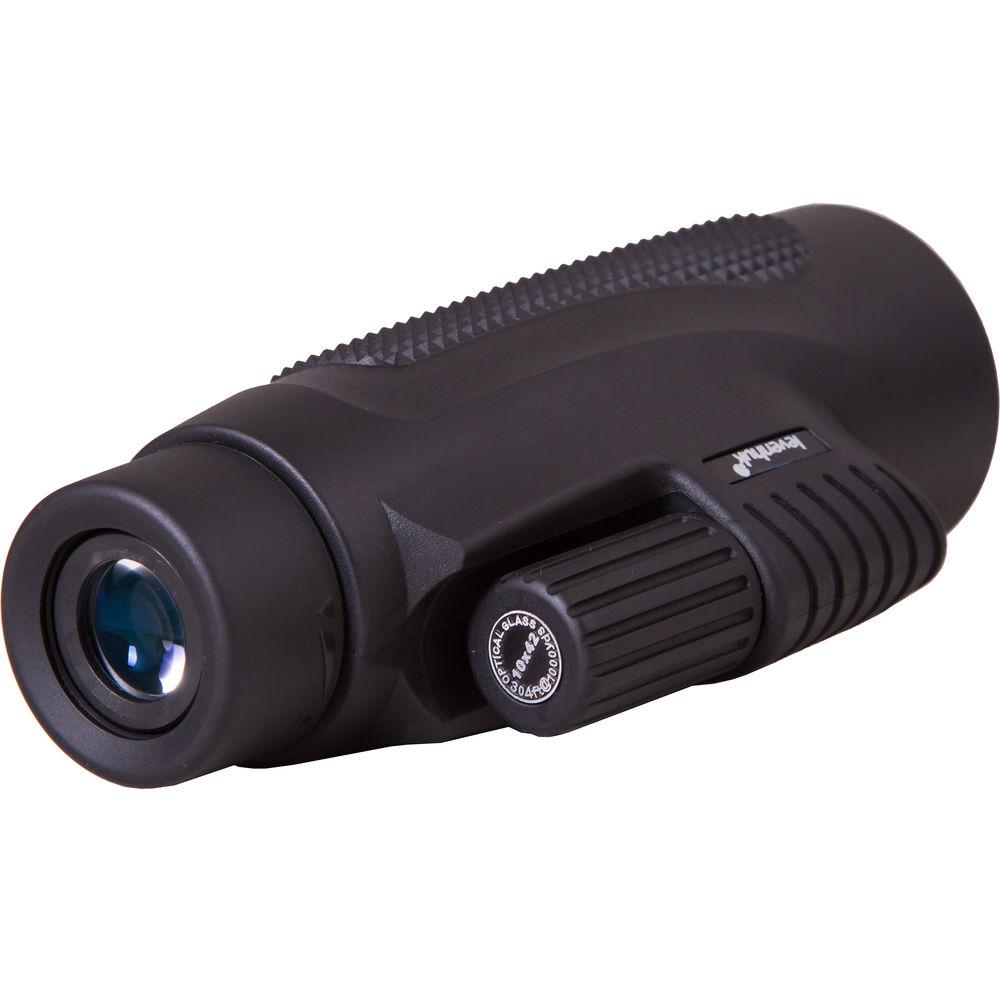

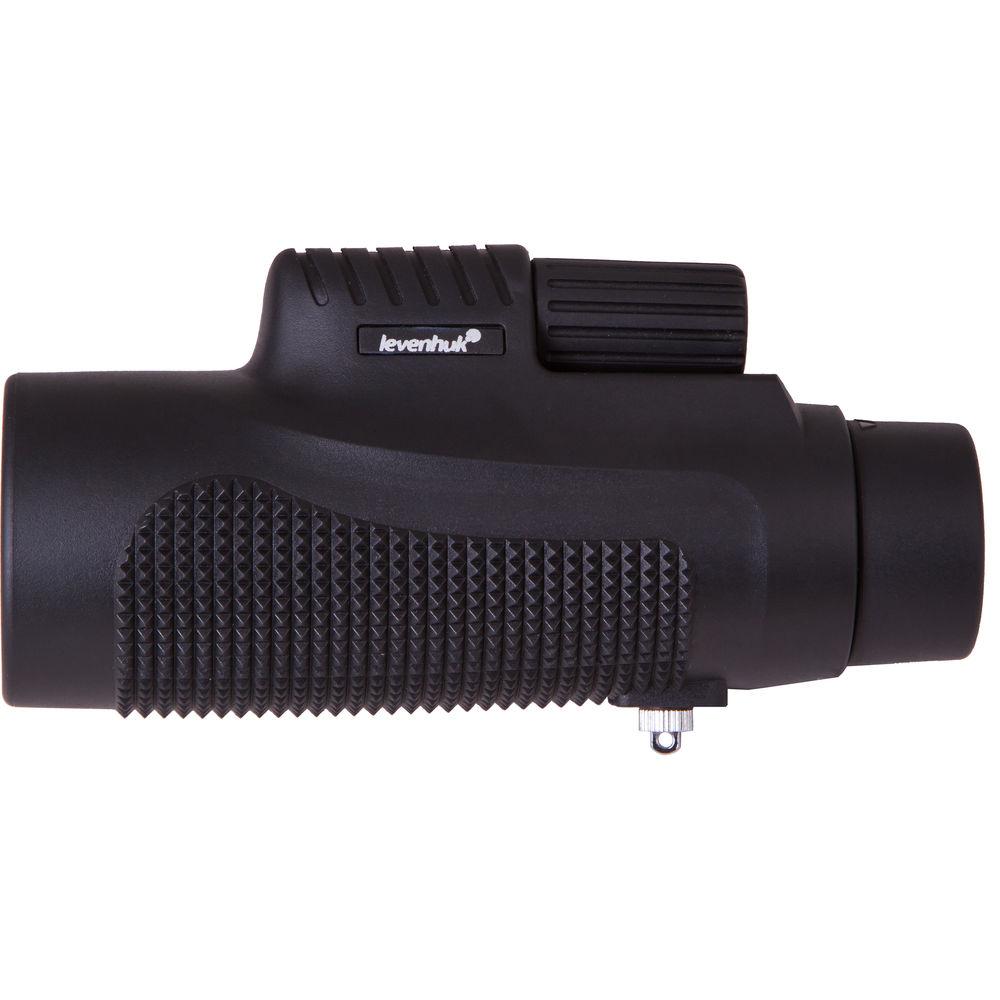

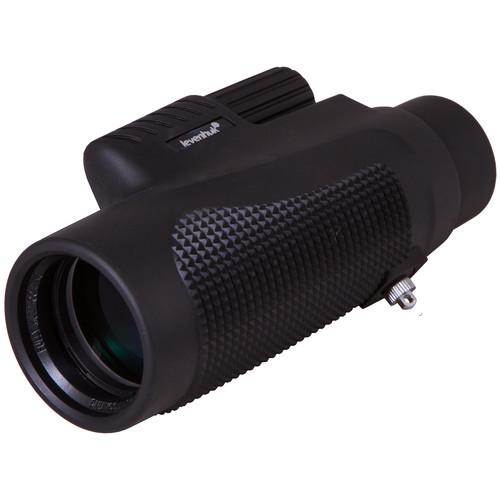

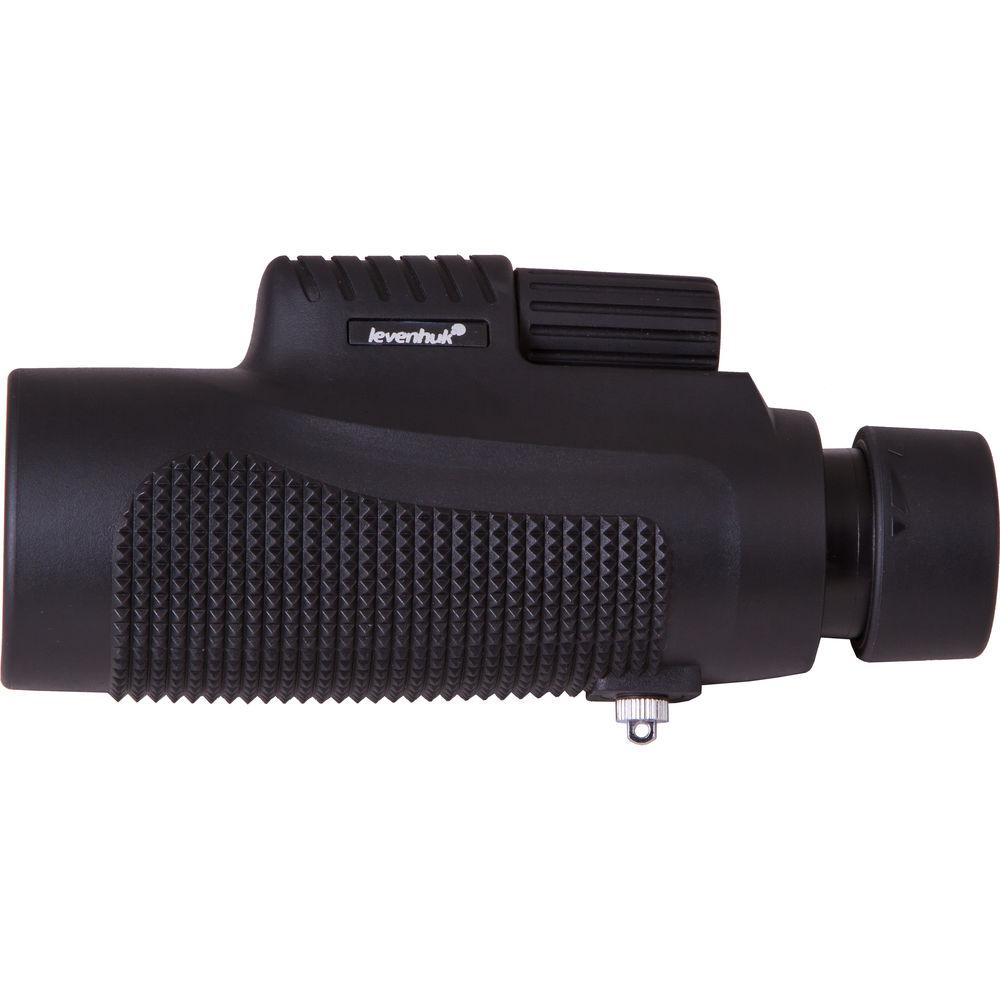

Product description Explore the outdoors or urban architecture with the help of the compact and ergonomic Levenhuk 10x42 Wise Monocular. This monocular has a 10x magnification and a 5.8° angular field of view that strike a balance between optimal zoom, field of view, and minimal image jitter due to shaking. Its 42mm objective is also suitable for collecting enough light in twilight and generating bright images. While the BAK4 optical glass serves as a great transmission medium for vivid images, the fully multi-coated lens surfaces reduce glare and improve image clarity. Additionally, the optical system has a close focus of 11.4'.
The polymer housing is ergonomic and has a rubber covering to ensure comfort and impact-resistance. It offers a diamond-shaped texturing for a secure grip and an external knurled knob for slip-free focus adjustments. The rubber twist-up eyecup offers a comfortable contact with the orbit of your eye and can be collapsed to accommodate eyeglasses. Also included with the monocular are two lens caps, a strap, and a carry pouch. - Optical Performance
-
- 10x magnification is ideal for most outdoor activities or urban exploration
- 42mm objective diameter provides a wide aperture for improving image brightness in low light
- 11.4' close focus distance
- Roof prism design
- Fully multi-coated lenses reduce glare and improve image contrast, clarity, and brightness
- BAK4 optical glass delivers crisp and vivid images
- 304.8' at 1000 yd linear field of view
- 13.6mm eye relief
- 4.0mm exit pupil
- Use and Handling
-
- External focusing knob

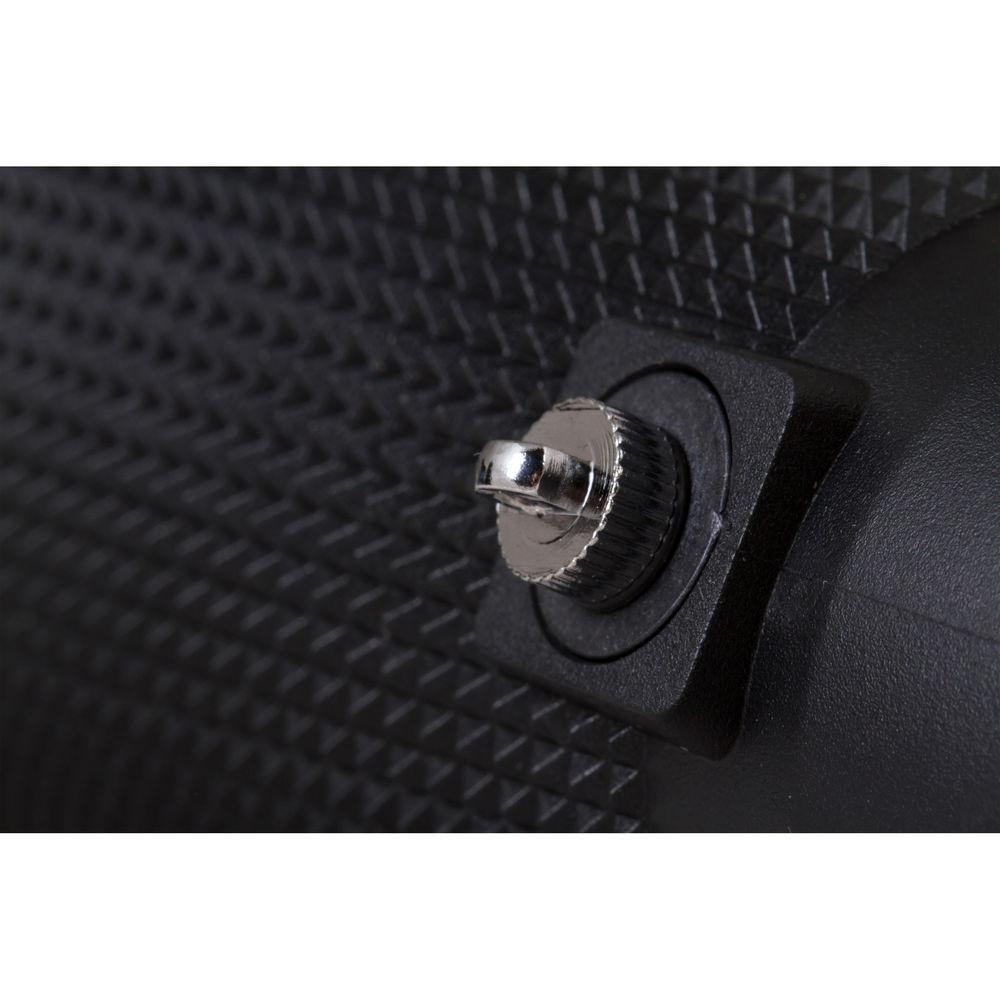

- 1/4"-20 tripod socket
- Construction Details
-
- Ergonomic polymer body with rubber armor
- Textured body surface provides a secure grip
- Impact-resistant
- Rubber twist-up eyecup
- Lens caps included

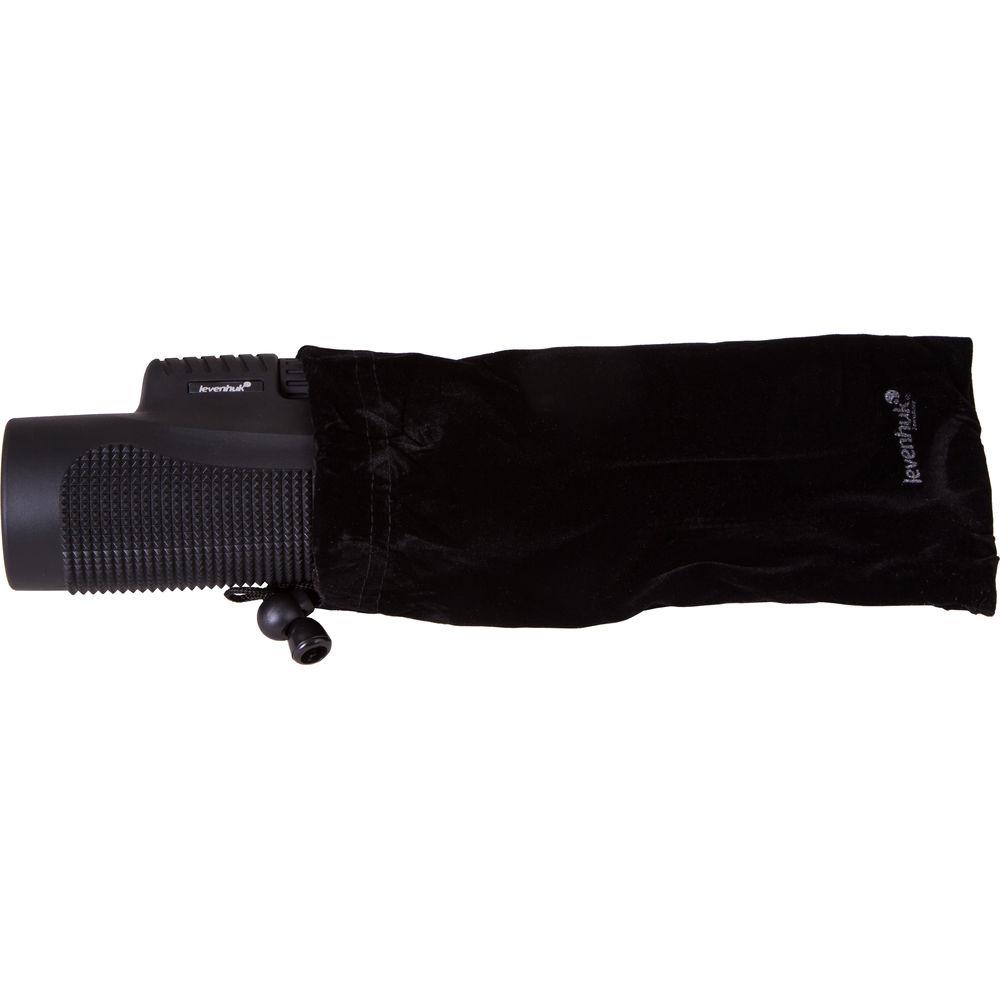

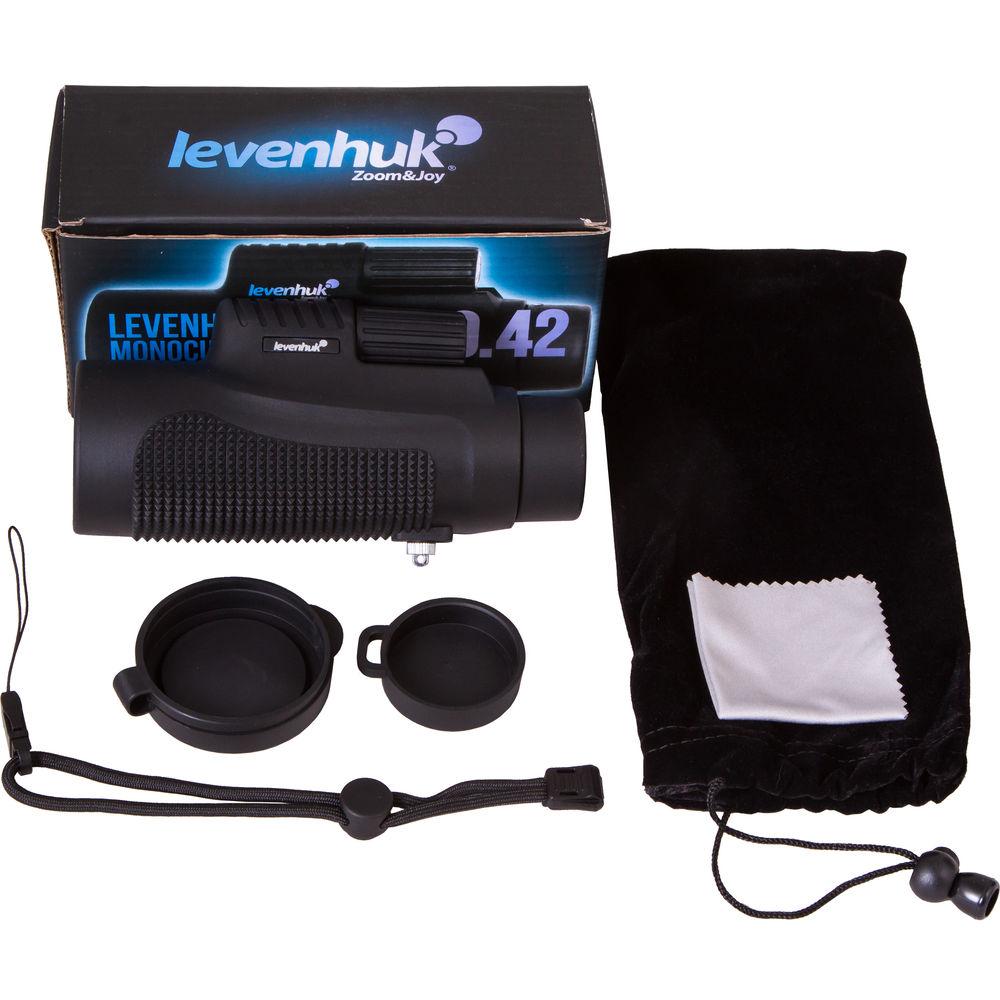

UPC: 611901505152 In the Box Levenhuk 10x42 Wise Monocular (Matte Black) - Storage Bag
- Wrist Strap
- 2 x Lens Caps
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10x42 Wise Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Wise Specs | Prism System | Roof | | Optical Glass | BAK4 | | Magnification | 10x | | Objective Diameter | 42mm | | Optical Coatings | Fully multi-coated | | Close Focus Distance | 11.4' / 3.5 m | | Linear Field of View | 304.8' @ 1000 yd / 101.6 m @ 1000 m | | Angular Field of View | 5.8° | | Exit Pupil | 4.0 mm | | Eye Relief | 13.6 mm | | Waterproofing | Weather-resistant | | Dimensions | 6.1 x 2.8 x 2.1" / 15.6 x 7.1 x 5.1 cm | | Weight | 12.0 oz / 341.0 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.7 x 3.4 x 2.8" |
