User Manual for Levenhuk 10x42 Wise PLUS Monocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 10x42 Wise PLUS Monocular
- Product category: Monoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Monoculars
 |
User manual for the Levenhuk 10x42 Wise PLUS Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

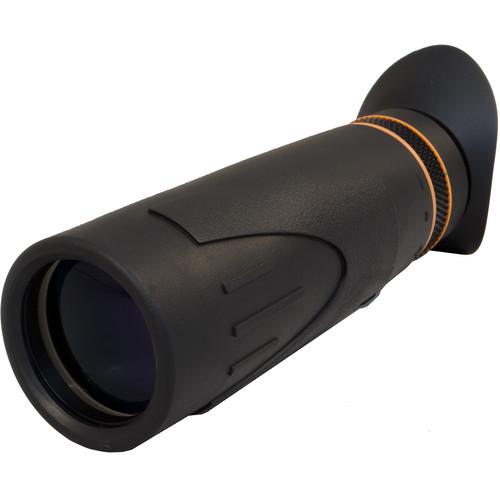

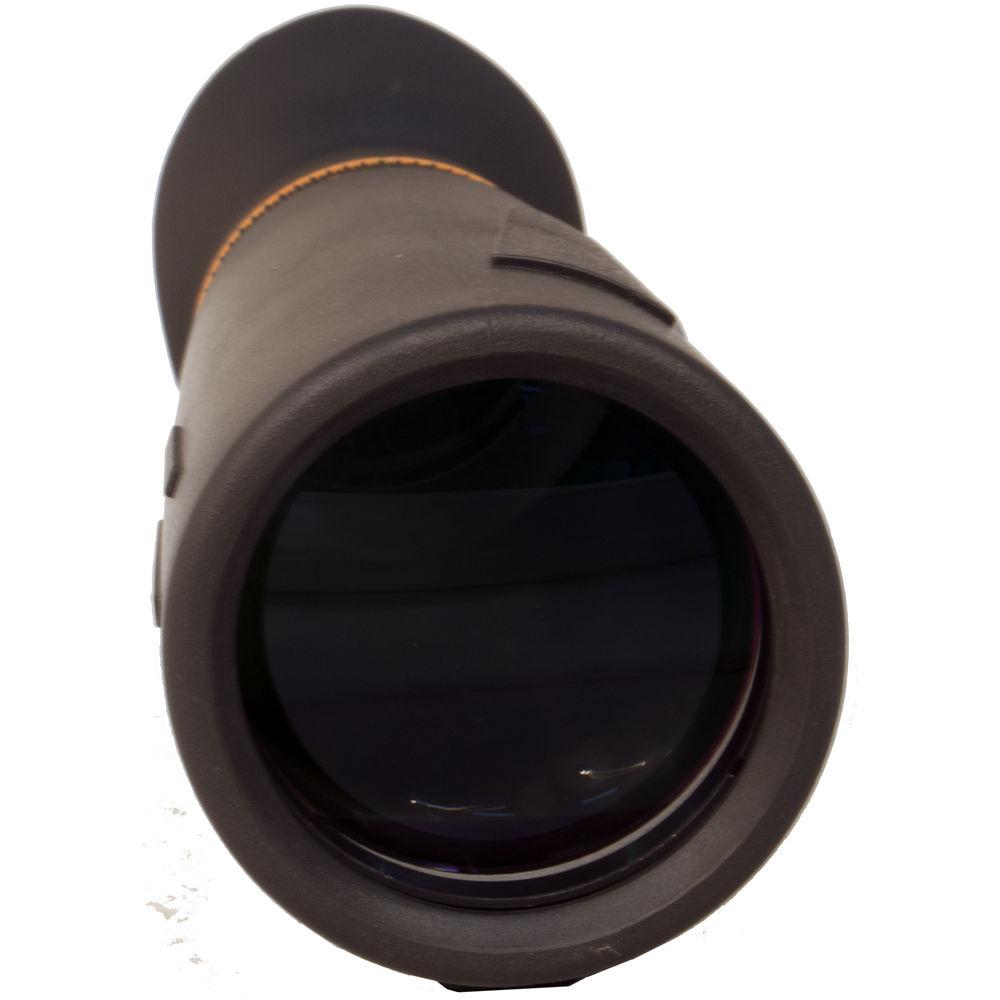

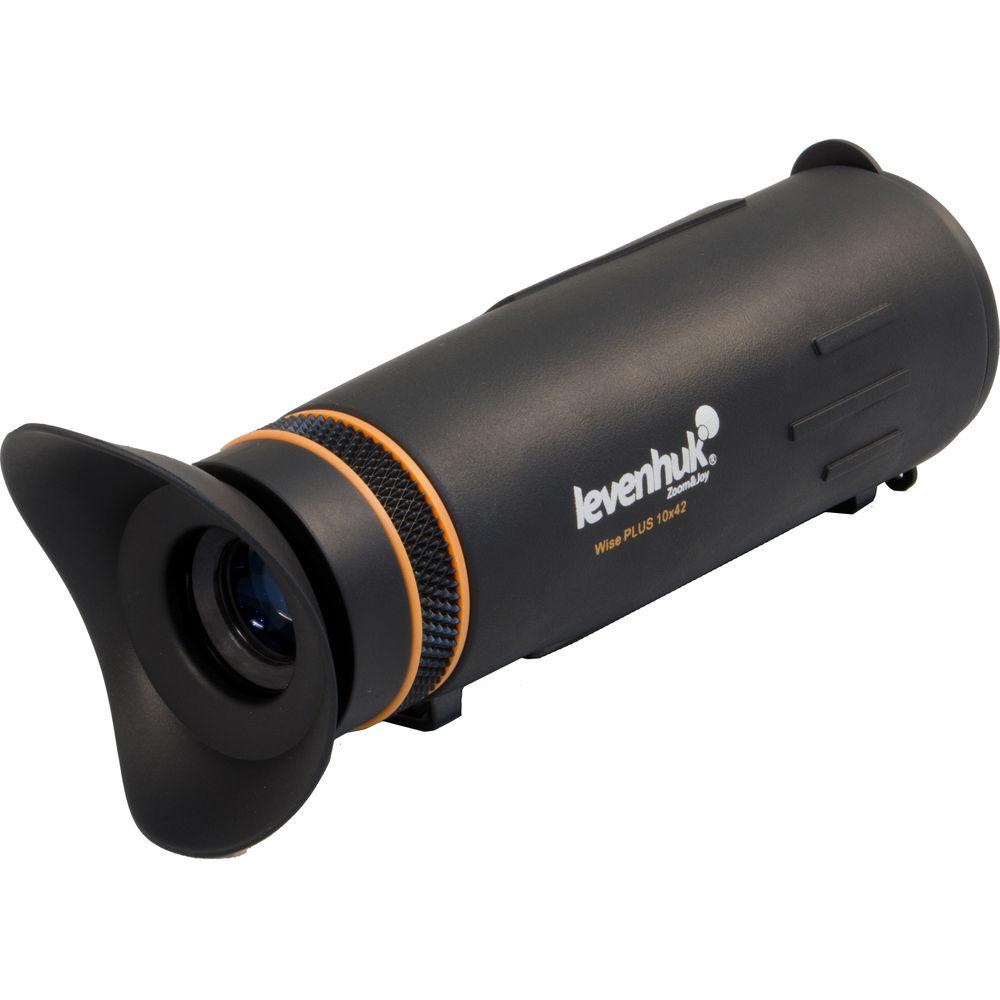

Product description Featuring a compact and ergonomic design, Levenhuk's 10x42 Wise PLUS Monocular can make a great addition to your outdoor or travel gear. Its 10x magnification and a 5.8° angular field of view make it a great optic for outdoor activities or urban explorations, and even in low light, its wide 42mm objective will generate bright images. While the BAK4 optical glass serves as a great transmission medium for vivid images, the fully multi-coated lens surfaces reduce glare and improve image clarity. Additionally, the optical system has a close focus of 13.1' and a diopter adjustment from +4 to -4.

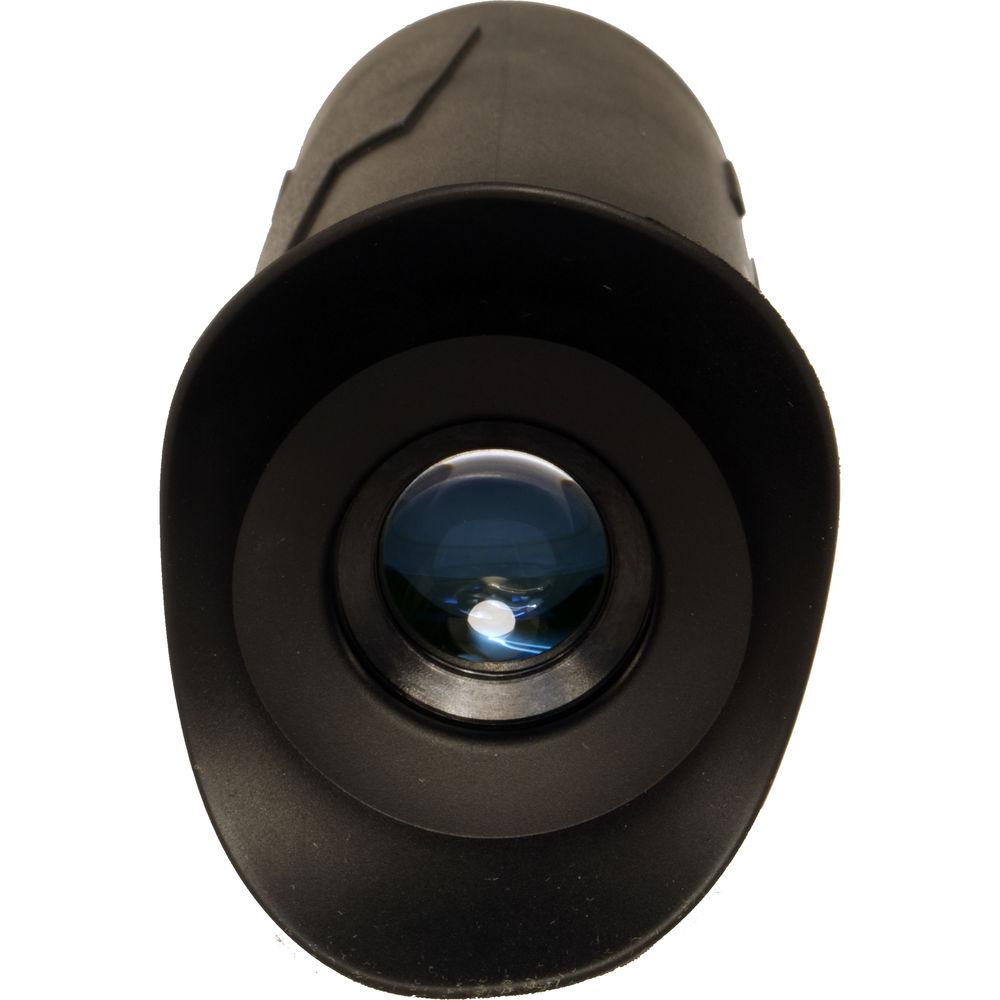

The polymer housing is ergonomic and has a rubber covering to ensure a slip-free grip. It offers a textured ring for adjusting focus (diopter) and a winged rubber eyecup for a comfortable contact with the orbit of your eye. Also included with the monocular are an objective lens cap, a strap, and a carry pouch. - Optical Performance
-
- 10x magnification
- 42mm objective diameter
- Roof prism design
- 13.1' close focus distance
- Fully multi-coated lenses
- BAK4 optical glass delivers crisp and vivid images
- 304.8' at 1000 yd linear field of view
- 13.6mm eye relief
- 4.2mm exit pupil
- Use and Handling
-
- +4 to -4 diopter adjustment
- Nitrogen-filled, fogproof
- Waterproof
- Construction Details
-
- Ergonomic body
- Rubber covering
- Impact-resistant
- Rubber winged eyecup
- Objective lens cap included

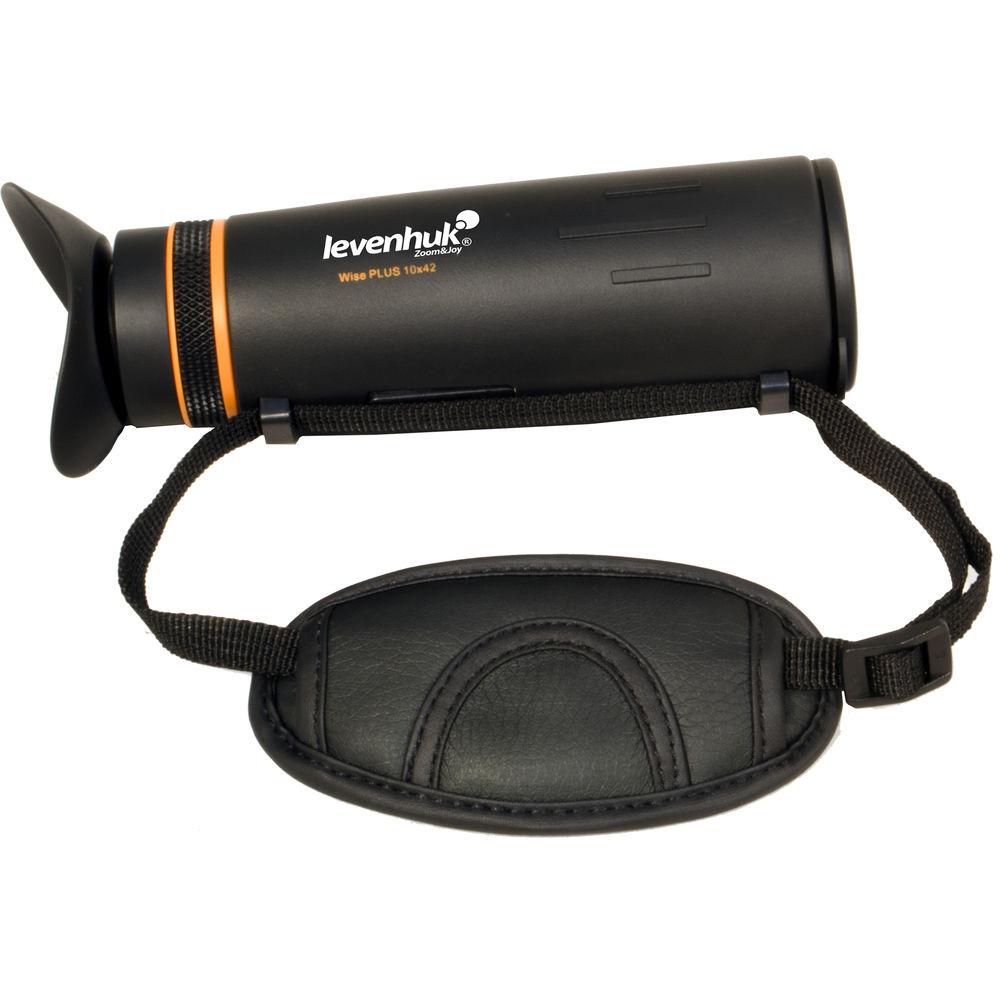

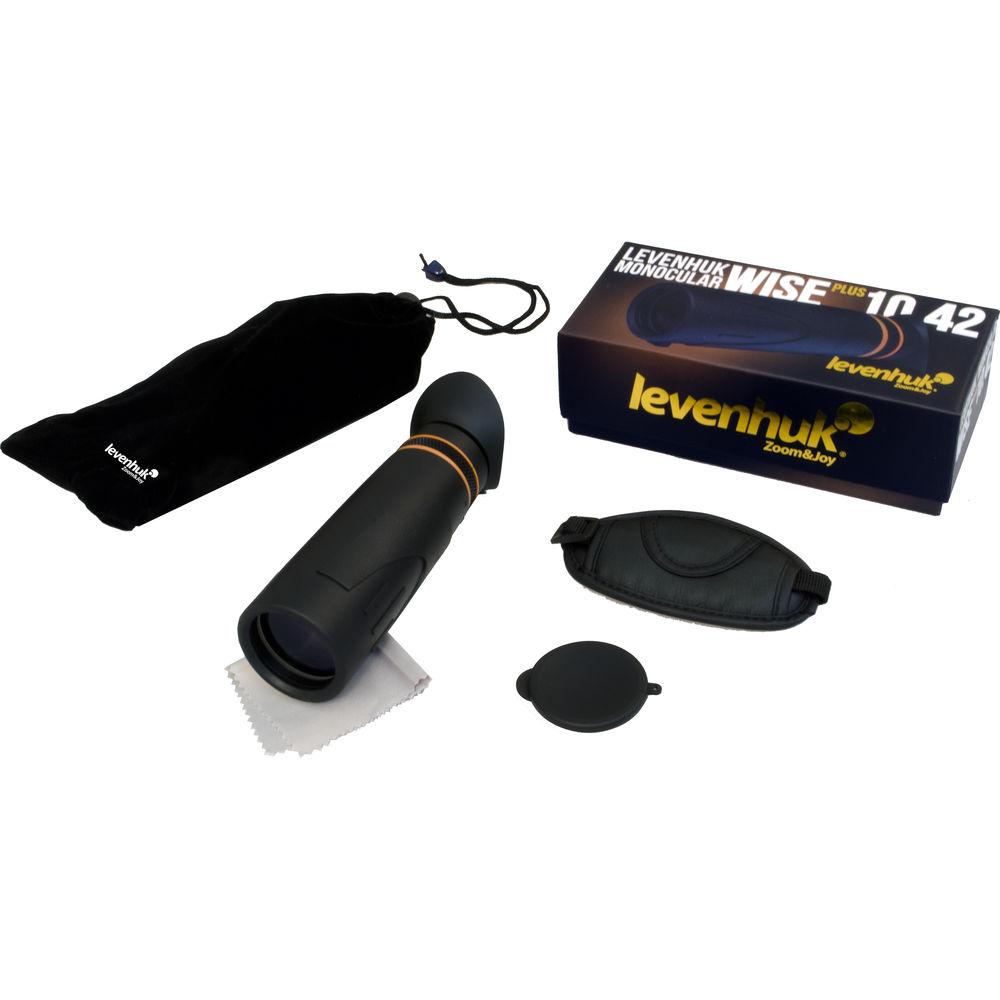

In the Box Levenhuk 10x42 Wise PLUS Monocular (Matte Black) - Pouch
- Strap
- Objective Lens Cap
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 10x42 Wise PLUS Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Wise Plus Specs | Prism System | Roof | | Optical Glass | BAK4 | | Magnification | 10x | | Objective Diameter | 42mm | | Optical Coatings | Fully multi-coated | | Close Focus Distance | 13.1' / 4.0 m | | Linear Field of View | 304.8' @ 1000 yd / 101.6 m @ 1000 m | | Angular Field of View | 5.8° | | Exit Pupil | 4.2 mm | | Eye Relief | 13.6 mm | | Diopter Adjustment | +4 to -4 | | Resolution Limit | Resolution Threshold: 7.0 arcseconds | | Operating Temperature | 5 to 140°F / -15 to 60°C | | Waterproofing | Waterproof and fogproof, nitrogen-filled | | Dimensions | 6.2 x 2.0" / 15.7 x 5.1 cm | | Weight | 10.4 oz / 296.0 g | | | | Package Weight | 1.025 lb | | Box Dimensions (LxWxH) | 7.5 x 3.5 x 2.5" |
