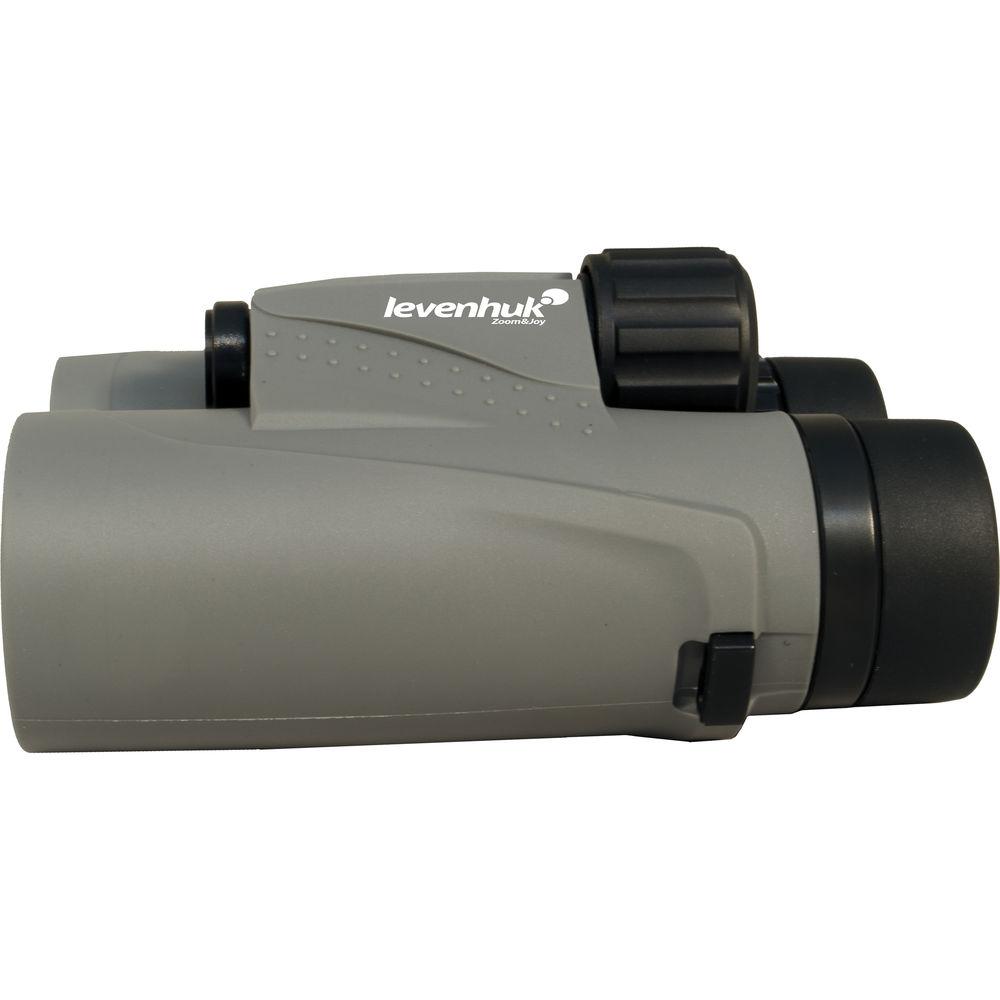

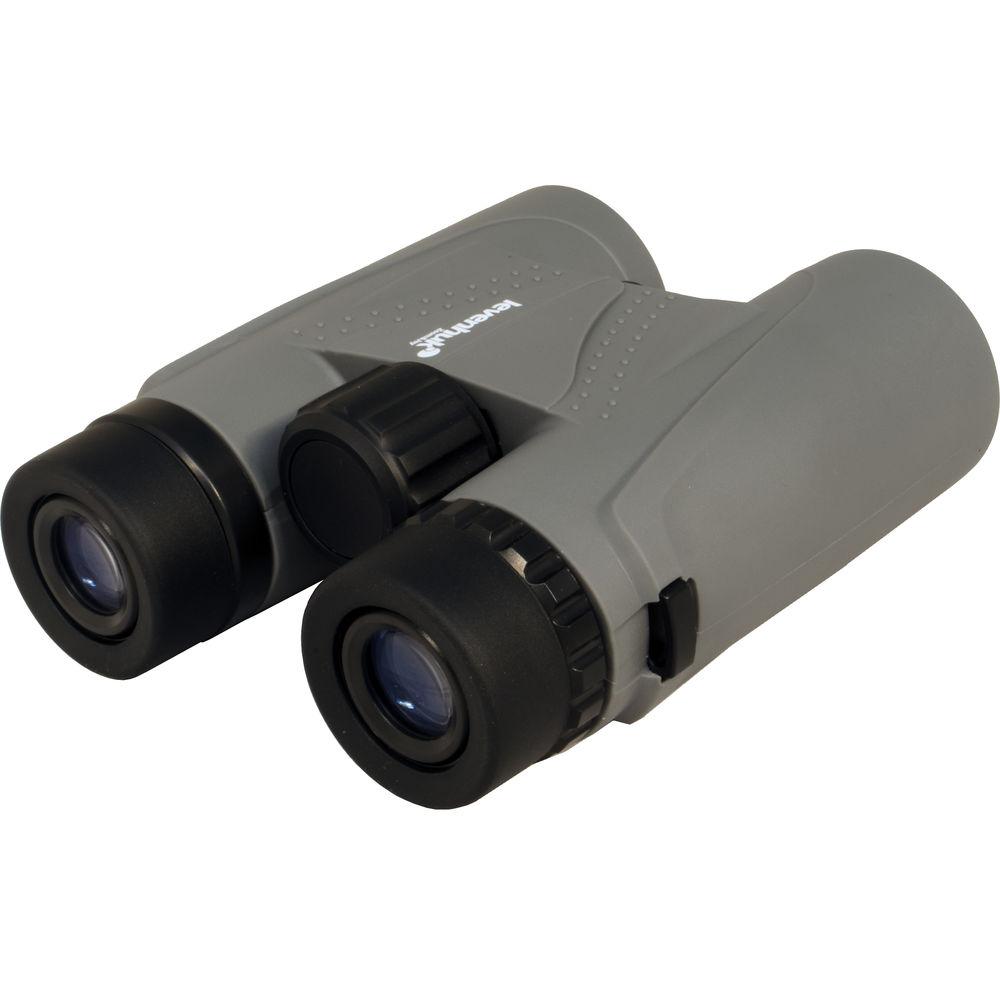

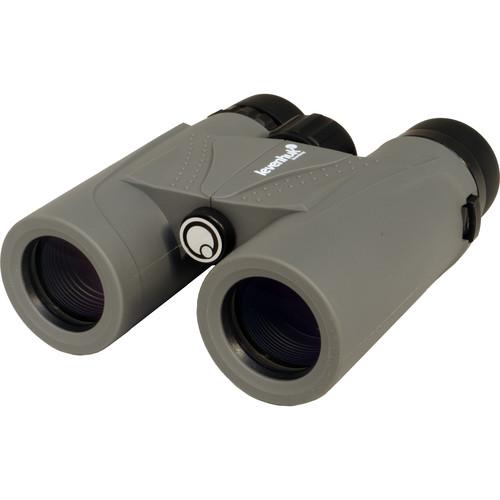

User Manual for Levenhuk 12x32 Karma PLUS Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 12x32 Karma PLUS Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 12x32 Karma PLUS Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for power, performance, and portability; with the highest magnification in the 32mm series, the Levenhuk 12x32 Karma PLUS Binocular is engineered with BAK4 roof prisms, a 3-element/3-group eyepiece lens configuration, and anti-reflection multi-coated optics, which work together to help boost its light-gathering abilities and offset the dimming that is often associated with high-power/small-objective optics such as this. These design features present an immersive observation experience by producing bright and clear high-contrast images with accurate color fidelity and limited distortion; and the ability to pick out distinct details at long ranges.Complementing the optical performance is a chassis that is wrapped in a slip-resistant rubber armor with raised textured palm-pads to add grip security and stability in cold or wet weather - even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to fogging when moving through extreme temperature changes. Finally, its large center focusing wheel, ±4 dioptric correction, and twist-up eyecups enable precise focusing and eye relief for just about any user. - Optical Performance
-
- Powerful 12x magnification allows for detailed observation of distant subjects
- 32mm objective lenses boost light-gathering ability versus compact models
- Compact roof prism light path keeps the optical tubes thin for easier handling and packing
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection multi-coated optics produce neutral and accurate color fidelity across the entire visible spectrum, and improve contrast and image brightness
- Highly-reflective silver prism coatings reduce internal light loss to help maintain image brightness and improve contrast
- 3-element/3-group eyepiece lens configuration improves image quality by reducing lens-edge distortion
- 243-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large textured center focusing wheel is easy to manipulate even when wearing gloves
- 56-74mm interpupillary distance adjustment range
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- 12.5mm eye relief
- 2.7mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Rubber armoring provides a slip-resistant grip
- Textured palm-pads and finger-rests improve grip security
- Tripod-mountable with optional adapter to reduce arm fatigue or reduce vibrations

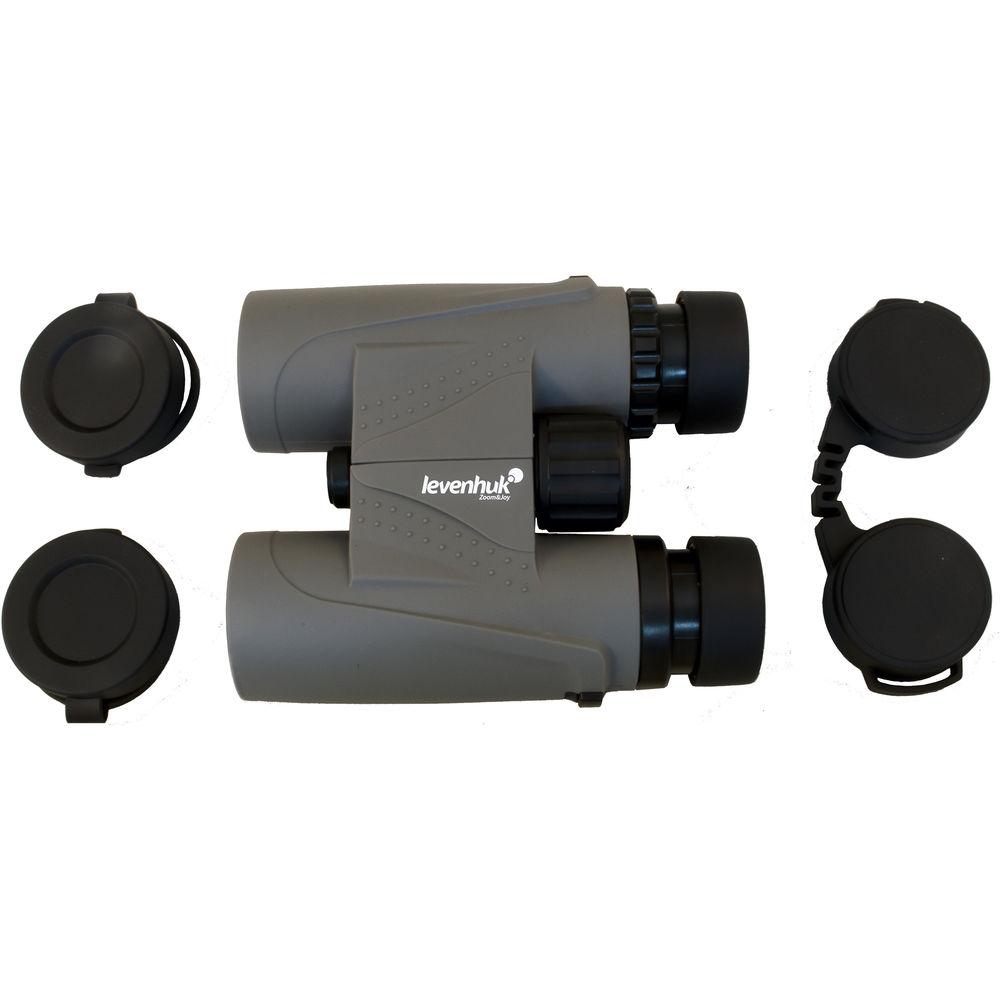

- Tethered stay-on/flip-down objective lens caps are easy to put on and take off without the risk of losing them
- Broad 5 to 140°F (-15 to 60°C) operating temperature range

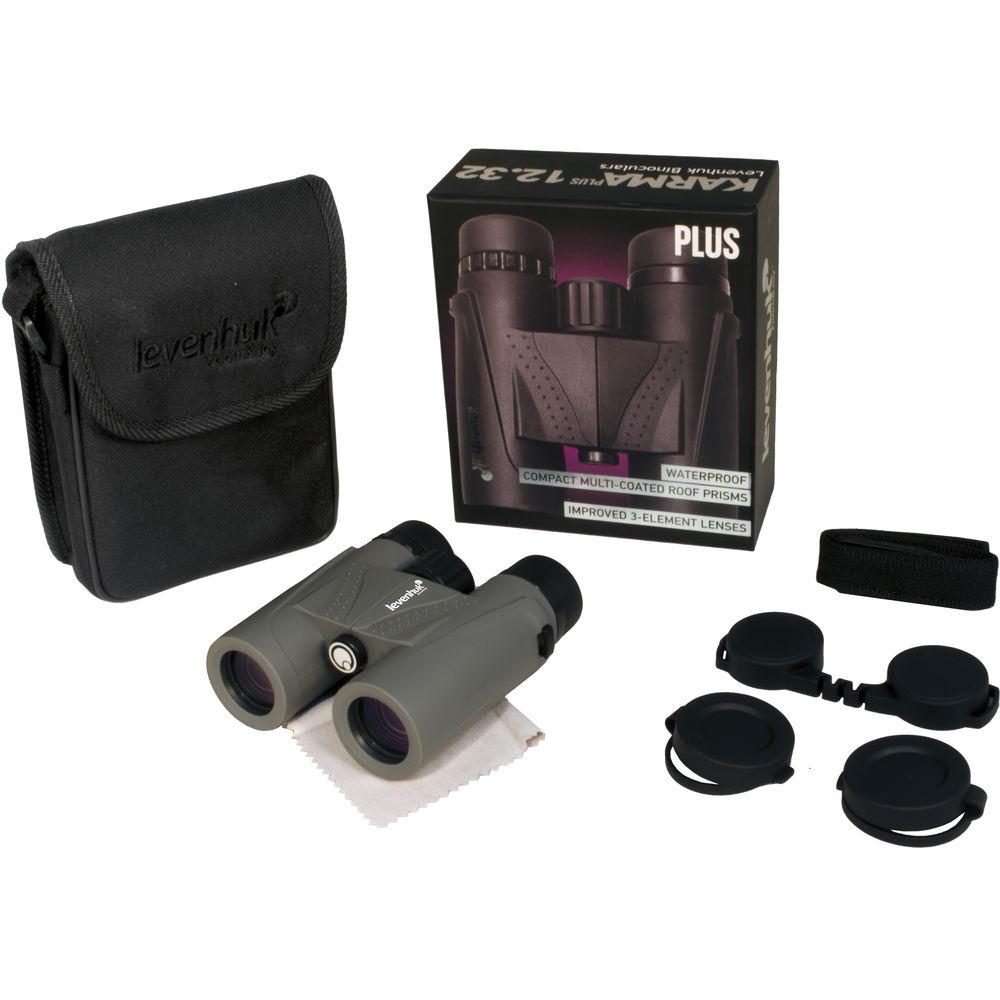

In the Box Levenhuk 12x32 Karma PLUS Binocular Lens Cloth Neck Strap Soft Carrying Case 1-Piece Ocular Rainguard 2 x Tethered Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 12x32 Karma PLUS Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67710 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 32 mm | | Angle of View | 4.6° (Actual) | | Field of View | 243.0' @ 1000 yd / 80.7 m @ 1000 m | | Minimum Focus Distance | 13' / 4 m | | Exit Pupil Diameter | 2.7 mm | | Eye Relief | 12.5 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.3 x 5.0 x 1.9" / 13.5 x 12.7 x 4.8 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
