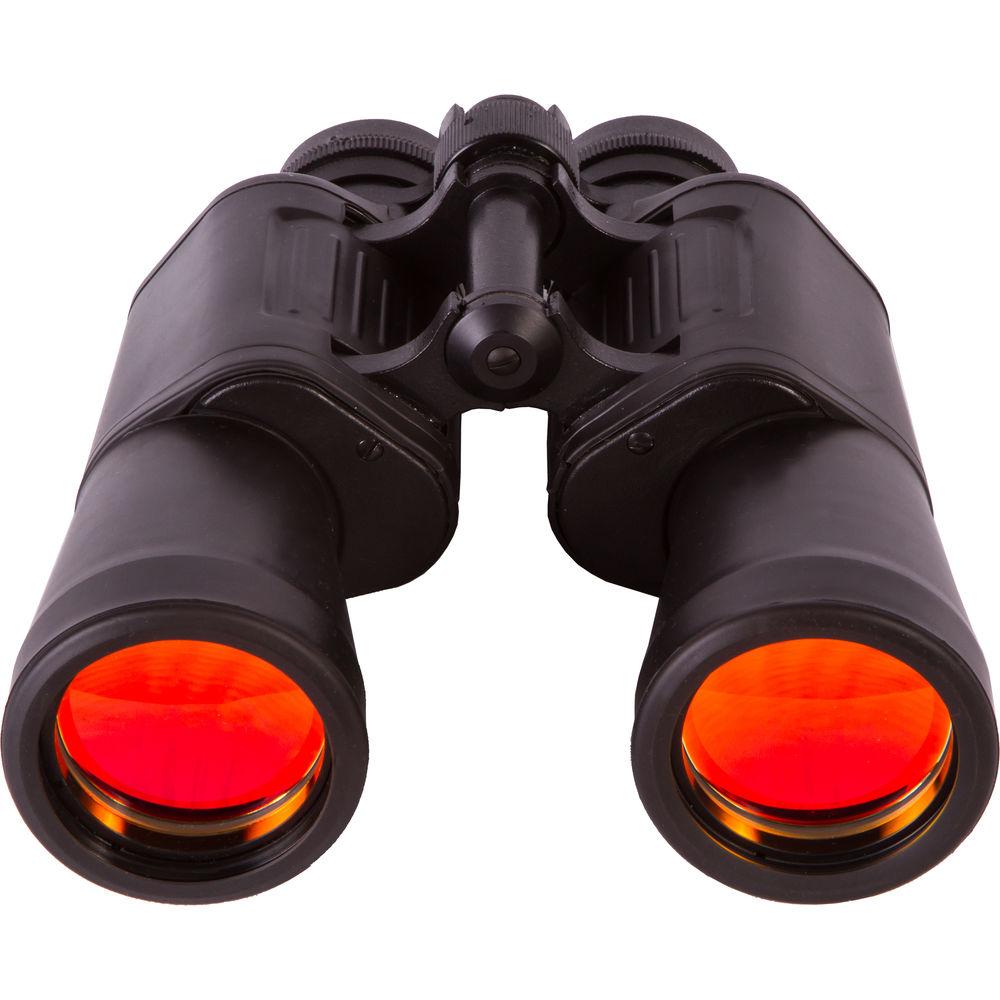

User Manual for Levenhuk 12x45 Heritage PLUS Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 12x45 Heritage PLUS Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 12x45 Heritage PLUS Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

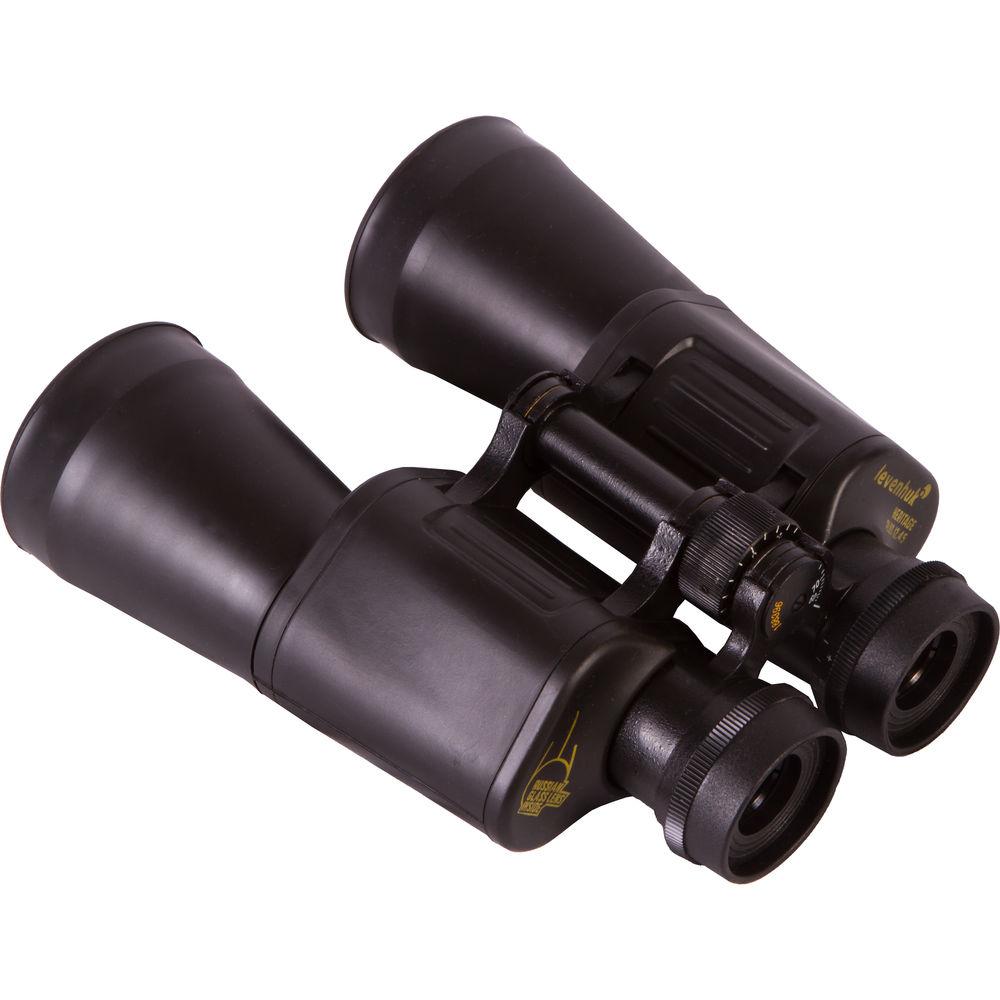

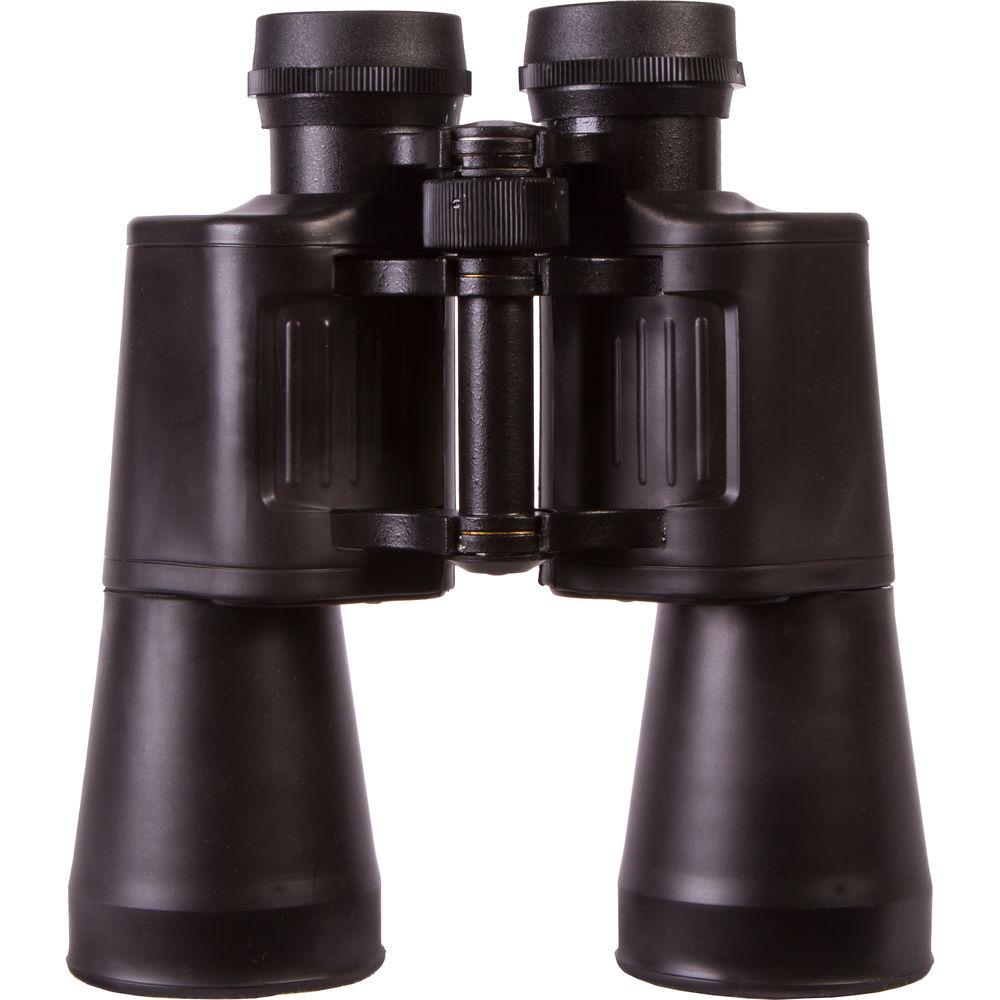

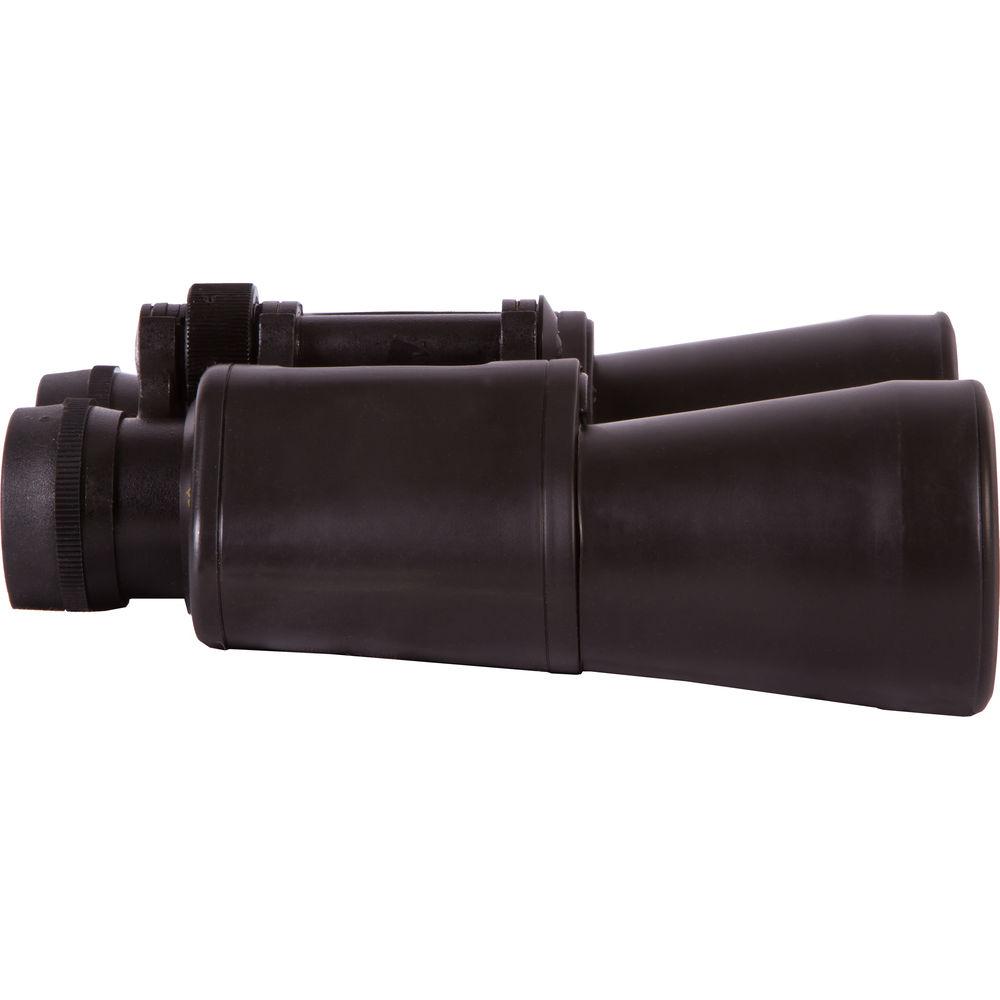

Product description The B&H Binocular Buying Guide Read More Enjoy classic retro styling with the optical performance of modern materials and technology that defines the limited edition Levenhuk 12x45 Heritage PLUS Binocular.Made in partnership with the Kazan Optical-Mechanical Plant, the Heritage line sports traditional Porro prisms built with Russian BK10 glass, fully multi-coated optics, a wide field of view, and a powerful magnification. All these features work together to present you with bright and clear high-contrast views, despite the high power, to give you an immersive observational experience. The PLUS line in the Heritage series features the addition of an in-view reticle that allows you to estimate the distance to—and size of—your subject, and ruby lens coatings, which improve contrast and clarity in low light such as at dawn and twilight.The Porro prism design creates a naturally ergonomic form factor that is comfortable to hold and evenly balanced, greatly reducing arm fatigue and increasing the viewing experience. Its aluminum chassis is light and durable, and the joints are sealed to keep moisture and dust out. The exterior armoring is textured to give it a slip-resistant grip. Levenhuk includes a soft carrying case, eyepiece caps, and a neck strap.With its powerful magnification and in-view ranging reticle, this version of the Heritage PLUS is specifically designed for long-range observation and identification - Limited Edition
-
- The 12x45 Heritage PLUS binocular is a limited edition numbered series with limited distribution
- Only 4000 pieces are being produced for world-wide sale
- Modeled on traditional field glasses, the Heritage PLUS has the look and feel of vintage binoculars but is made with modern materials and optical technologies
- Designed by Levenhuk in cooperation with the Kazan Optical-Mechanical Plant, which provides optical observation instruments for the Russian Army
- Optical Performance
-
- Powerful 12x magnification is optimized for long-range use to bring distant subjects in close for detailed observation and identification
- 45mm objectives have improved low-light performance versus smaller objectives, without the bulk and weight of larger ones
- Traditional Porro prism light path provides a rich depth of field
- Russian BK10 glass has refractive index and transmission properties similar to the more common BK7
- Anti-reflection fully multi-coated optical surfaces maximize light transmission with improved color, clarity, and contrast

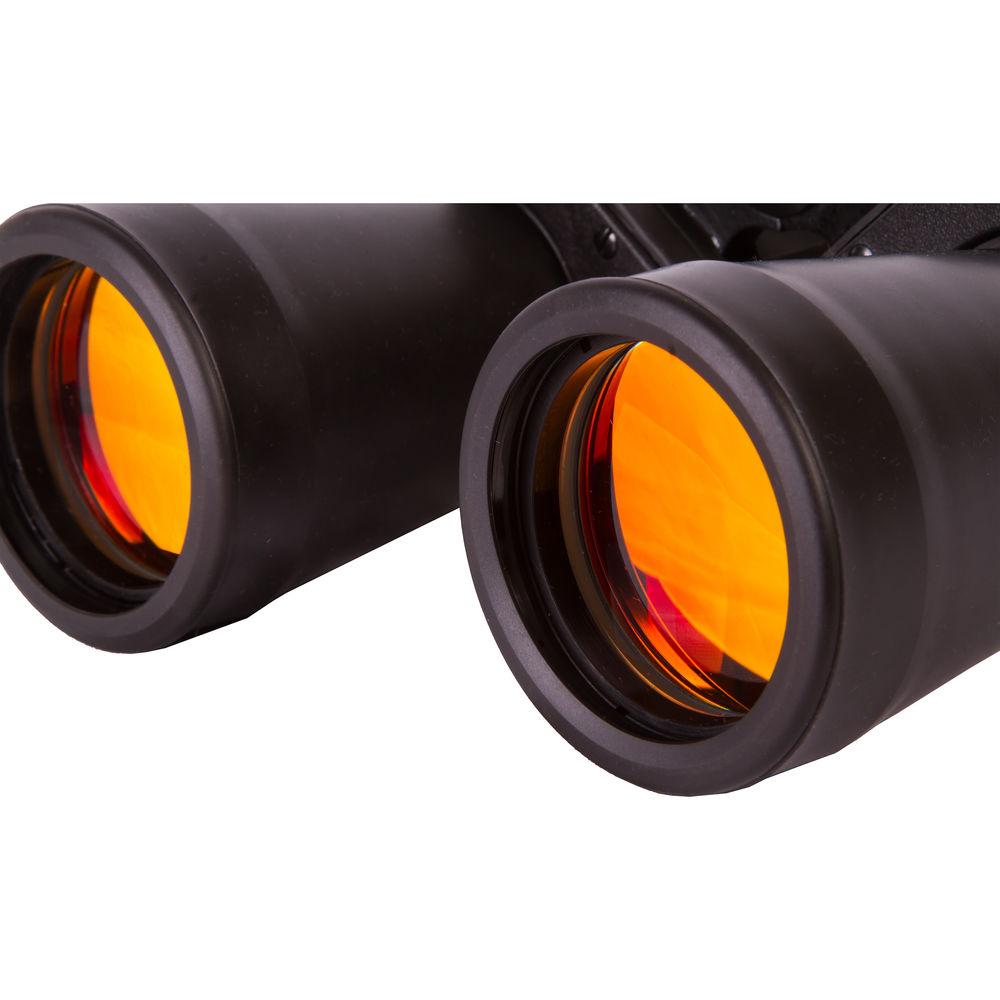

- Ruby-tinted lens coating improves clarity and contrast in low light—such as during dawn and dusk, or under heavy cloud cover
- Wide 67° apparent angle of view provides a spacious view to minimize the appearance of distracting hand shake common when holding high-power optics

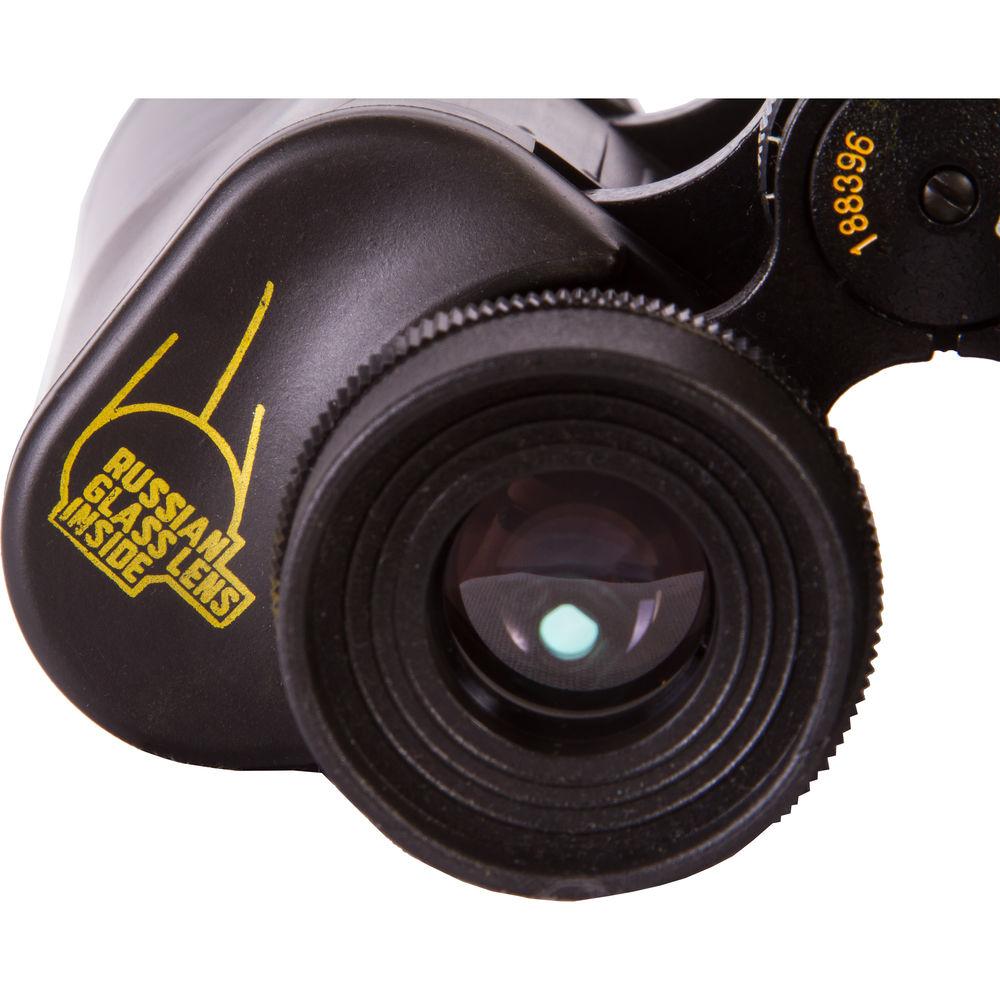

- Reticle on right eyepiece enables you to estimate the size of, and range to, a subject
- Use and Handling
-

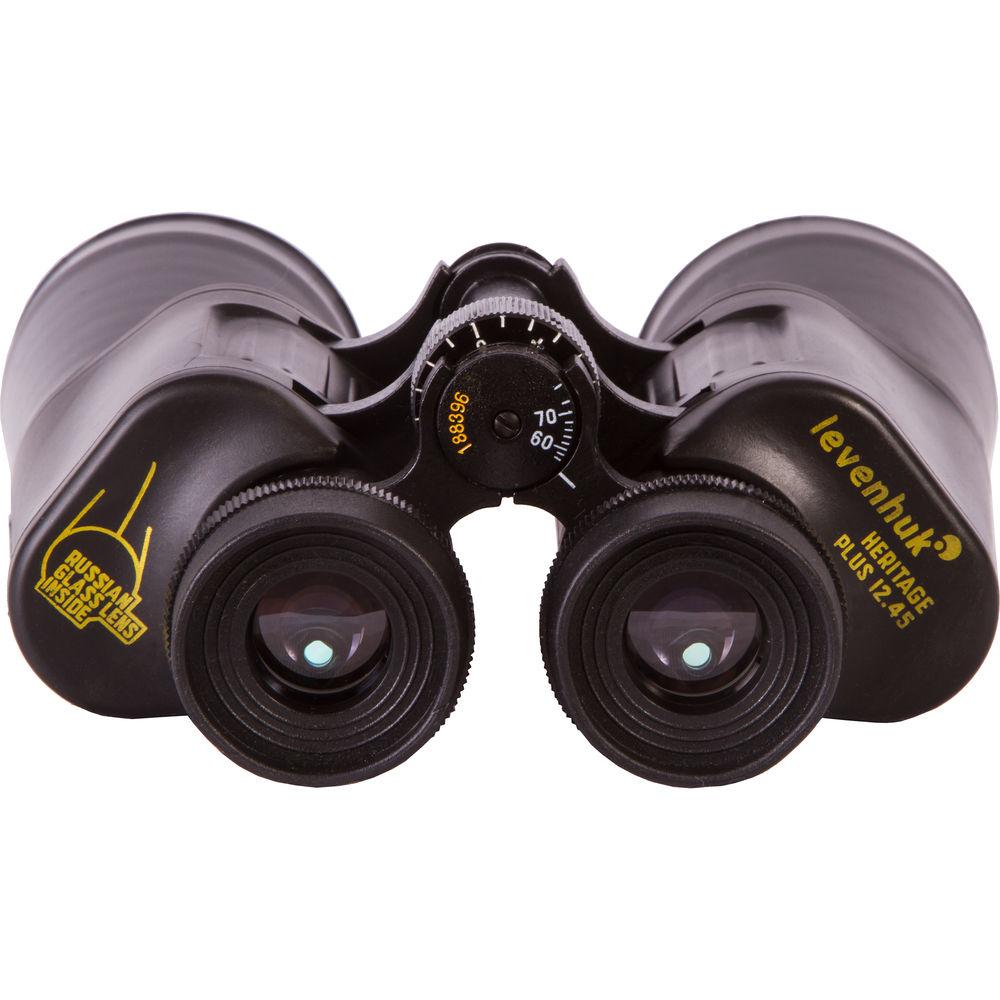

- Textured center focusing wheel is easy to manipulate with either hand
- ±3 right eye dioptric correction ensures tack-sharp focusing for most people
- 56-74mm interpupillary distance range enables easy use by most people
- Fold-down rubber eyecup for comfortable use with or without eyewear
- 12mm eye relief
- 3.75mm exit pupil
- Construction Details
-
- Naturally ergonomic form factor is comfortable and balanced in the hand
- Lightweight and durable aluminum-alloy chassis
- Rubberized armoring protects the chassis and provides a slip-resistant grip
- Chassis is sealed to keep moisture and dust from getting inside
- Broad -40 to 122°F (-40 to 50°C) operating temperature range

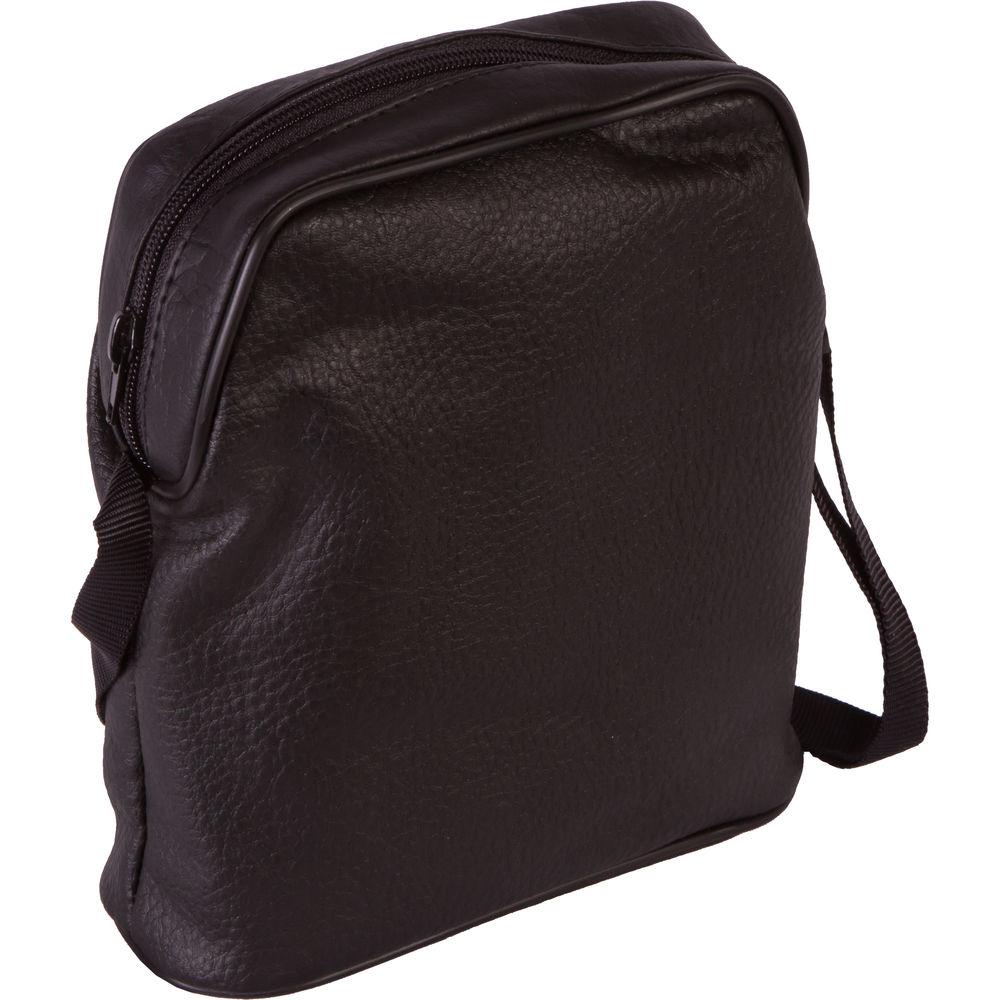

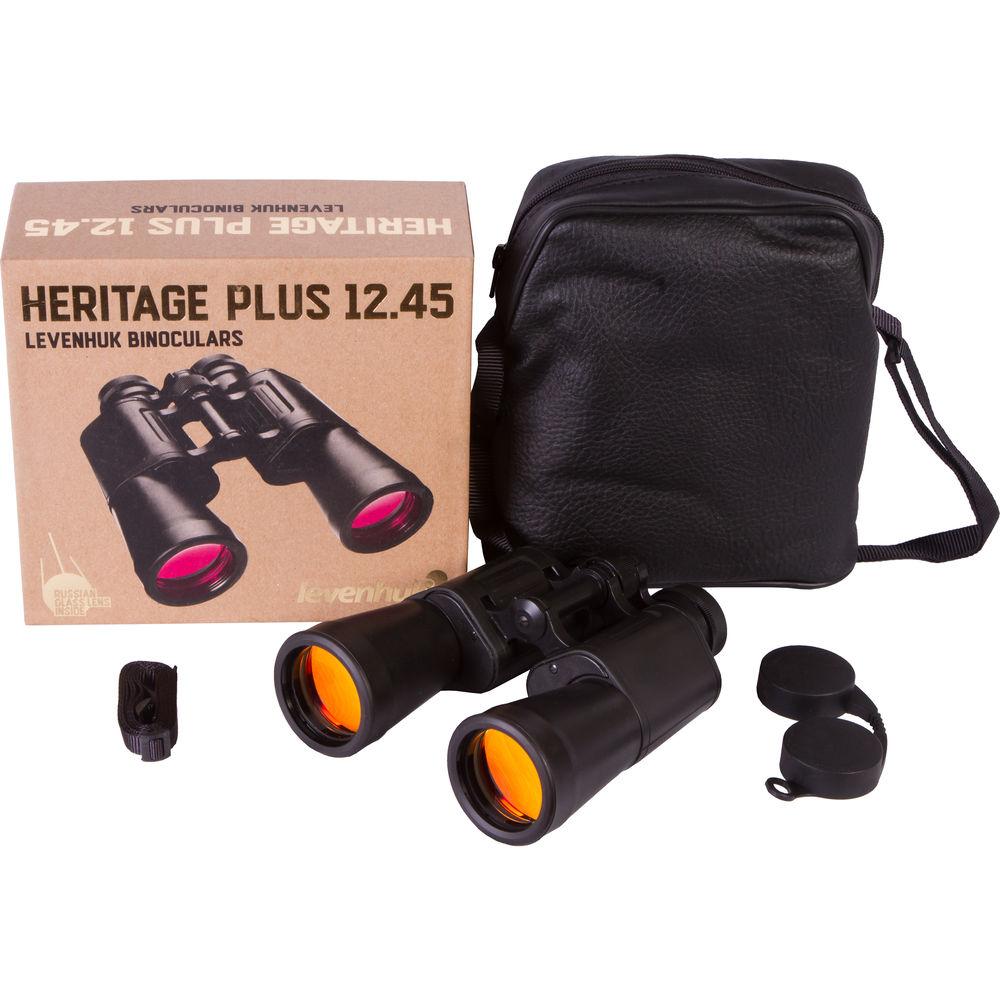

UPC: 643824213746 In the Box Levenhuk 12x45 Heritage PLUS Binocular Neck Strap Carrying Pouch 2 x Ocular Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 12x45 Heritage PLUS Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Heritage Plus Specs | Prism Type | Porro | | Magnification | 12x | | Objective Lens Diameter | 45 mm | | Angle of View | 5.6° (Actual) | | Field of View | 292.17' @ 1000 yd / 97.0 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6 m | | Exit Pupil Diameter | 3.75 mm | | Eye Relief | 12.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | None |
