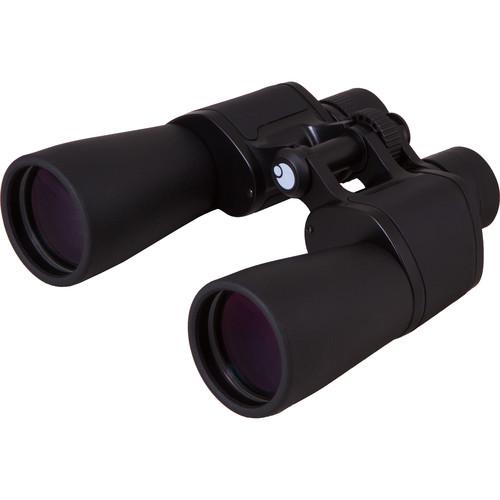

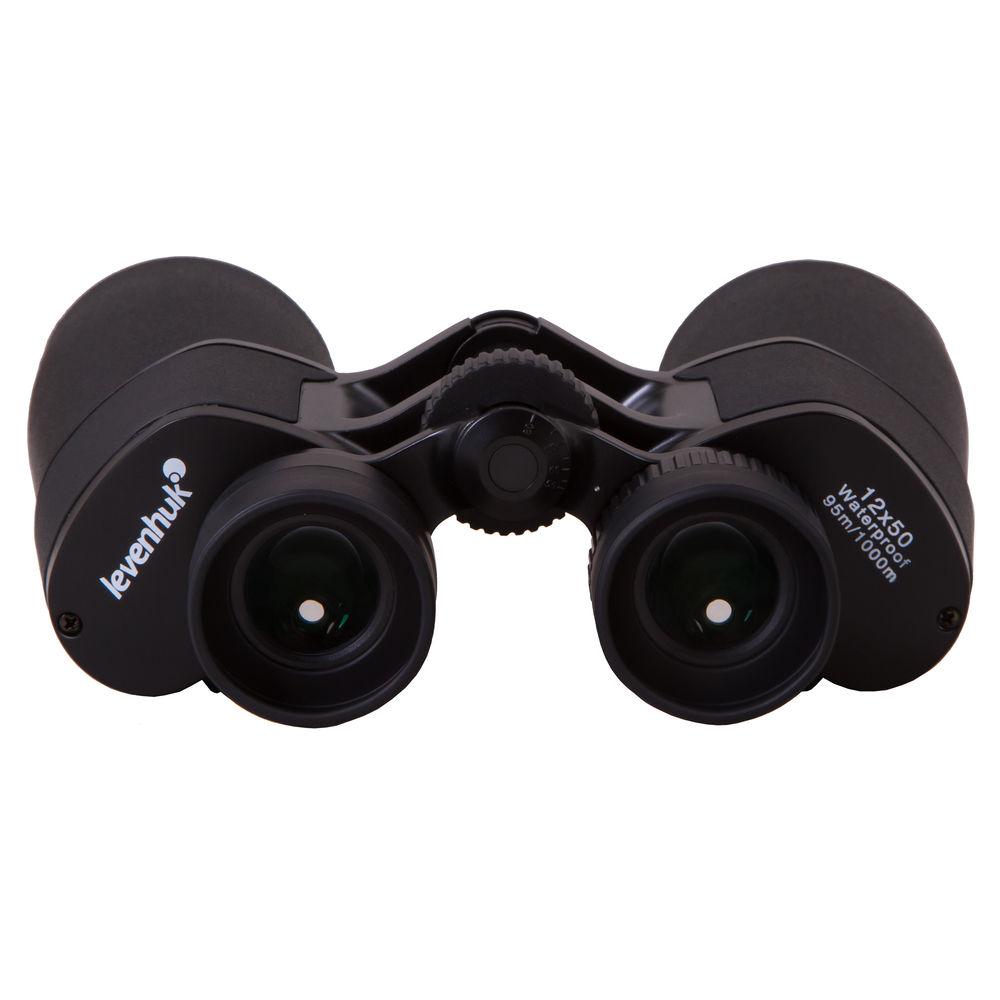

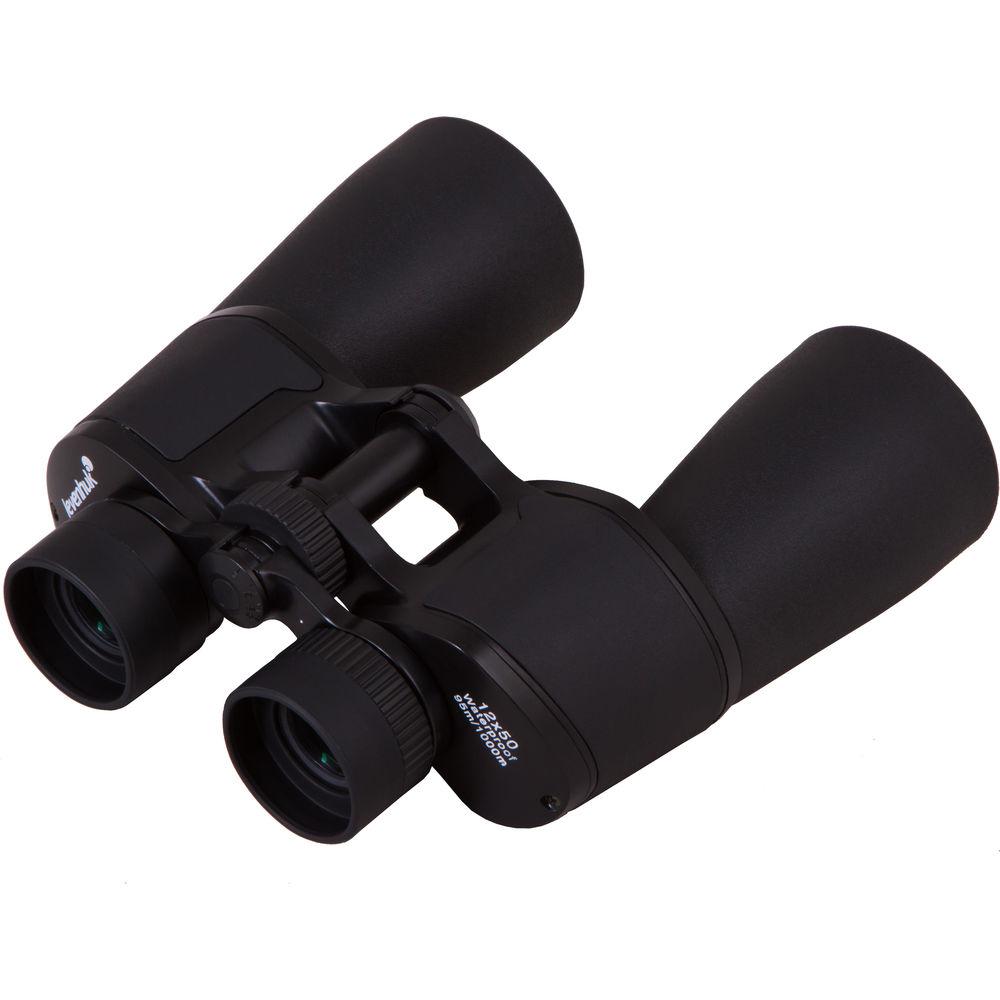

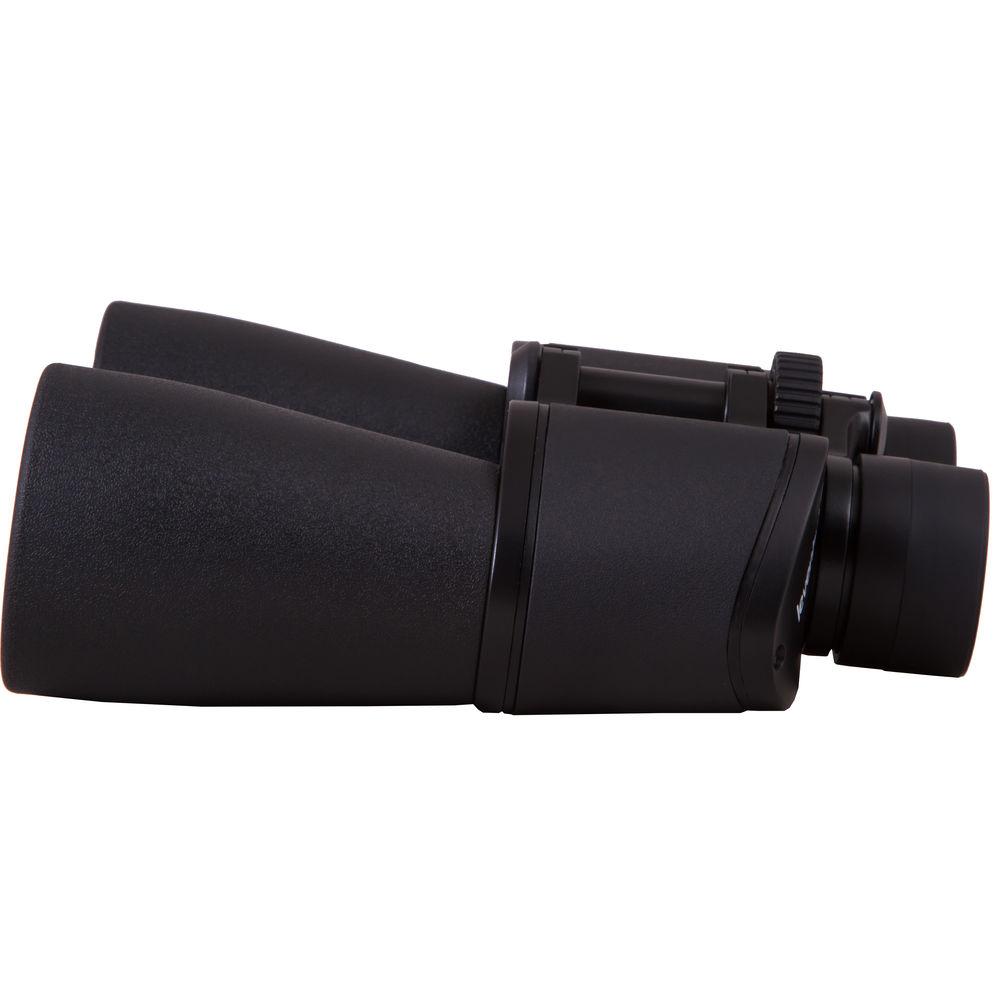

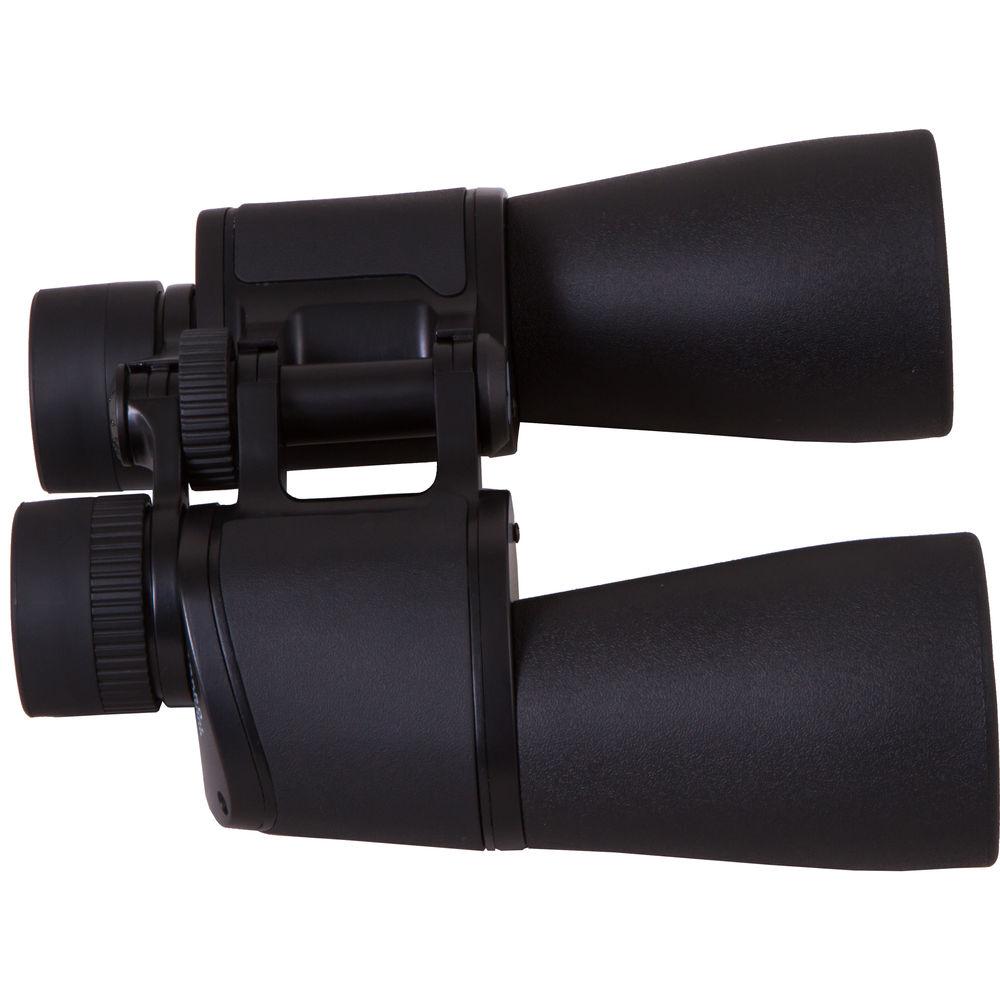

Product description The B&H Binocular Buying Guide Read More Combining a high magnification and oversized objectives, Levenhuk's 12x50 Sherman BASE Binocular is an ideal optic for making detailed observations at long distances, even in challenging lighting conditions.The large lenses draw in copious amounts of light and, combined with the 12x power, translate to a comfortable exit pupil that will cover most pupils in low-light conditions such as at dawn or dusk and when peering into heavy brush or canopies. The larger objectives also help to compensate for the dimming that often happens when looking at smaller subjects at long range. Anti-reflection fully coated optics, a wide field of view, and a traditional Porro prism optical path all work together to produce an immersive and comfortable observational experience, featuring bright and clear high-contrast views with accurate color rendition and a rich depth of field. The wide field of view helps to mitigate the appearance of visible hand shake that is common with higher power optics, for clearer views.For long-duration glassing sessions, to reduce arm fatigue, or to eliminate vibrations, the Sherman BASE can be tripod mounted using an optional adapter. Its optical tubes are nitrogen filled and O-ring sealed to a waterproof IPX6 rating and resistant to internal fogging. The chassis is made of a lightweight and durable aluminum alloy and wrapped in a protective slip-resistant rubber armor. Fold-down rubber eyecups mold themselves to the user's eye sockets to block stray peripheral light for brighter views without intrusive side glare, and the binocular's center-focusing wheel is also slip resistant to make precision focusing fast and easy.From the backyard to the backcountry to the stadium, the Levenhuk 12x50 Sherman BASE binocular gives you the ability to see wide areas with extreme magnification in all light conditions and weather. - Optical Performance
-
- Powerful 12x magnification enables detailed observations of extremely distant subjects

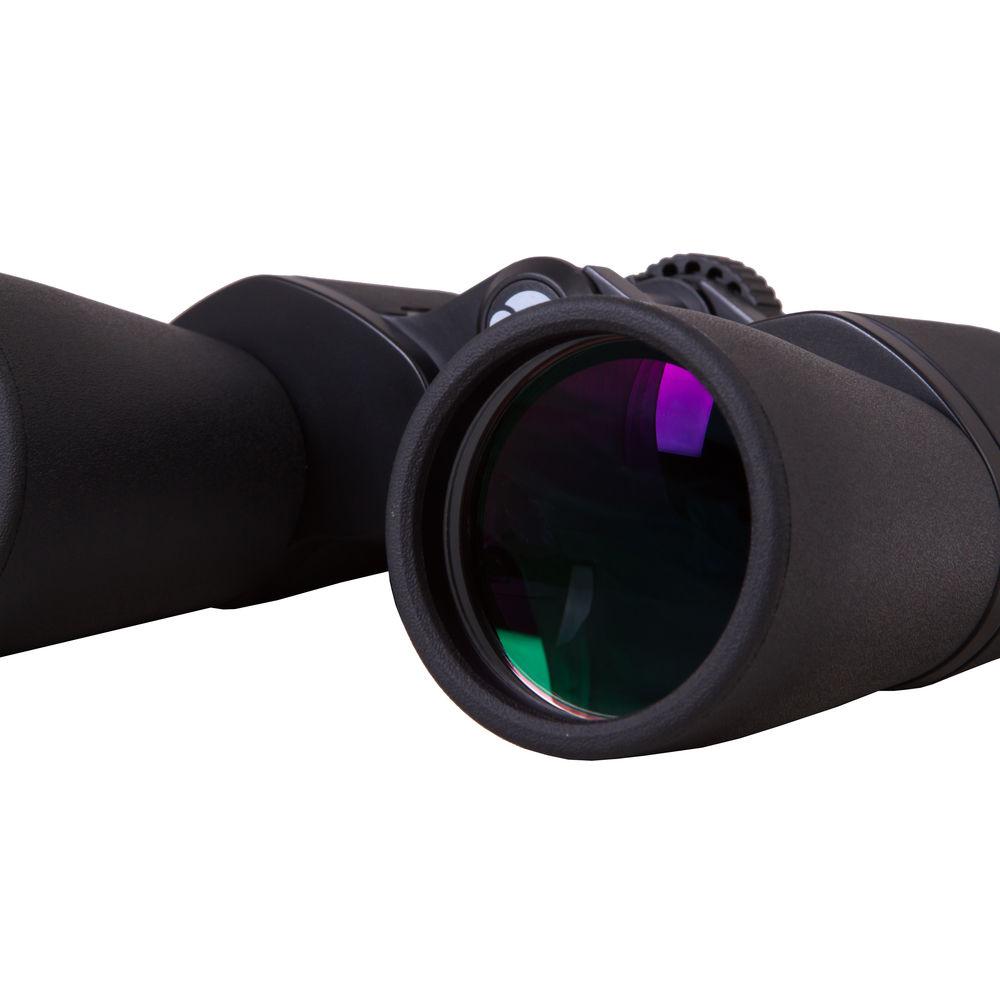

- Large 50mm objective lenses provide performance in challenging light and keep views bright, especially when viewing distant subjects
- Traditional Porro prism optical path presents a rich depth of field to produce lifelike views
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Anti-reflection fully coated optics improve light transmission, color rendition, clarity, and contrast
- 3-element/2-group eyepiece and objective lens design
- Wide 65° apparent angle of view helps to minimize the distracting hand shake that is common when holding large and powerful optics such as this
- 286-foot field of view at 1000 yards
- Use and Handling
-

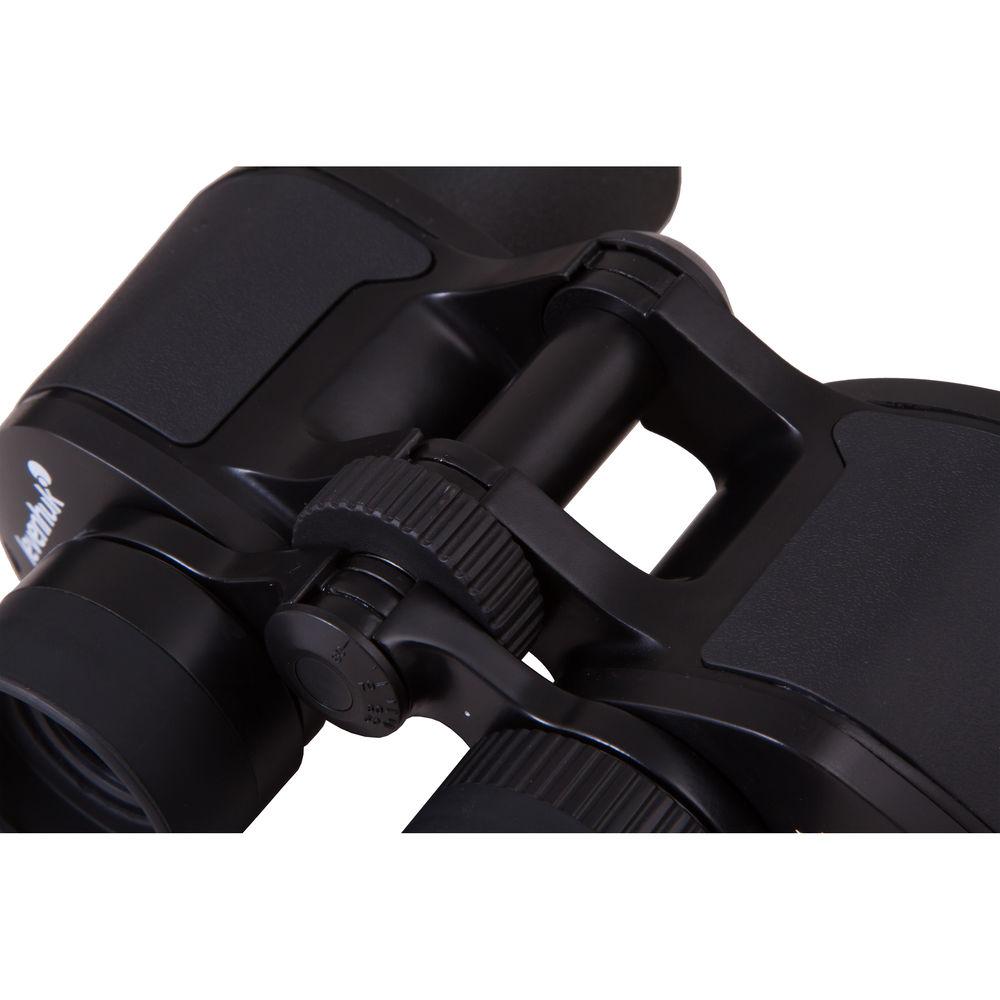

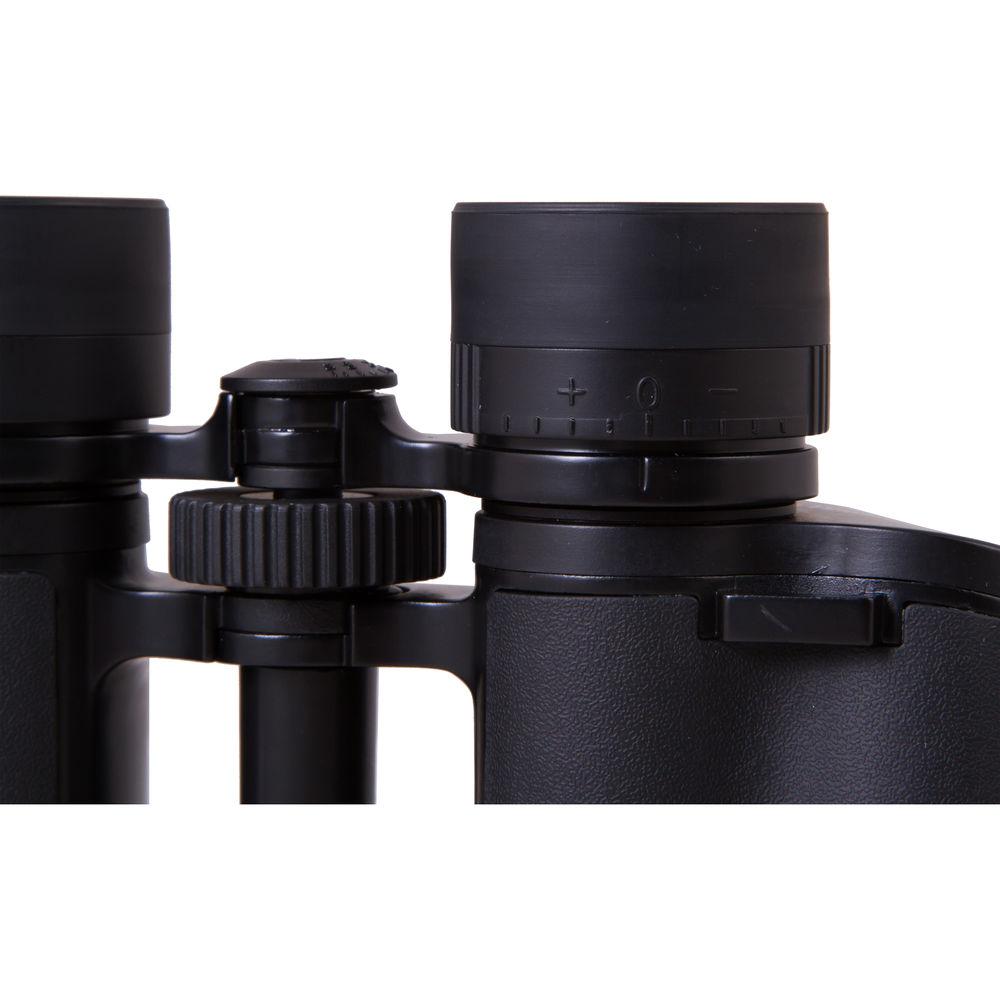

- Slip-resistant center-focusing wheel is easy to manipulate, even when wearing gloves
- Broad ±6 right-eye dioptric correction allows for precise focusing even for those who normally require corrective eyewear
- Wide 50-80mm interpupillary distance adjustment range enables easy use by a wide variety of people
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter to limit arm fatigue and vibrations
- Comfortable 15mm eye relief reduces eyestrain for easier viewing, especially during long glassing sessions
- 4.2mm exit pupil will cover most pupils as they open and dilate in low light to keep the scene in view
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen filled and O-ring sealed to be waterproof to an IPX6 rating and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Protective armor with textured palm pads provides a slip-resistant grip
- Tethered objective lens caps offer additional lens protection without the risk of losing them during use
- Broad 14 to 122°F (-10 to 50°F) operating temperature range

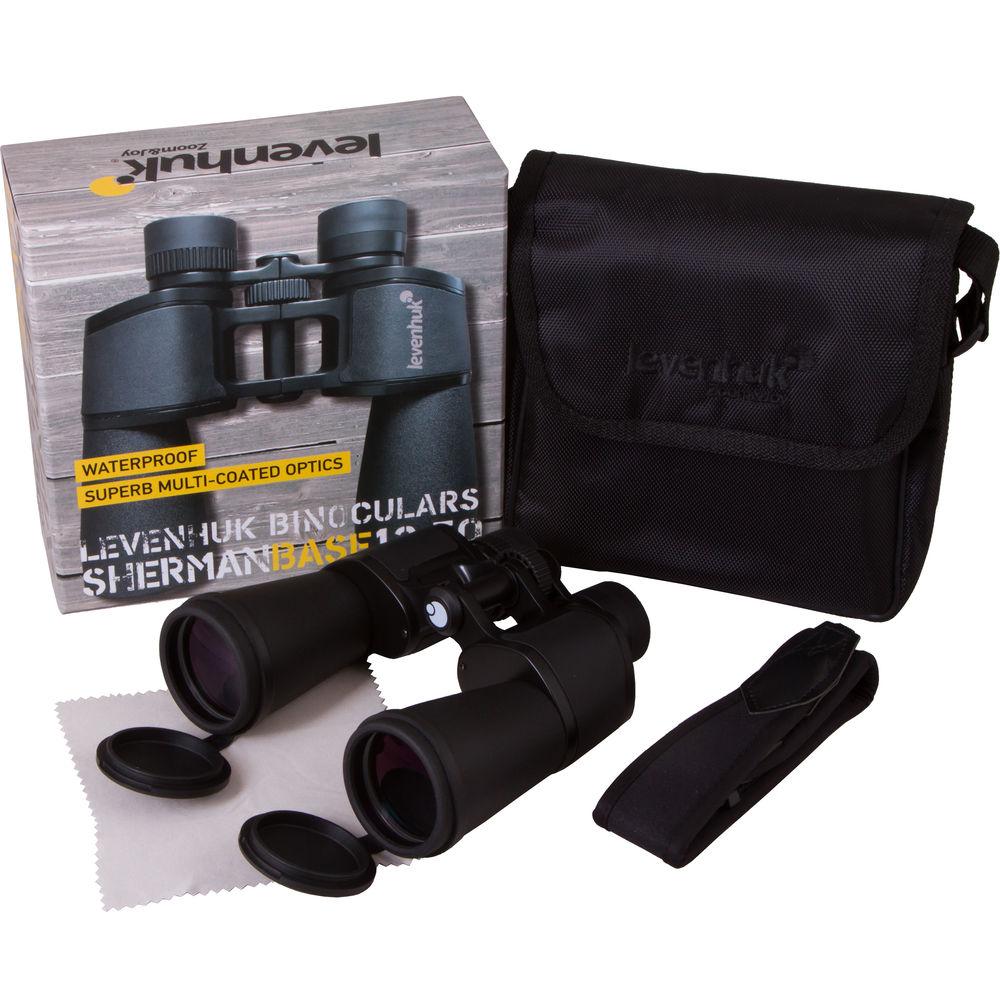

UPC: 643824208124 In the Box Levenhuk 12x50 Sherman BASE Binocular Lens Cloth Carrying Pouch Neck Strap 2 x Eyepiece Caps 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 twbqxydbtyvz A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 twbqxydbtyvz A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 12x50 Sherman BASE Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 71145 Specs | Prism Type | Porro | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.4° (Actual) | | Field of View | 286.14' @ 1000 yd / 95.0 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15.00 mm | | Interpupillary Adjustment | 50 to 80 mm / 2 to 3.1" | | Dioptric Correction | ±6 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.3 x 6.7 x 2.4" / 18.5 x 17.0 x 6.0 cm | | Weight | 26.10 oz / 740 g | | | | Package Weight | 3.005 lb | | Box Dimensions (LxWxH) | 8.6 x 8.05 x 3.45" |
