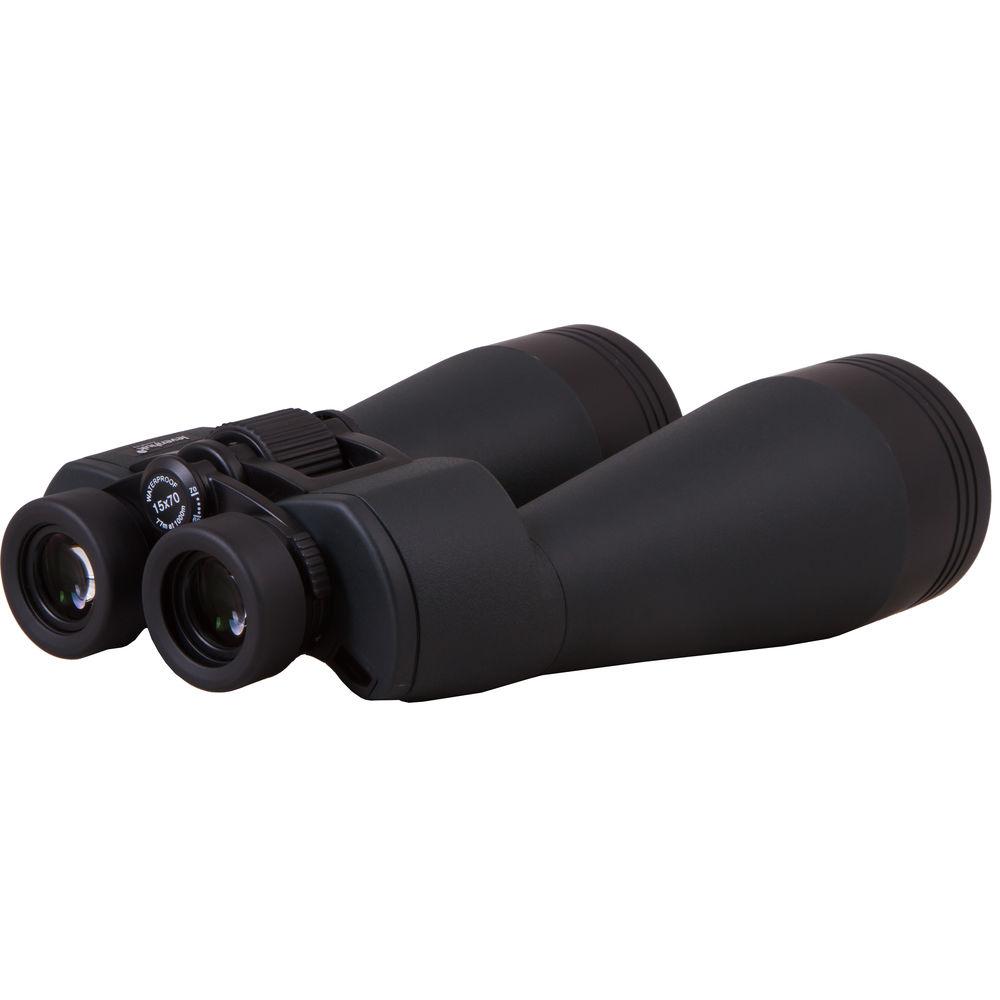

User Manual for Levenhuk 15x70 Bruno PLUS Astronomy Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 15x70 Bruno PLUS Astronomy Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 15x70 Bruno PLUS Astronomy Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

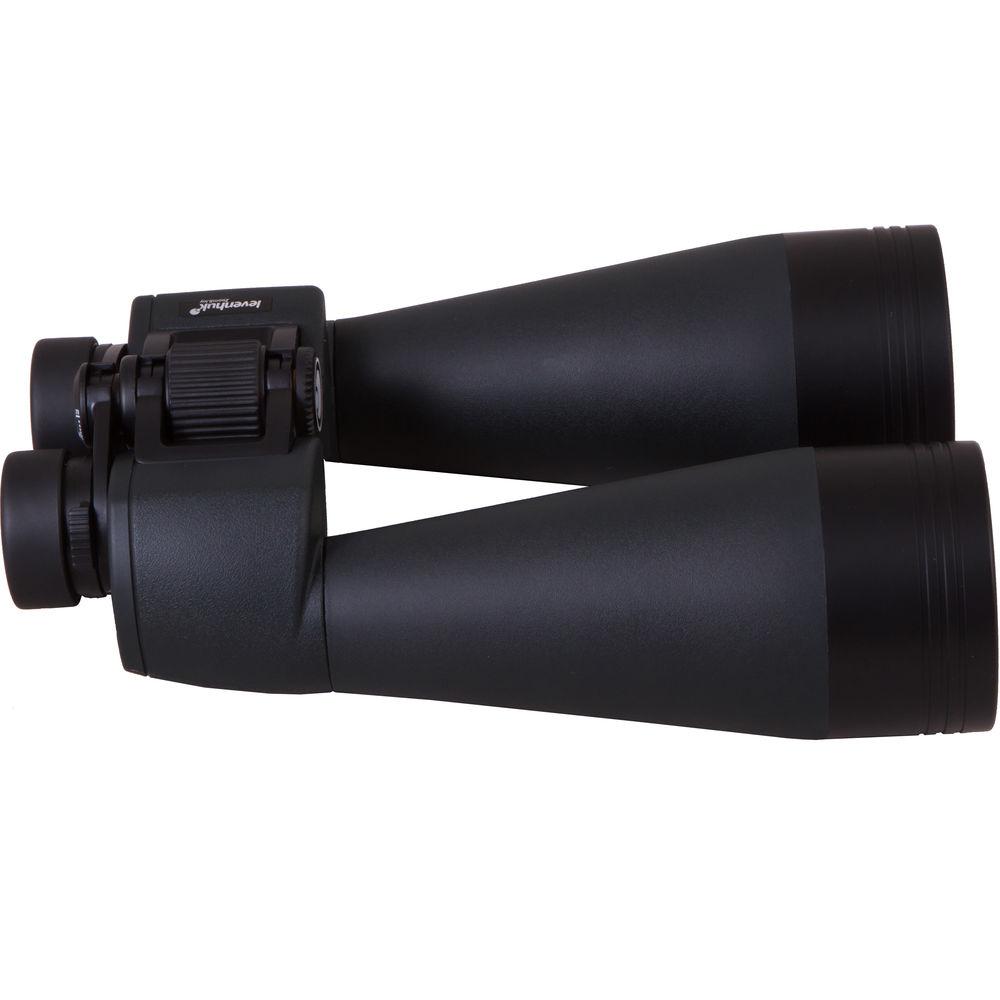

Product description The B&H Binocular Buying Guide Read More Designed to deliver a performance similar to smaller refractor telescopes, the Levenhuk 15x70 Bruno PLUS Astronomy Binocular is an ideal optic for lunar or planetary viewing, comet hunting, tracking the ISS and satellites across the sky, or spotting iridium flares—all with the advantage of viewing with both eyes open. The binocular is also perfect for terrestrial use across expansive distances.The large over-sized lenses draw in tremendous amounts of light and, combined with the 15x power, produce a comfortable exit pupil that will cover most pupils, even in the dark on moonless nights. The larger objectives also help to compensate for the dimming that often happens when looking at smaller subjects at long range. Anti-reflection fully coated optics, a wide field of view, and a traditional Porro prism optical path all work together to produce an immersive and comfortable observational experience, featuring bright and clear high-contrast views with accurate color rendition and a rich depth of field. The wide field of view helps to mitigate the appearance of visible hand shake that is common with large and high-power optics, for clearer views.Due to the large objectives and long optical tubes, the Bruno PLUS weighs in at almost 3 pounds. Some people may experience arm fatigue and hand shake when holding them by hand, so the binocular can be mounted on a tripod, telescope mount head, or other support system using an optional adapter. Its optical tubes are nitrogen filled and O-ring sealed to a waterproof IPX6 rating and resistant to internal fogging. The chassis is made of a lightweight and durable aluminum alloy and wrapped in a protective slip-resistant rubber armor. Three-position twist-up click-stop rubber eyecups enable precise eye relief settings even for those who wear corrective eyewear or sunglasses.Whether you want to view the sky above or count the points on a buck cresting the next rise, the Bruno PLUS provides the performance you need. - Optical Performance
-
- Powerful 15x magnification is ideal for wide-field astronomical observation, lunar viewing, comet hunting, or watching meteor showers, the ISS, or satellite flybys, and it enables detailed observations of extremely distant subjects

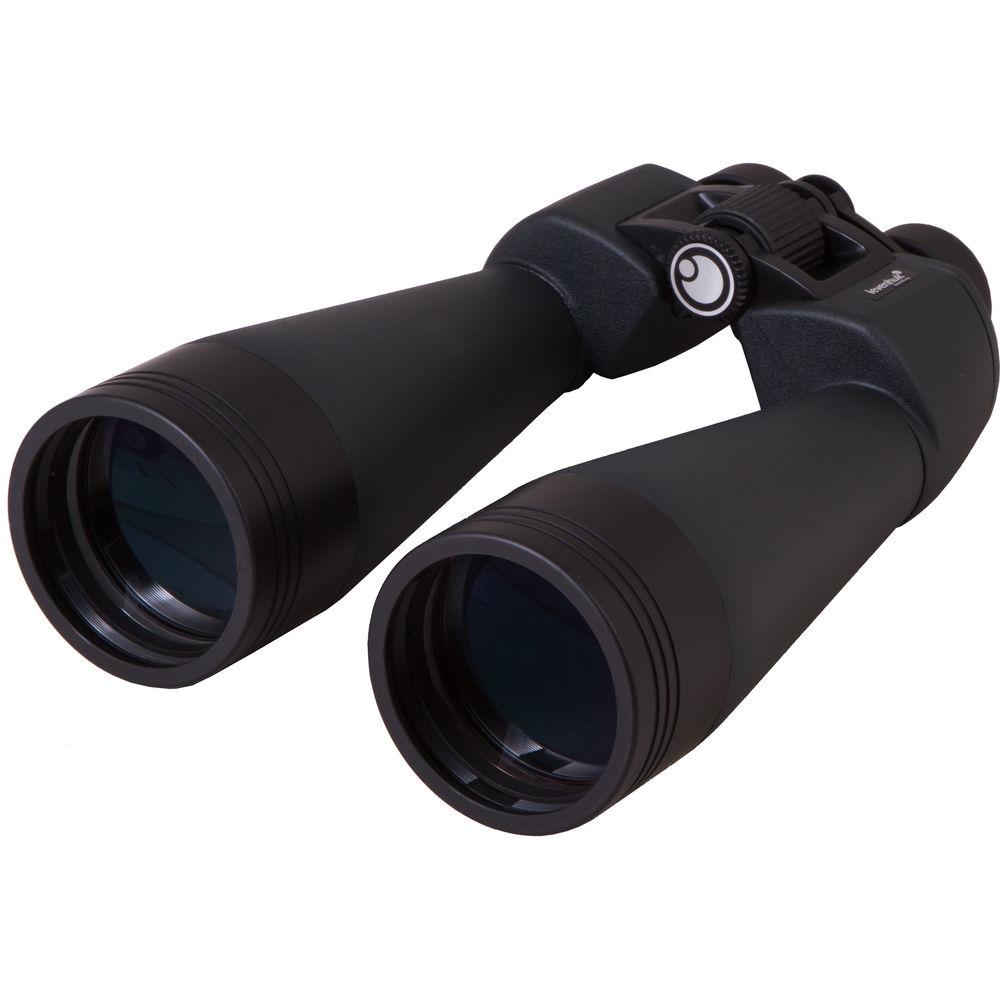

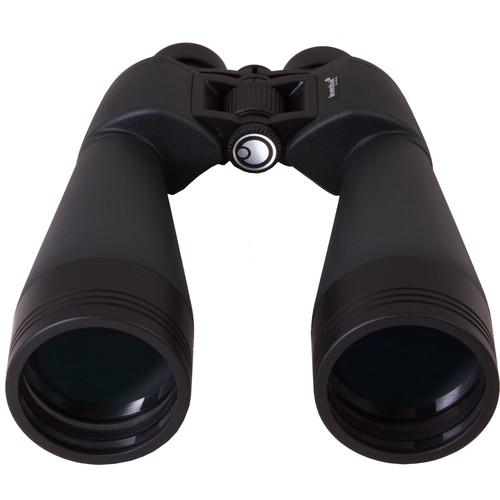

- Over-sized 70mm objective lenses ensure bright views even in extremely low light and when viewing distant subjects
- Traditional Porro prism optical path presents a rich depth of field to produce lifelike views
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Anti-reflection fully coated optics improve light transmission, color rendition, clarity, and contrast
- 5-element/3-group eyepiece, 2-element/1-group objective lens design
- Extra-wide 66° apparent angle of view helps to minimize the distracting hand shake that is common when holding large and powerful optics such as this
- 232-foot field of view at 1000 yards
- Use and Handling
-

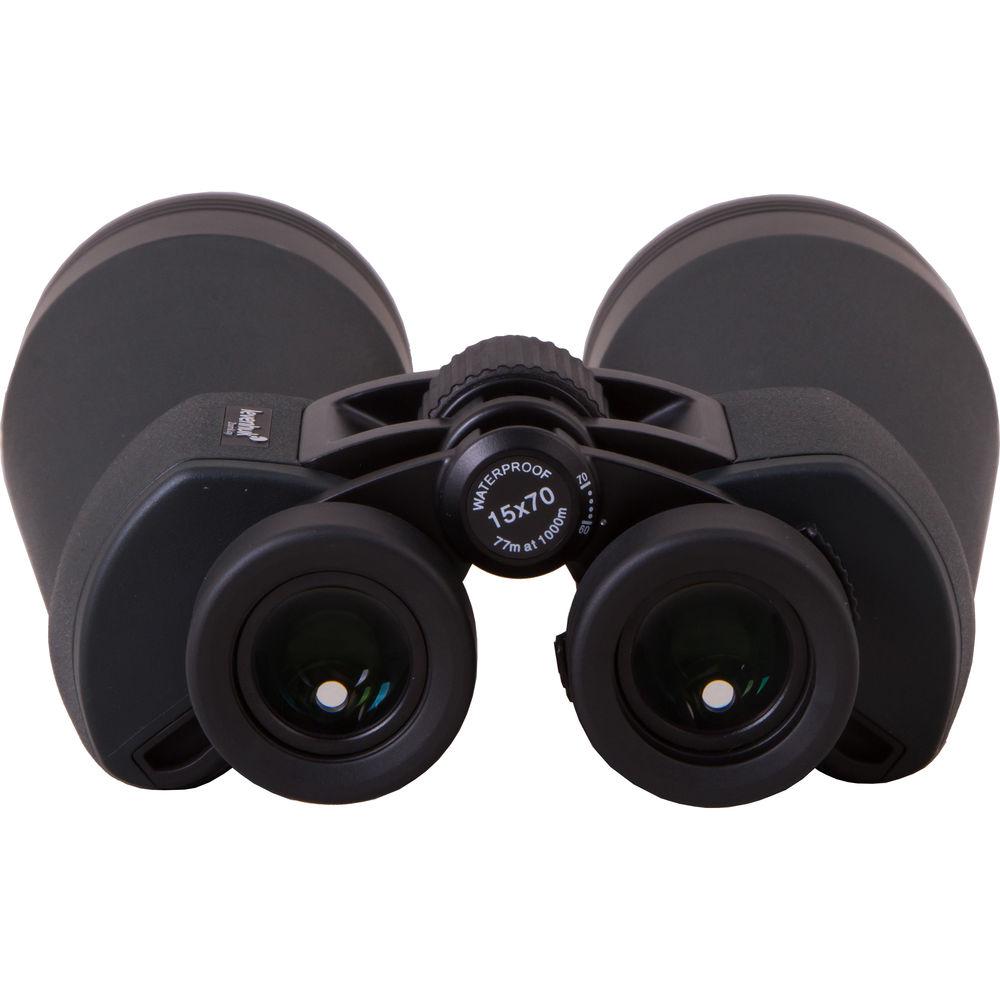

- Slip-resistant center-focusing wheel is easy to manipulate, even when wearing gloves
- ±4 right-eye dioptric correction allows for precise focusing even for those who normally require corrective eyewear
- 60-70mm interpupillary distance adjustment range

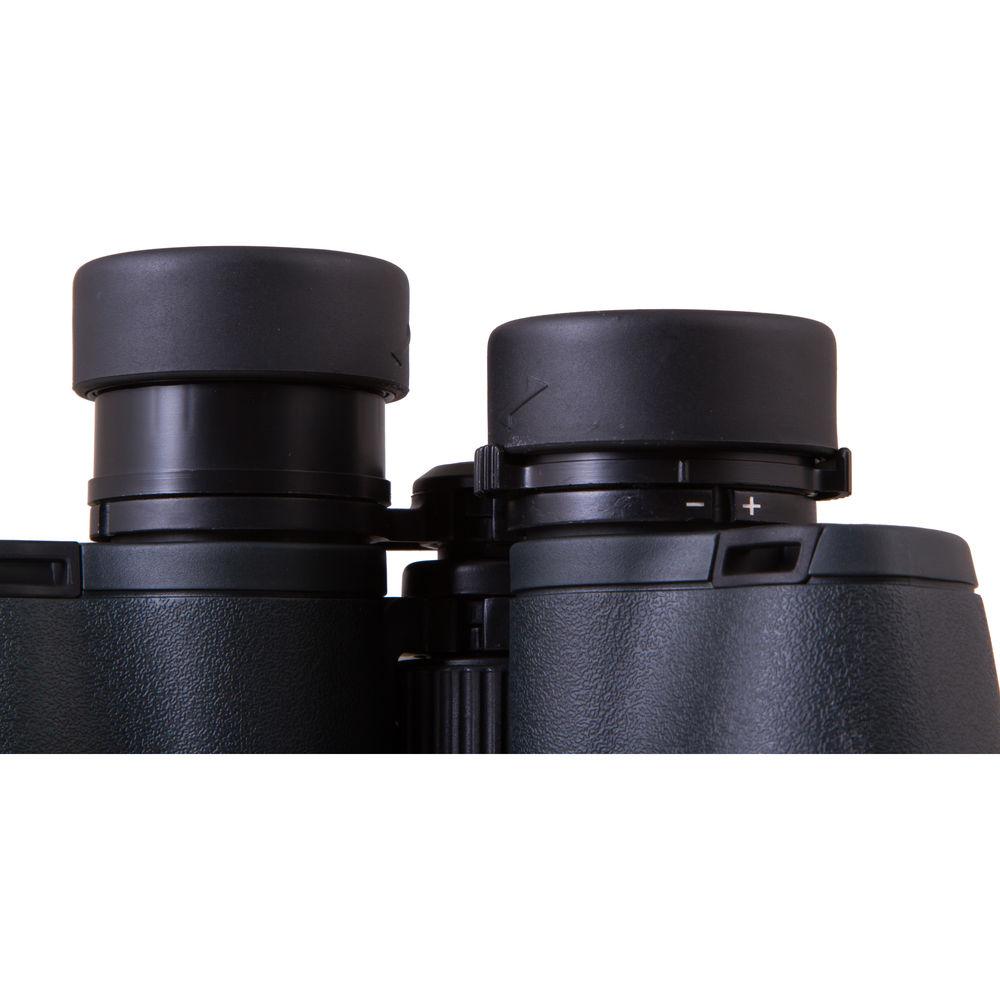

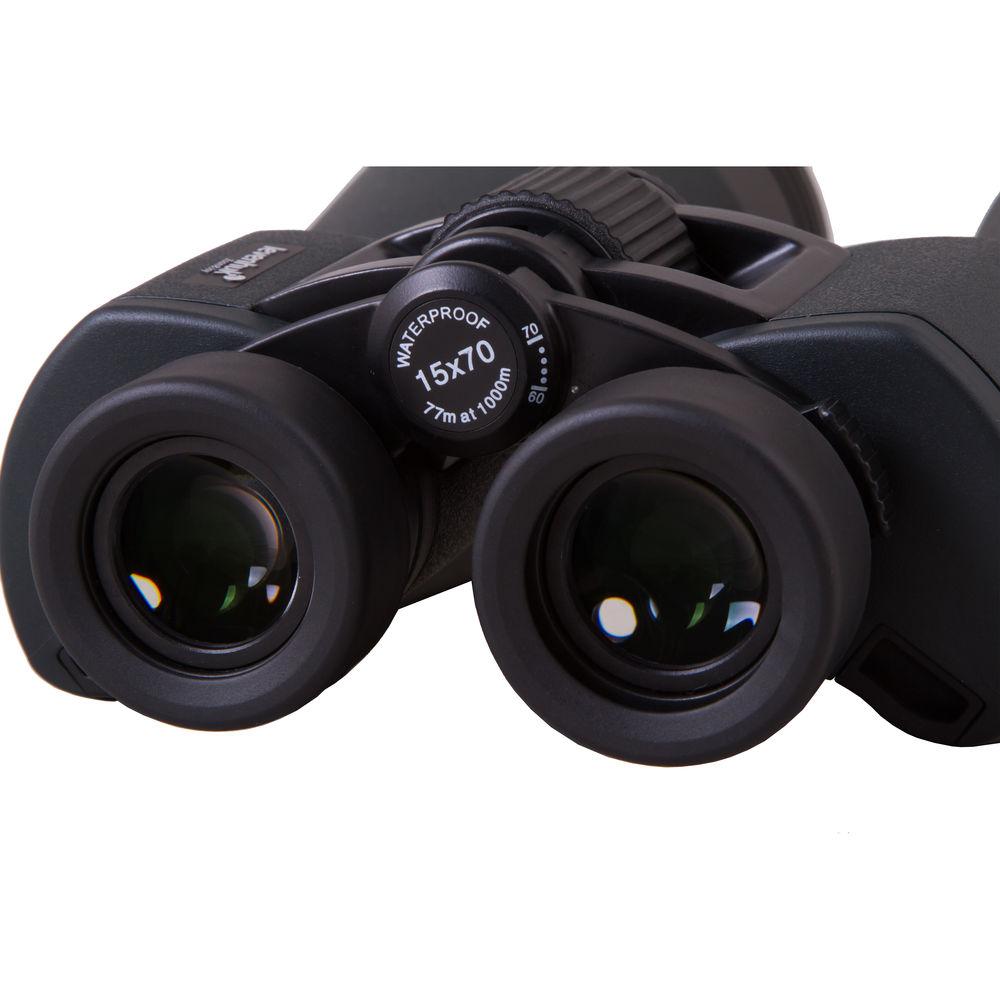

- Three-position twist-up click-stop eyecups enable precise eye relief settings, even for those who use them while wearing glasses
- Tripod mountable with optional adapter to limit arm fatigue and vibrations
- Long 19mm eye relief increases viewing comfort and reduces eyestrain, especially during long glassing sessions
- Comfortable 4.4mm exit pupil will cover most pupils as they open and dilate in low light to keep the entire scene in view
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen filled and O-ring sealed to be waterproof to an IPX6 rating and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Broad 14 to 122°F (-10 to 50°F) operating temperature range

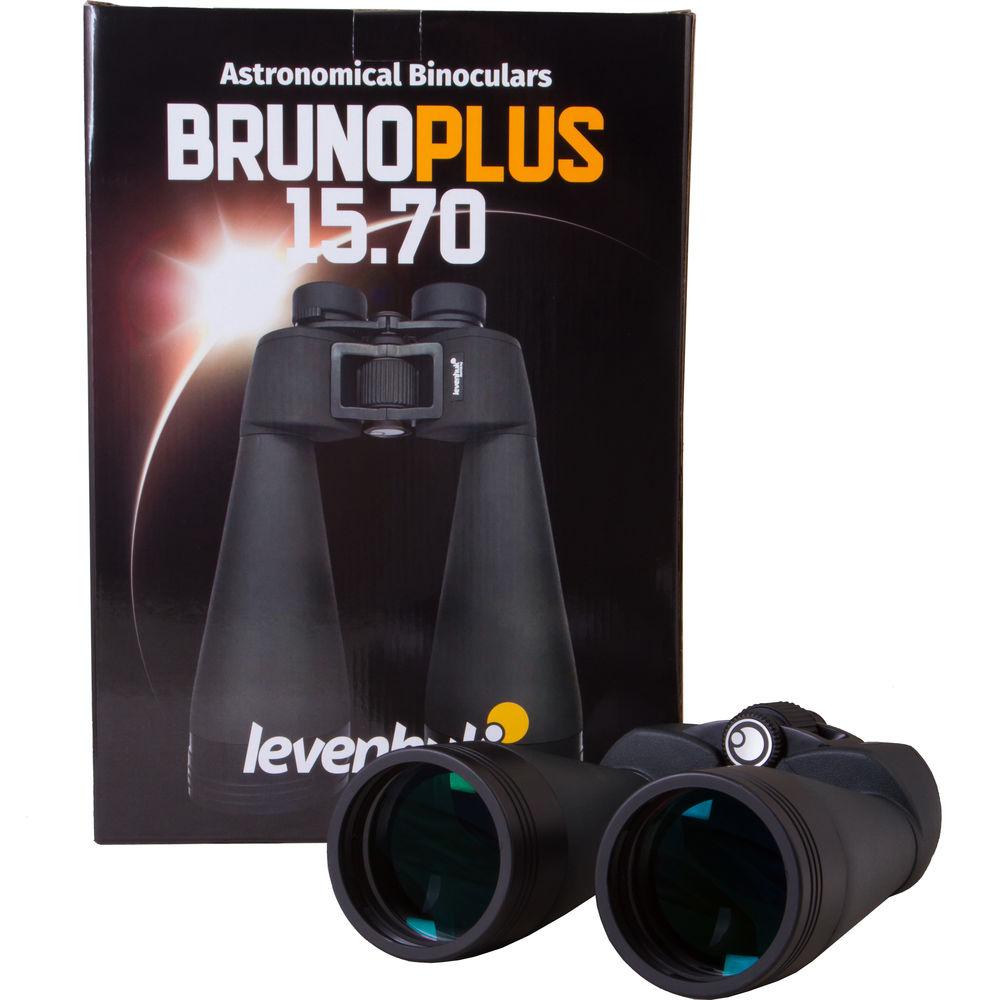

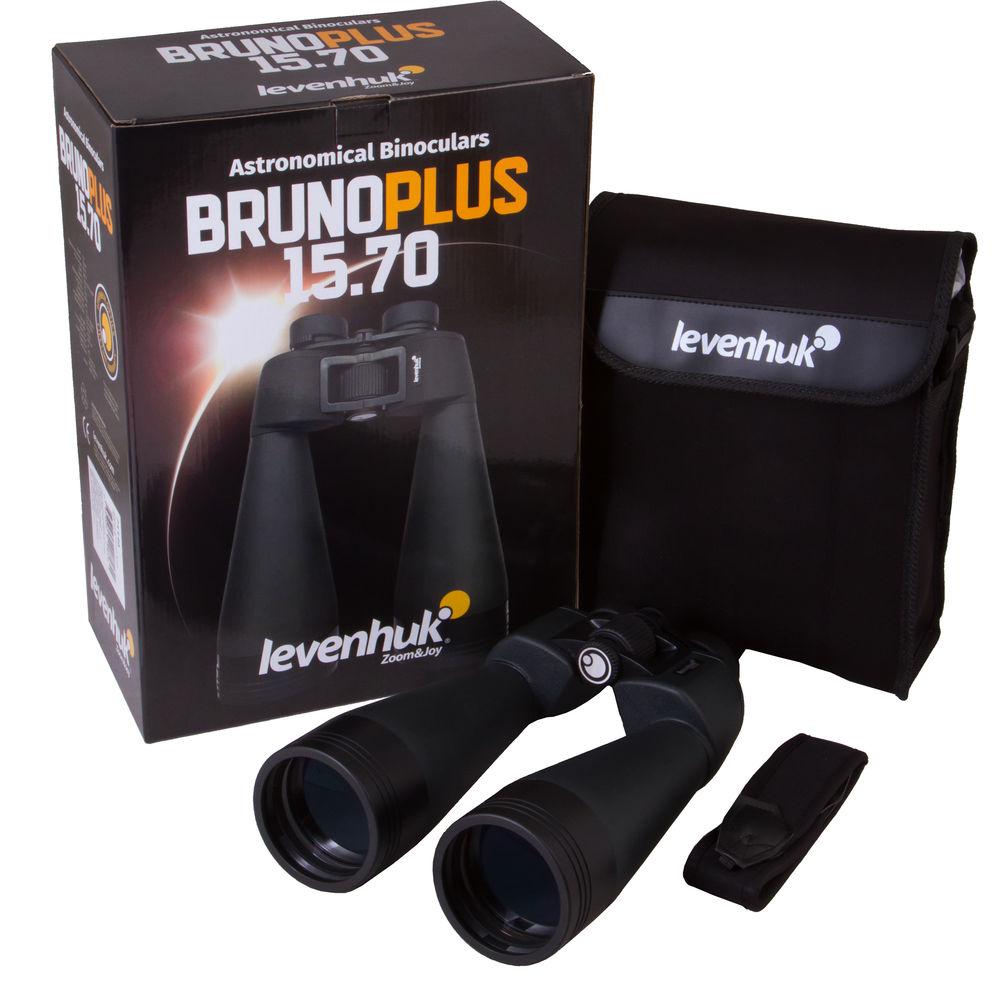

In the Box Levenhuk 15x70 Bruno PLUS Astronomy Binocular Lens Cloth Neck Strap Carrying Pouch 2 x Eyepiece Caps 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 bywwurqvyeuzyuzrutat A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 15x70 Bruno PLUS Astronomy Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 71146 Specs | Prism Type | Porro | | Magnification | 15 x | | Objective Lens Diameter | 70 mm | | Angle of View | 4.4° (Actual) | | Field of View | 231.93' @ 1000 yd / 77.0 m @ 1000 m | | Minimum Focus Distance | 45.9' / 14 m | | Exit Pupil Diameter | 4.7 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 11.0 x 8.3 x 3.5" / 28.0 x 21.0 x 9.0 cm | | Weight | 2.87 lb / 1.3 kg |
