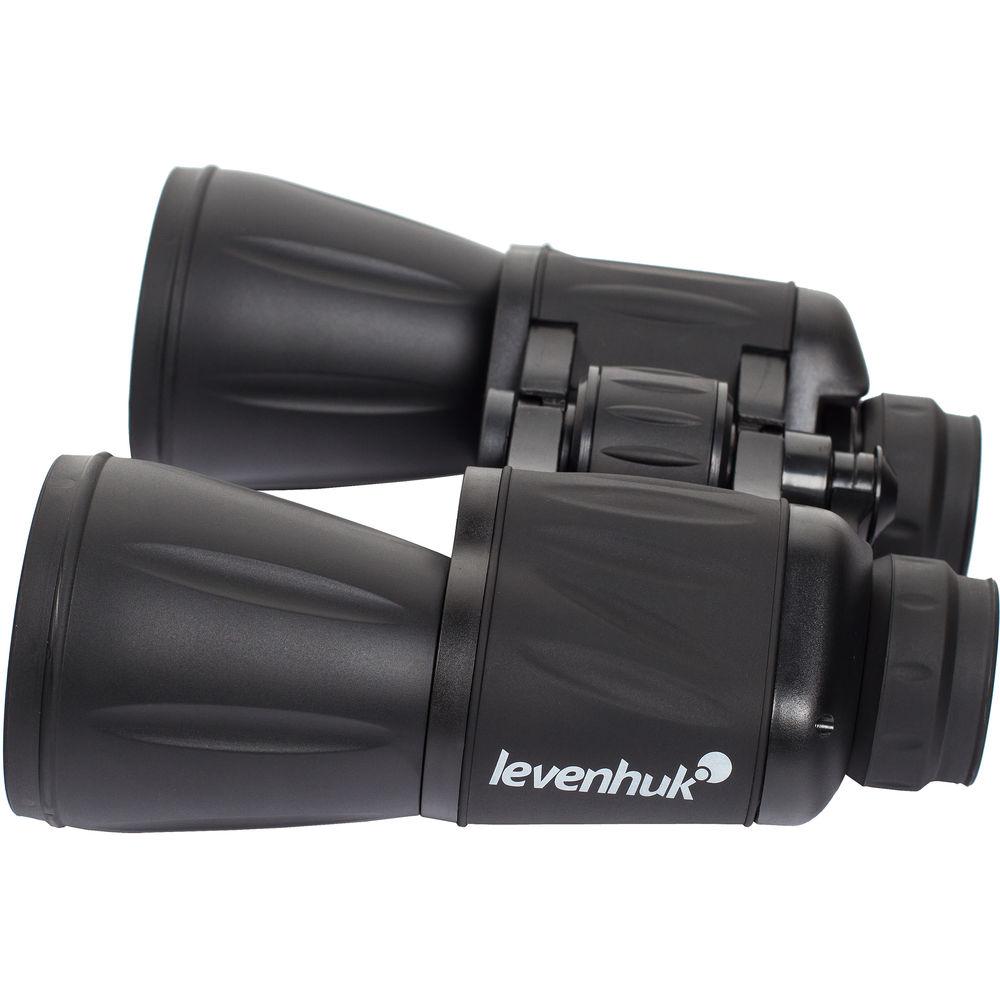

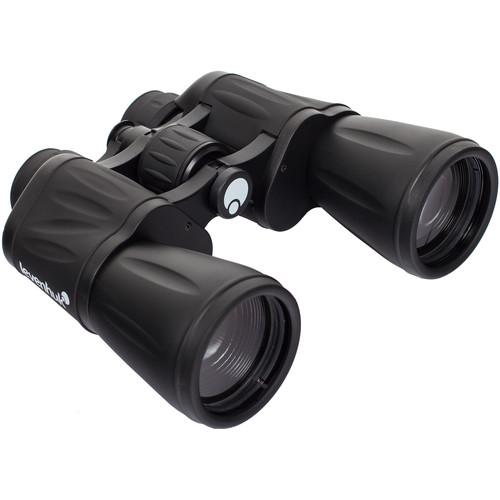

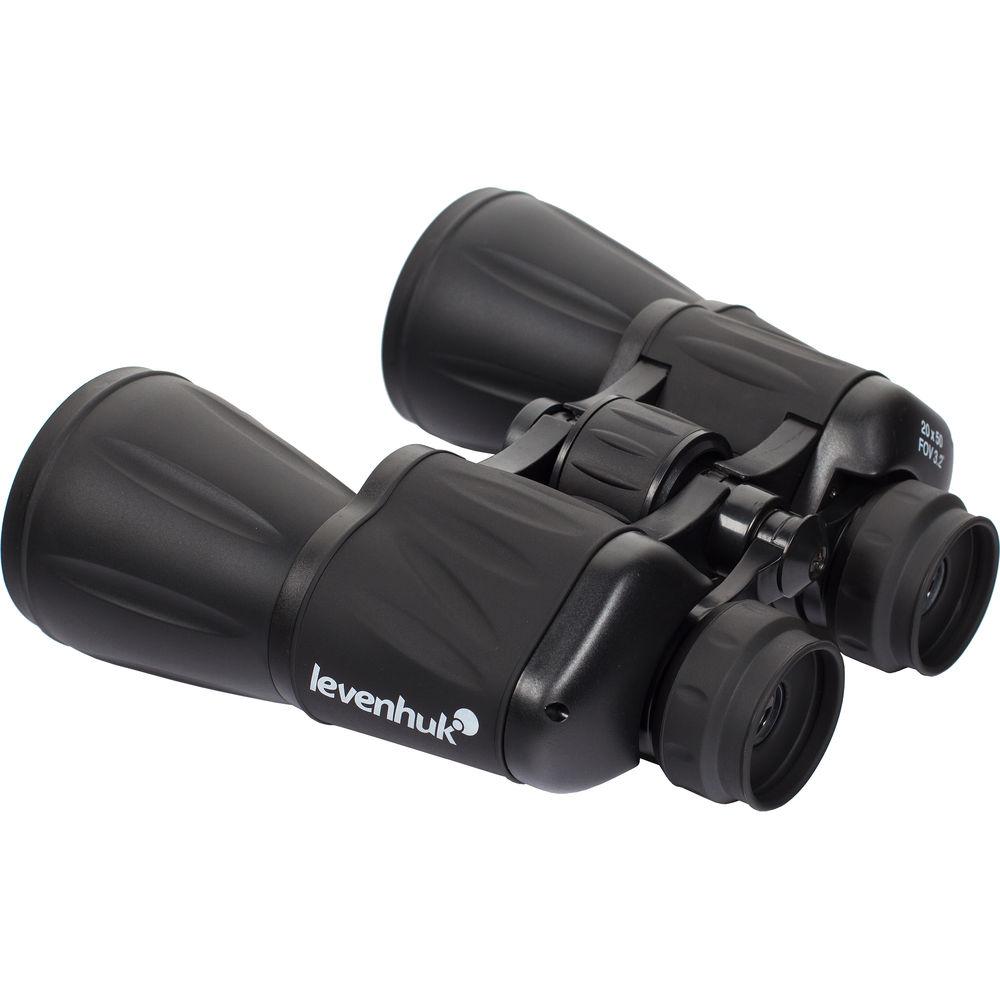

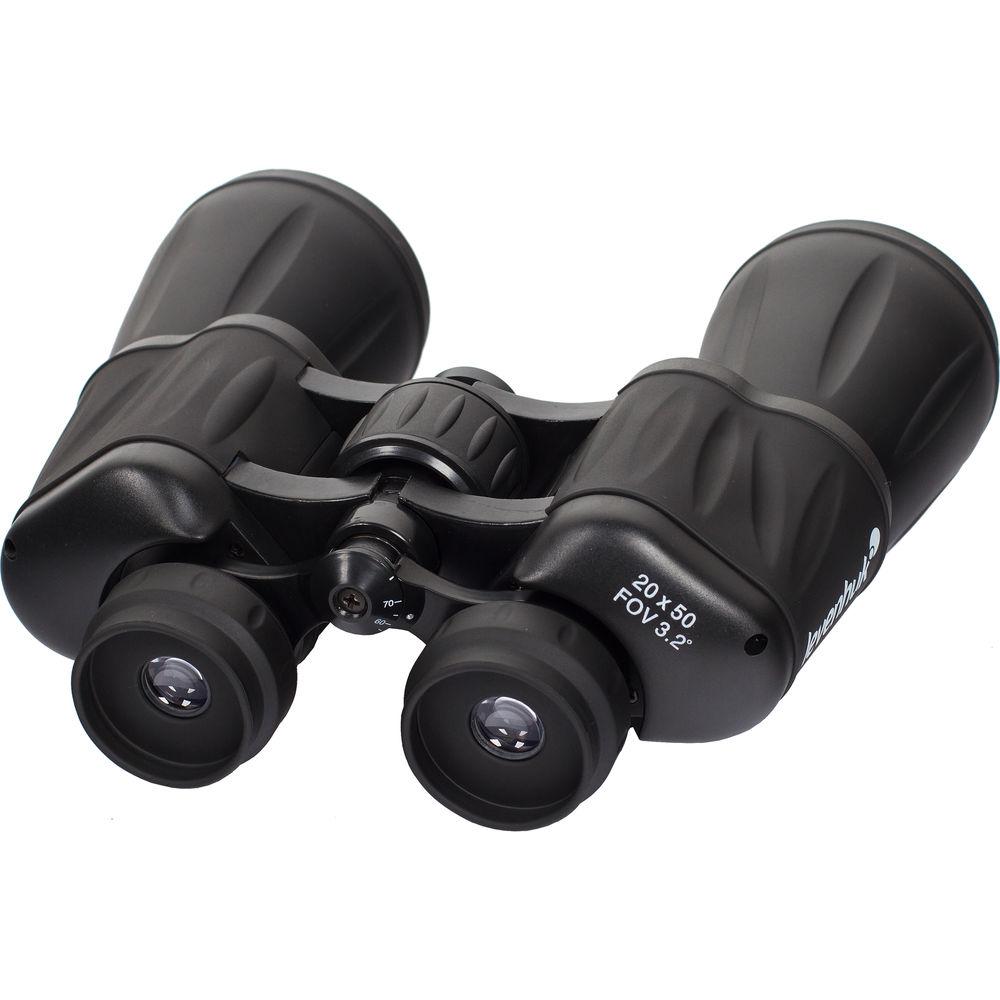

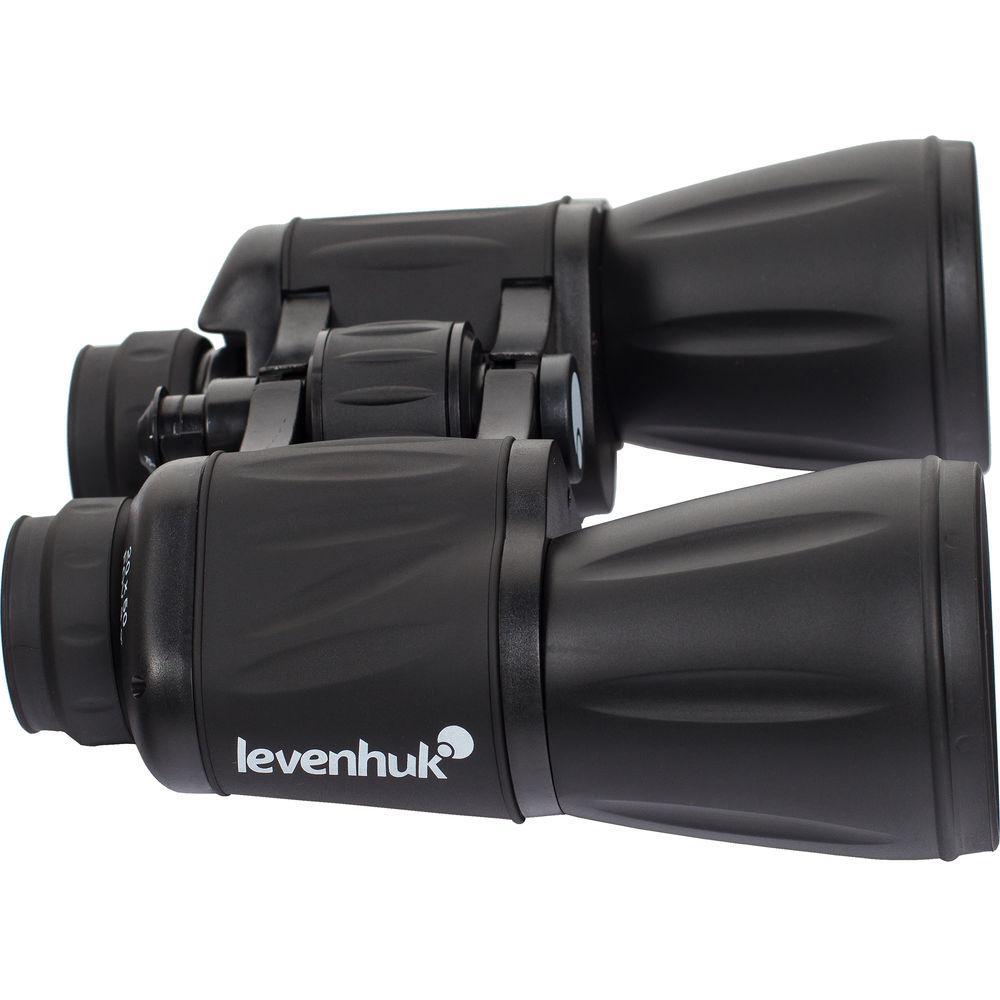

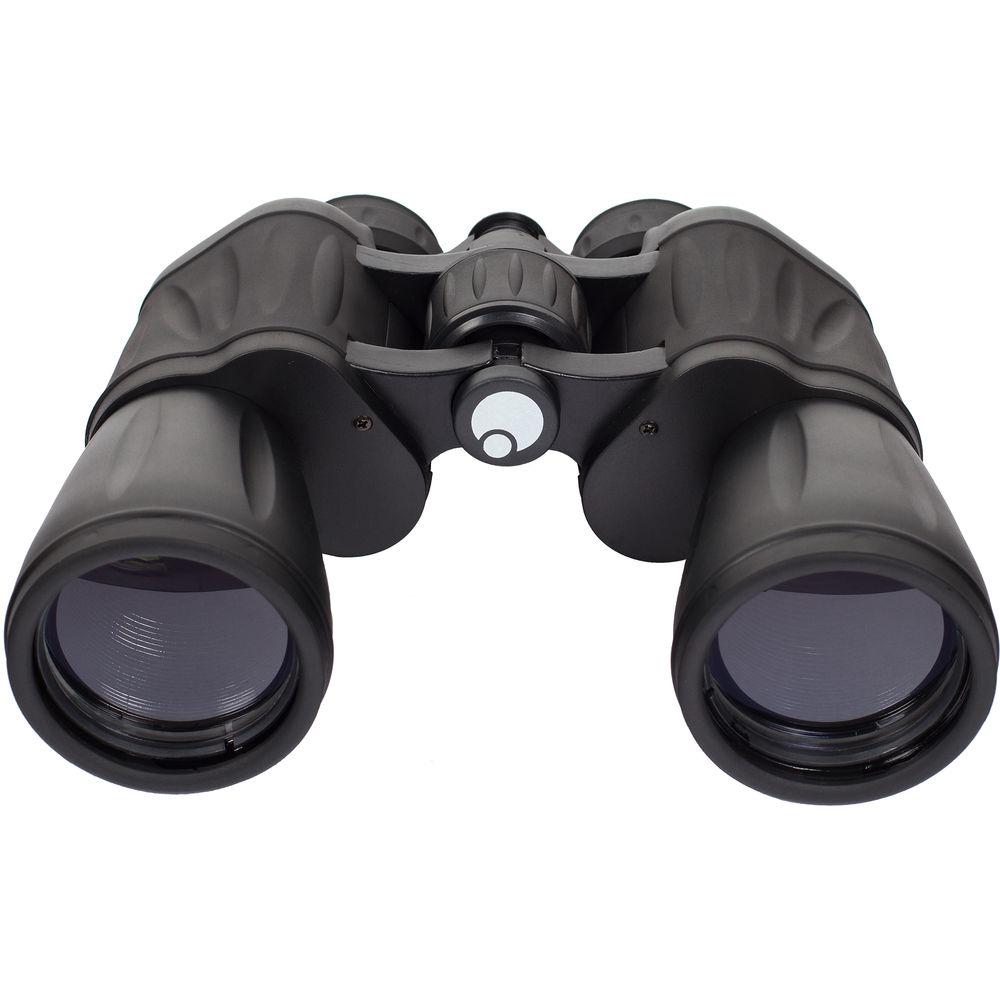

User Manual for Levenhuk 20x50 Atom Porro Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 20x50 Atom Porro Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 20x50 Atom Porro Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Outfitted with a powerful magnification and large objective lenses, Levenhuk's 20x50 Atom Binocular is an ideal optic for making detailed observations at long distances, even in challenging lighting conditions.The large lenses draw in copious amounts of light to boost performance in low-light such as at dawn or dusk, and when peering under heavy brush or into forests with dense canopies. Complementing these performance features are anti-reflection fully coated optics and a traditional Porro prism optical path which all work together to produce an immersive and comfortable observational experience, featuring bright and clear high-contrast views with accurate color rendition and a rich depth a field. The wide field of view helps to mitigate the appearance of visible hand-shake that is common with higher power optics for clearer views.For long-duration glassing sessions, to reduce arm fatigue, or eliminate vibrations, the Atom can be tripod-mounted using an optional adapter. Its chassis is O-ring sealed to be waterproof, and wrapped in a protective slip-resistant rubber armor. For long glassing sessions or to reduce arm fatigue common with larger-objective binoculars, they are tripod mountable with an optional adapter. Fold-down rubber eyecups mold themselves to the user's eye sockets to block stray peripheral light for brighter views without intrusive side glare, and its large focusing wheel is highly textured to make precision focusing fast and easy. - Optical Performance
-
- Powerful 20x magnification for detailed long-ranged observation
- Large 50mm objective lenses draw in more light than smaller objectives to boost low-light performance
- Traditional BK7 Porro prism optical path provides a rich depth of field to produce an immersive observational experience
- Anti-reflection full coated optics improve light transmission, color rendition, clarity, and contrast
- Wide 64° apparent angle of view
- 168-foot field of view at 1000 yards
- Use and Handling
-
- Large textured slip-resistant center focusing wheel is easy to manipulate, even when wearing gloves
- ±3 right-eye dioptric correction
- 56-72mm interpupillary distance adjustment range
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 7mm eye relief
- 2.5mm exit pupil
- Construction Details
-
- Protective armor provides a slip-resistant grip
- Finger indents improve grip security and stability
- O-ring sealed to be waterproof
- Tripod mountable with optional adapter

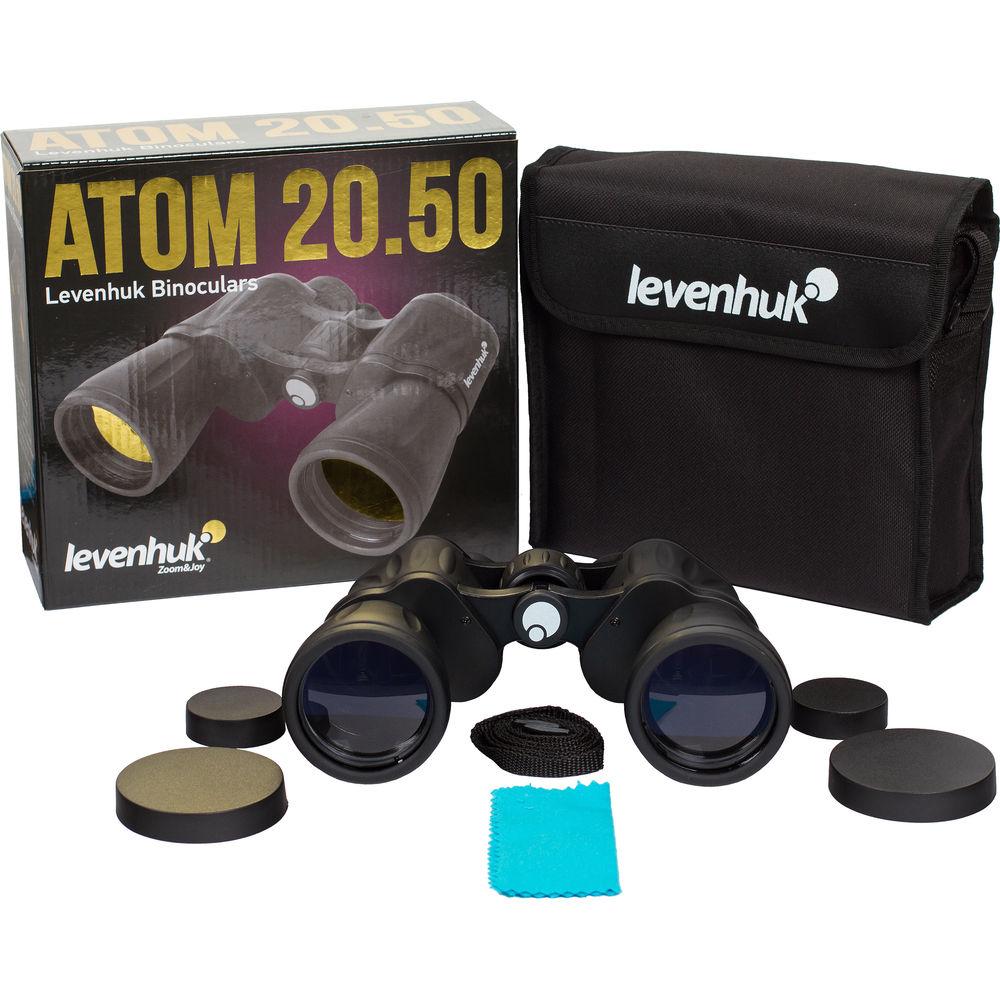

In the Box Levenhuk 20x50 Atom Porro Binocular Lens Cloth Carrying Case Neck Strap 2 x Eyepiece Caps 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 20x50 Atom Porro Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67683 Specs | Prism Type | Porro | | Magnification | 20 x | | Objective Lens Diameter | 50 mm | | Angle of View | 3.2° (Actual) | | Field of View | 168.0' @ 1000 yd / 56.0 m @ 1000 m | | Minimum Focus Distance | 36.1' / 11 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 7.0 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.8 x 6.7 x 2.6" / 19.8 x 17.0 x 6.5 cm | | | | Package Weight | 2.385 lb | | Box Dimensions (LxWxH) | 8.6 x 7.9 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
