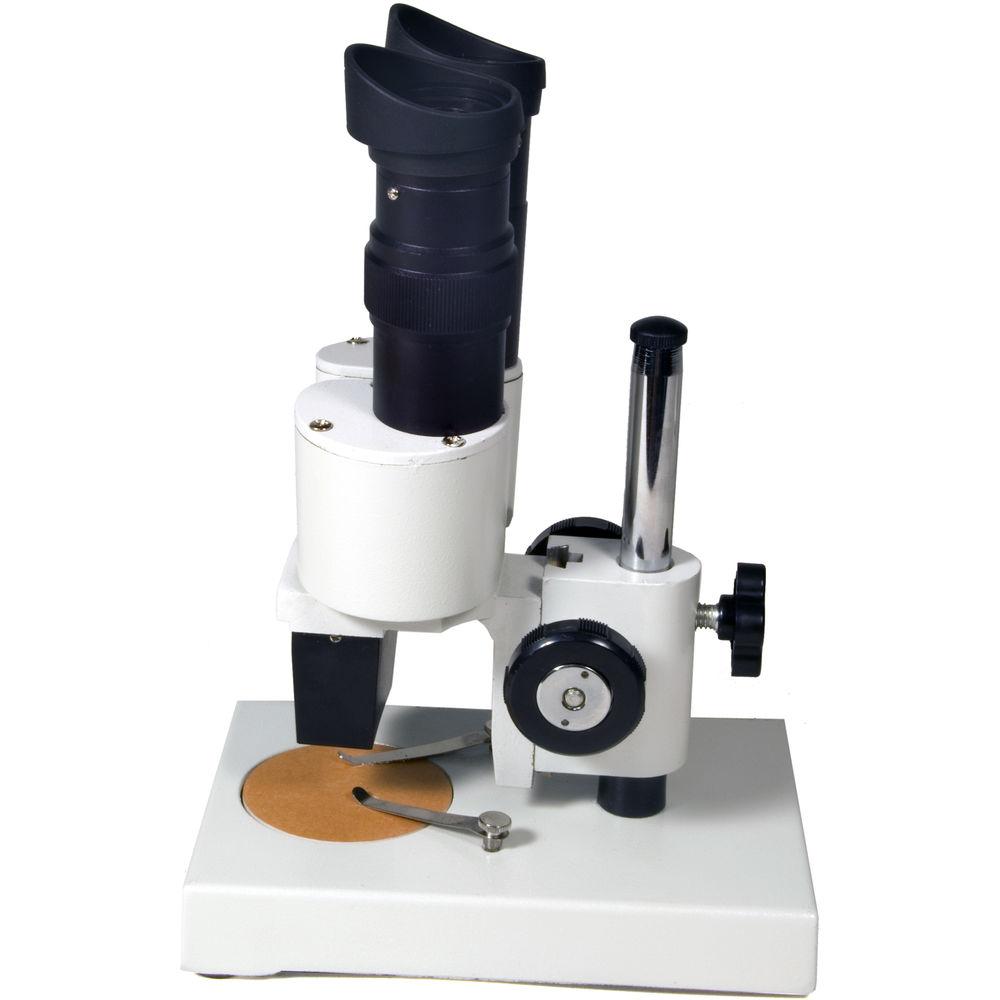

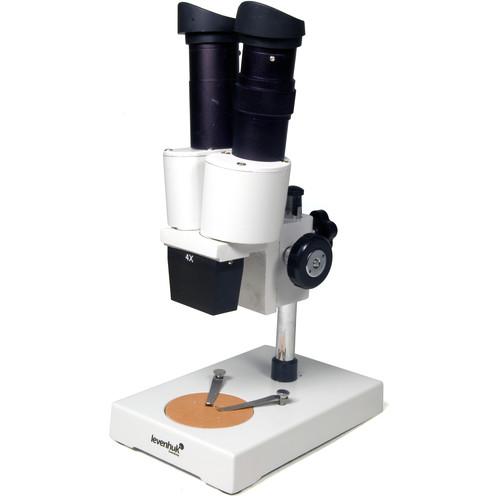

User Manual for Levenhuk 2ST Stereo Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk 2ST Stereo Microscope
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk 2ST Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description Enhance your professional pursuits or hobbies using the 40x 2ST Stereo Microscope from Levenhuk. This 40x magnifying tool offers stereo (3D) imagery that is used for examining and making measurements of minerals, gems, insects, electronic boards, fabrics, or collectibles. The vertical, straight viewing head holds two 10x widefield eyepieces with rubber winged eyecups for comfort. It also provides a diopter adjustment (+5 to -5) for compensating in optical strength between the eyes. To help you with your tasks, the microscope offers a pillar-type configuration, where the stereo head can slide up and down on the metal post and is secured with a locking knob. This construction allows you plenty of space for placing larger samples under the objective lens. The base offers a round plate and two pre-loaded clips for securing your slides or specimens. The housing is made of metal to ensure rigidity, precision, and repeatability of adjustments. It features oversized knurled adjustment knobs and a plastic black enclosure around the objective to protect optics mechanically and to prevent excess stray light from entering the scope's optical path. - Optical Performance
-
- Straight vertical viewing
- Stereoscopic design delivers 3D imaging
- Glass optical elements
- 4x objective lens

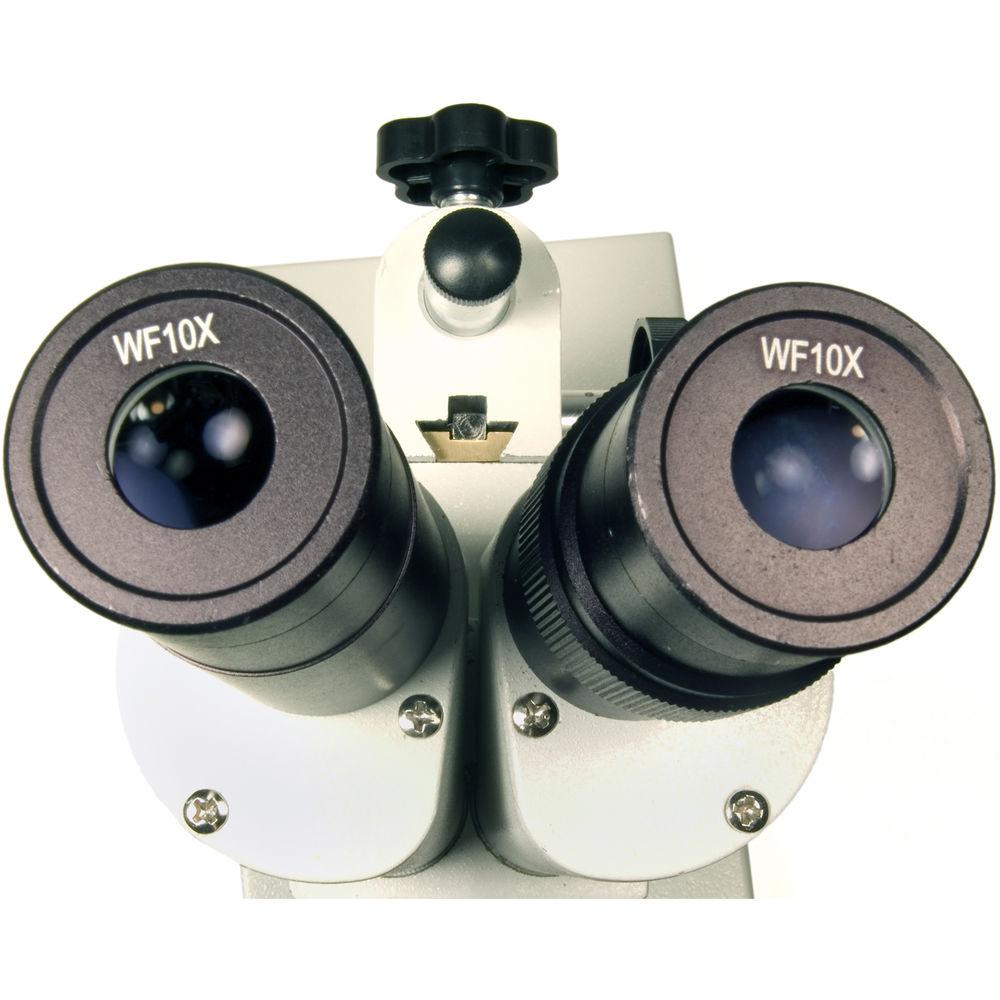

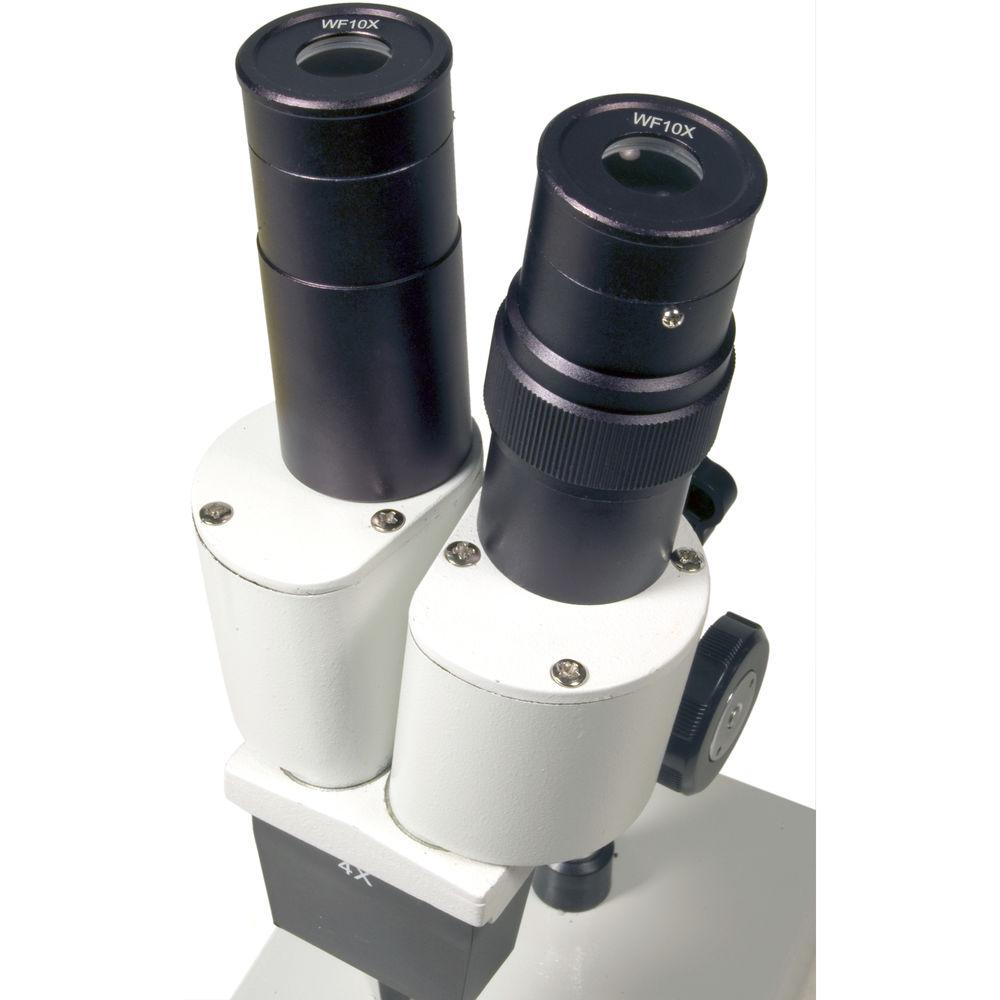

- 10x widefield eyepieces
- Coarse lockable focusing
- +5 to -5 diopter adjustment
- Requires external illumination
- Use and Handling
-
- Adjustable work distance: 2.4"
- Adjustable interpupillary distance: 55-75mm
- Focusing range within work distance: 1.6"
- Construction Details
-
- Metal pillar-type frame
- Knurled coaxial focusing knobs
- Black objective enclosure protects optics from damage and stray light

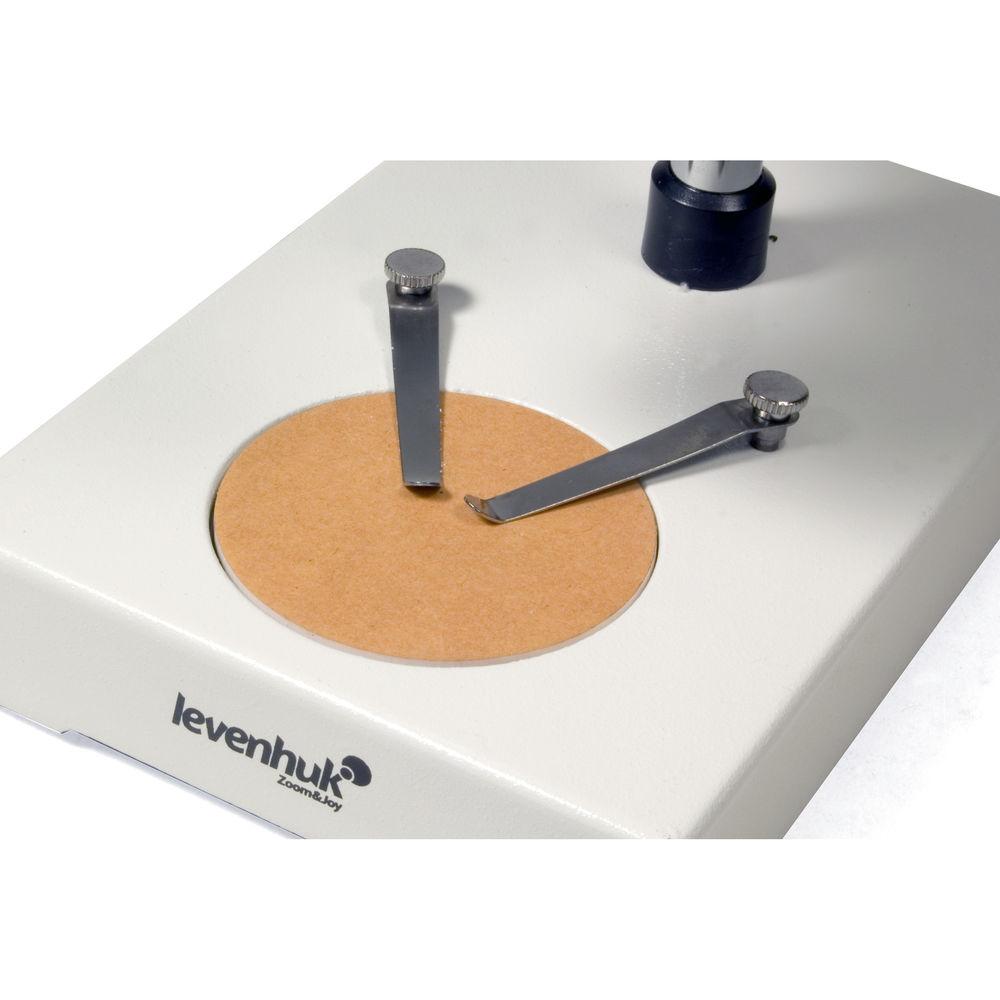

- Wide base with round black/white reversible sample plate
- Two metal clips for securing slides and specimens
- Two removable rubber eyecups on eyepieces
In the Box Levenhuk 2ST Stereo Microscope (Cordless, Gray) - 2 x Rubber Eyecups
- Black/White Base Plate
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 2ST Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 2ST Specs | Microscope Type | Stereo | | Body Type | Pillar-type frame | | Eyepiece | Two 10x WF eyepieces with 1.2" (30.5 mm) tube diameters | | Objective(s) | 4x | | Focus | Coarse | | Working Distance | 2.4" / 60 mm
Focal Spot Up/Down Travel Range: 1.6" / 40 mm | | Interpupillary Adjustment | 55-75 mm | | Diopter Adjustment | +5 to -5 | | Light Source | No | | Specimen Stage | Base plate | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
