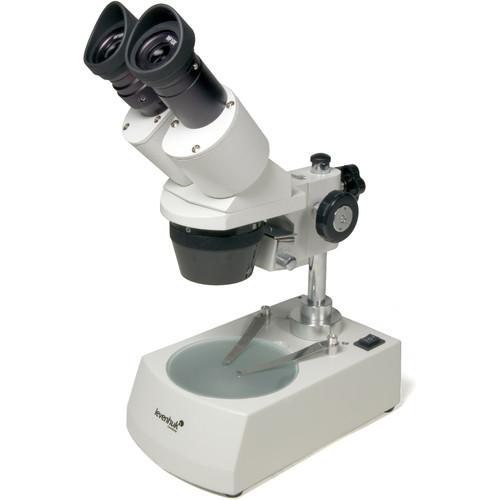

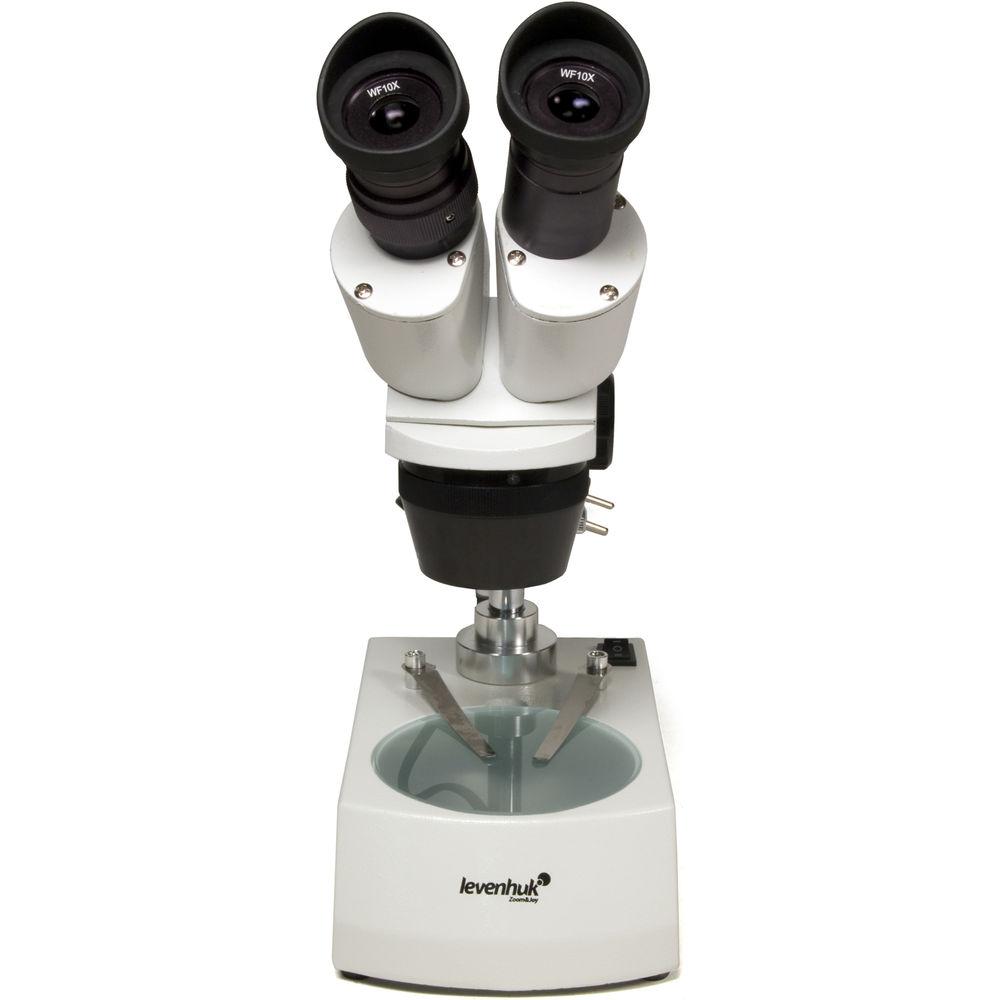

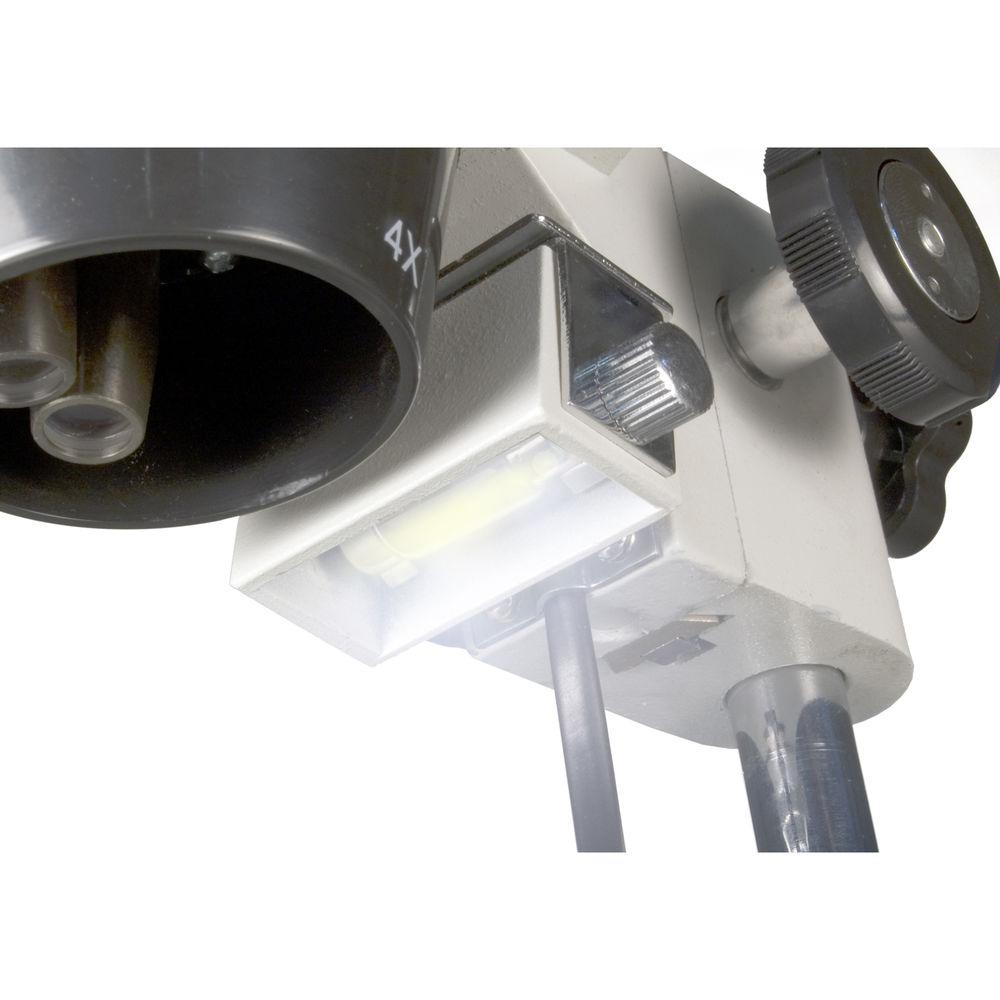

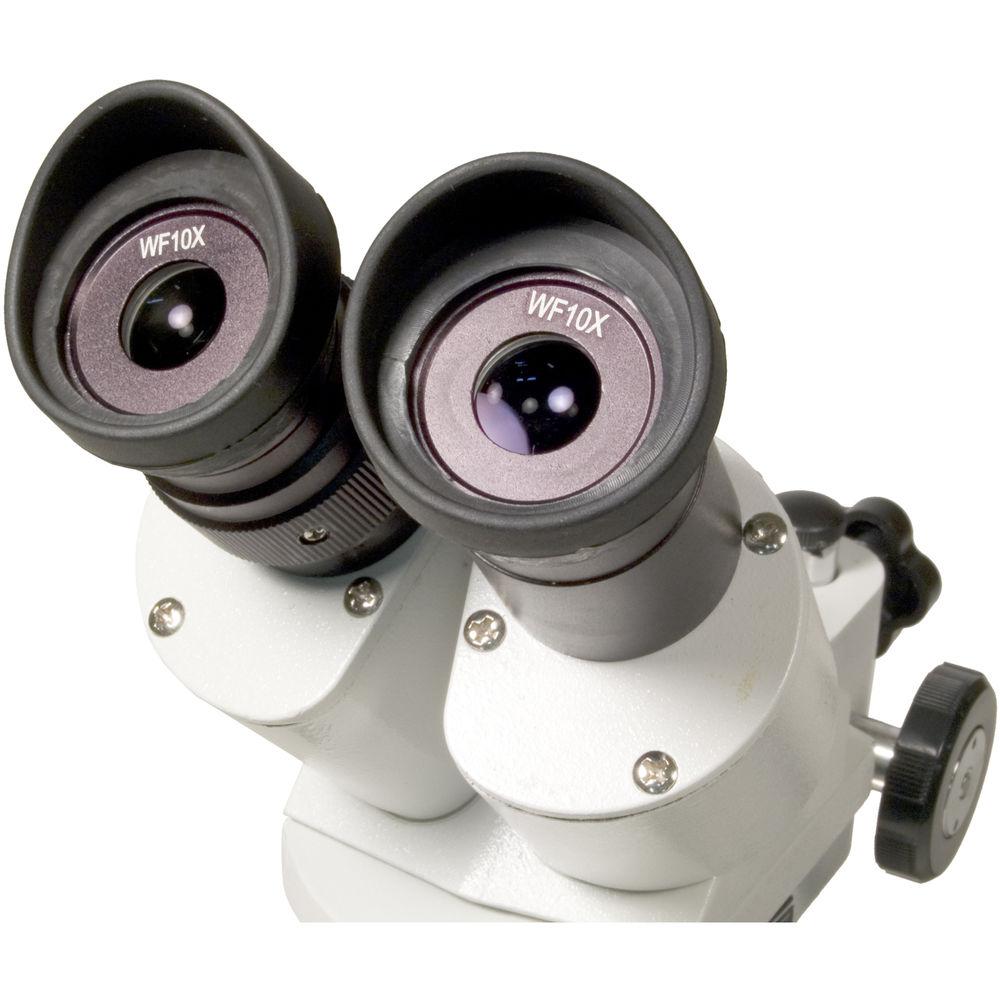

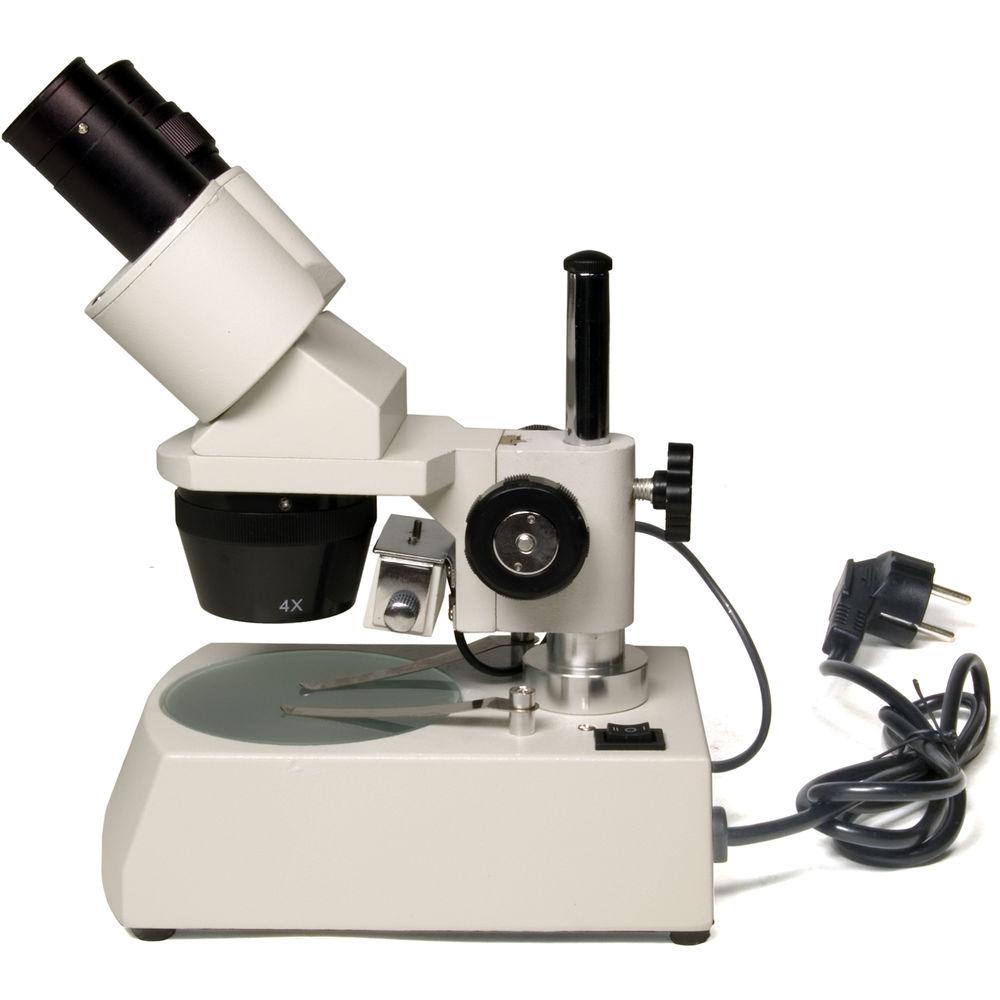

Product description Enhance your professional pursuits or hobbies using the 23ST Stereo Microscope from Levenhuk. This tool offers stereo (3D) imaging with 20-40x zoom magnification for examining and making measurements of minerals, gems, insects, electronic boards, fabrics, or collectibles. The head offers 45°-inclined viewing, which ensures an ergonomic and comfortable head. Its two 10x widefield eyepieces with winged rubber eyecups have a diopter adjustment (+5 to -5) for compensating in optical strength between the eyes. To help you with your tasks, the microscope offers a pillar type configuration, where the stereo head can slide up and down on the metal post and be secured with a locking knob. This construction allows you plenty of space for placing larger samples under the objective lens. To ensure image brightness and high contrast, this microscope offers bright top and bottom halogen lamps, each offering 10W of output power. To support such a powerful illumination, the scope comes with a 110V power supply.

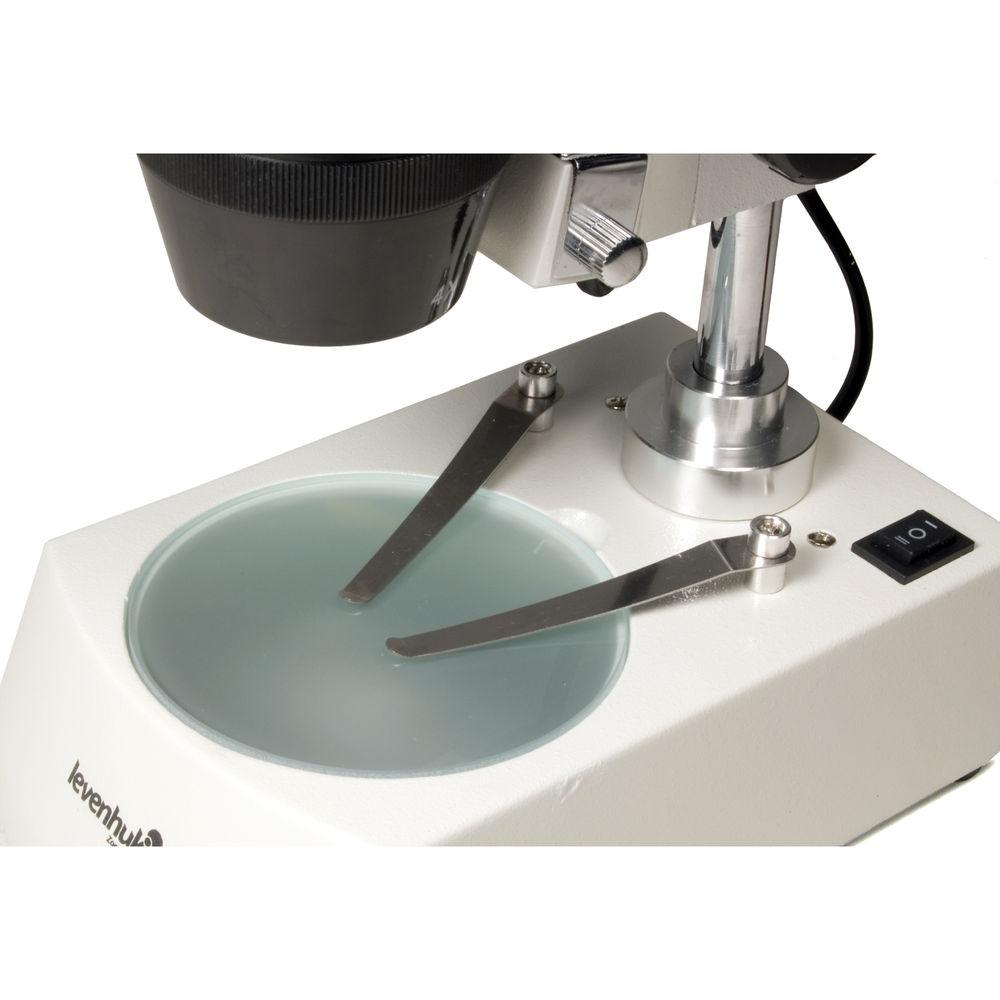

The housing is made of metal to ensure rigidity, precision, and repeatability of adjustments. It features oversized knurled adjustment knobs and a plastic black enclosure around the objective to protect optics mechanically, and to prevent excess stray light from entering the scope's optical path. The base has a round plate and two pre-loaded clips for securing your slides or specimens. - Optical Performance
-
- Stereoscopic design delivers 3D perspective
- Glass optical elements
- 2x-4x objective lens
- 10x widefield eyepieces
- Coarse lockable focusing
- +5 to -5 diopter adjustment
- Bottom and top 10W halogen lamps
- Use and Handling
-
- 45&dew;-inclined viewing
- Adjustable work distance: 2.24"
- Adjustable interpupillary distance: 53-80mm
- Focusing range within work distance: 1.6"
- Construction
-
- Metal pillar-type frame
- Knurled coaxial focusing knobs
- Black objective enclosure protects optics from damage and stray light
- Wide base with a round sample plate
- Two metal clips for securing slides and specimens
- Two removable rubber eyecups on eyepieces
In the Box Levenhuk 3ST Stereo Microscope (110V, Gray) - 2 x Rubber Eyecups
- Black/White Base Plate
- 110V Power Supply
- Spare Halogen Lamp
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 3ST Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 3ST Specs | Microscope Type | Stereo | | Body Type | Pillar type frame | | Eyepiece | Two 10x WF eyepieces with 1.2" (30.5 mm) tube diameters | | Objective(s) | 2x, 4x | | Focus | Coarse | | Working Distance | 2.24" / 57 mm
Focal Spot Up/Down Travel Range: 1.6" / 40 mm | | Interpupillary Adjustment | 53-80 mm | | Diopter Adjustment | +5 to -5 | | Light Source | Top and Bottom Halogen Lamps: 12 V, 10 W | | Specimen Stage | Round base plate | | Power | 110 V / 60 Hz | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 7.15 lb | | Box Dimensions (LxWxH) | 13.9 x 11.2 x 6.5" |
