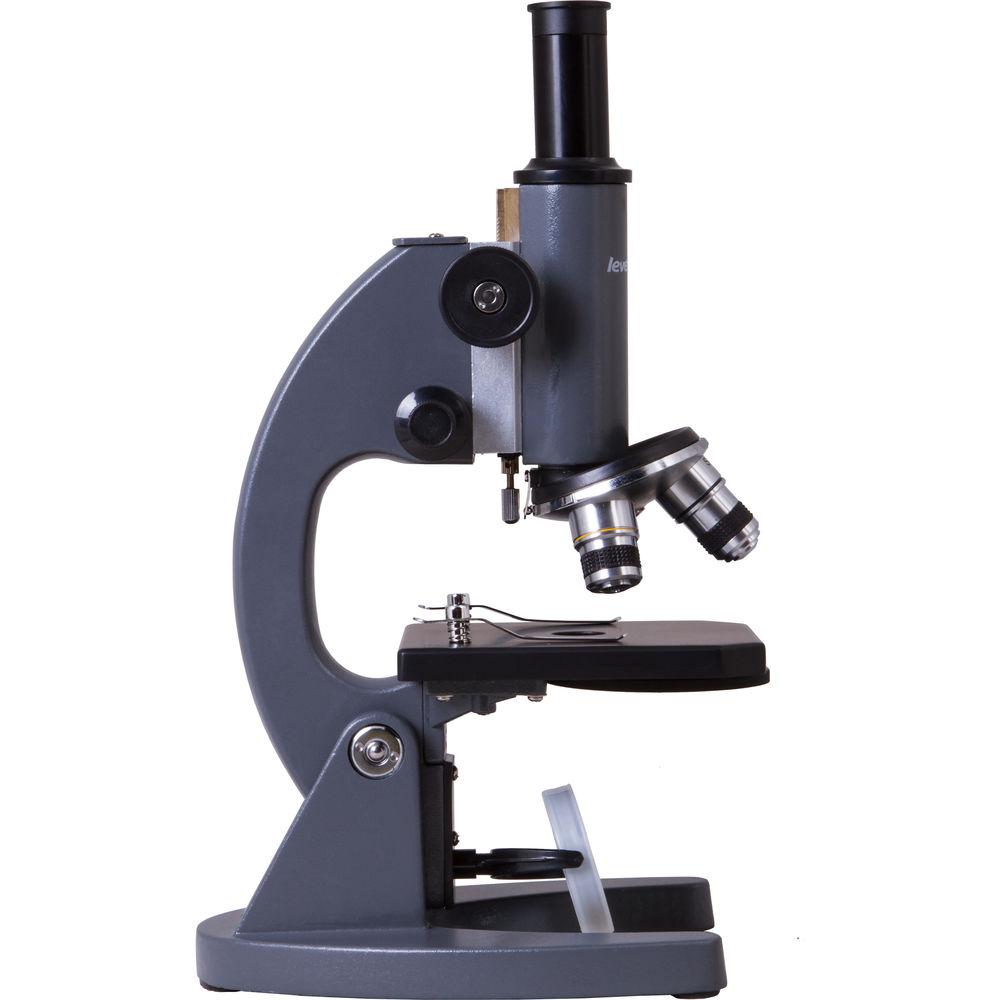

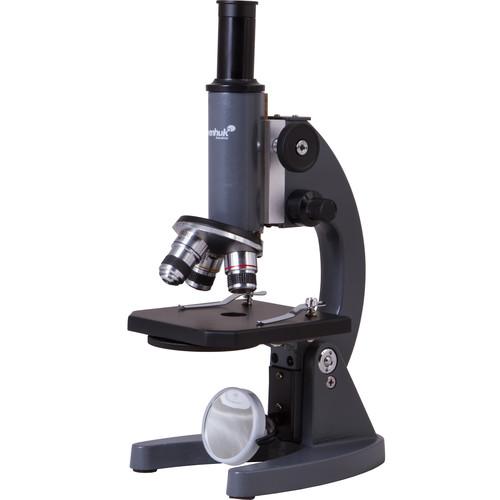

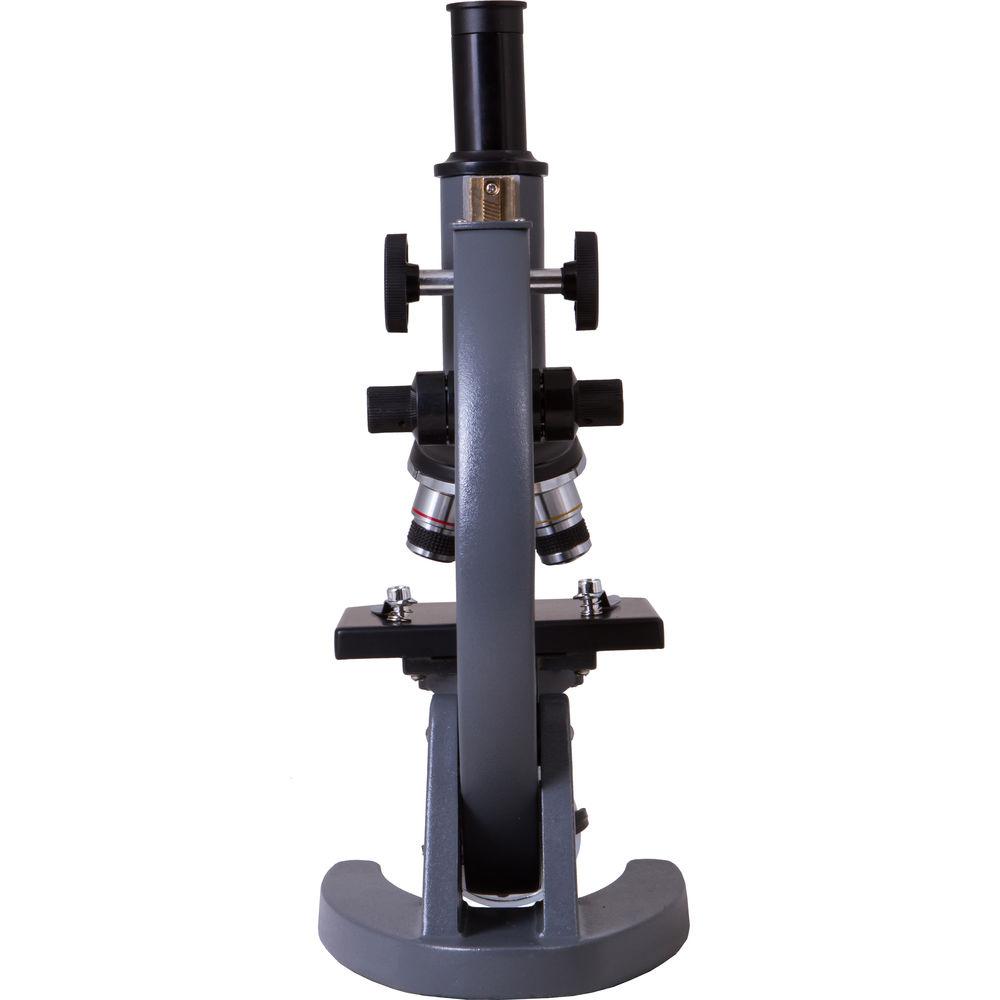

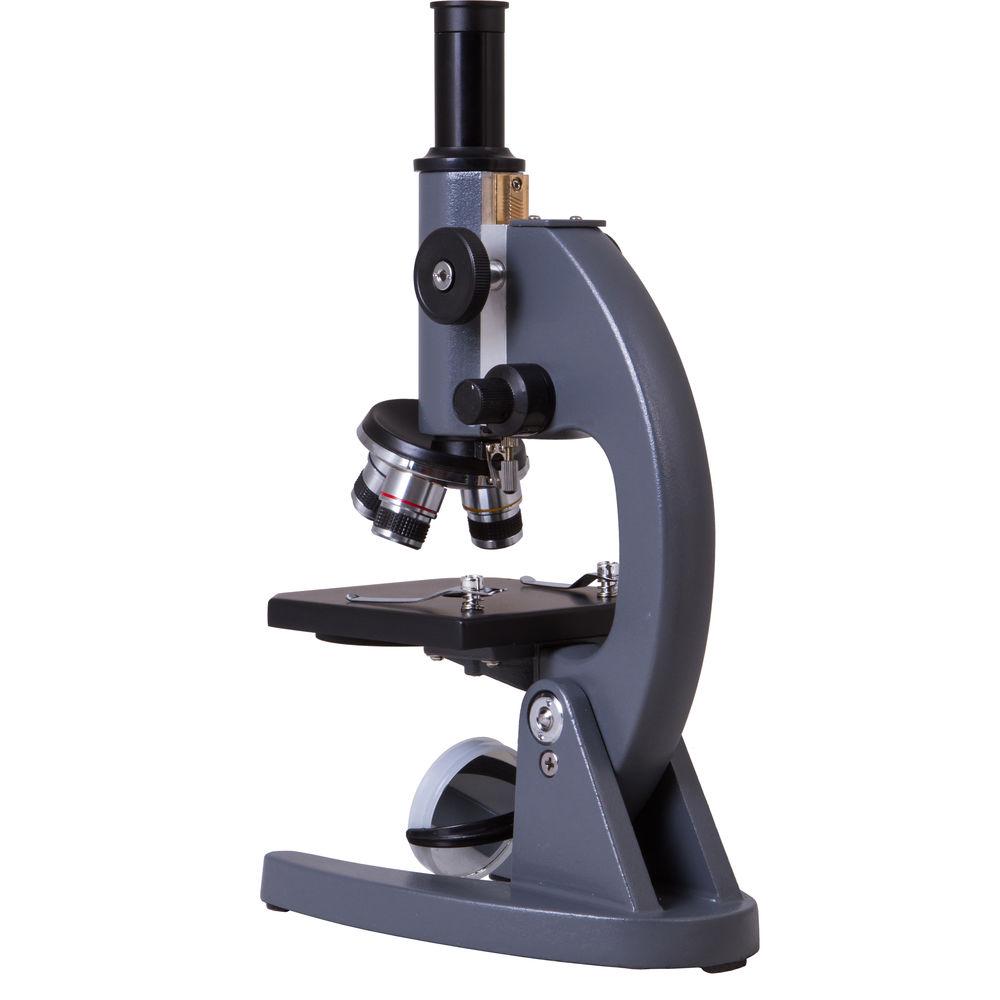

User Manual for Levenhuk 5S NG Monocular Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk 5S NG Monocular Microscope
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk 5S NG Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description Teach microscopy using the Levenhuk 5S NG Monocular Microscope. This compact, cordless instrument is capable of delivering up to 500x of total magnification with its all-glass optical system, consisting of three objectives (4x, 10x, and 40x) and two eyepieces (10x and 12.5x). Underneath the objective turret, you will find a 4.7x4.3" stage with two metal clips for securing your slides. To ensure that you see bright images, the scope employs mirror illumination; a power supply is not required. It also has a built-in diaphragm wheel with five apertures for adjusting brightness and contrast of images. For convenience, the metal housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled adjustment knobs. - Optical Performance
-
- Glass optics

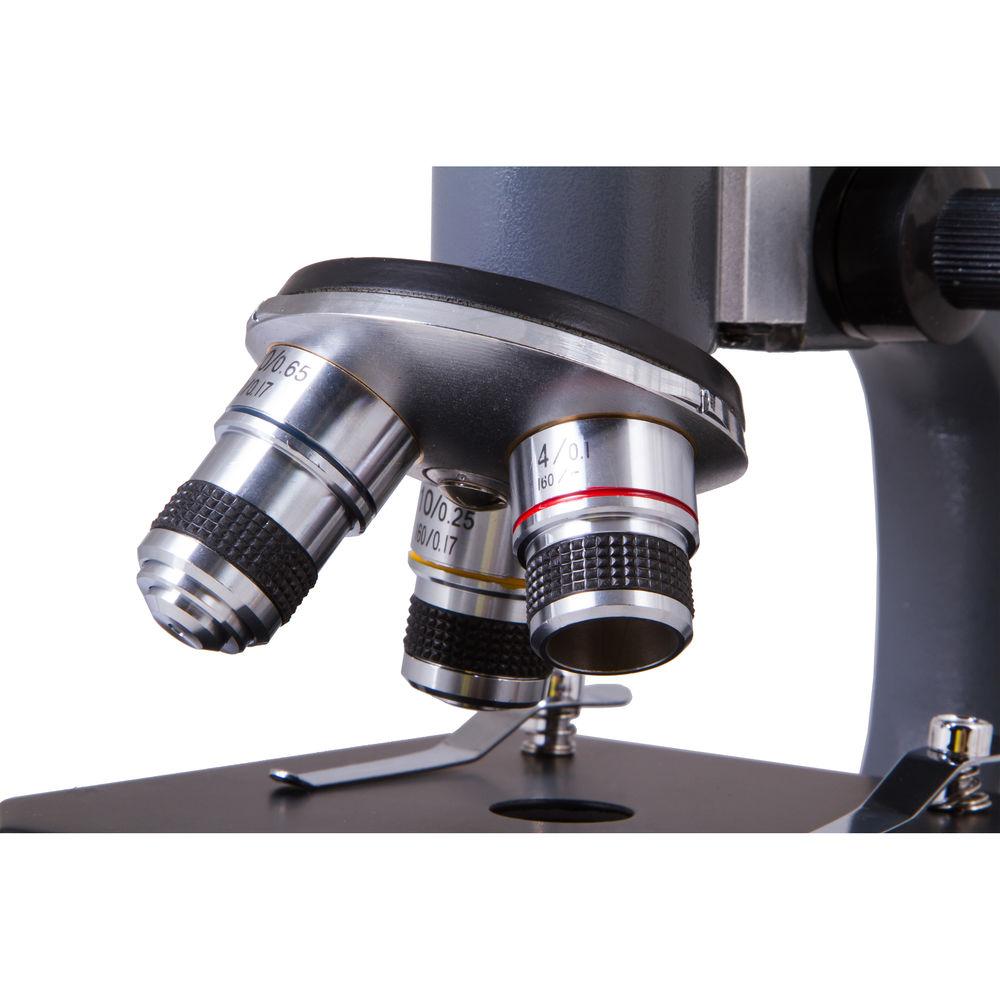

- 4x, 10x, and 40x objectives

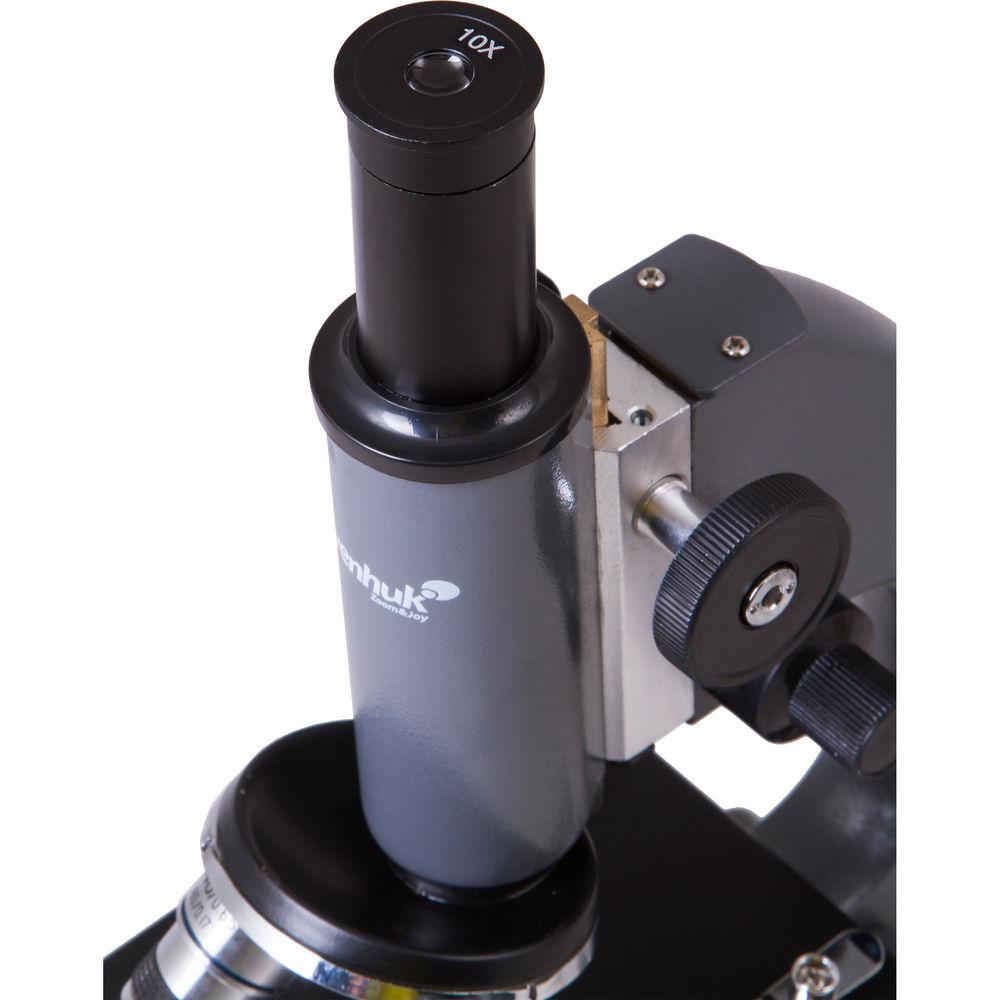

- 10x, 12.5x eyepieces with 23.2mm tubes
- 40-500x total magnification
- Coarse focus (working distance): 2.0"
- Stage
-
- 4.7x4.3" stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with five apertures
- Use and Handling
-
- Straight monocular viewing

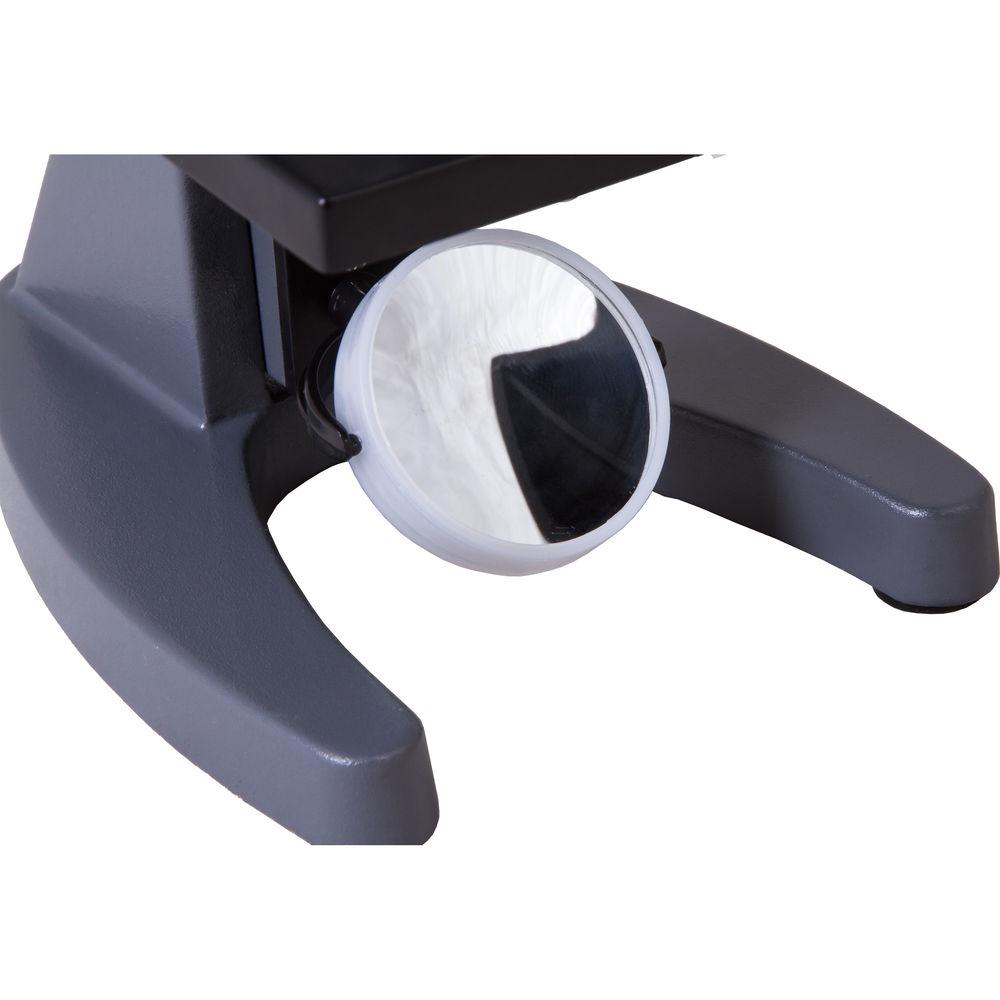

- Bottom mirror illumination
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability
- Rotating nosepiece

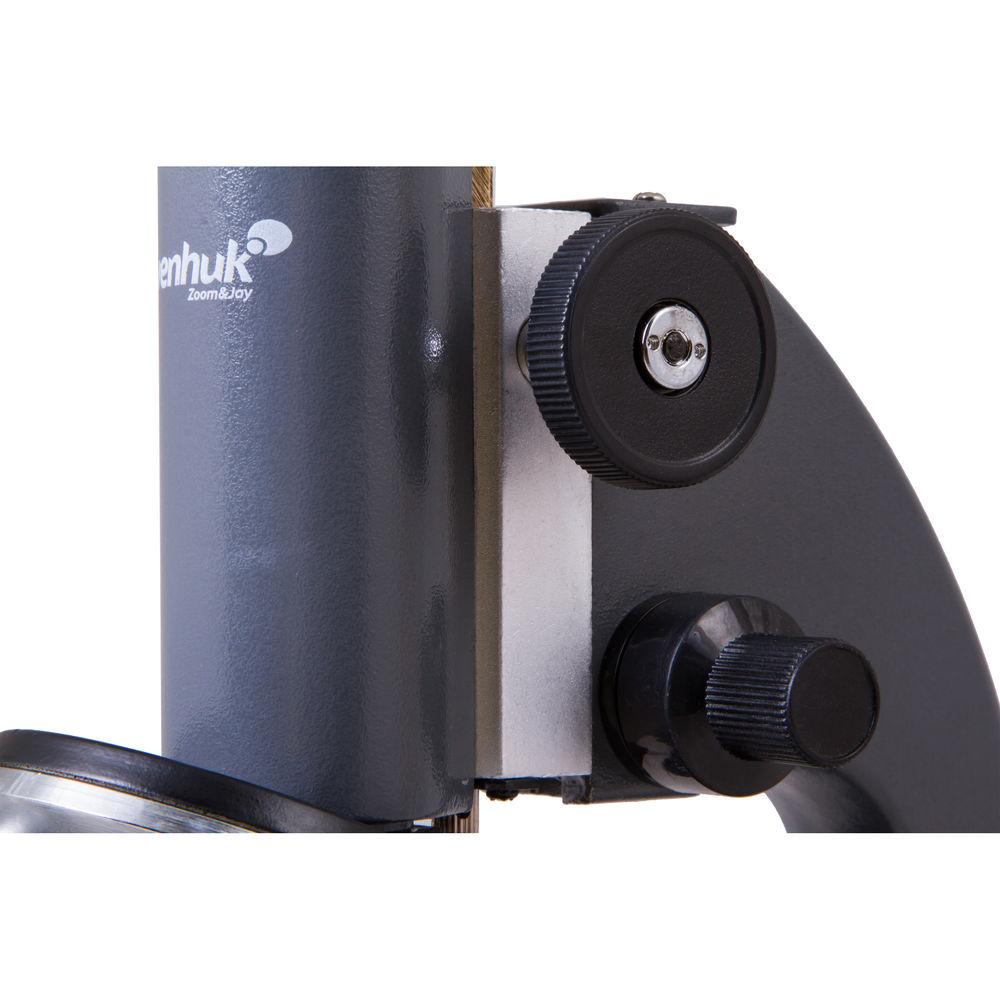

- Knurled knobs
In the Box Levenhuk 5S NG Monocular Microscope (Gray) 10x Eyepiece 12.5x Eyepiece 4x Objective 10x Objective 40x Objective Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 5S NG Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 5S NG Specs | Microscope Type | Compound | | Eyepiece | 10x, 12.5x with 23.2 mm barrels | | Objectives | 4x, 10x, 40x | | Magnification | 40-500x | | Focusing | Coarse Focus/Working Distance: 2.0" / 50.0 mm
Fine: 0.071 - 0.087" / 1.8 - 2.2 mm | | Light Source | Mirror | | Specimen Stage | 4.7 x 4.3" / 120.0 x 110.0 mm | | Overall Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
