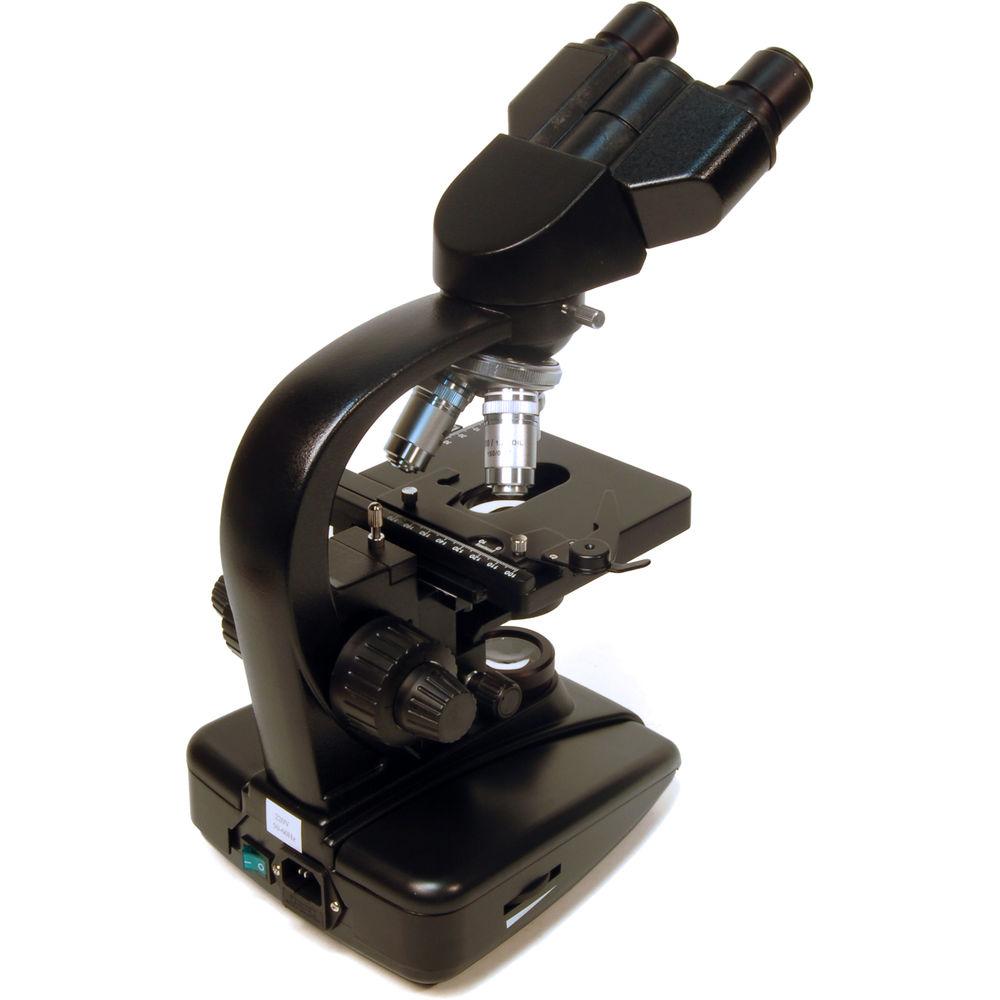

User Manual for Levenhuk 625 Binocular Biological Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk 625 Binocular Biological Microscope
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk 625 Binocular Biological Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

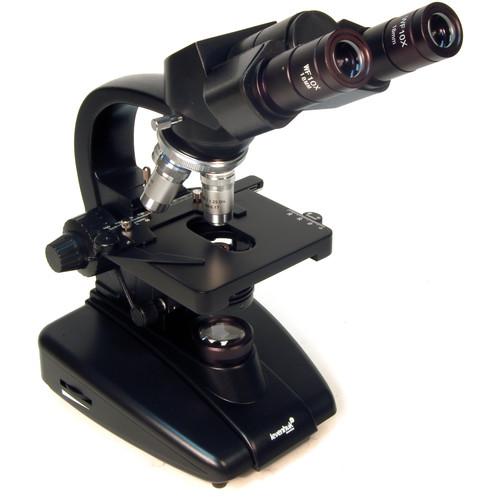

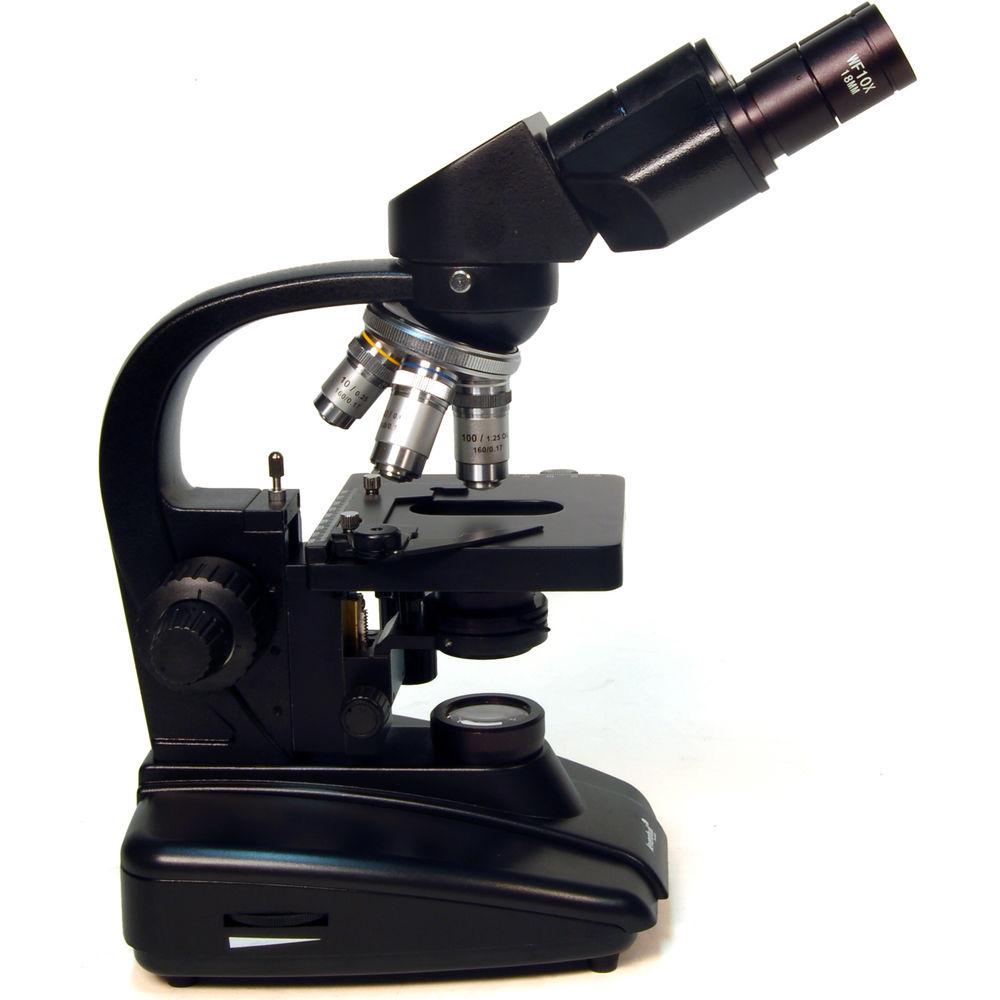

Product description Levenhuk's 625 Binocular Biological Microscope is a lab-grade microscope with Siedentopf interpupillary adjustment, four achromatic objectives, and two pairs of eyepieces (10x and 20x), which together can produce high-resolution images with low color distortions at magnifications of up to 2000x. For improved image clarity, detail, and brightness, the optics are made of fully coated achromatic glass.Users should take note that its 100x objective ought to be used with a special immersion oil (included) to achieve maximum resolution and to prevent driving the objective into your slide. To augment the optical performance, the scope offers matching mechanical features as well. Its square specimen stage provides full motion control in two dimensions via Vernier adjustments and a lockable slide bracket. You can obtain bright and high-contrast images using its halogen illumination system with a 1.25 NA Abbe condenser and a filter wheel with one included blue filter, which can help contrasting certain features or structures of your specimens. For obtaining precise image sharpness, the scope provides both coarse and fine focusing, adjustable using the coaxial knurled knobs. - Optical Performance
-
- Achromatic fully coated optics

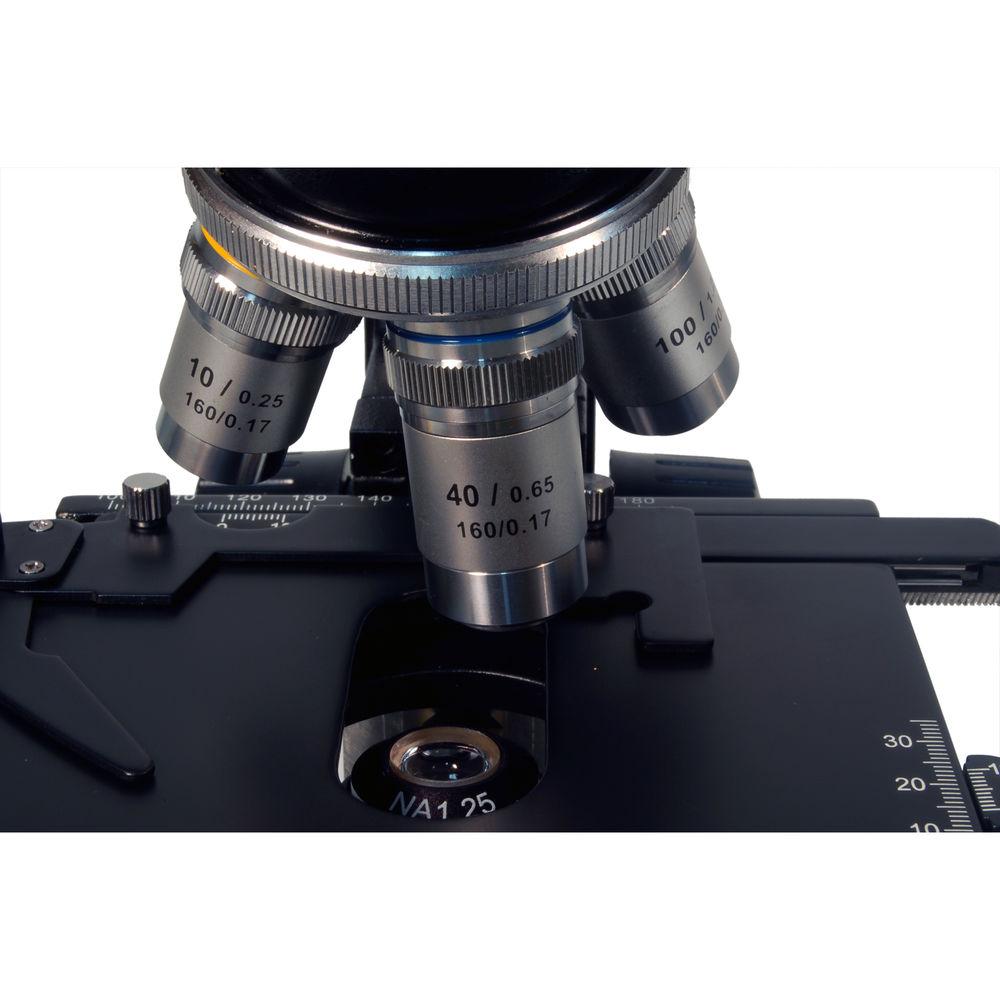

- 4x, 10x, 40x, and 100x objectives
- 100x objective ought to be used with the included immersion oil

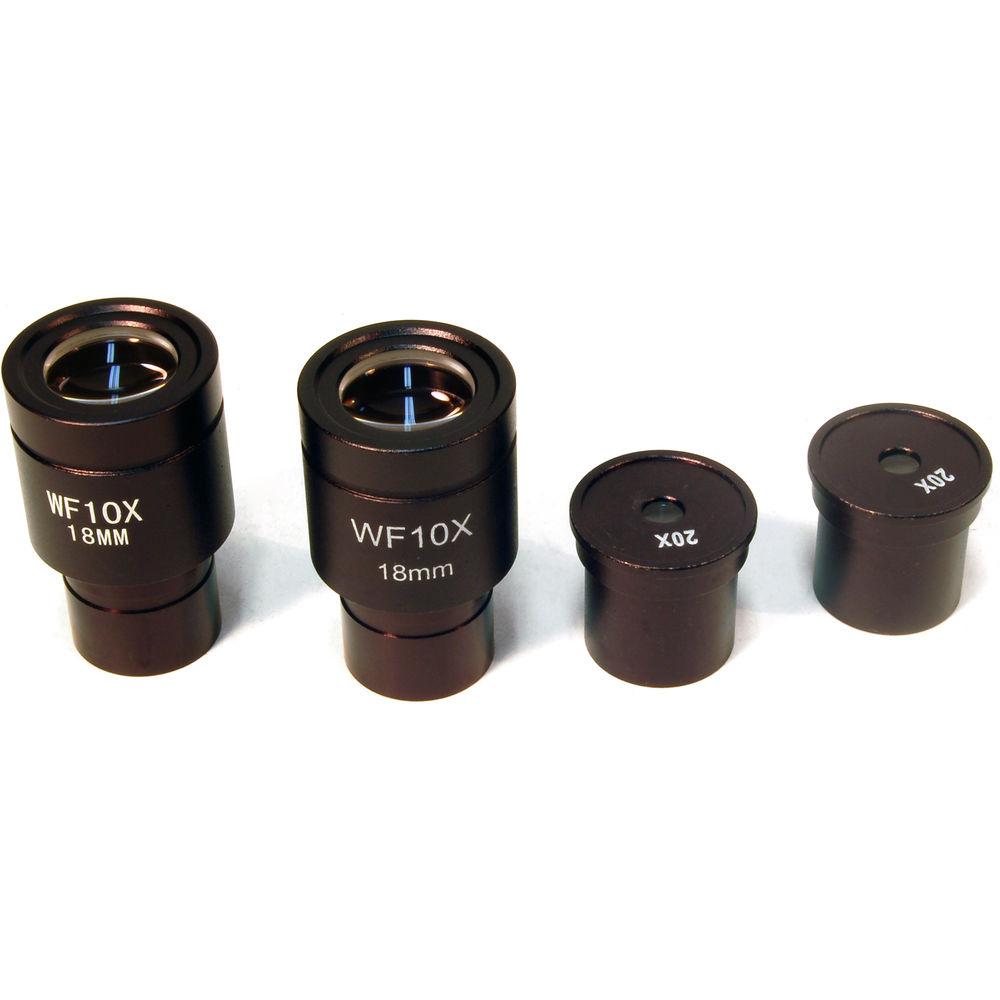

- 10x and 20x widefield eyepieces
- 40-2000x magnification range
- 1.25 NA Abbe condenser
- Use and Handling
-
- 30°-inclined binocular viewing

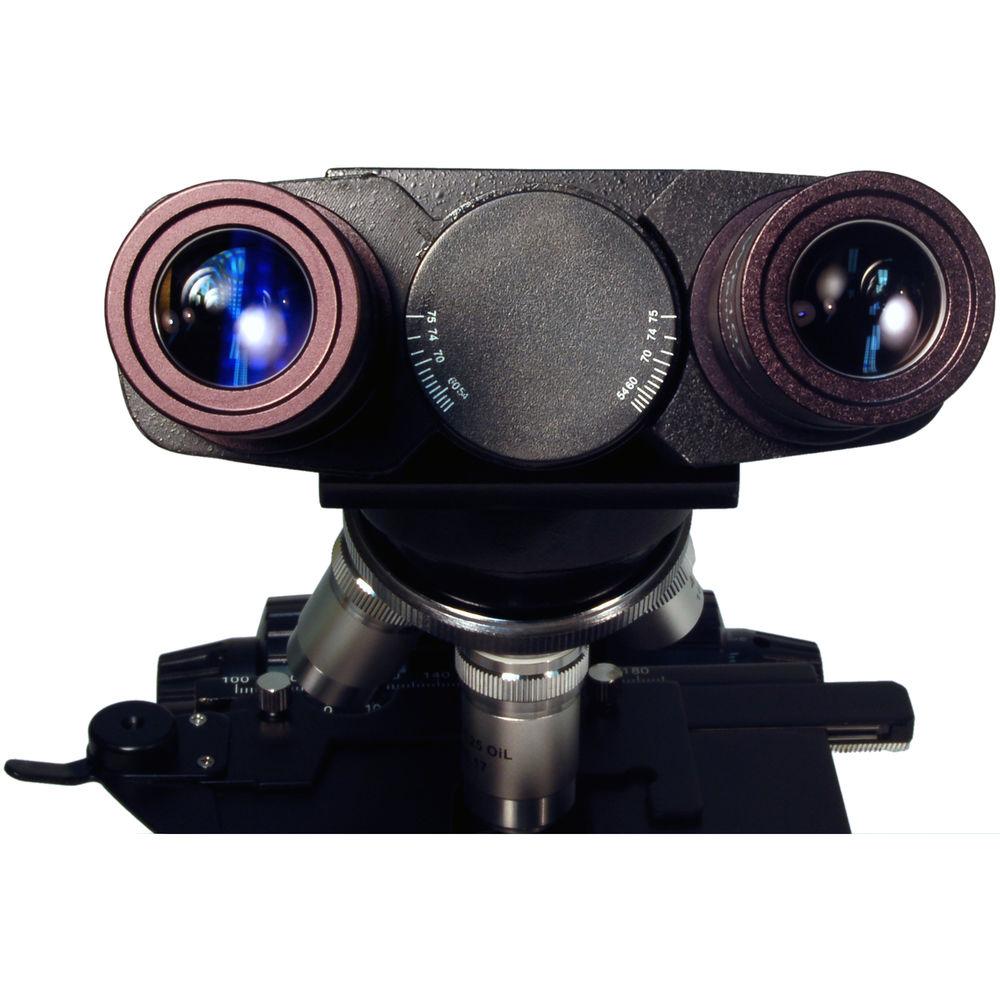

- Siedentopf interpupillary adjustment: 55-75mm
- External 110V outlet required
- 20W halogen illumination with adjustable brightness
- Stage
-
- 5 x 4.5" mechanical precision stage
- Vernier motion controls for both axes
- Lockable specimen bracket
- Built-in iris diaphragm
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability
- Knurled focusing knobs
In the Box Levenhuk 625 Binocular Biological Microscope (110V, Matte Black) - Power Cable
- 2 x 20x WF Eyepieces
- Immersion Oil
- Blue Filter
- Spare Lamp
- Dust Cover
- 2A Fuse
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 625 Binocular Biological Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 625 Specs | Microscope Type | Compound | | Head | Siedentopf | | Viewing | Binocular, 30° inclined | | Eyepiece | 10x WF, 20x WF | | Nosepiece | Rotating ball-bearing | | Objectives | 4x: 0.1 NA
10x: 0.25 NA
40x: 0.65 NA
100x: 1.25 NA | | Focuser | Coaxial fine and coarse
Focus Accuracy: 2 µm
Total Travel: 0.78" / 20 mm | | Light Source | 6 V, 20 W halogen lamp | | Light Control | Rheostat | | Specimen Stage | 5 x 4.5" / 125 x 115 mm | | Overall Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
