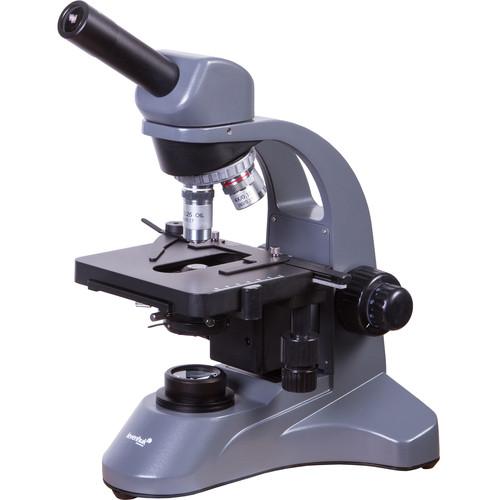

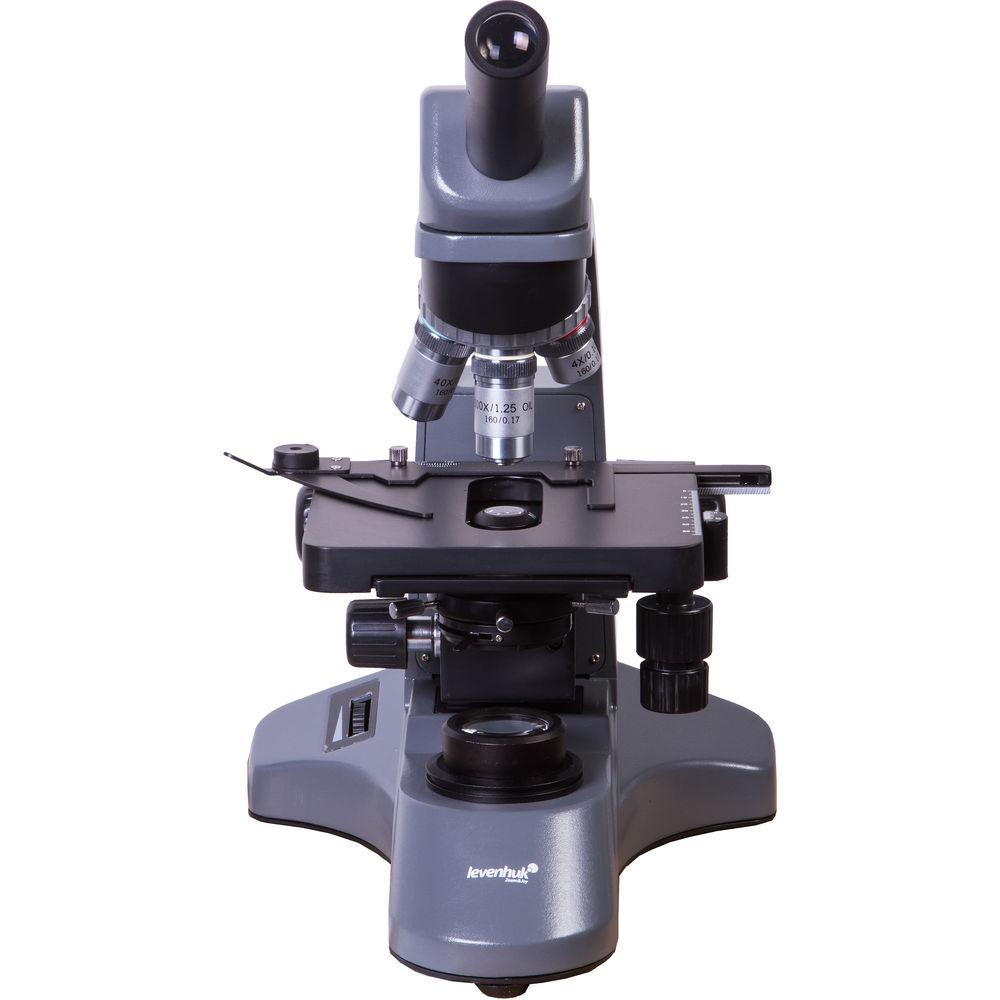

Product description Levenhuk's 700M Monocular Microscope is a lab-grade microscope that will work in most parts of the world, thanks to the built-in 110-220V compatibility. It is equipped with four achromatic objectives, and two pairs of eyepieces (10x and 20x), which together can produce high-resolution images with low color distortions at magnifications of up to 2000x. For improved image clarity, detail, and brightness, the optics are made of achromatic glass. Users should take note that its 100x objective ought to be used with a special immersion oil (included) to achieve maximum resolution and to prevent driving the objective into your slide. To augment the optical performance, the scope offers matching mechanical features as well. Its square specimen stage provides full motion control in two dimensions via Vernier adjustments and a lockable slide bracket. You can obtain bright and high-contrast images using its bottom 3W LED illumination system, a 1.25 NA Abbe condenser, and a filter wheel with three included filters (blue, yellow, and green), which can help in contrasting certain features or structures of your specimens. For obtaining precise image sharpness, the scope provides both a coarse and a fine focusing, adjustable using the coaxial knurled knobs. - Optical Performance
-
- Achromatic glass optics

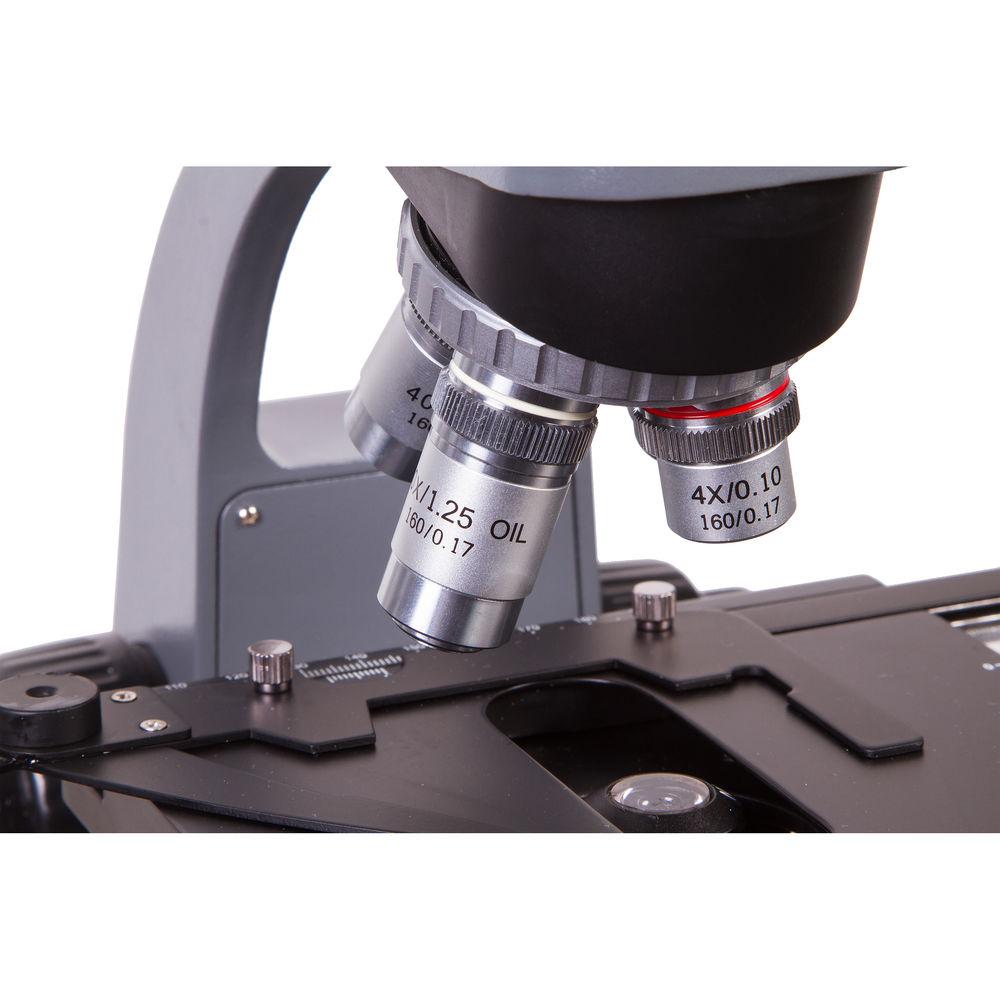

- 4x, 10x, 40x, and 100x objectives
- 100x objective ought to be used with the included immersion oil

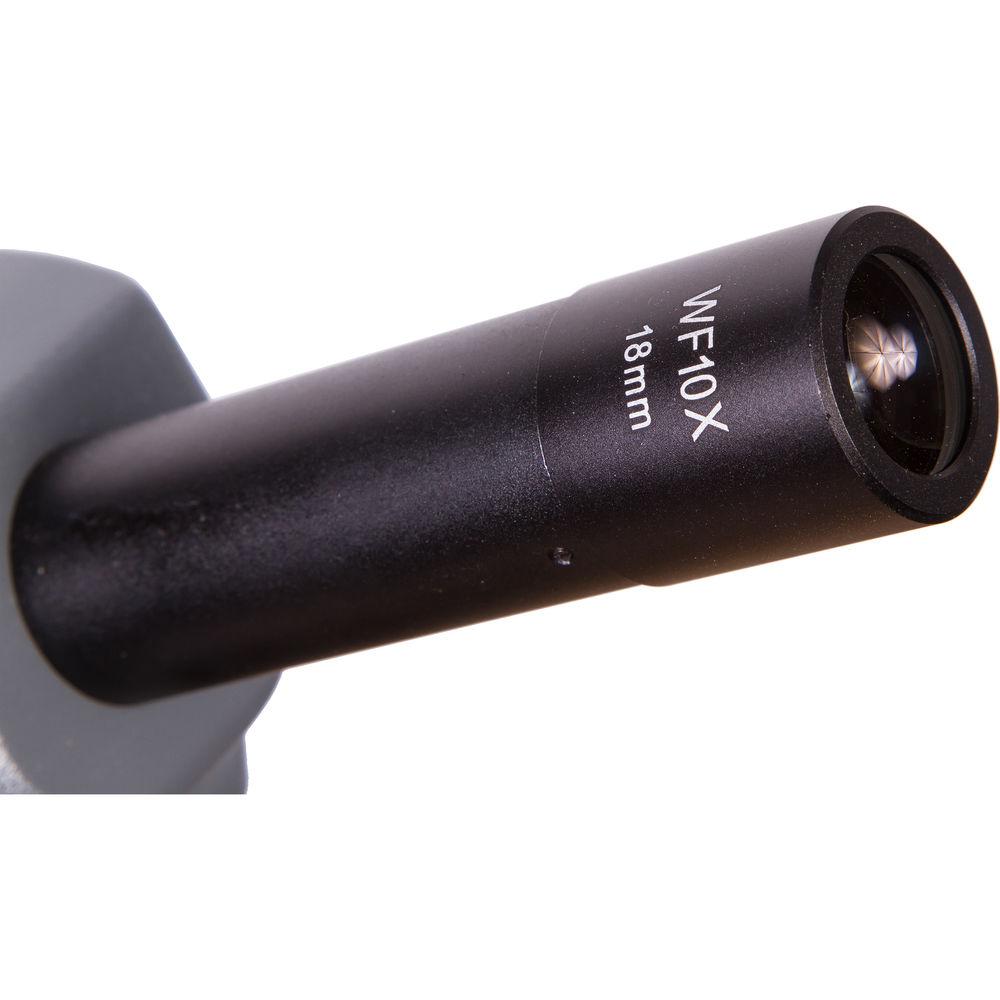

- 10x and 20x widefield eyepieces
- 40-2000x magnification range

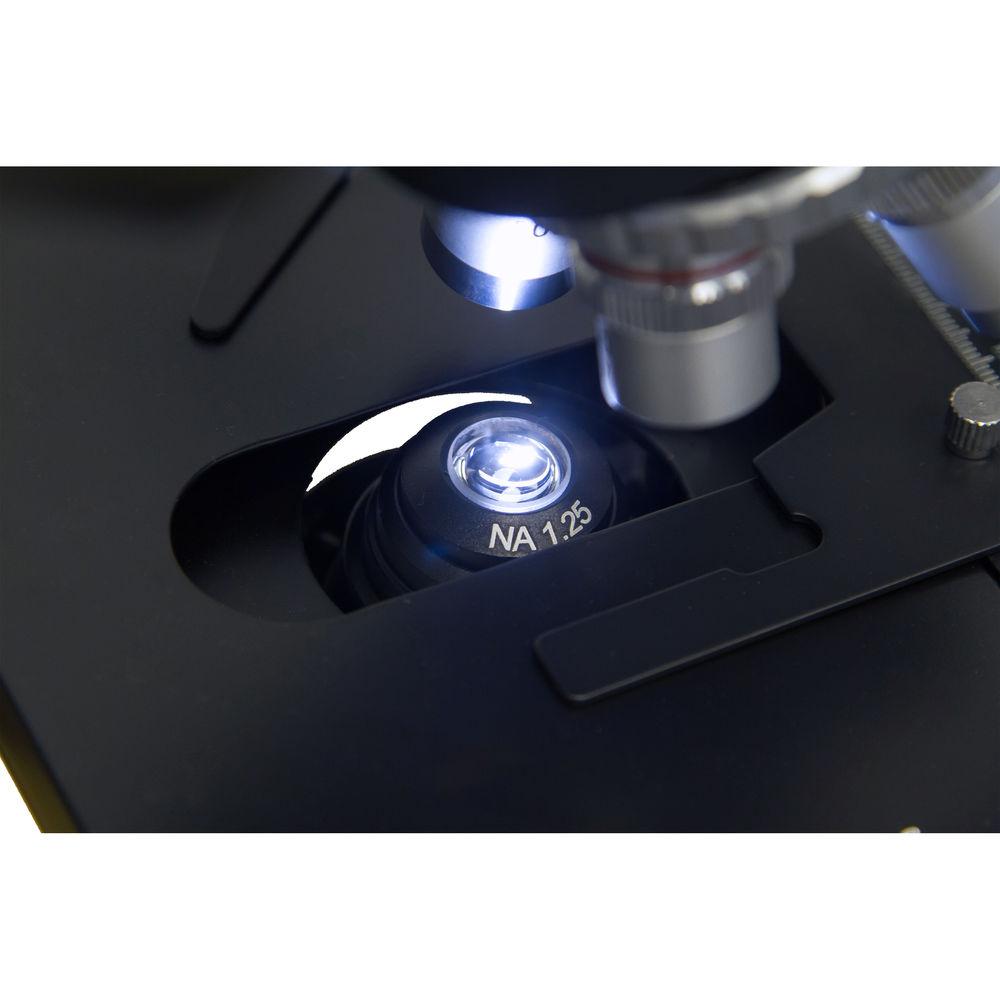

- 1.25 NA Abbe condenser
- Fine and coarse rack-and-pinion focusing
- Use and Handling
-
- Head rotates 360°
- 45°-inclined monocular viewing

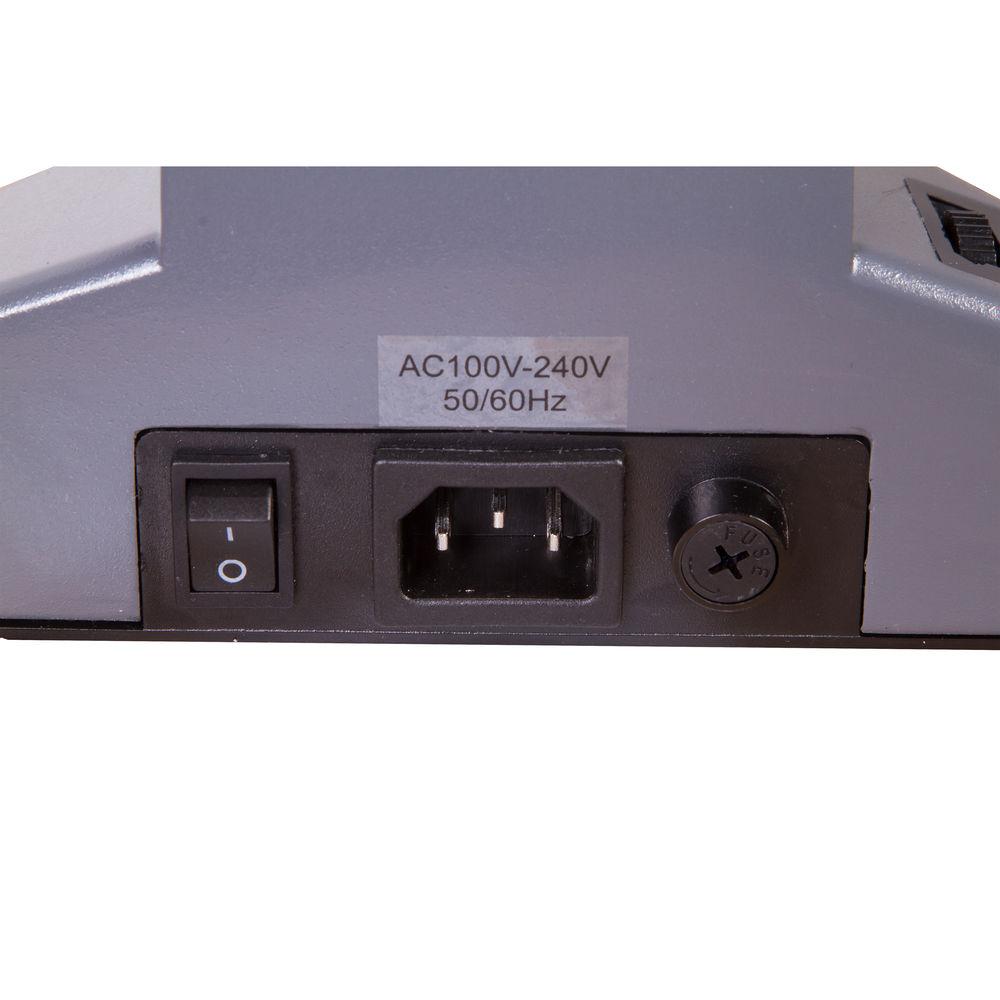

- Compatible with 110-220V electrical sources
- 3W LED illumination with adjustable brightness
- Stage
-

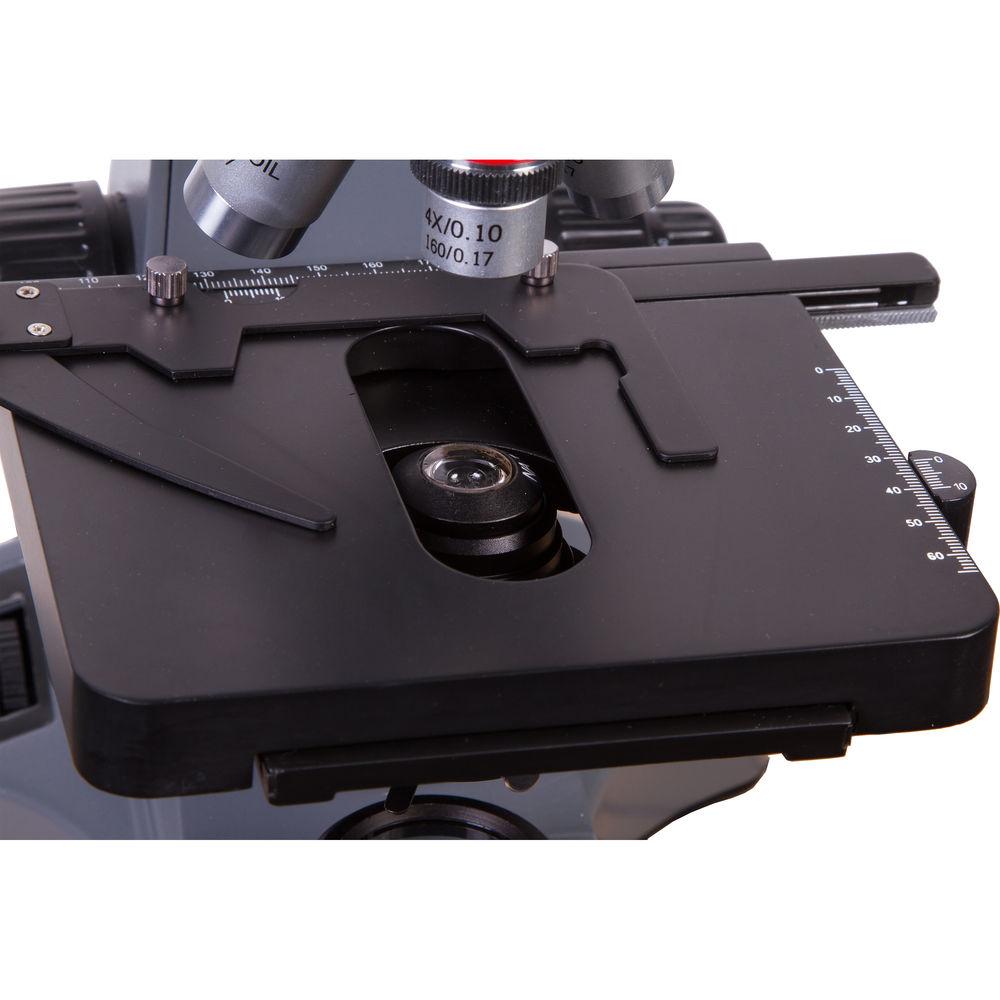

- 5.5 x 5.1" double-layer precision stage
- Vertical range of motion: 2"
- Horizontal range of motion: 3"
- Vernier motion controls for both axes

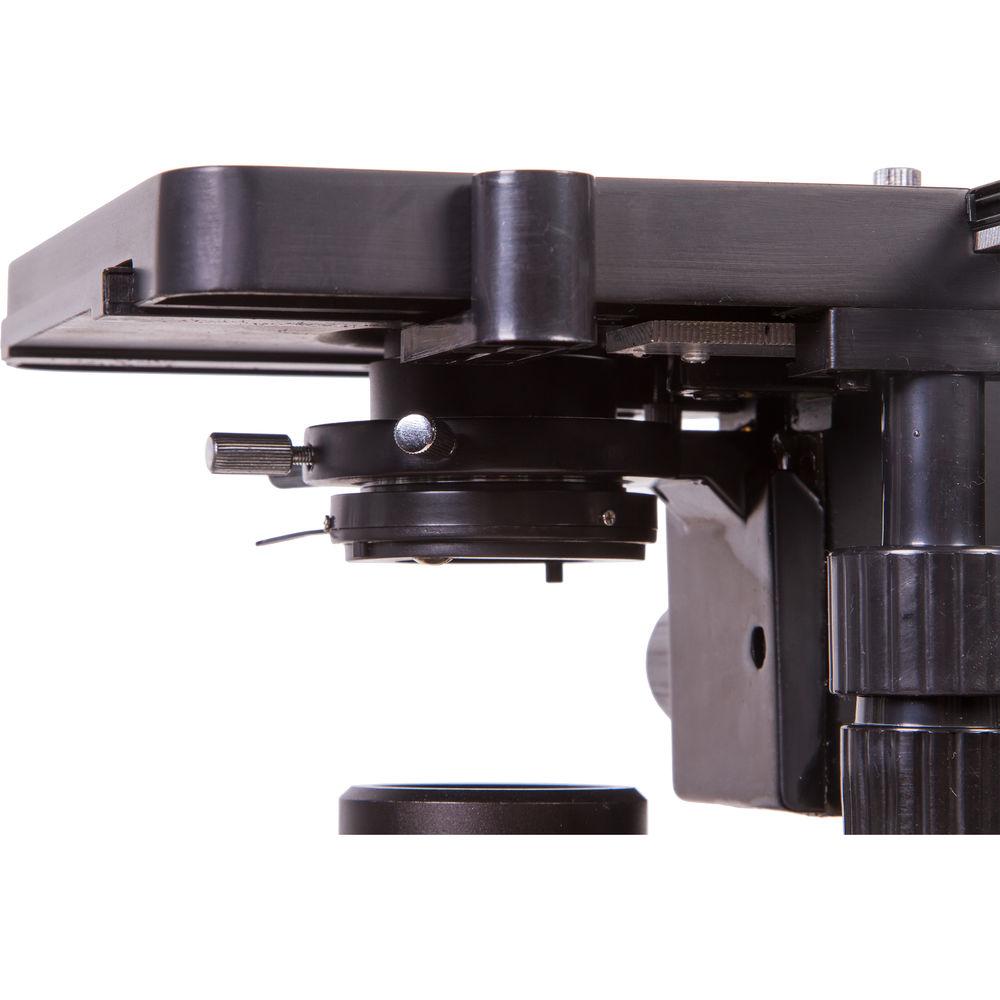

- Iris diaphragm and filter wheel with blue, yellow, and green filters
- Lockable specimen bracket
- Construction Details
-
- Aluminum frame
- Rack-and-pinion focusing mechanism
- Arched back serves as a handle
- Wide base provides stability
- Knurled focusing knobs
UPC: 611901504759 In the Box Levenhuk 700M Monocular Microscope (110-220V, Blue) - Power Cable
- 20x WF Eyepiece
- 3 x Filters
- Dust Cover
- AC Adapter
- Spare Fuse
- Immersion Oil
- Allen Key
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 700M Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 700M Specs | Microscope Type | Compound | | Eyepiece | 10x/18mm WF, 20x WF
Tube Dimensions: 6.3 x 0.9" / 160 x 23.2 mm | | Nosepiece | Rotating ball-bearing | | Objectives | 4x: 0.1 NA
10x: 0.25 NA
40x: 0.65 NA
100x: 1.25 NA | | Head | Monocular | | Viewing | 45°-inclined viewing | | Interpupillary Adjustment | Not applicable | | Focuser | Coaxial fine and coarse | | Light Source | 3 W LED lamp | | Light Control | Rheostat | | Power | 110 V (50 Hz), 220 V (60 Hz) | | Specimen Stage | 5.5 x 5.1" / 140.0 x 130.0 mm
Double-layer precision stage
Vertical Range of Motion: 2" / 50.0 mm
Horizontal Range of Motion: 3" / 75.0 mm | | Overall Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
