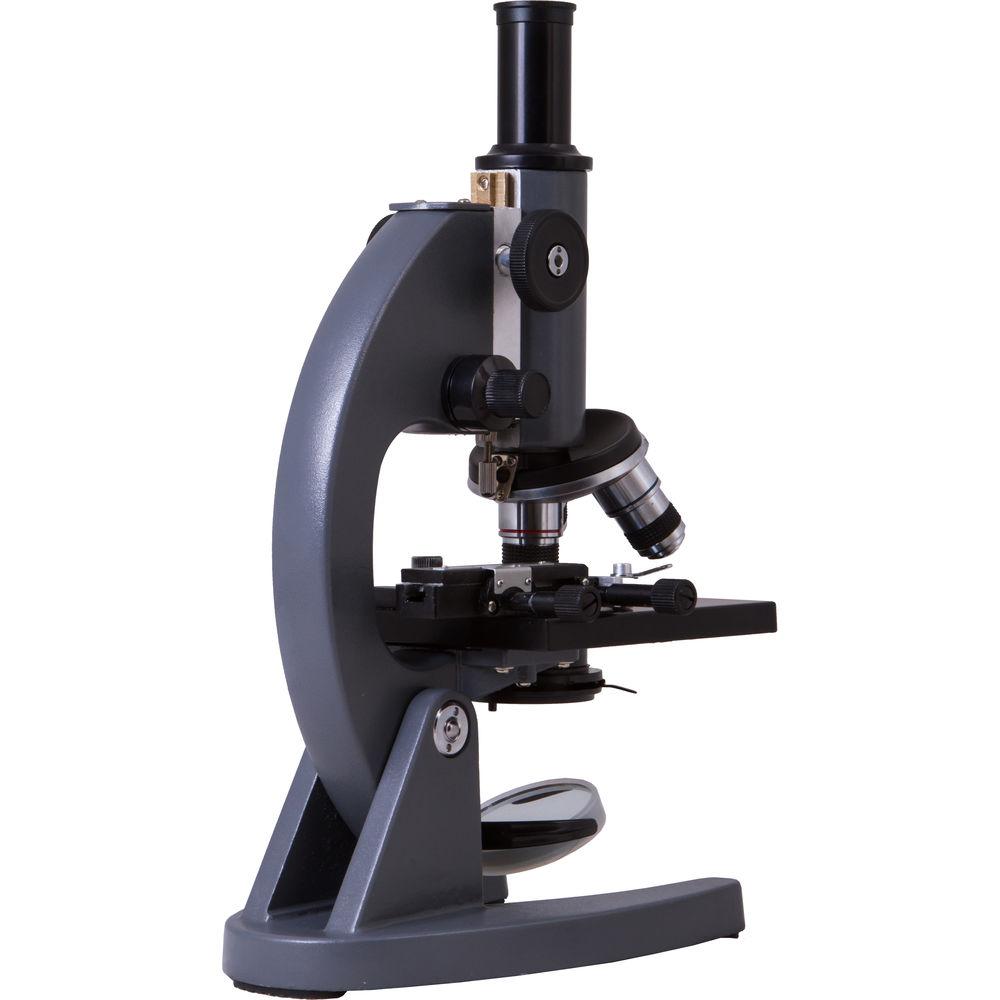

User Manual for Levenhuk 7S NG Monocular Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk 7S NG Monocular Microscope
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk 7S NG Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

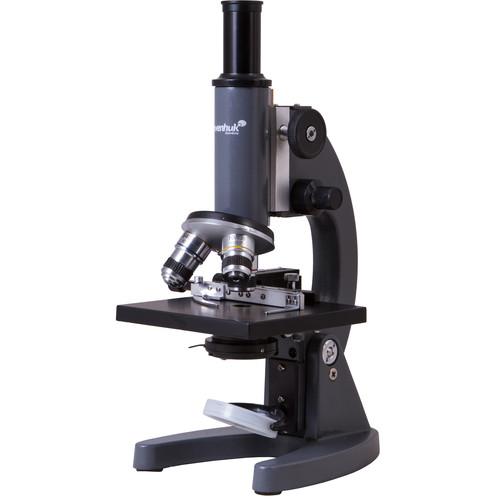

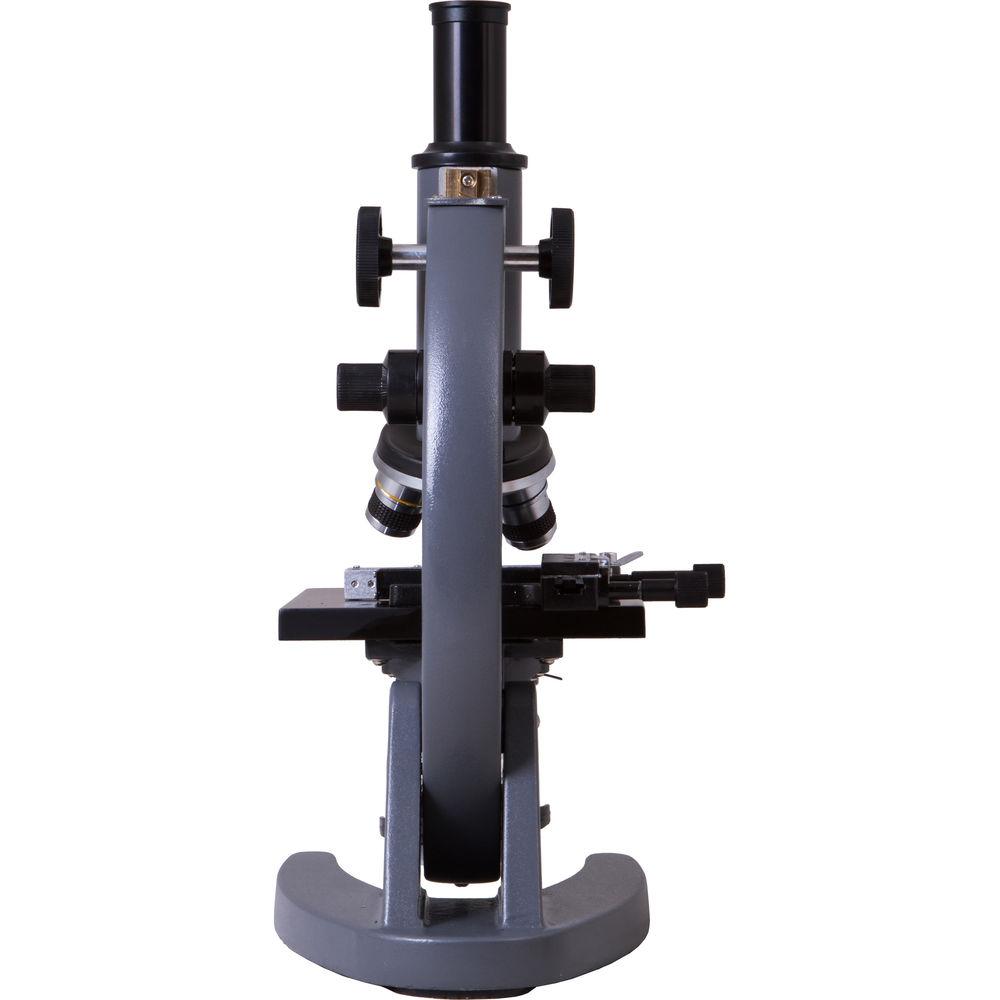

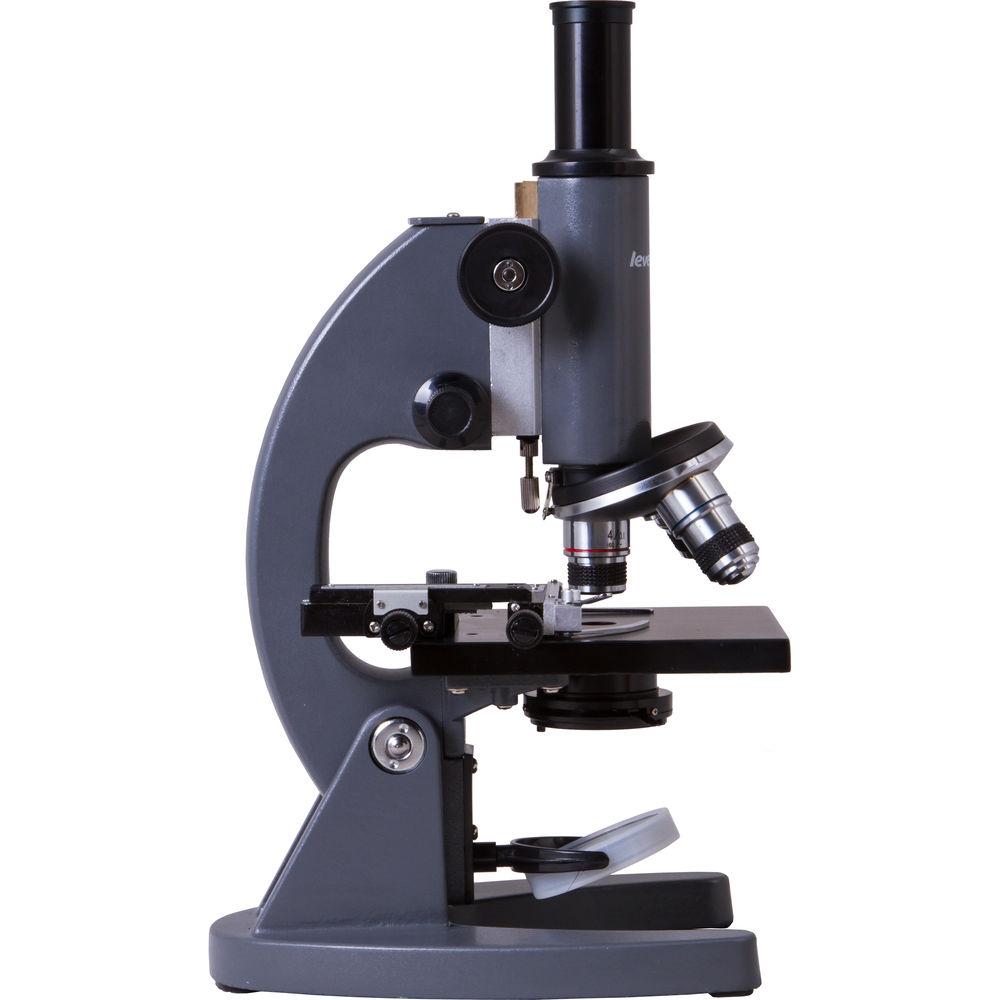

Product description Teach microscopy using the Levenhuk 7S NG Monocular Microscope. Its all-glass optical system consists of three objectives on a rotating nosepiece (4x, 10x, and 40x) and two interchangeable eyepieces (10x and 20x) that together deliver clear images with up to 800x magnification. Underneath the rotating objective turret, you will find a 4.7x4.3" stage with a lockable precision slide bracket for moving and holding your slides or other specimen types. The illumination system uses a rotating mirror for collecting and pointing light at your samples; a power supply is not required. The microscope also offers a built-in 0.65 NA Abbe condenser with an iris diaphragm to control illumination and filters (blue, green, and yellow) for emphasizing certain details of your specimen. For added convenience, the housing has an arched back that can be used as a handle. Other highlights are its durable metal frame and knurled knobs. - Optical Performance
-
- Glass optics

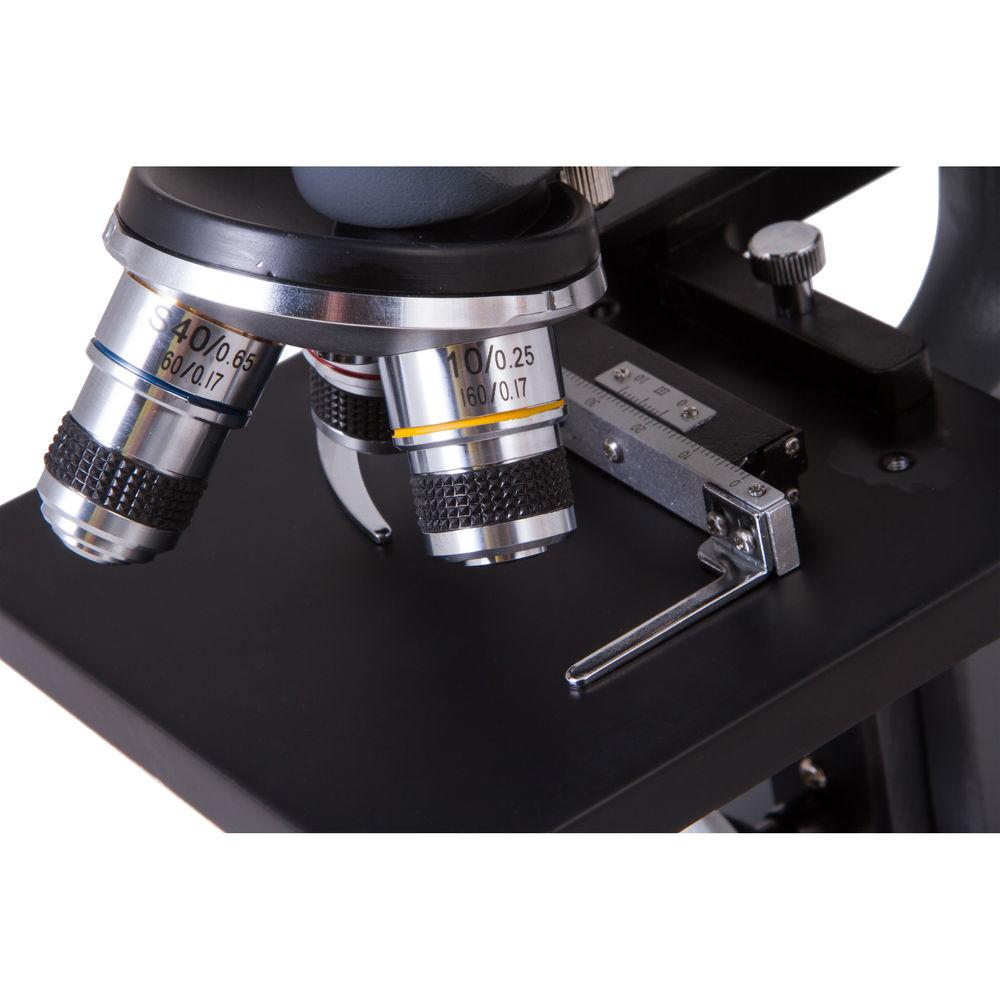

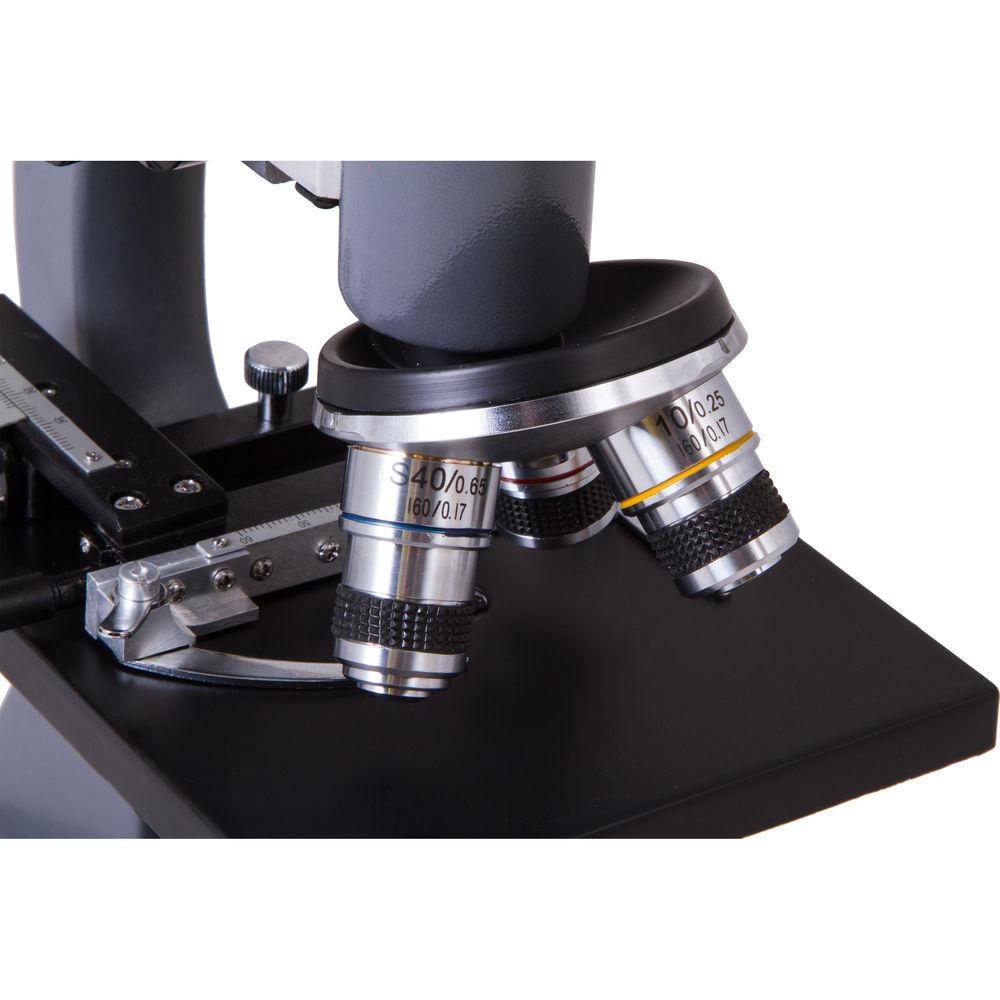

- 4x, 10x, and 40x objectives

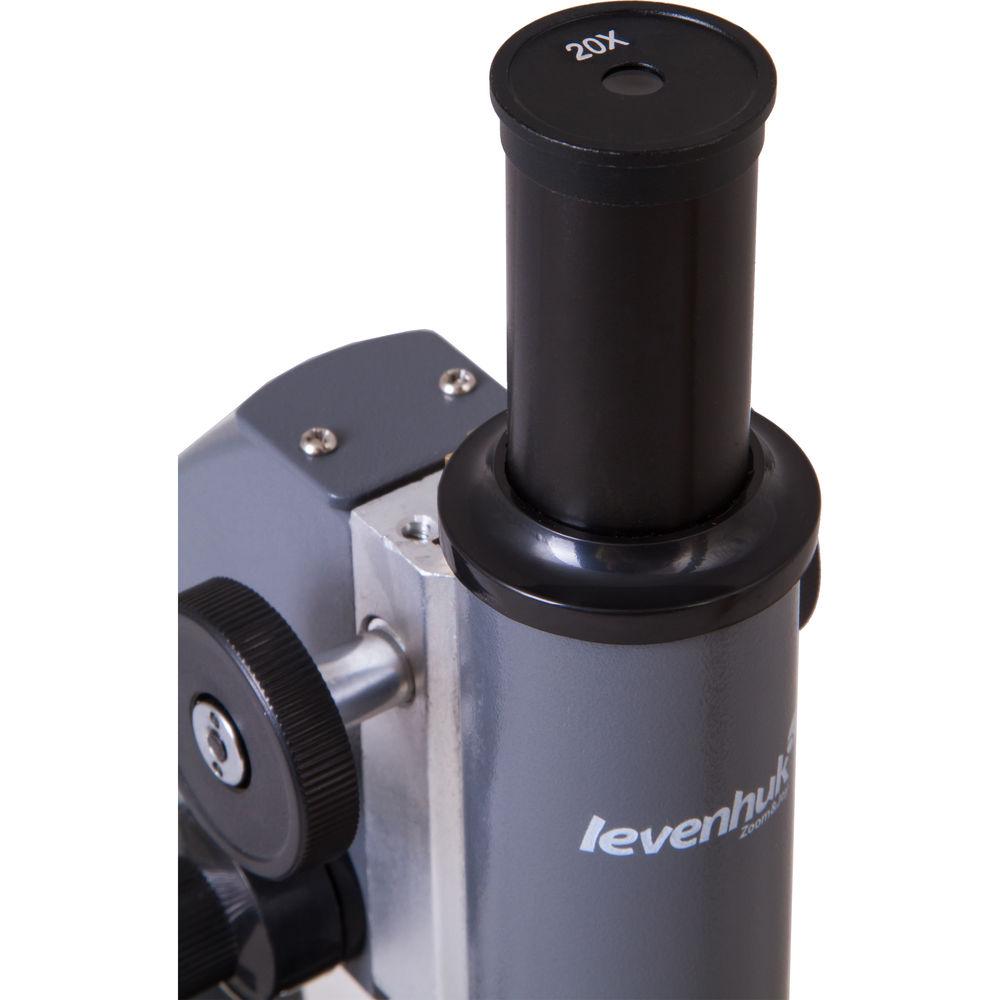

- 10x, 20x eyepieces with 23.2mm tubes
- 40-800x total magnification
- Coarse focus (working distance): 2.0"
- 0.65 NA Abbe condenser with iris diaphragm
- Blue, green, and yellow filters
- Stage
-
- 4.7x4.3" stage

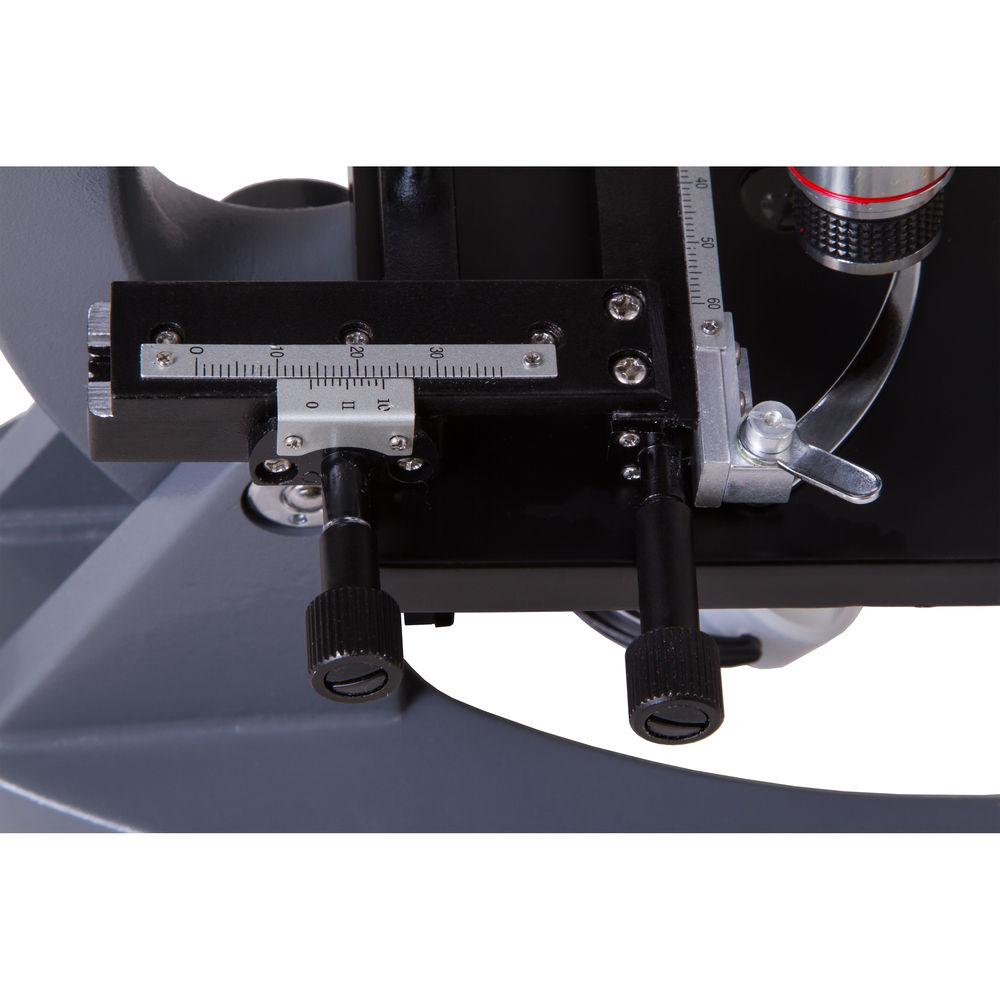

- Mechanical, locking slide bracket
- Iris diaphragm
- Use and Handling
-
- Straight monocular viewing
- Bottom mirror illumination
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability
- Rotating nosepiece

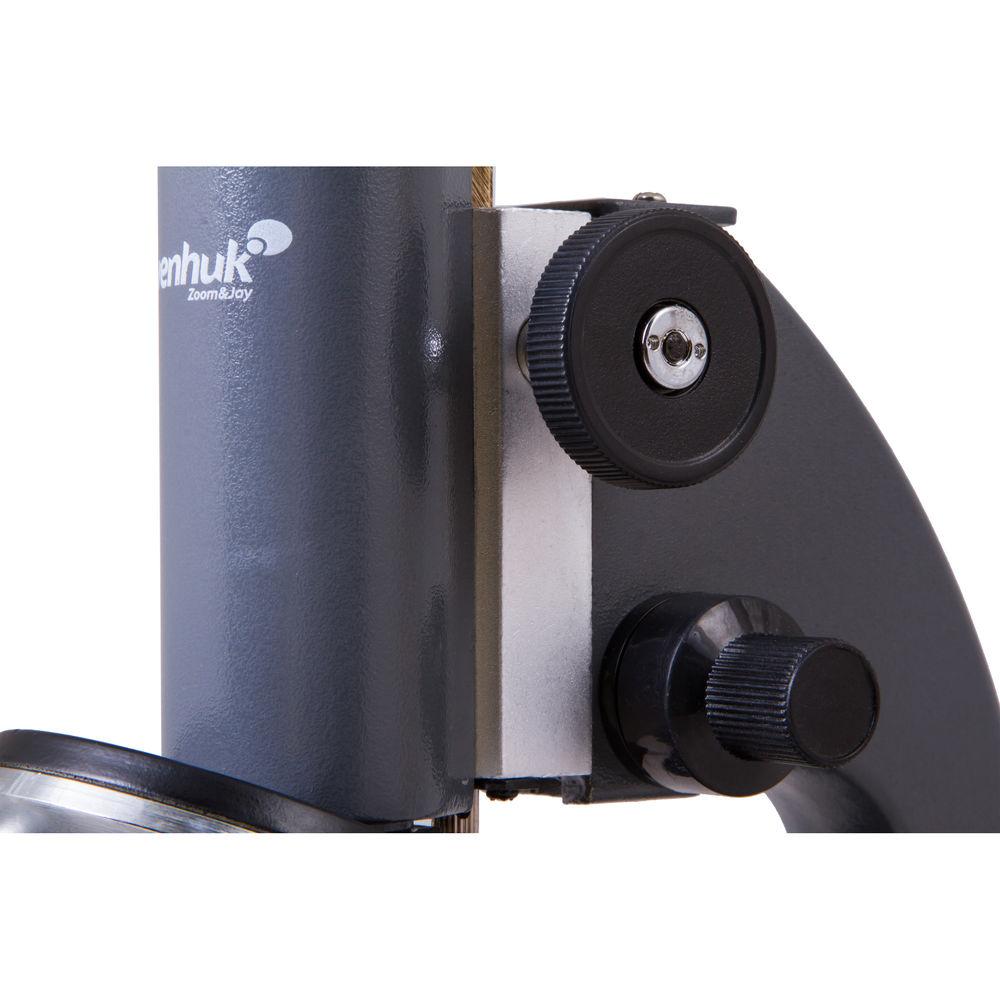

- Knurled knobs
In the Box Levenhuk 7S NG Monocular Microscope (Gray) 10x Eyepiece 20x Eyepiece 4x Objective 10x Objective 40x Objective Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 7S NG Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 7S NG Specs | Microscope Type | Compound | | Eyepiece | 10x, 20x with 23.2 mm barrels | | Objectives | 4x, 10x, 40x | | Magnification | 40-800x | | Focusing | Coarse Focus/Working Distance: 2.0" / 50.0 mm
Fine: 0.071 - 0.087" / 1.8 - 2.2 mm | | Light Source | Mirror | | Specimen Stage | 4.7 x 4.3" / 120.0 x 110.0 mm | | Condenser System | 0.65 NA Abbe | | Iris | Yes | | Filters | Blue, green, yellow | | Overall Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
