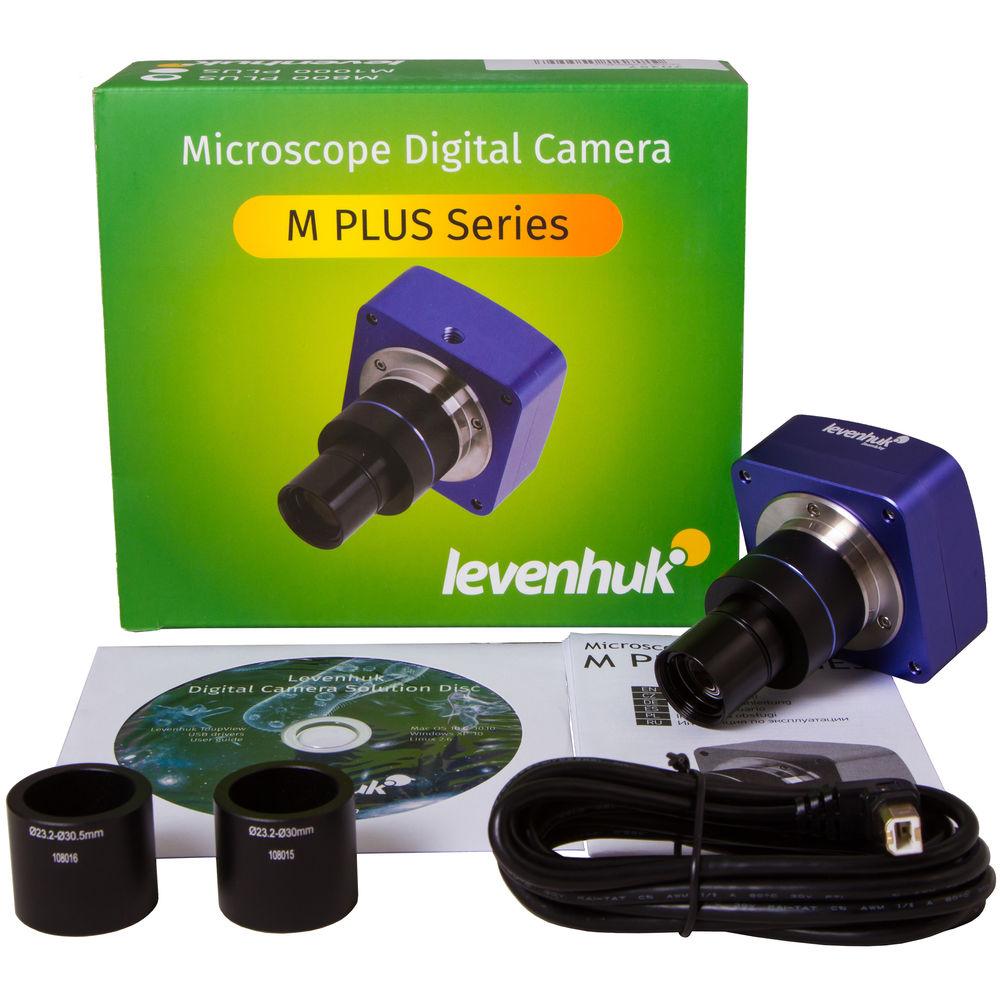

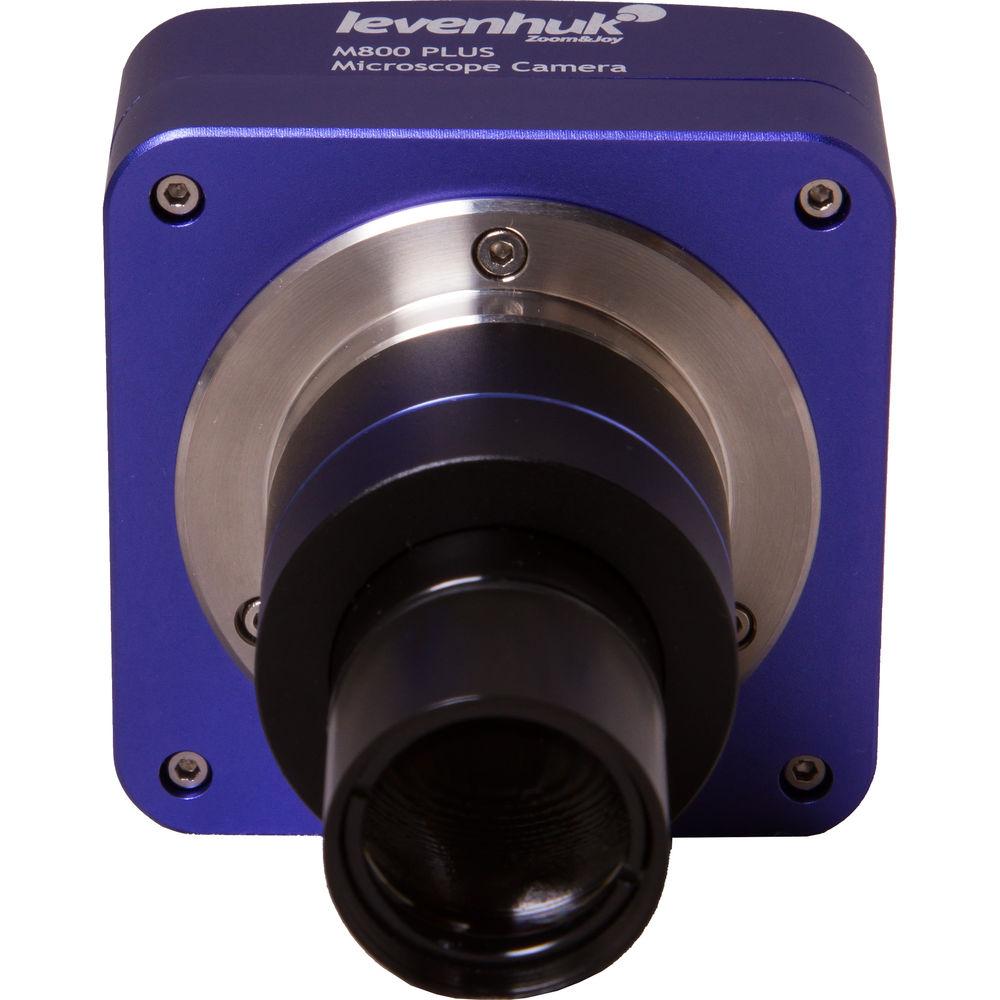

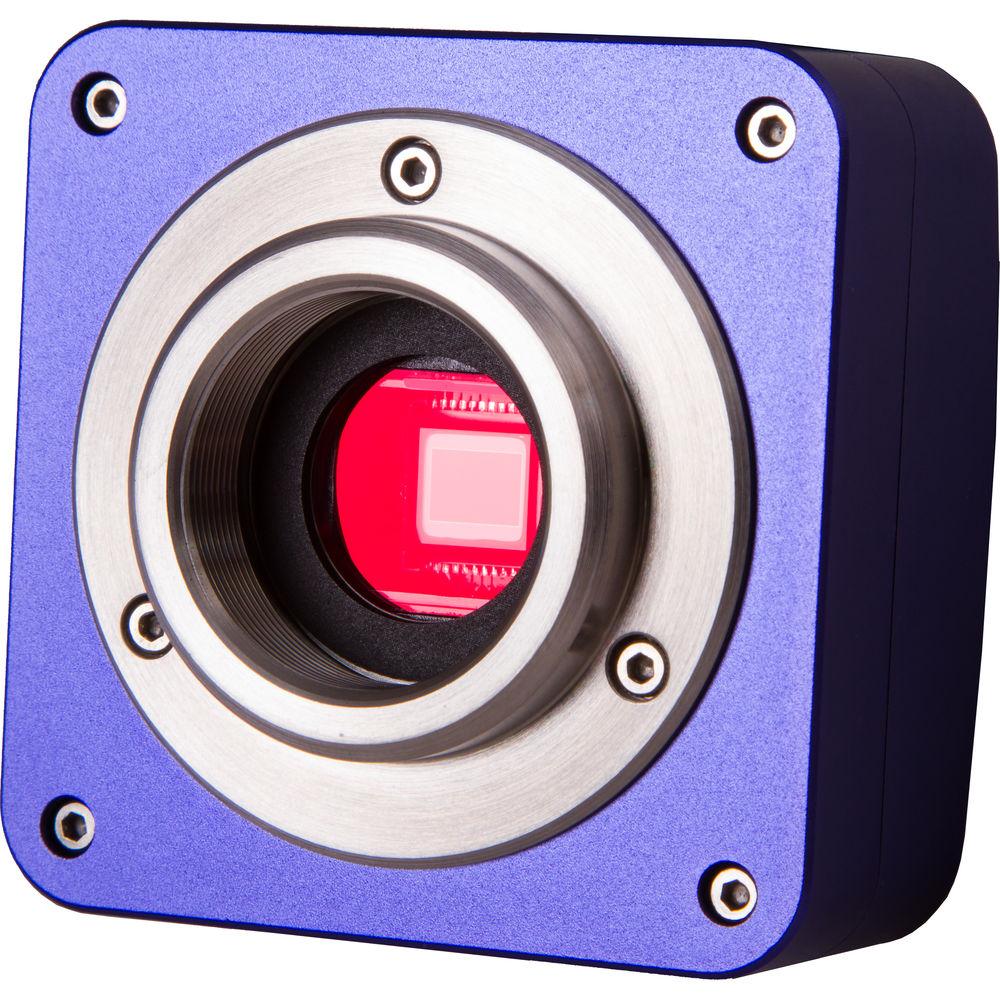

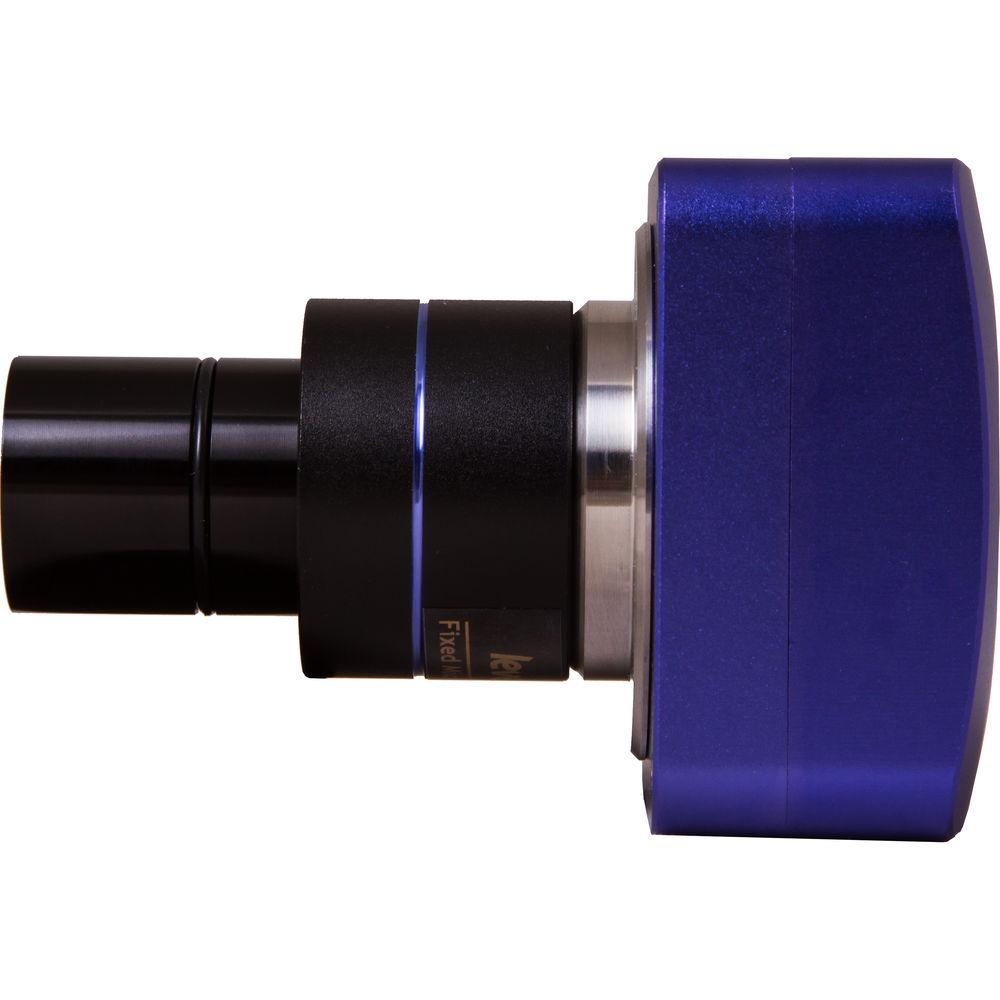

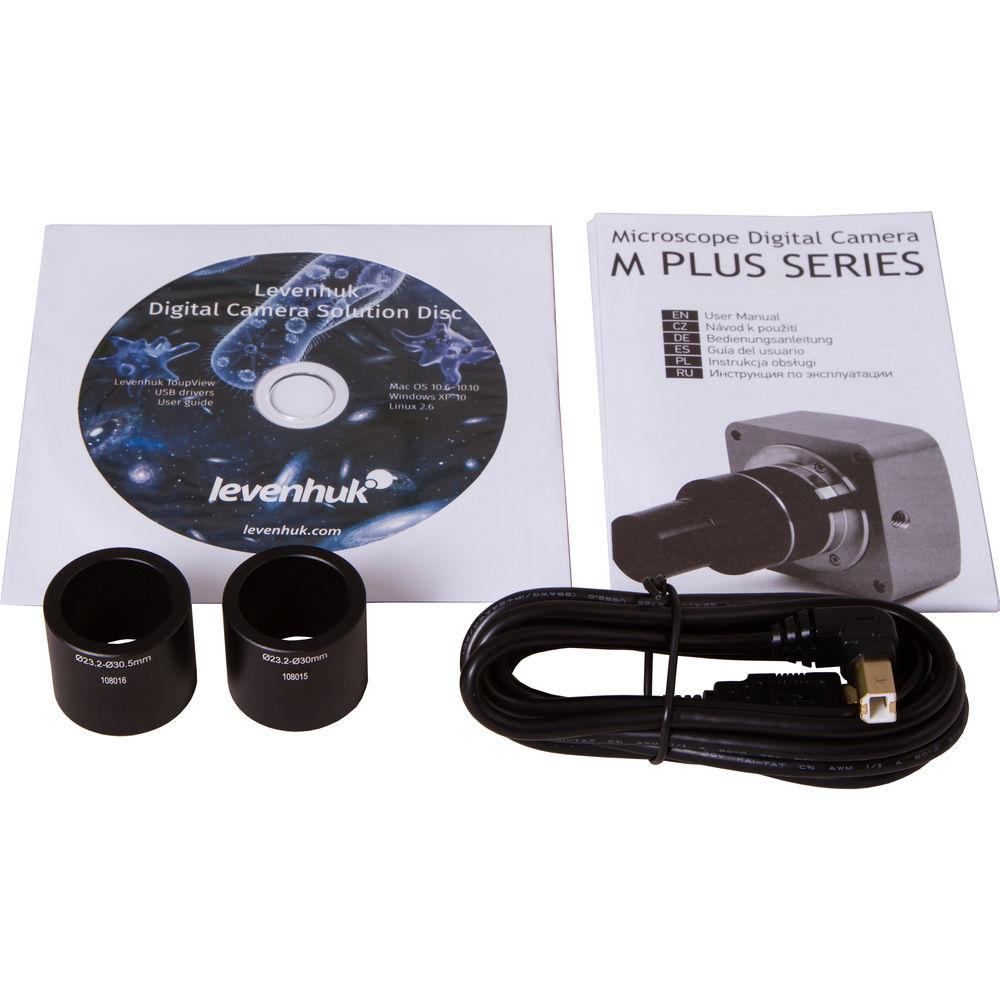

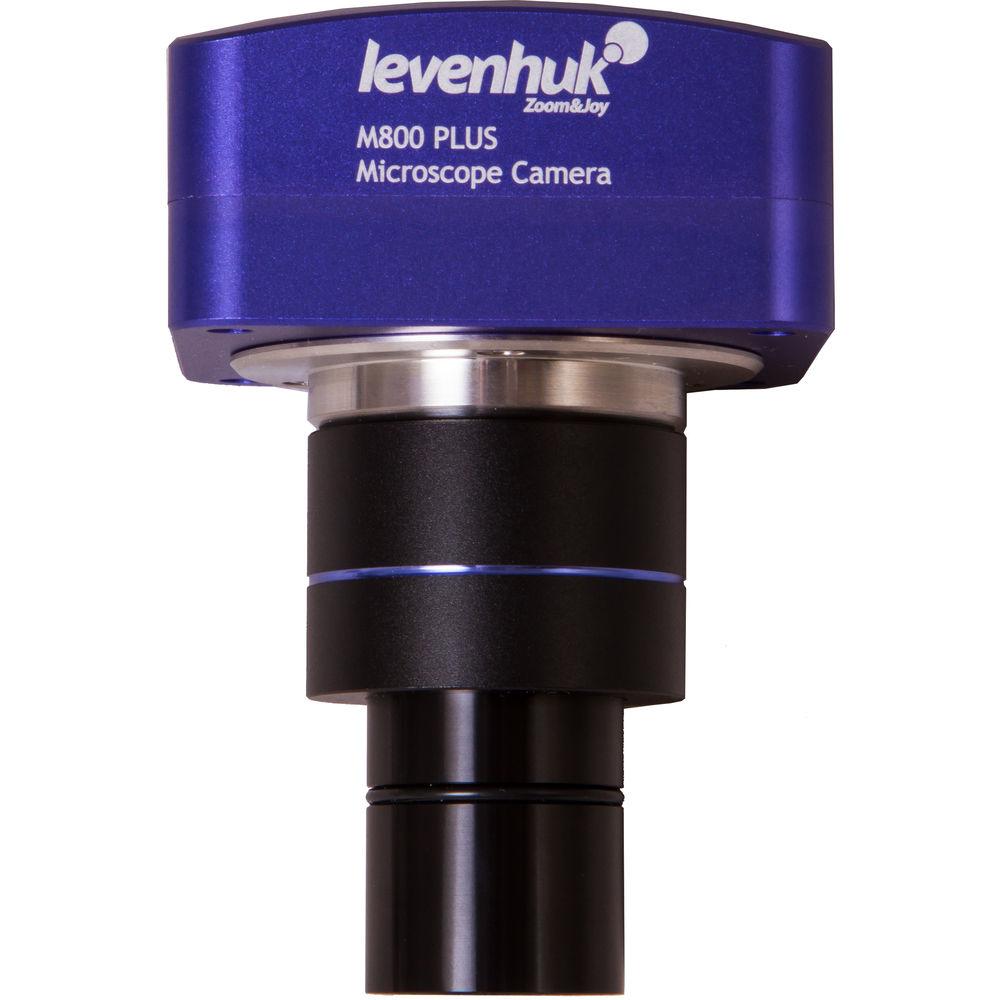

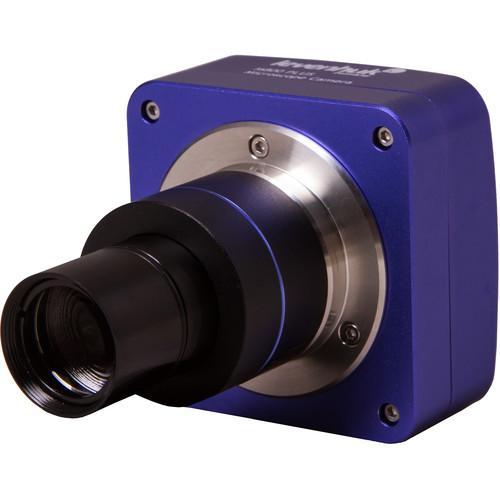

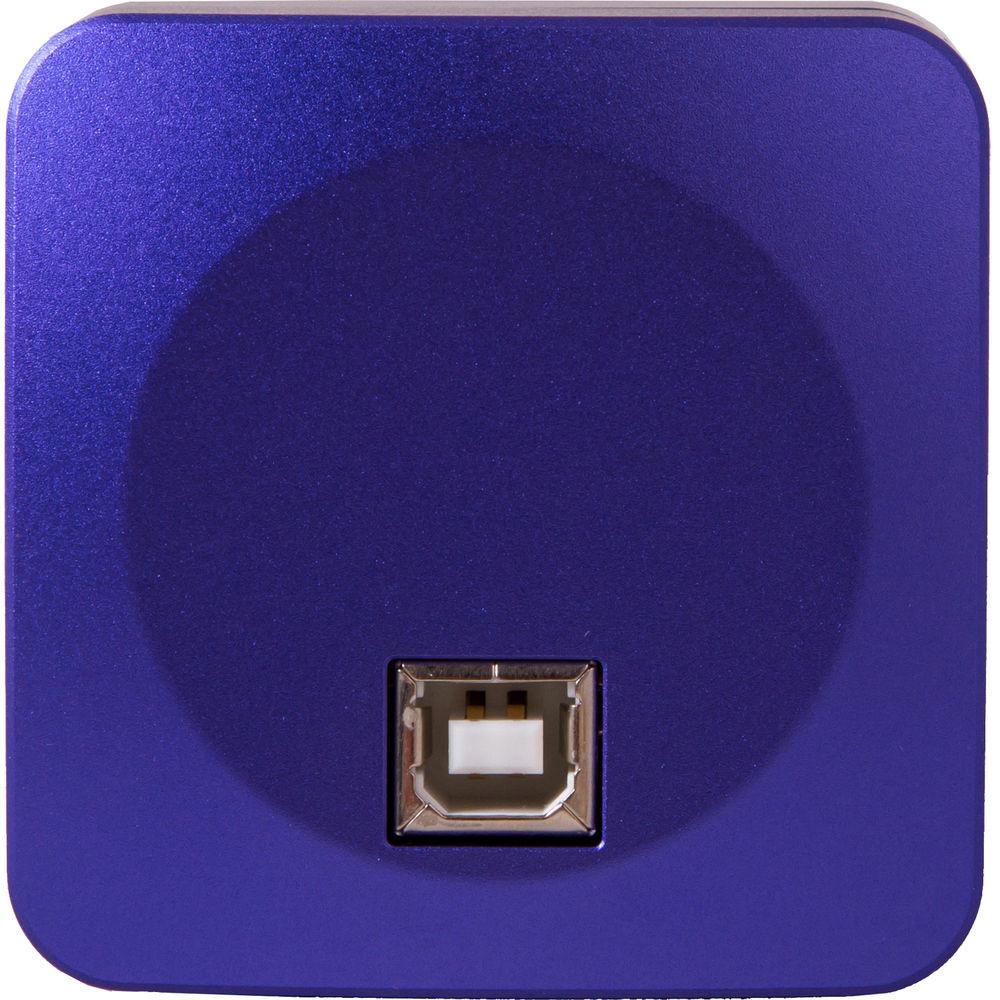

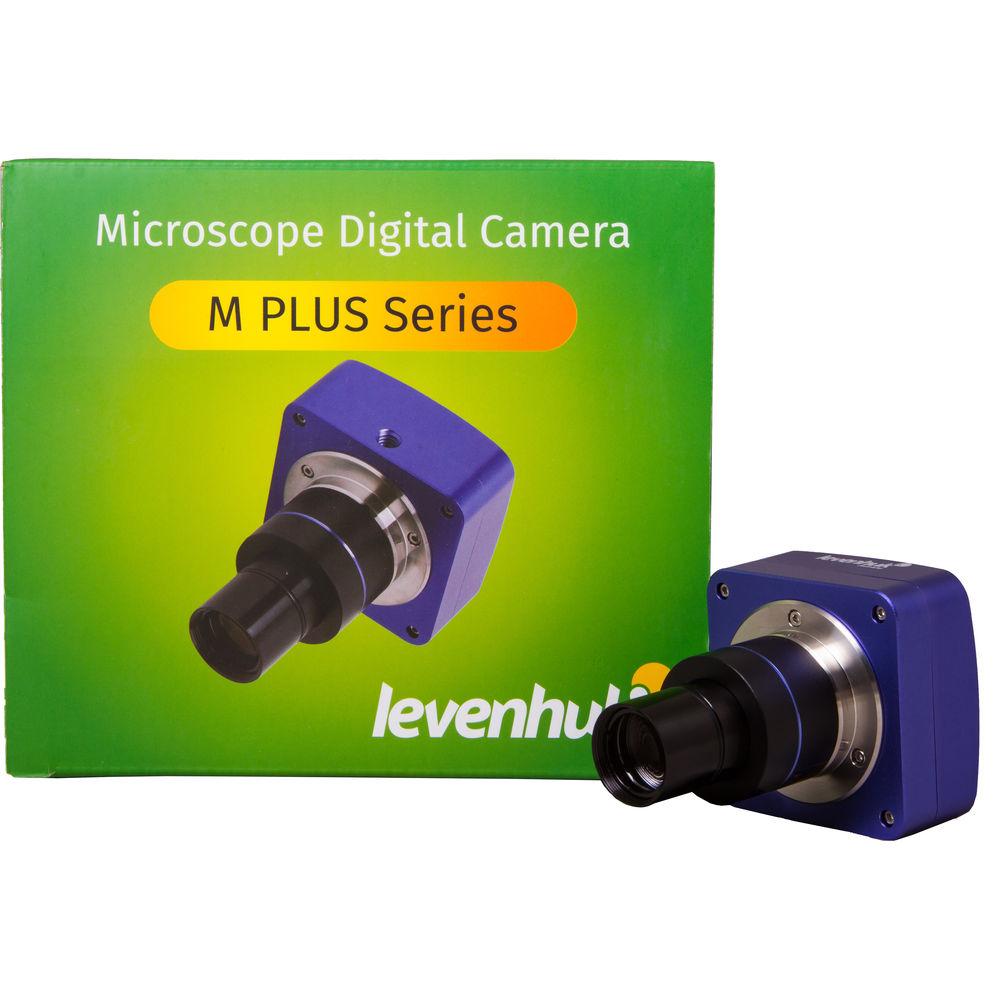

Product description Enhance your microscopy experience using the Levenhuk 8.0MP M800 PLUS Microscope Digital Camera. This camera is intended for researchers or enthusiasts whose work requires high-resolution imaging. It includes three adapters for connecting to microscope eyepieces with different tube diameters (23.2mm, 23.2-30mm, and 23.2-30.5mm), has a 8.0, 1/2.5'' CMOS sensor, and has an easy-to-use USB B port for connectivity to your computer. Using the included Levenhuk software (compatible with select versions of Windows, Mac OS, and Linux), you can view and capture color images and videos in a variety of formats. The included software also allows you to control settings such as white balance, exposure, brightness, and image size to achieve results that fit your needs. UPC: 611901505558 In the Box Levenhuk 8.0MP M800 PLUS Microscope Digital Camera (Blue) Adapter for 23.2mm Eyepieces Adapter for 23.2-30.5mm Eyepieces Adapter for 23.2-30mm Eyepieces Levenhuk Software CD USB B Power/Data Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 8.0MP M800 PLUS Microscope Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 70357 Specs | Compatibility | Microscope Eyepiece Tube Diameter: 23.2 mm, 23.2-30 mm, and 23.2-30.5 mm | | Sensor | 8.0 MP, 1/2.5'' CMOS sensor | | Pixel Size | 1.67 x 1.67 µm | | Exposure Time | 0.4-2000 ms | | Video Recording | Yes | | Image Formats | JPG, BMP, PNG, and TIF | | Video Formats | WMV, AVI, H.264, and H.265 | | Frame Rate | 3264 x 2448 Resolution: 1.9 fps
1600 x 1200 Resolution: 8 fps
800 x 600 Resolution: 27 fps | | Filter | Transmission Bandwidth: 380 - 650 nm | | Shutter | Electronic Rolling Shutter (ERS) | | White Balance | Auto, manual | | Exposure Control | Auto, manual | | Software | Levenhuk software | | Software Control | Image size, brightness, and exposure time | | Ports | Power/Data USB B | | System Compatibility | Operating System: Windows (32/64 bit) XP, Vista, 7, 8, and 10; Mac OS 10.12; Linux Ubuntu 14.04
CPU: IntelCore 2 or above
RAM: 2GB
Ports: USB 2.0
CD-ROM | | Construction | Housing: metal | | Operating temperature | 14 to 122°F / -10 to 50°C | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Package Weight | 1.16 lb | | Box Dimensions (LxWxH) | 6.7 x 5.9 x 2.7" |
