User Manual for Levenhuk 8x25 Rainbow Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 8x25 Rainbow Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 8x25 Rainbow Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

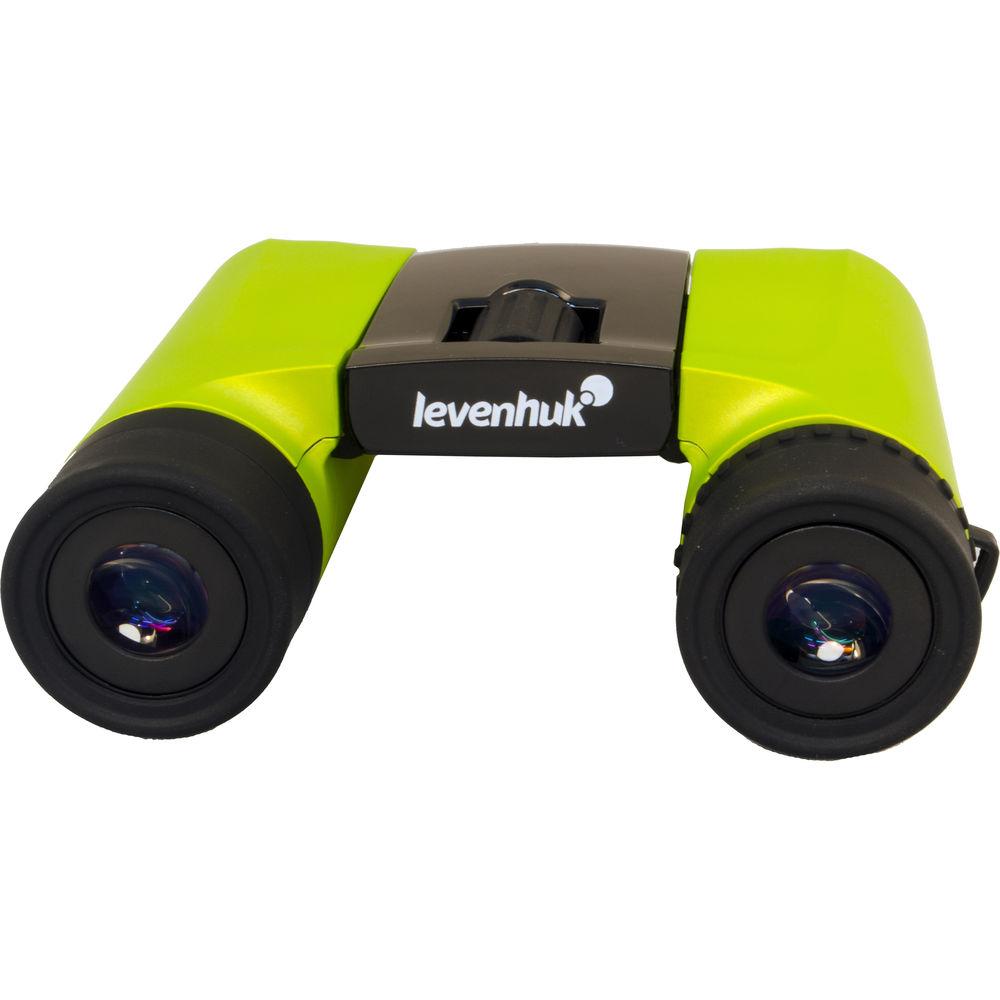

Product description The B&H Binocular Buying Guide Read More Designed to instantly become your constant companion, the Lime Levenhuk 8x25 Rainbow Binocular features a slim form-factor that easily fits in your pocket, pack, or purse without weighing you down. Optically, it's built with BAK4 roof prisms, anti-reflection multi-coated optics, and 7-element/3-group eyepiece lenses that work together to produce clear views with accurate color representation and minimal distortion across the entire wide-angle field of view.The bridge features dual hinges that allow the optical tubes to fold tightly under to give it a broad interpupillary distance range so a wide variety of people can easily use them - including children and young adults, and to minimize the size when not in use. The optical tubes are nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving between extreme temperature or environmental conditions. - Optical Performance
-
- 8x magnification
- 25mm objective lenses
- Compact roof prism light path
- High refractive index BAK4 prism glass produces a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection multi-coated optics maximize light transmission to improve color rendition, contrast, and image brightness
- 7-element/3-group eyepiece lens configuration
- Wide 61° apparent angle of view
- 399-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge/dual-hinge configuration
- Low-profile center focusing wheel maintains the overall compact and slim form-factor
- ±5 right eye dioptric correction
- Broad 40-76mm interpupillary distance adjustment range enables easy use by people with thin faces like children and young adults
- Twist-up rubber eyecups for comfortable use with or without eyewear
- 10.1mm eye relief
- 3.1mm exit pupil
- Construction Details
-
- Dual-hinge bridge design allows optical tubes to fold under for ultra-compact storage
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging
- Vibrant lime-colored optical tubes
- Ergonomically-placed indented finger rests improve grip stability
- Lightweight: 10 ounces

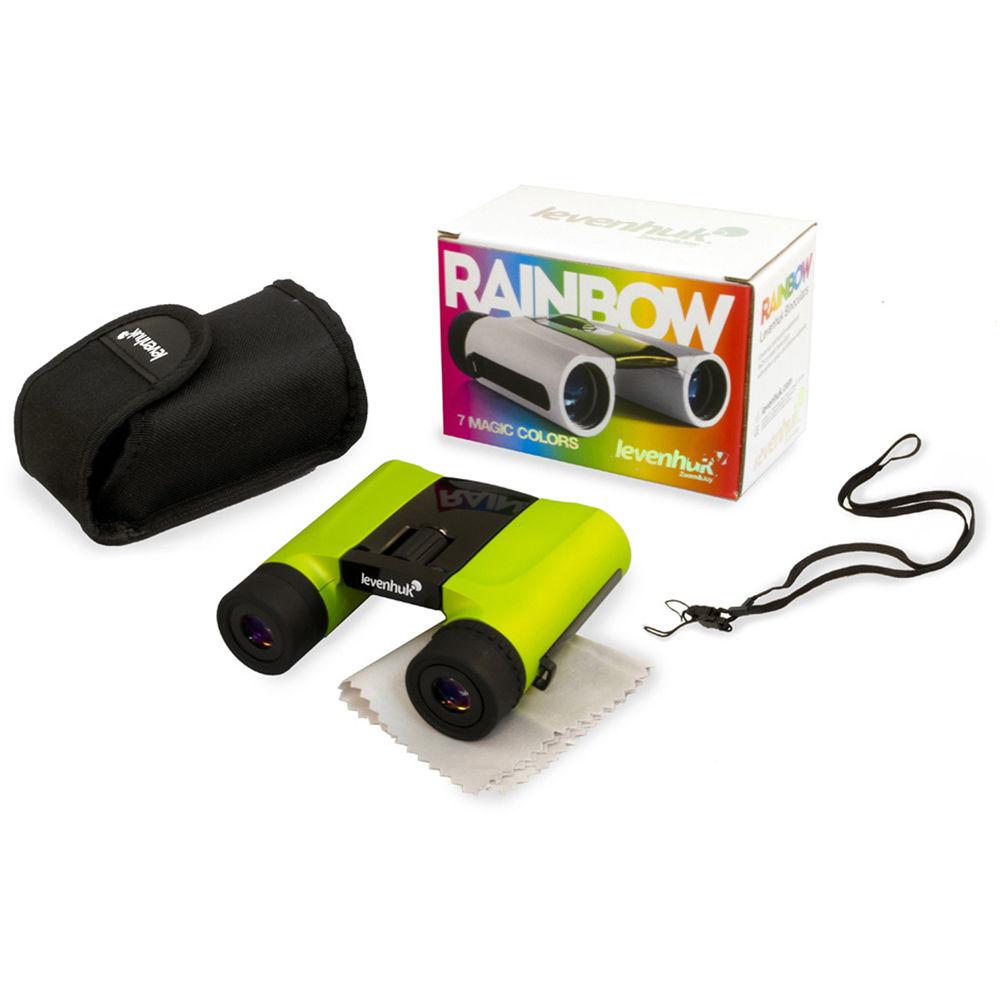

In the Box Levenhuk 8x25 Rainbow Binocular (Lime) Lens Cloth Lanyard Soft Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 8x25 Rainbow Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67691 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 25 mm | | Angle of View | 7.6° (actual) | | Field of View | 399.0' @ 1000 yd / 133.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5 m | | Exit Pupil Diameter | 3.1 mm | | Eye Relief | 10.1 mm | | Interpupillary Adjustment | 40 to 76 mm / 1.6 to 3" | | Dioptric Correction | ±5 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 3.9 x 2.6 x 1.8" / 10.0 x 6.5 x 4.5 cm | | Weight | 9.9 oz / 281 g |
