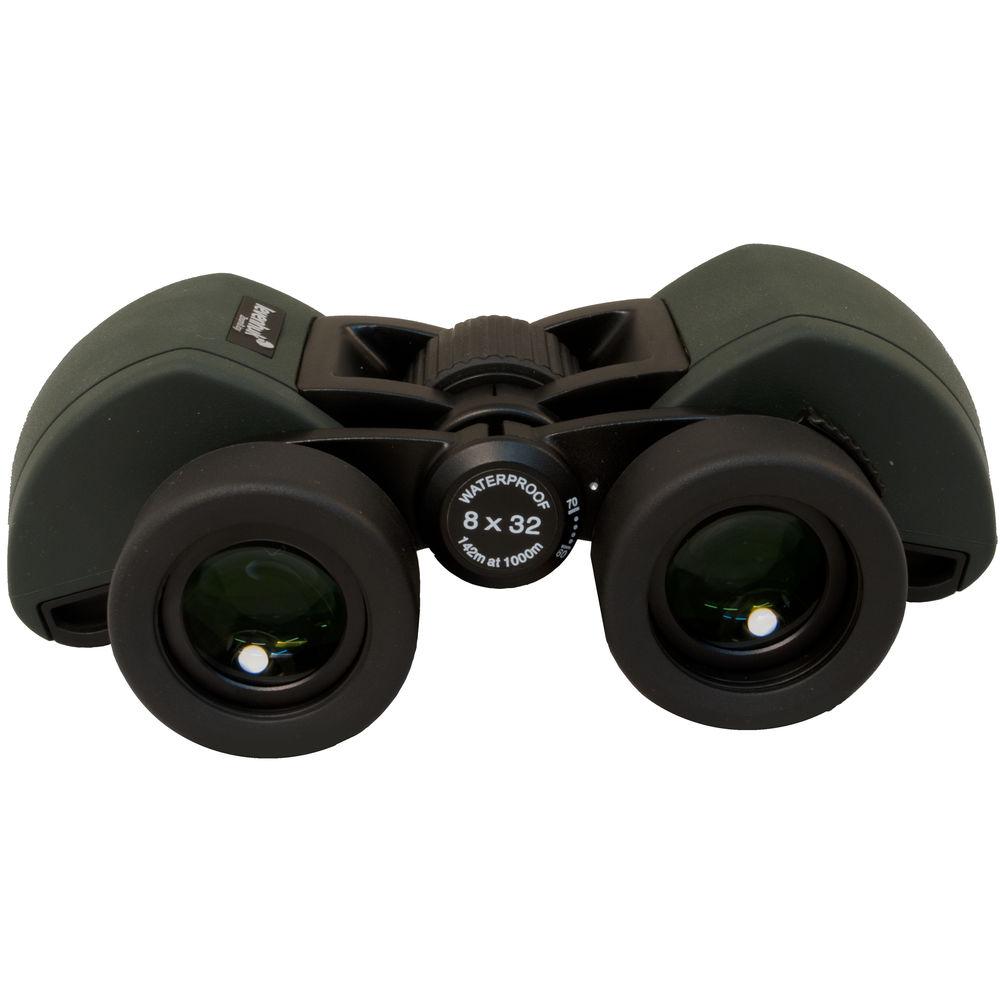

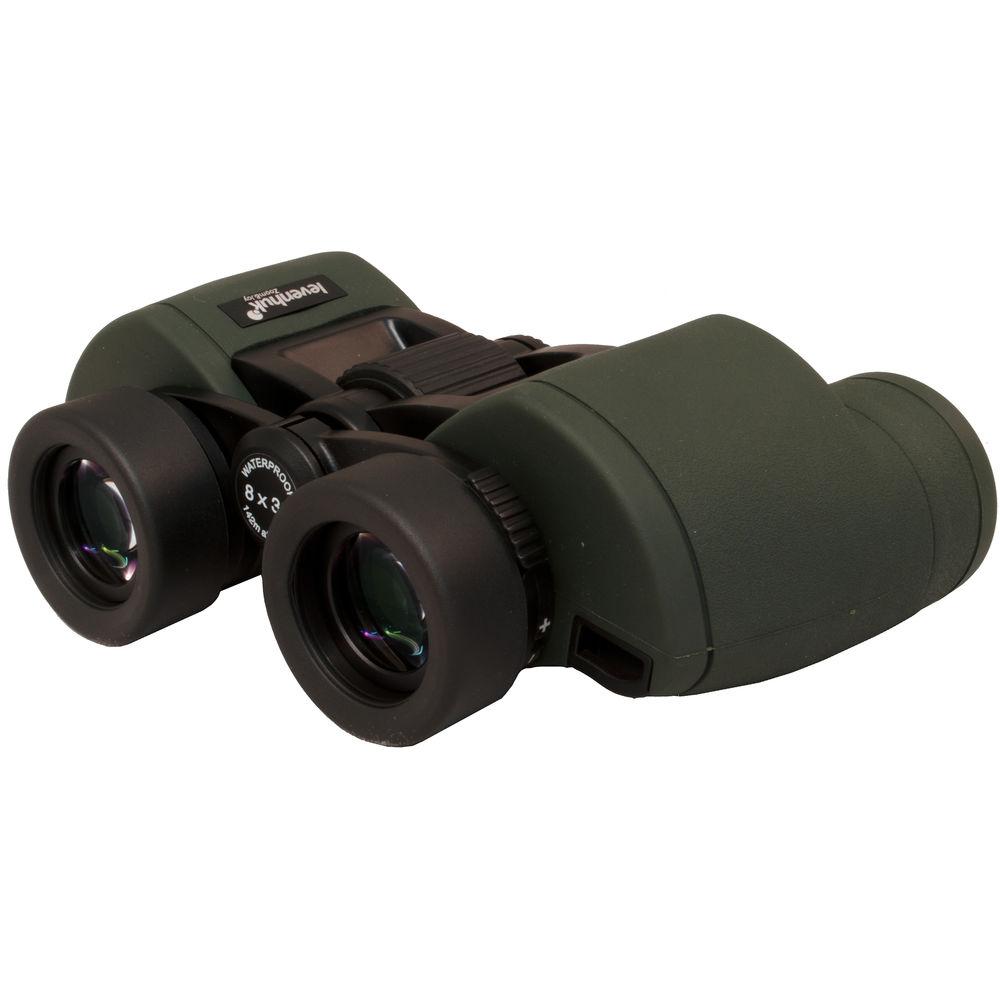

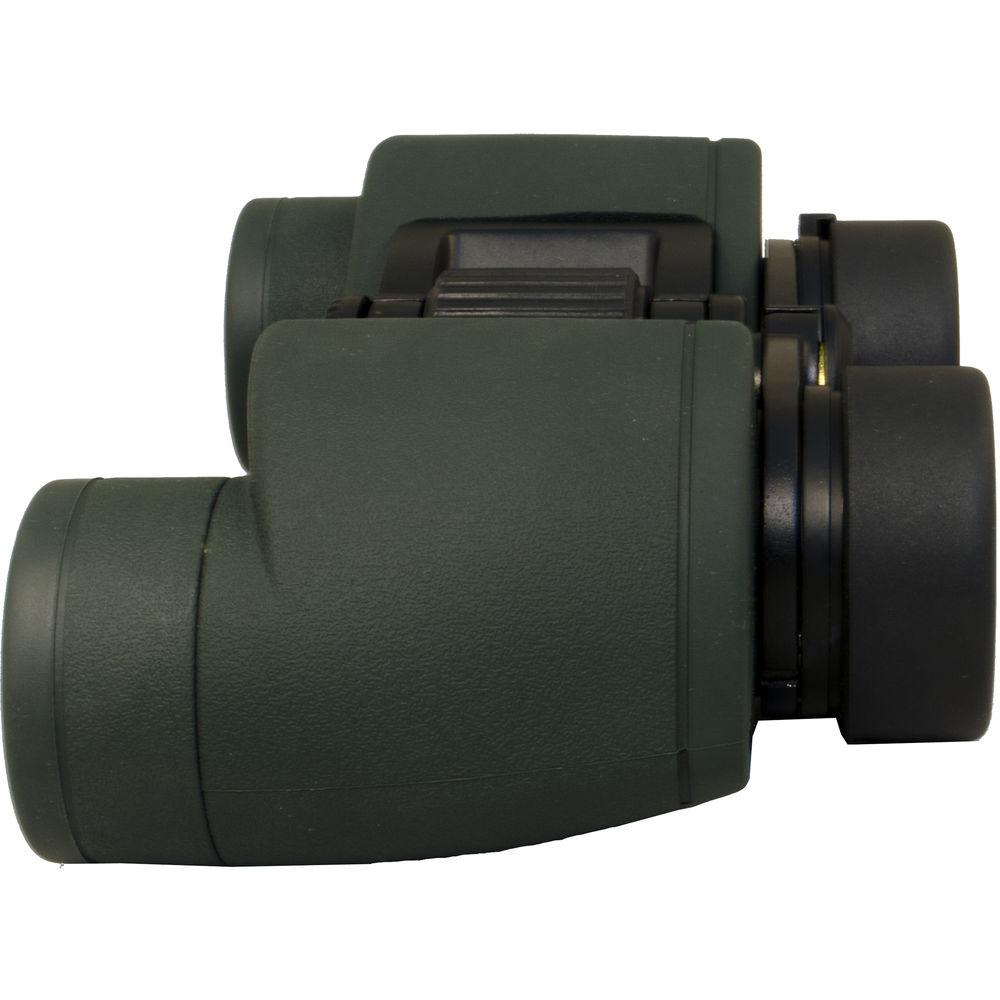

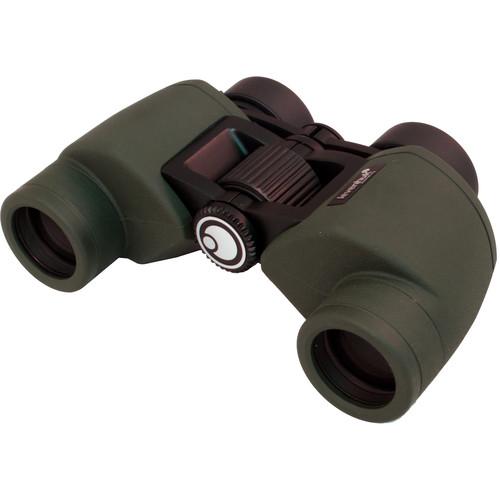

User Manual for Levenhuk 8x32 Sherman PRO Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 8x32 Sherman PRO Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 8x32 Sherman PRO Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More rttbbucdrfeuabbfzzqyx With an improved eyepiece lens configuration versus the mid-range PLUS series, the Levenhuk 8x32 Sherman PRO Binocular features a 5-element/3-group eyepiece to produce views that are clear and flat from edge to edge, making this an ideal optic for the outdoor enthusiast, world traveler, and sports spectator. The binocular is also outfitted with a wide angle of view, long eye relief, and a comfortable exit pupil to make long observation sessions comfortable.Engineered with BAK4 roof prisms, a 5-element/3-group eyepiece lens configuration, and anti-reflection fully multi-coated optics, the optical components work together to present an immersive observation experience by producing bright and clear high-contrast images with accurate color fidelity and limited distortion across its field of view, while helping to boost its light-gathering abilities and push the limits of its use as the light fades.Complementing the optical performance is a chassis that is wrapped in a slip-resistant rubber armor to add grip security and stability in cold or wet weather - even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to fogging when moving through extreme temperature changes. Finally, its large center focusing wheel, wide ±6 dioptric correction, and twist-up eyecups enable precise focusing and eye relief for just about any user regardless of the individuals optical prescription. - Optical Performance
-
- 8x magnification enables detailed observations without restricting the field of view
- 32mm diameter objective lenses gather more light than compact models for improved low-light performance
- Traditional Porro prism optical path helps to maintain a rich depth of field versus comparable roof prisms
- Anti-reflection fully multi-coated optics produce neutral and accurate color fidelity across the entire visible spectrum, and improves contrast and image brightness
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- 2-element/1-group objective lens configuration and 5-element/3-group eyepiece lens configuration improves image quality by reducing lens-edge distortion
- Wide 65° apparent angle of view produces an immersive observational experience
- 426-foot field of view at 1000 yards
- Use and Handling
-
- Large textured and slip-resistant center focus wheel is easy to manipulate, even when wearing gloves
- ±6 right eye dioptric correction range for precise focus adjustment to most user's individual prescription
- 60-70mm interpupillary adjustment range
- Twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to limit vibration and arm fatigue
- Long 18mm eye relief makes long-duration glassing sessions more comfortable
- Comfortable 4mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes
- Protective rubber armoring provides a slip-resistant grip, especially in cold or wet weather

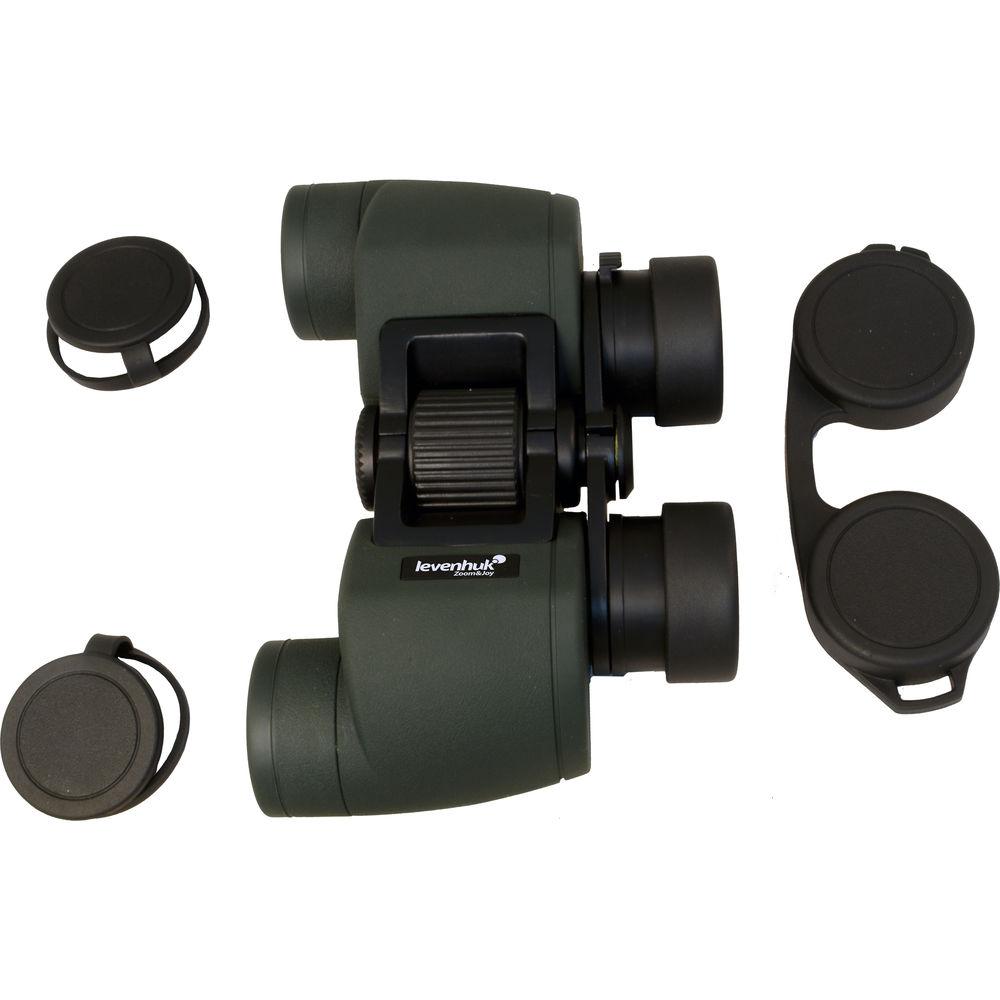

- Tethered one-piece eyepiece rainguard and stay-on/flip-down objective lens caps are easy to put on and take off without the risk of losing them
- Broad 5 to 104°F (-15 to 40°C) operating temperature range
- Weight: 25 ounces

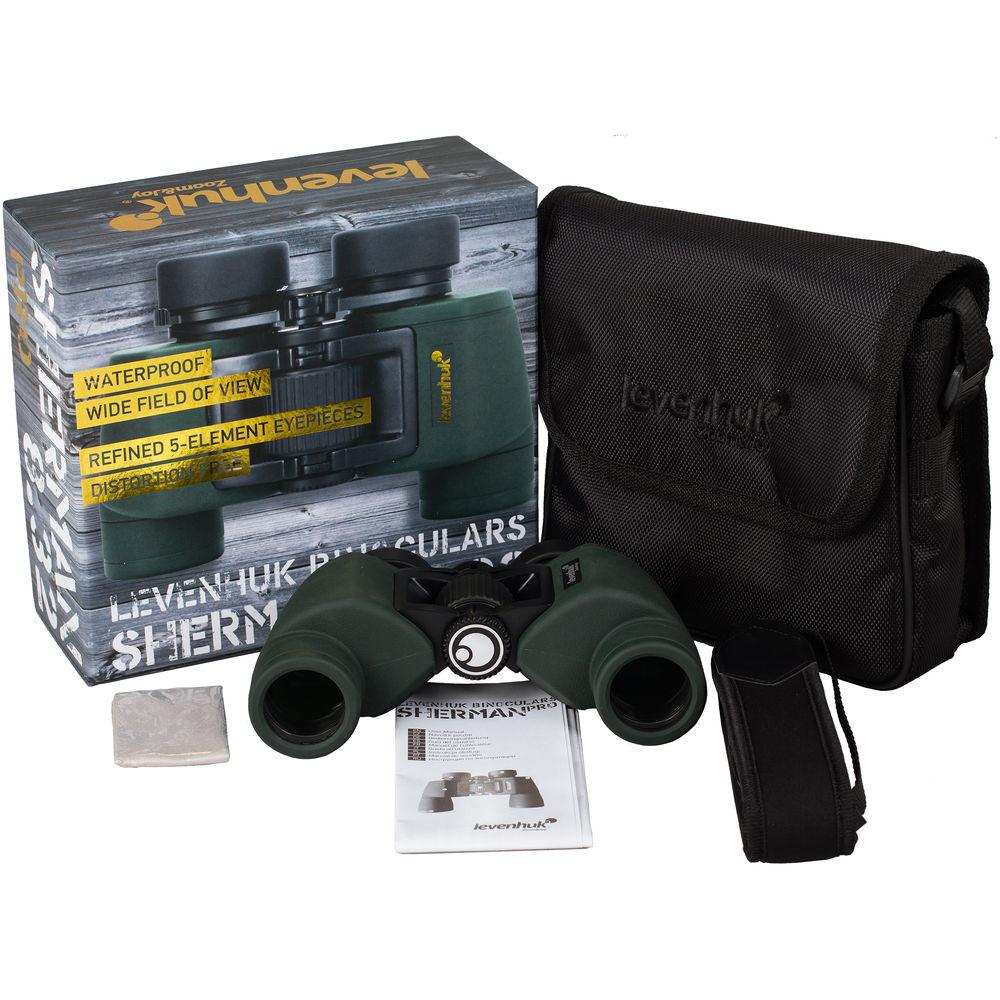

In the Box Levenhuk 8x32 Sherman PRO Binocular Lens Cloth Padded Neck Strap Soft Carrying Case One-Piece Ocular Rainguard 2 x Tethered Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 rttbbucdrfeuabbfzzqyx A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 8x32 Sherman PRO Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67724 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 8.1° (actual) | | Field of View | 425.2' @ 1000 yd / 141.7 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" | | Dioptric Correction | ±6 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.2 x 4.4 x 2.3" / 18.2 x 11.2 x 5.8 cm | | Weight | 24.69 oz / 700.0 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
