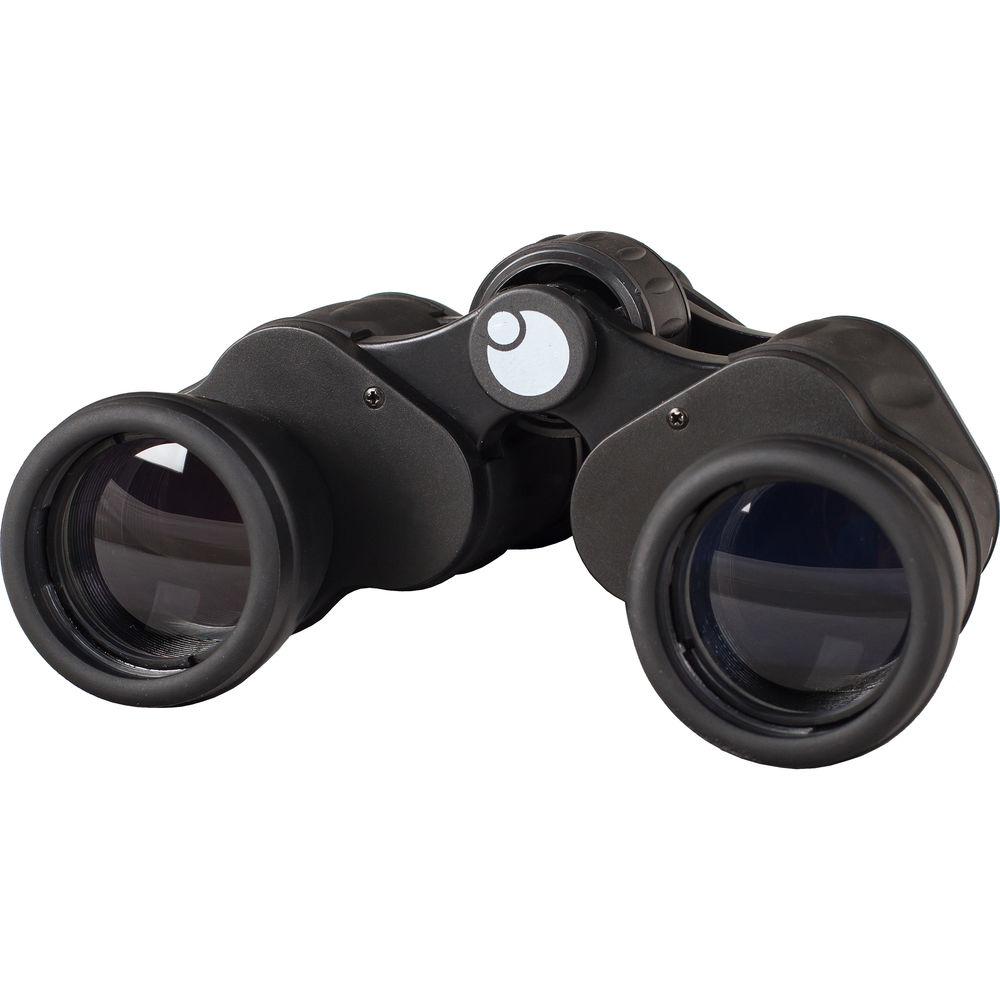

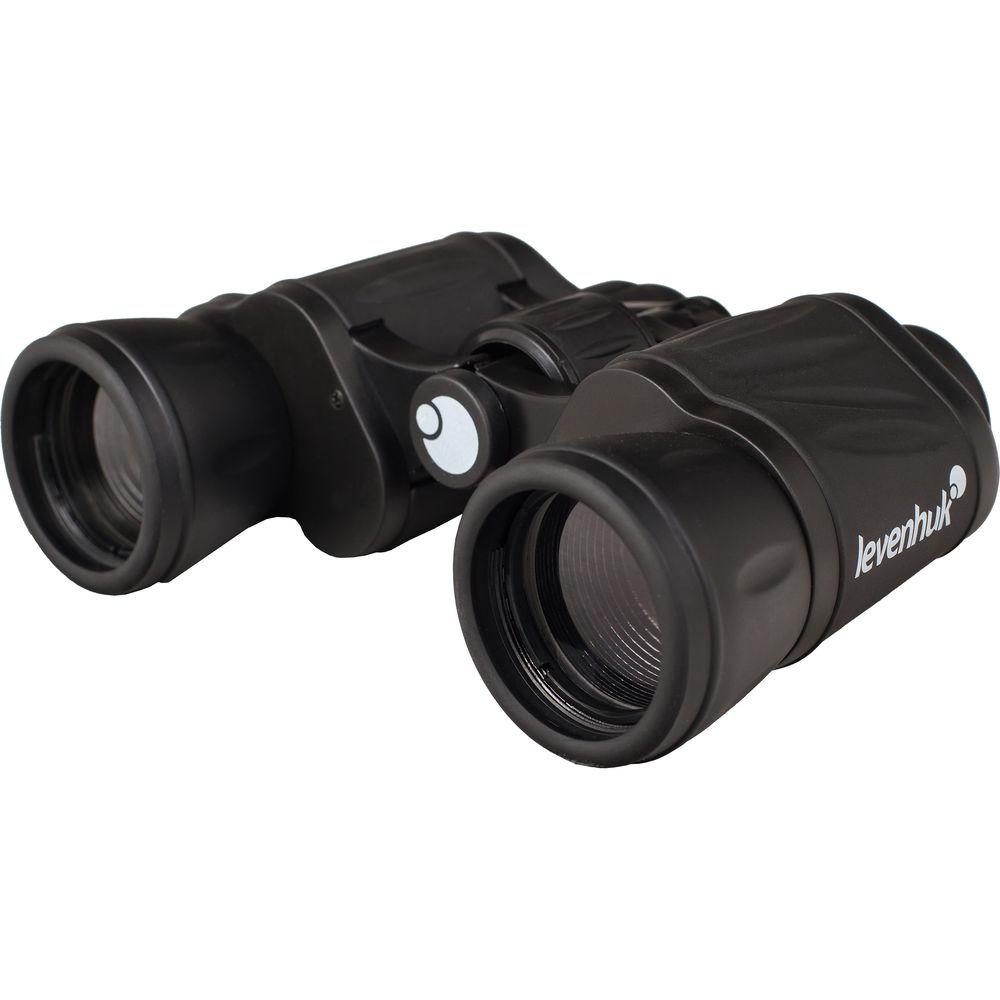

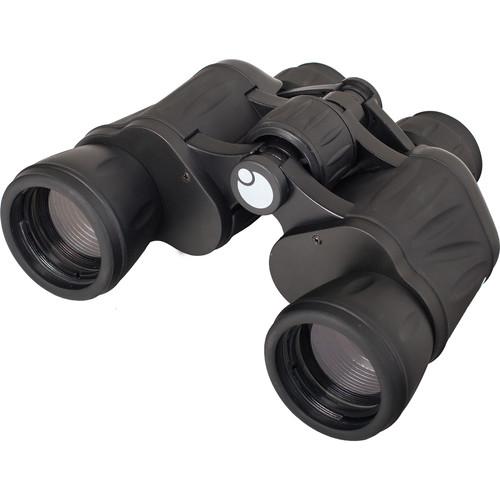

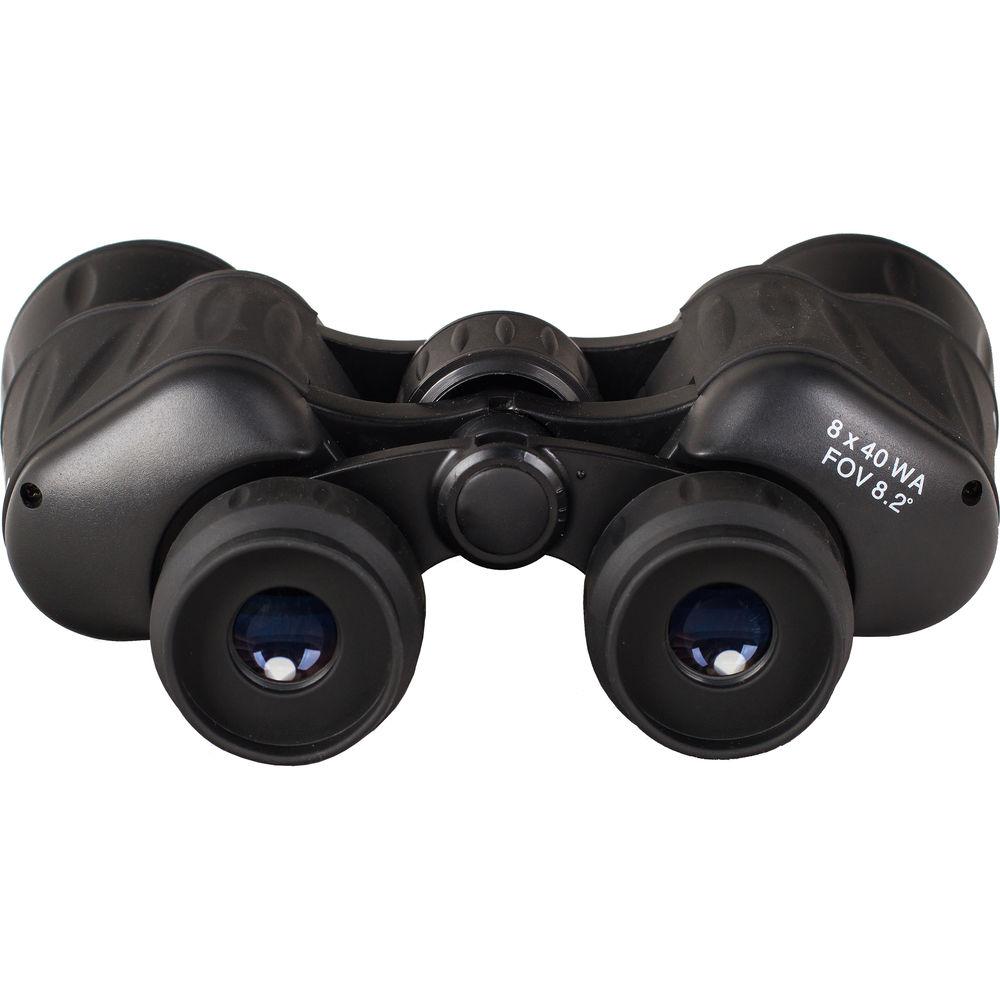

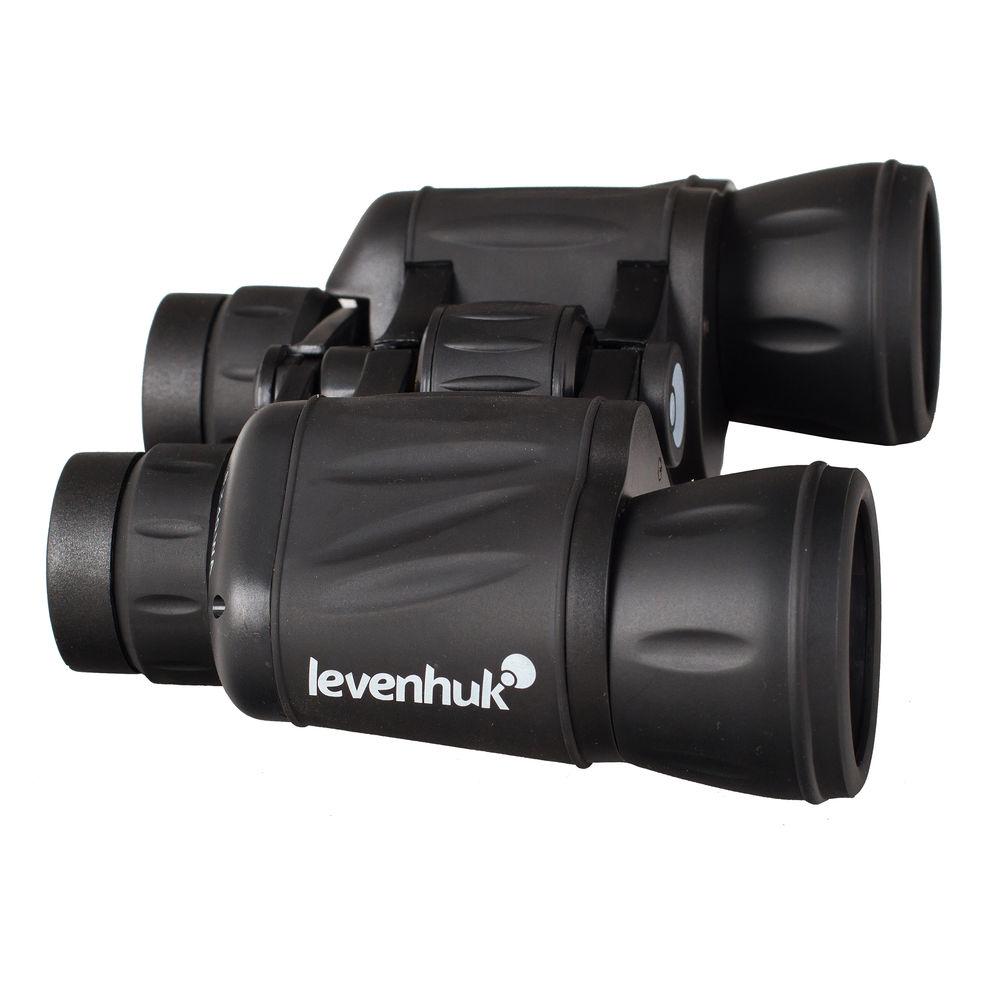

User Manual for Levenhuk 8x40 Atom Porro Binocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 8x40 Atom Porro Binocular
- Product category: Binoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Binoculars
 |
User manual for the Levenhuk 8x40 Atom Porro Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More wybzeuadwdcvbscsuuuzwvcuerbysbebe Outfitted with a magnification and objective lens diameter that birders, hunters, outdoor enthusiasts, and sightseers prefer, the Levenhuk 8x40 Atom Porro Binocular is built with a moderate magnification that, when combined with the objective lens diameter, translates to a wide exit pupil that ensures comfortable use in all light conditions - even at dawn and dusk. This iteration of the Atom is built using traditional BK7 Porro prisms and a wide field of view to give users an immersive observational experience with a rich depth field and accurate color representation. The optical tubes are wrapped in a protective rubber armor that provides a solid slip-resistant grip, with finger indents for added grip security. A large center focusing wheel makes it easy to bring subjects into crisp focus, and the Atom can be tripod mounted for fatigue-free use using an optional adapter. - Optical Performance
-
- Comfortable 8x magnification
- 40mm objective lenses
- Traditional BK7 Porro prisms
- Fully coated optics improve light transmission to improve color rendition, contrast, and sharpness
- Wide 64° apparent angle of view
- 420-foot field of view at 1000 yards
- Use and Handling
-
- Large textured slip-resistant center focusing wheel is easy to manipulate, even when wearing gloves
- ±3 right-eye dioptric correction
- 56-72mm interpupillary distance adjustment range
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 12mm eye relief
- Wide 5mm exit pupil ensures coverage of pupils when dilated in low light
- Construction Details
-
- Protective armor provides a slip-resistant grip
- Finger indents improve grip security and stability
- O-ring sealed to be waterproof
- Tripod mountable with optional adapter

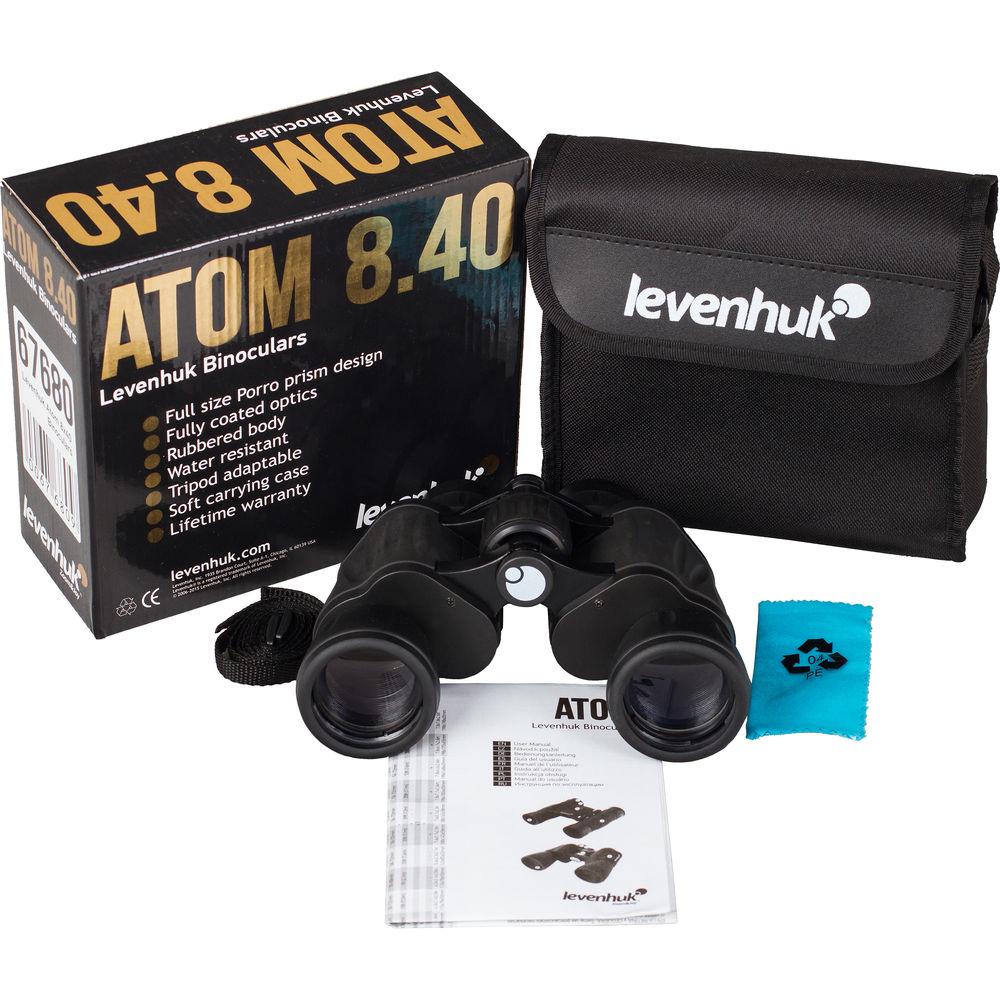

In the Box Levenhuk 8x40 Atom Porro Binocular Lens Cloth Neck Strap Carrying Pouch 2 x Eyepiece Caps 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 wybzeuadwdcvbscsuuuzwvcuerbysbebe A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 8x40 Atom Porro Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 67680 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 40 mm | | Angle of View | 8.0° (Actual) | | Field of View | 420.0' @ 1000 yd / 140.0 m @ 1000 m | | Minimum Focus Distance | 39.4' / 12 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 12.0 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.4 x 5.7 x 2.3" / 18.8 x 14.5 x 5.8 cm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 3.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
