User Manual for Levenhuk 8x42 Wise Plus Monocular Click to enlarge the picture
Contents of the user manual for the Levenhuk 8x42 Wise Plus Monocular
- Product category: Monoculars Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Monoculars
 |
User manual for the Levenhuk 8x42 Wise Plus Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

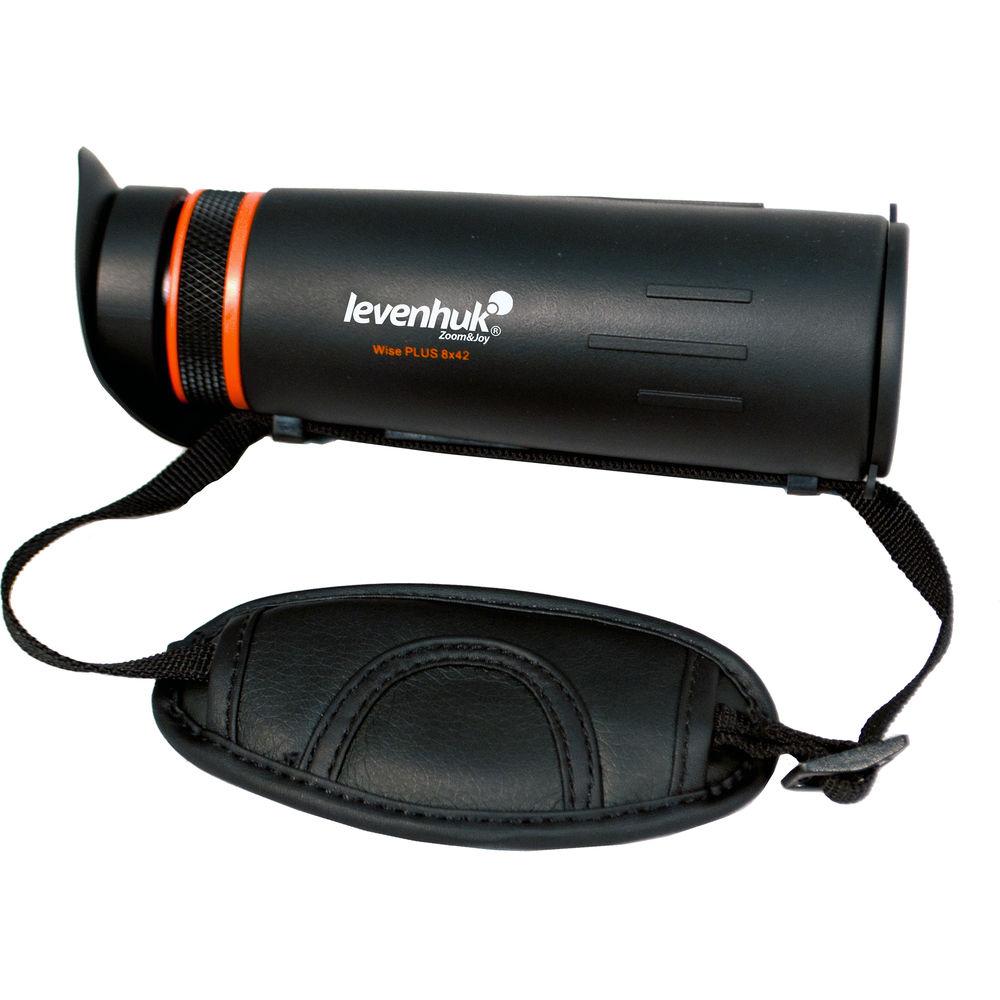

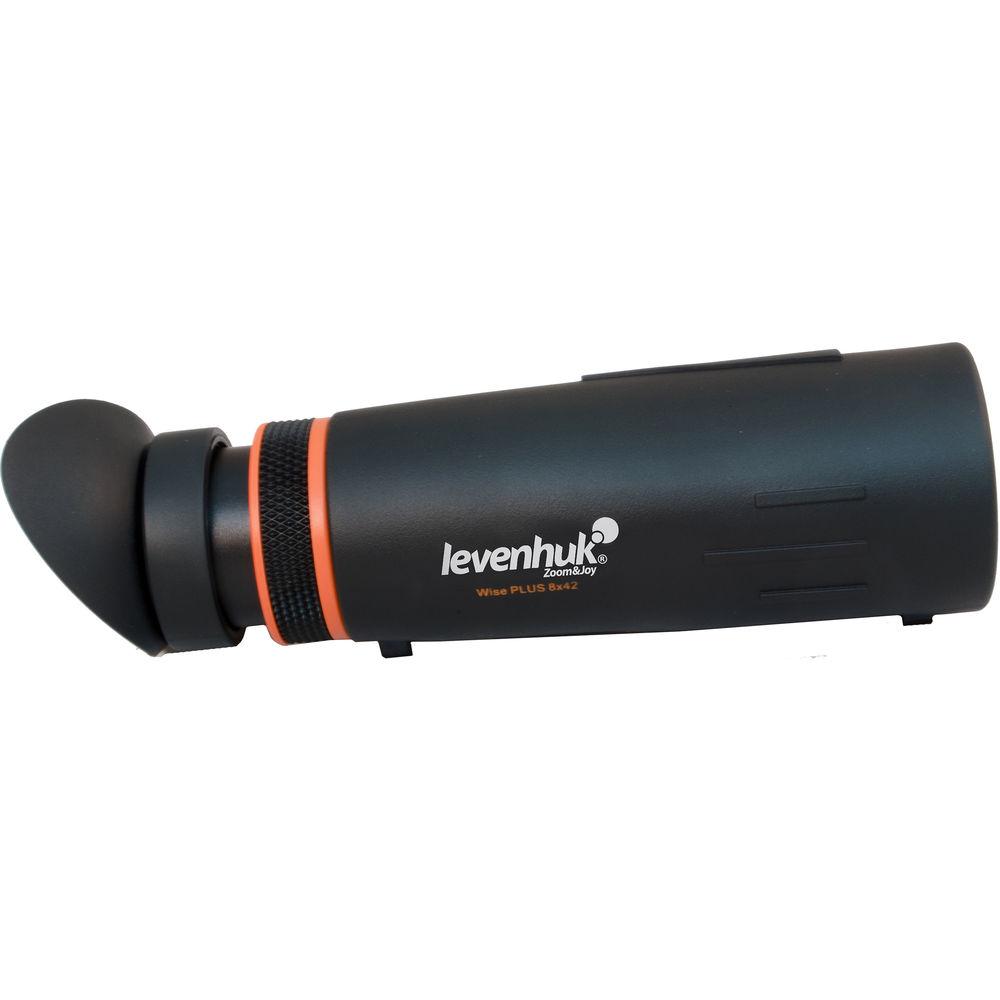

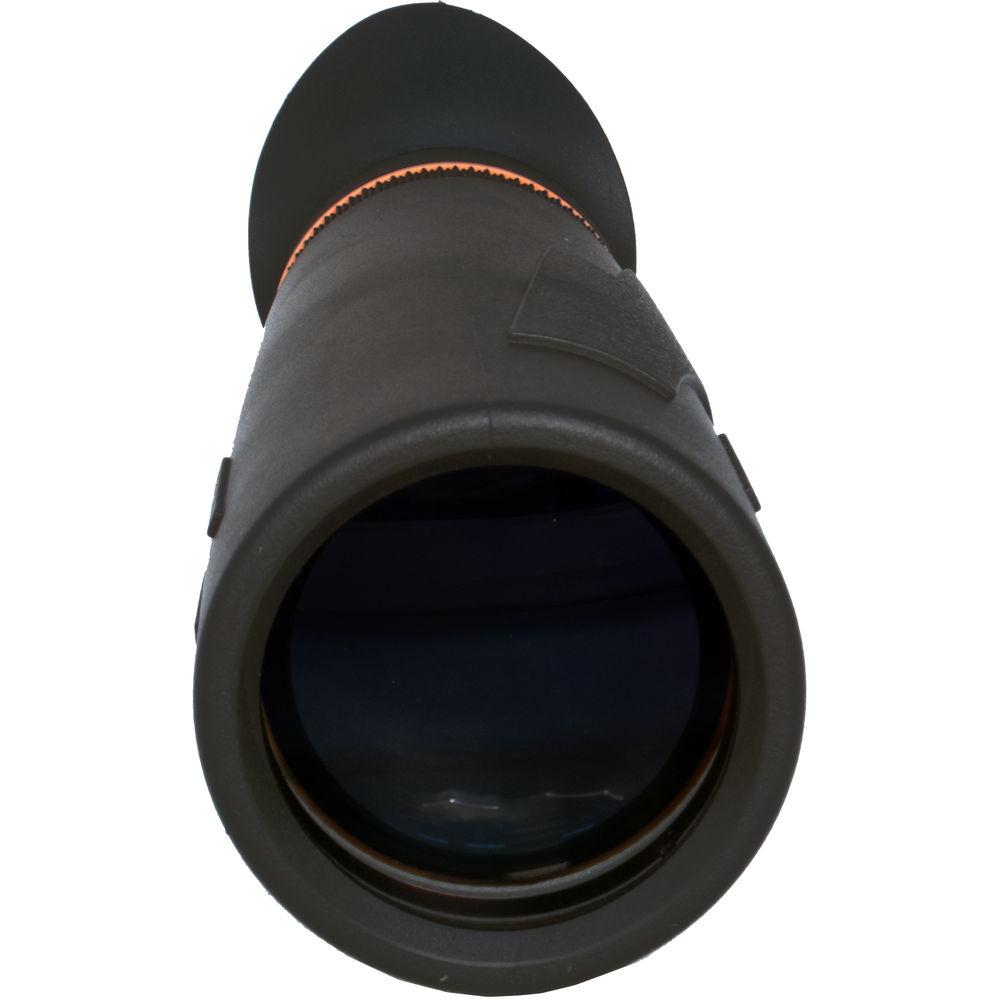

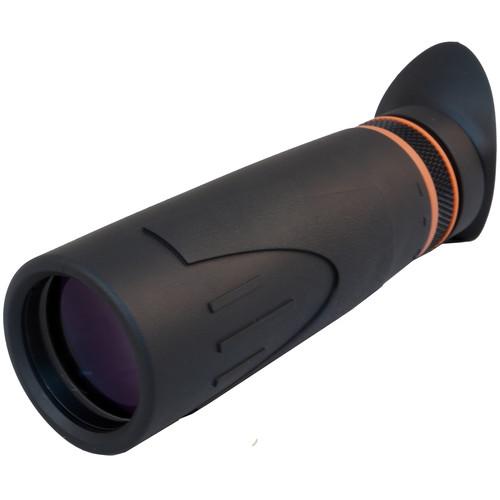

Product description Featuring a compact and ergonomic design Levenhuk's 8x42 Wise Plus Monocular can make a great addition to your travel gear. Its 8x magnification and a 50° apparent angle of view make it a great optic for enhancing most of your outdoor activities or urban explorations and its wide 42mm objective generates bright images, even in low light. While the BAK4 optical glass serves as a transmission medium for delivering vivid images, the fully multi-coated lens surfaces reduce glare and improve image clarity. Additionally, the optical system has a close focus of 13.1' and a diopter adjustment from +4 to -4.

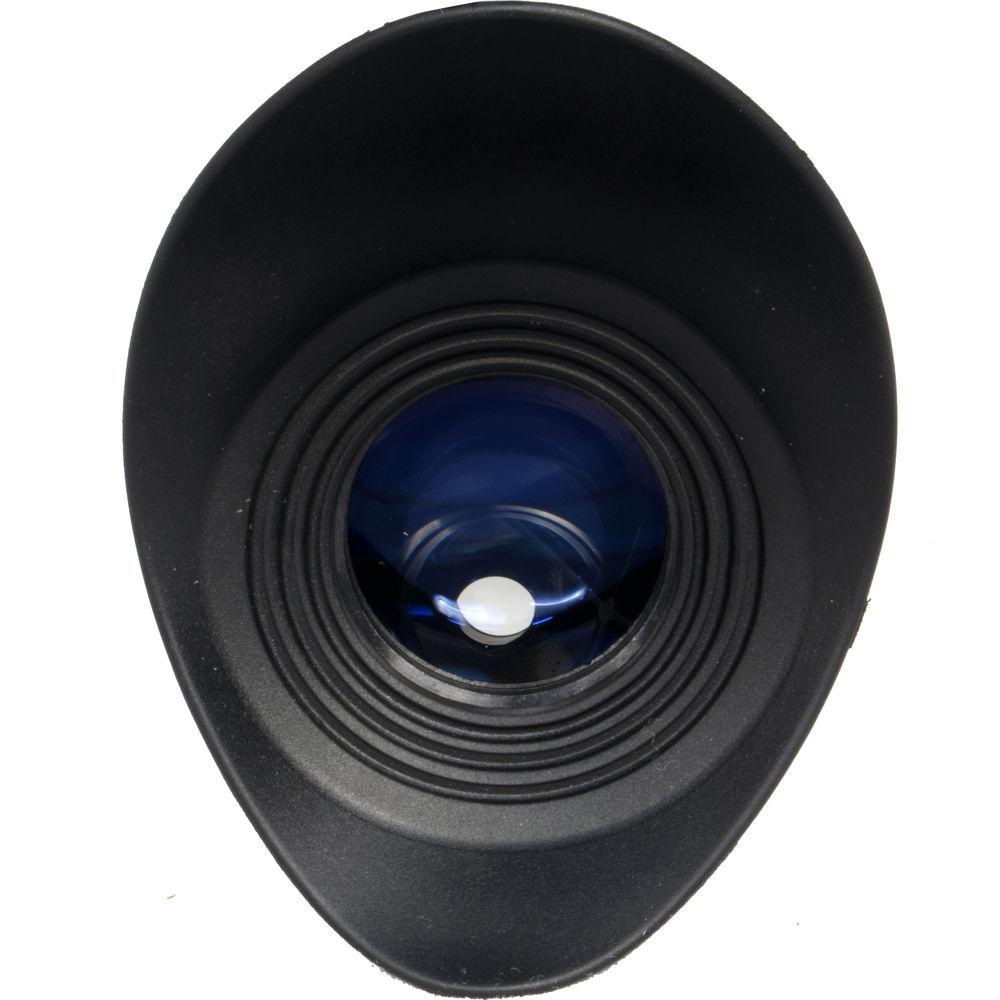

The polymer housing is ergonomic and has a rubber covering to ensure a slip-free grip. It offers a textured ring for adjusting focus (diopter) and a winged rubber eyecup for a comfortable contact with the orbit of your eye. Also included with the monocular are an objective lens cap, a strap, and a carry pouch. - Optical Performance
-
- Roof prism design
- BAK4 optical glass delivers crisp and vivid images
- Fully multi-coated lenses reduce glare and improve image contrast, clarity, and brightness
- 8x magnification is ideal for most outdoor activities or urban exploration
- 42mm objective diameter provides a wide aperture for improving image brightness in low light
- 330' at 1000 yards linear field of view
- 13.1' close focus distance
- Use and Handling
-
- +4 to -4 diopter adjustment
- 18mm eye relief
- 5.3mm exit pupil
- Construction Details
-
- Ergonomic body design
- Rubber covering provides a non-slip grip
- Rubber winged eyecup
- Objective lens cap included
- Nitrogen-filled, fogproof
- Impact-resistant
- Waterproof

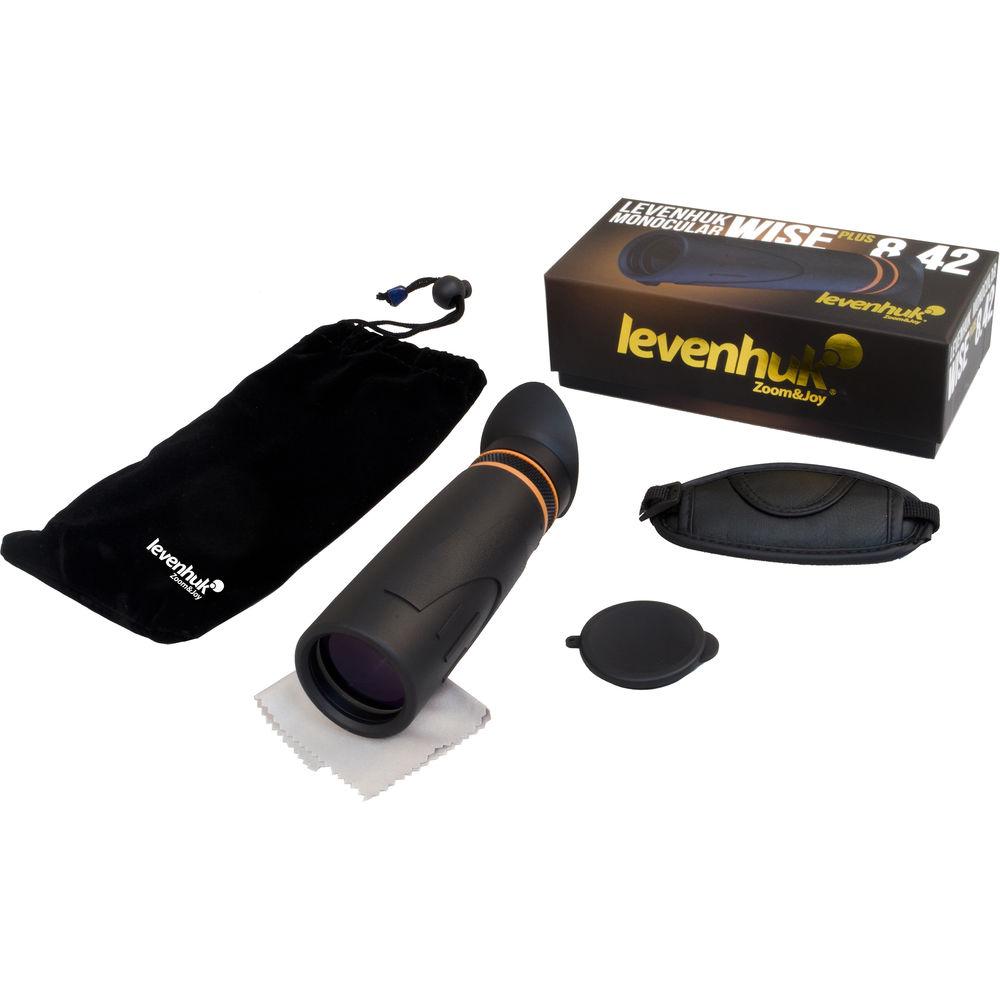

In the Box Levenhuk 8x42 Wise Plus Monocular (Matte Black) - Pouch
- Shoulder Strap
- Objective Lens Cap
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk 8x42 Wise Plus Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Wise Specs | Prism System | Roof | | Optical Glass | BAK4 | | Magnification | 8x | | Objective Diameter | 42mm | | Optical Coatings | Fully multi-coated | | Close Focus Distance | 13.1' / 4.0 m | | Linear Field of View | 330' @ 1000 yd / 110 m @ 1000 m | | Angular Field of View | 6.3° | | Exit Pupil | 5.3 mm | | Eye Relief | 18 mm | | Diopter Adjustment | +4 to -4 | | Resolution Limit | Resolution Threshold: 7.0 arcseconds | | Operating Temperature | 5 to 140°F / -15 to 60°C | | Waterproofing | Waterproof and fogproof, nitrogen-filled | | Dimensions | 6.3 x 2.0" / 15.7 x 5.1 cm | | Weight | 10.9 oz / 309.0 g | | | | Package Weight | 1.065 lb | | Box Dimensions (LxWxH) | 7.45 x 3.6 x 2.55" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
